Accessories for enclosures
A8030508

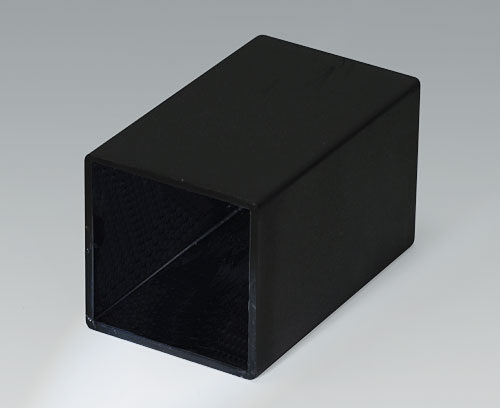

POTTING BOXES, Vers. III
Impact strong case. With elastic side panels. Therefore only partly resistant to deformation.
Supply1 case
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A8030508
Please select the product details you would like to include in the PDF.
Add to my basket
Customising options for A8030508
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Length
30.3 mm
Width
30.3 mm
Height
50.3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 81 KB
- AutoCAD DWG-File 244 KB
- AutoCAD DXF-File 676 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 31 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 0000732F.x_t 22 KB
- 0000732F.step 53 KB
- 0000732F.sat 33 KB
Weight/1 part
11 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Other country
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A8030508 and don't forget to request a quotation!
