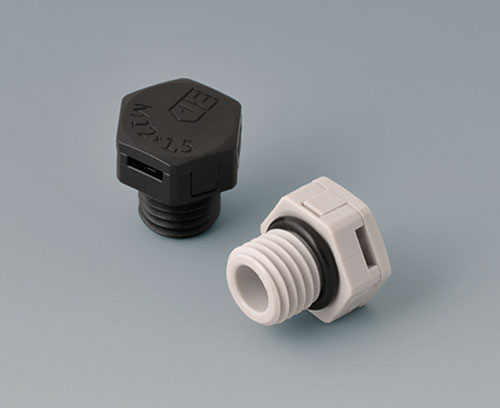

C2304969 Pressure equalisation element M12x1.5

C2304969

Pressure equalisation element M12x1.5

Pressure equalisation elements with a high air flow rate protect sensitive electronics. A temperature drop, for example due to changing weather conditions, can lead to a build-up of negative pressure inside sealed enclosures. As a result, water and dirt may be drawn in through the seals, potentially damaging the electronics.
The pressure equalisation elements feature a metric connection thread. Suitable lock nuts with M12 threads from the OKW portfolio are available for installation inside the enclosures.

Theoretical air flow rate RQ: 10 l/h - 0.07 bar
Water ingress point: > 0.83 bar (dynamic WEP, 30 seconds)
Temperature range: -40°C / +100°C.
Seal material: Water and oil-repellent PES membrane
Protection rating: IP66, IP69
Note: The pressure equalisation element will not function if it is blocked by dust and/or submerged in water.

Supply

1 pressure compensation element with sealing ring

  • Components/Accessories

Accessory

C2312117 Counternut M12x1.5

C2312117

Counternut M12x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Close

C2312117

Counternut M12x1.5
product added to your basket
PA 6
light grey RAL 7035
  • Technical Data
  • Purchasing Data
Protection class
Colour
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
