Accessories for enclosures
A1416469

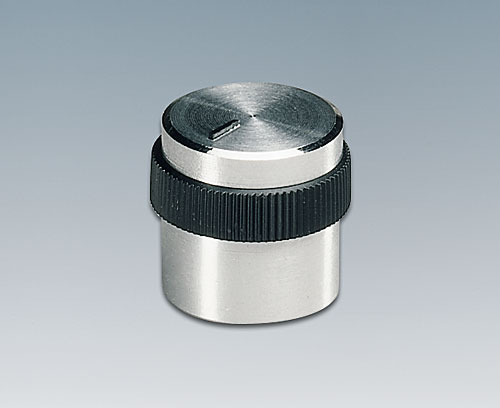

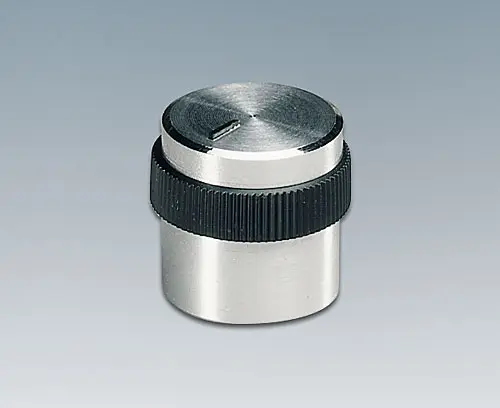

TUNING KNOB, with lateral screw fixing
Suitable for rotary potentiometer with round shaft ends. With aluminium cap. Black marking.
Supply1 tuning knob
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A1416469
Please select the product details you would like to include in the PDF.
Add to my basket
Customising options for A1416469
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Diameter
15.9 mm
Height
15.2 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 111 KB
- AutoCAD DWG-File 201 KB
- AutoCAD DXF-File 723 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 195 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027525.x_t 673 KB
- 00027525.step 1,382 KB
- 00027525.sat 1,089 KB
Weight/1 part
3 g
Customs tariff number
(OKW product)
(OKW product)
84879090
Country of manufacture
Taiwan
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A1416469 and don't forget to request a quotation!
