A1438261

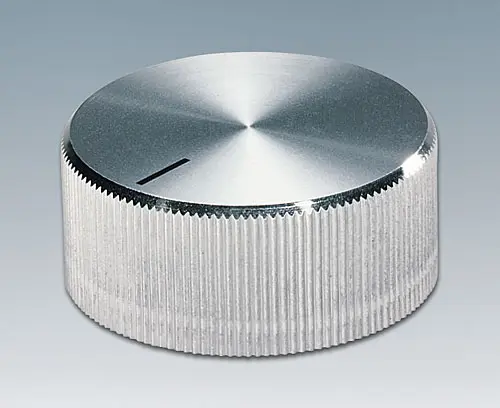

TUNING KNOB, with lateral screw fixing

Suitable for rotary potentiometer with round shaft ends. With aluminium cap. Black marking.

Supply

1 tuning knob

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for A1438261

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory

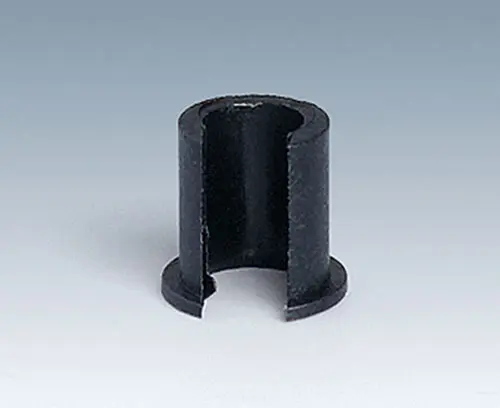

A1300040 Insert

A1300040

Insert Universally usable for reducing the center hole from 6 to 4 mm.

Supply 1 reduction insert

A1300040

Insert
product added to your basket

black RAL 9005
7.4x7mm
Bore hole 4mm

Customising options for A1438261

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
brilliant
Standards
RoHS compliant
REACH compliant
Diameter
38.9 mm
Height
16 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
17 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Taiwan
