B4308238

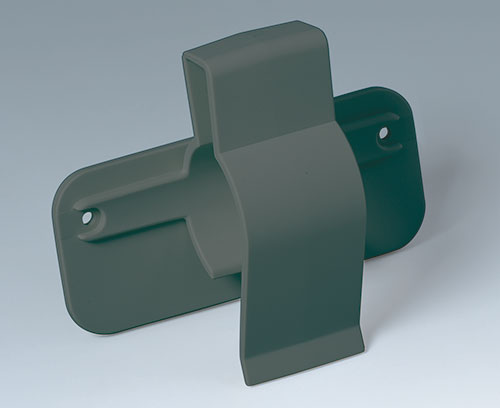

Holding clamps

For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply

1 holding clamp, assembly kit

  • 应用于
  • 按客户要求修改加工
AltText

B4208208

CARRYTEC S Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

关闭

B4208208

CARRYTEC S
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
lava
222x205x80mm
IP 54 opt.
AltText

B4210208

CARRYTEC M Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

关闭

B4210208

CARRYTEC M
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
lava
270x247x91mm
IP 54 opt.
AltText

B4210228

CARRYTEC M slim version Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply Top and bottom parts, TPE handle pad, assembly kit

关闭

B4210228

CARRYTEC M slim version
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
lava
270x247x42mm
IP 54 opt.
AltText

B4213208

CARRYTEC L Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

关闭

B4213208

CARRYTEC L
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
lava
348x303x117mm
IP 54 opt.

Customising options for B4308238

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 采购有关数据
材料
颜色
lava
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
50 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
