固定支架、导轨固定件、圆管固定件
Scroll

固定支架、导轨固定件、圆管固定件

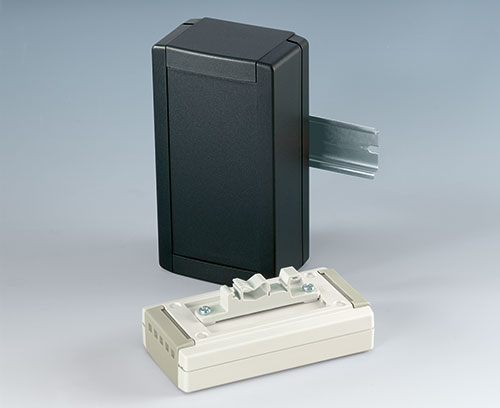

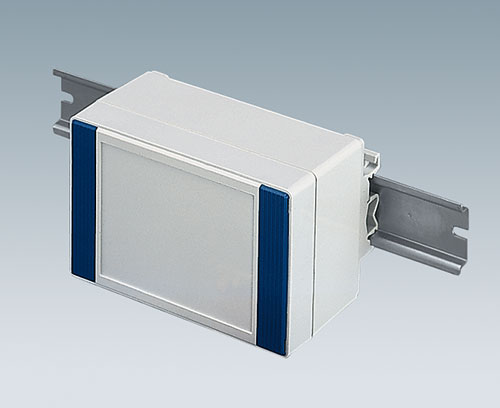

  • DIN 标准导轨固定件根据 DIN EN 60715 TH35 和 G32

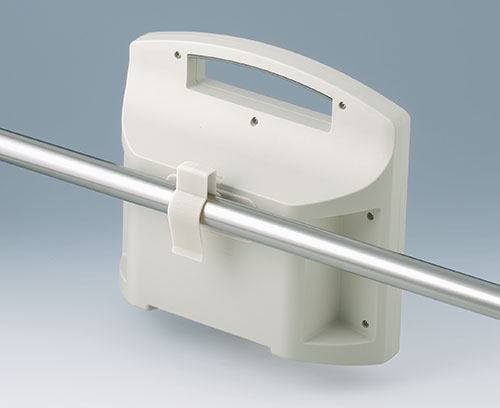

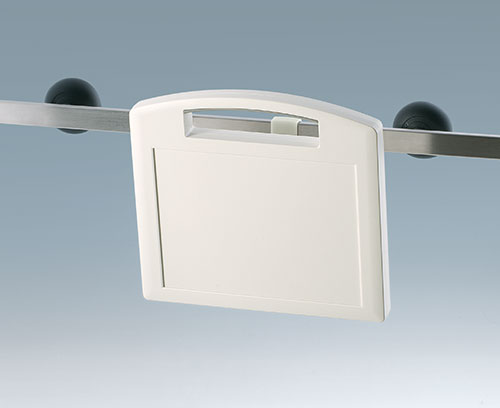

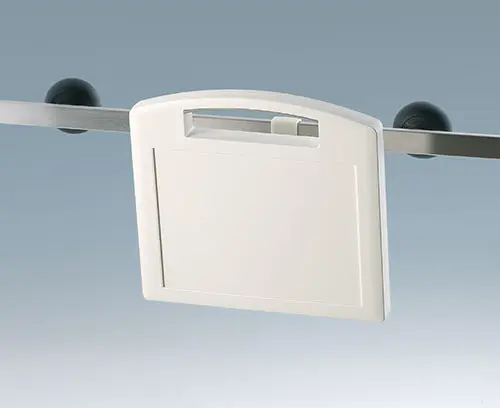

  • 用于安装于圆管的卡夹，直径至 ø 32 mm 或标准导轨根据 DIN EN ISO 19054

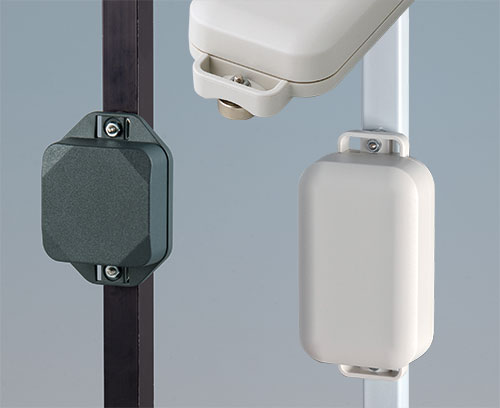

  • 安装于桅杆或管材上的支架块 - 多功能应用方式
PDF 导出

  • 选择所有项目
  • 按客户要求修改加工
A9325018 Pole/mast mounting bracket

A9325018

Pole/mast mounting bracket

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.

Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.

Supply 1 pole/mast mounting bracket

关闭

A9325018

Pole/mast mounting bracket
产品已添加到关注清单中
ASA (UL 94 HB)
anthracite grey RAL 7016
100x100x20mm
B1300017 Fastening element for DIN-Rails

B1300017

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

关闭

B1300017

Fastening element for DIN-Rails
产品已添加到关注清单中
PA 6
off-white RAL 9002
B1300019 Fastening element for DIN-Rails

B1300019

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

关闭

B1300019

Fastening element for DIN-Rails
产品已添加到关注清单中
PA 6
black RAL 9005
B4308237 Holding clamps

B4308237

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

关闭

B4308237

Holding clamps
产品已添加到关注清单中
PA 6
off-white RAL 9002
B4308238 Holding clamps

B4308238

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

关闭

B4308238

Holding clamps
产品已添加到关注清单中
PA 6
lava
B6811751 DIN rail adapter

B6811751

DIN rail adapter Universal suspension element suitable for small plastic enclosures. Suitable for DIN EN 60715 (TH35, TH15 and G32). 2 screws for case assembly for wall thickness 3 mm. Locating holes see drawing.

Supply 1 piece, 2 screws

关闭

B6811751

DIN rail adapter
产品已添加到关注清单中
PA 66 (UL 94 V-0)
black RAL 9005
C2201088 Fastening elements to DIN-Rails

C2201088

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60 715 TH35. For ROBUST-BOX width 80.

Supply 2 fastening elements, assembly kit

关闭

C2201088

Fastening elements to DIN-Rails
产品已添加到关注清单中
PA 6
light grey RAL 7035
C2203128 Fastening elements to DIN-Rails

C2203128

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 120.

Supply 2 fastening elements, assembly kit

关闭

C2203128

Fastening elements to DIN-Rails
产品已添加到关注清单中
PA 6
light grey RAL 7035
C2204168 Fastening elements to DIN-Rails

C2204168

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 160.

Supply 2 fastening elements, assembly kit

关闭

C2204168

Fastening elements to DIN-Rails
产品已添加到关注清单中
PA 6
light grey RAL 7035

产品类型用于 固定支架、导轨固定件、圆管固定件

如何体现您的特殊产品？ 如有需要，我们执行所有必要的修改和精加工，提供组装完毕的机盒。
