壁挂套件、固定件

壁挂套件、固定件

通用壁挂套件或固定件,用于小型塑料机盒的墙壁外置安装。

  • 选择所有项目
  • 按客户要求修改加工

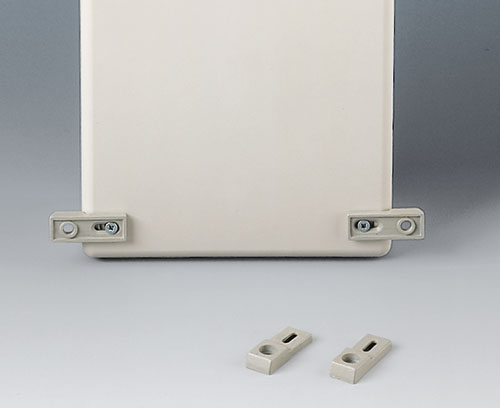

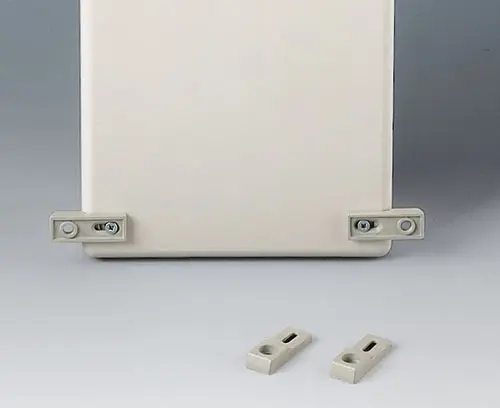

A9204108 Wall mounting brackets

A9204108

Wall mounting brackets Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.

Supply 4 wall mounting brackets

关闭

A9204108

Wall mounting brackets
产品已添加到关注清单中
PA 6
pebble grey RAL 7032

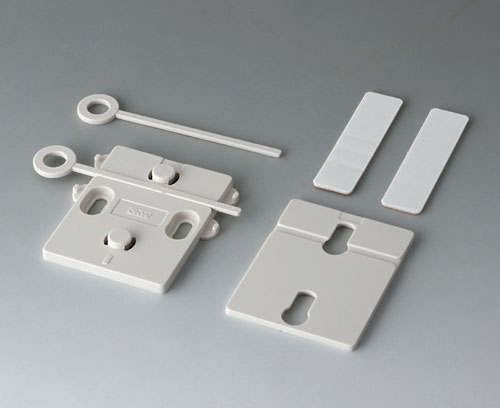

A9305017 Wall suspension elements

A9305017

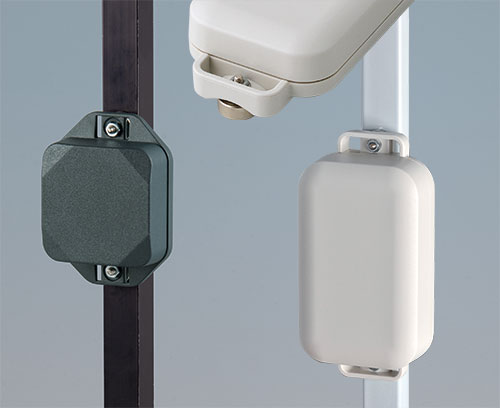

Wall suspension elements Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply 1 adapter, 2 adhesive foils, 1 holder, 2 locking pins

关闭

A9305017

Wall suspension elements
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002

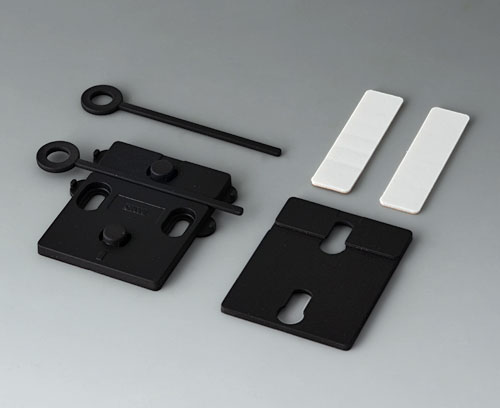

A9305019 Wall suspension elements

A9305019

Wall suspension elements Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply 1 adapter, 2 adhesive foils, 1 holder, 2 locking pins

关闭

A9305019

Wall suspension elements
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
black RAL 9005

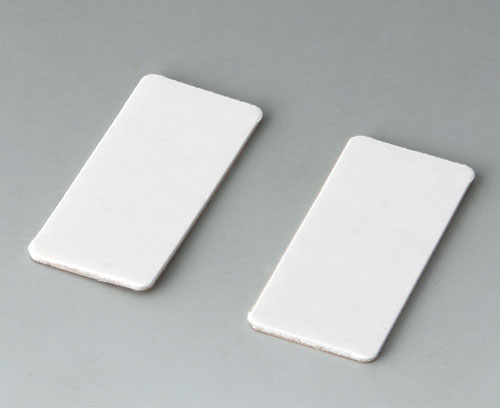

A9305147 Adhesive foil holder

A9305147

Adhesive foil holder For self-adhesive installation of the holder (from wall suspension elements A9305017/ A9305019). Double-sided adhesive foil with foam rubber carrier, 42 x 20 mm each.

Supply 2 adhesive foils

关闭

A9305147

Adhesive foil holder
产品已添加到关注清单中

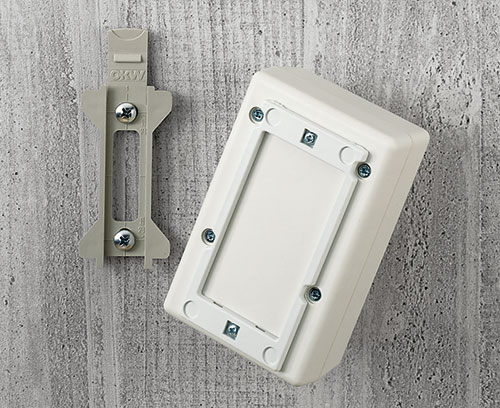

B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

关闭

B1350048

Wall suspension elements
产品已添加到关注清单中
ABS (UL 94 HB)
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

关闭

B1360048

Wall suspension elements
产品已添加到关注清单中
ABS (UL 94 HB)
pebble grey RAL 7032

产品类型用于 壁挂套件、固定件

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
