A9305017
Wall suspension elements

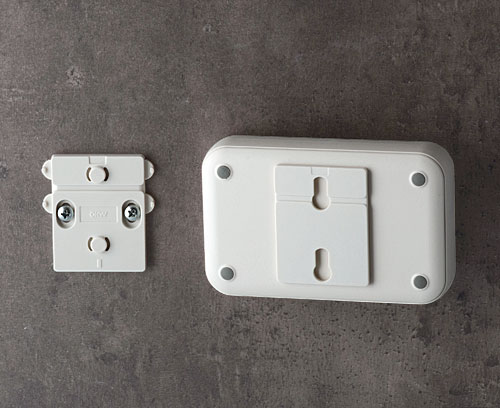

Universal wall suspension element suitable for small plastic enclosures with a flat base.

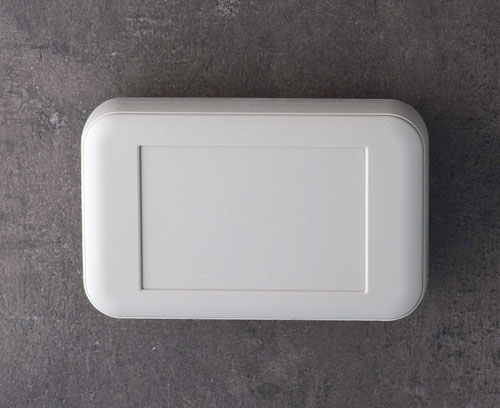

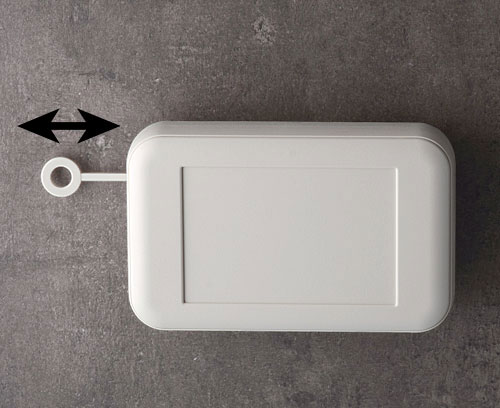

The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.
*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.
1 adapter, 2 adhesive foils, 1 holder, 2 locking pins
附件
A9305147
Supply 2 adhesive foils
A9305147
Adhesive foil holderDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 194 KB
- AutoCAD DWG-File 345 KB
- AutoCAD DXF-File 1,106 KB
- 3 维 PDF 版 (Acrobat Reader 软件) (产品旋转 360°,部件显示或隐藏等功能) 101 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00020242.x_t 451 KB
- 00020242.step 1,131 KB
- 00020242.sat 1,131 KB
(OKW product)
