Art-Case 艺术型机盒
结构形状完美的塑料机盒

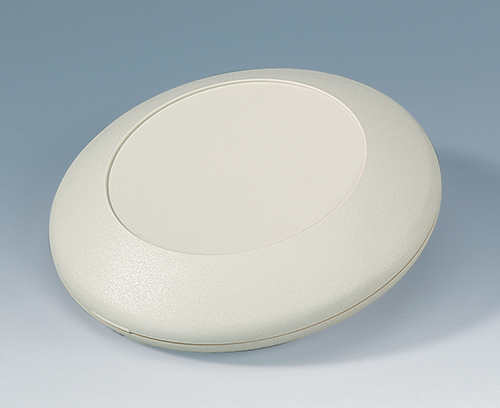

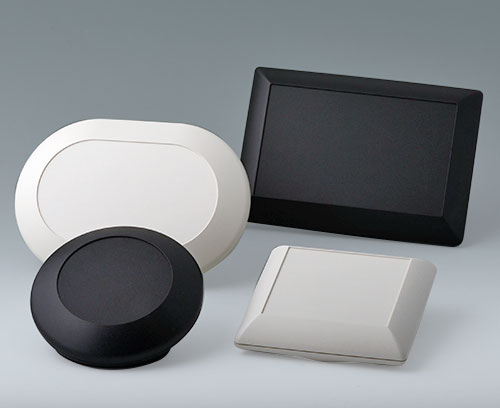

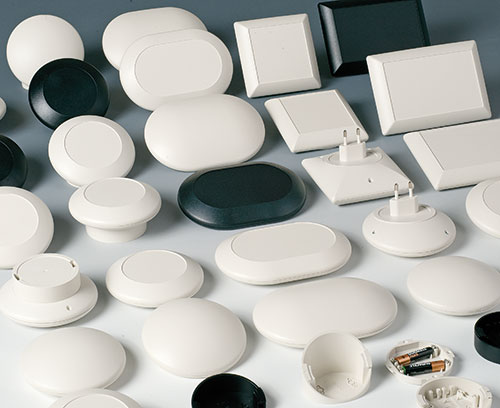

“圆形”、“正方形”、“椭圆形”和“矩形”作为基本形状的 ART-CASE 艺术型机盒产品系列为机盒结构设计和功能作用领域设置出行业新标准。
- 独特的机盒设计款式,特别适合在生活和工作环境的室内使用

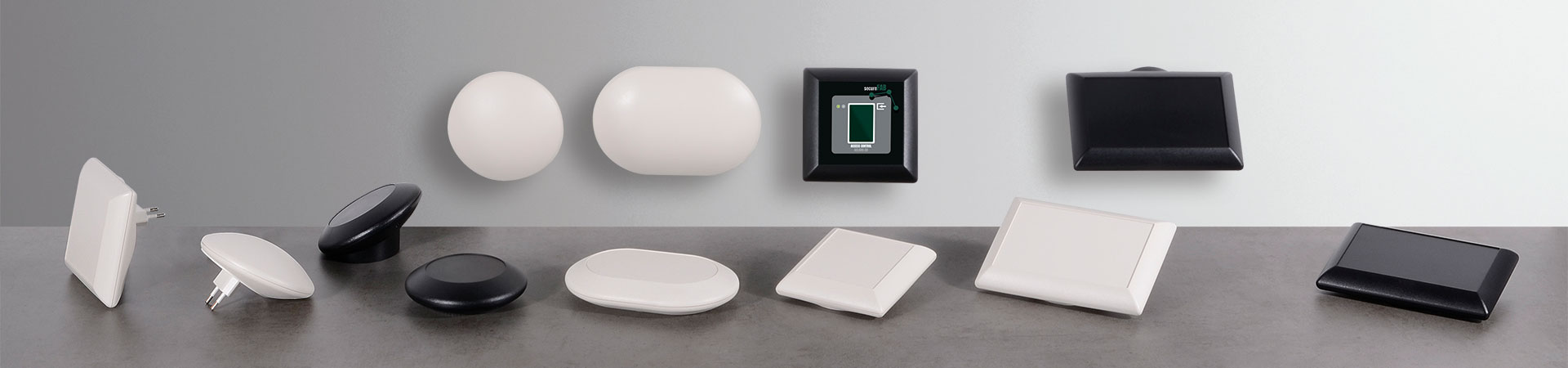

- 4 种设计款式,每款 2 种标准颜色

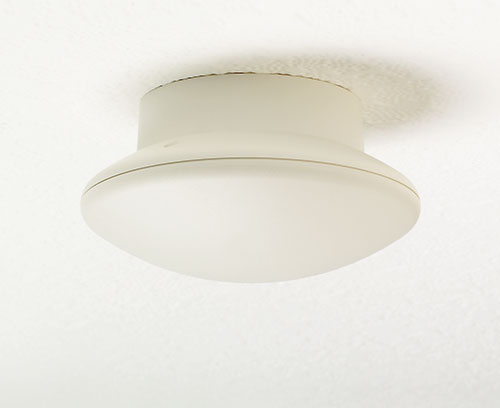

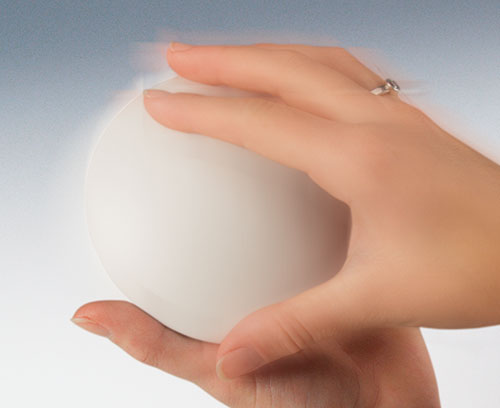

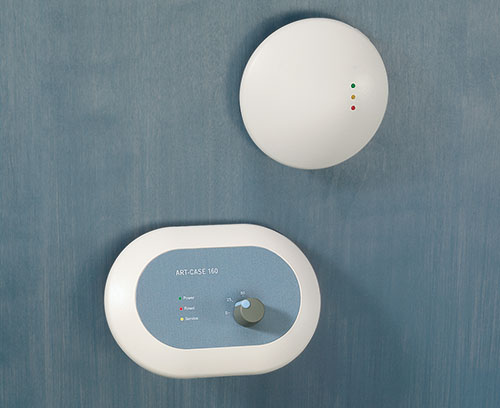

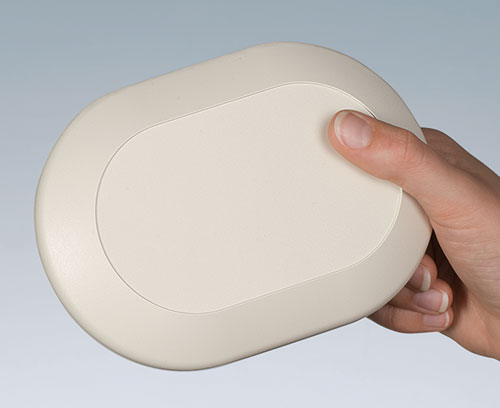

- 可组合使用的选择范围广大的桌式、倾斜式、墙挂式、天花板式或手持式机盒
- 基于“扁平式”或“倾斜式”下盒中还提供以下组合方式:

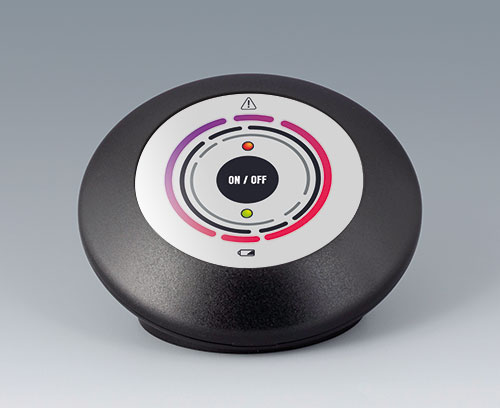

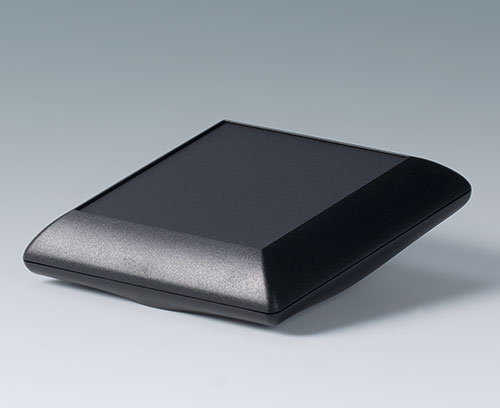

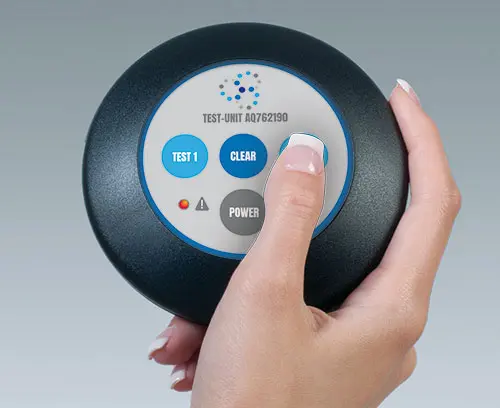

- 凸状上盒 (H) 或带凹陷操作面板的扁平上盒 (F)
- 普通盒盖或带电池仓盒盖

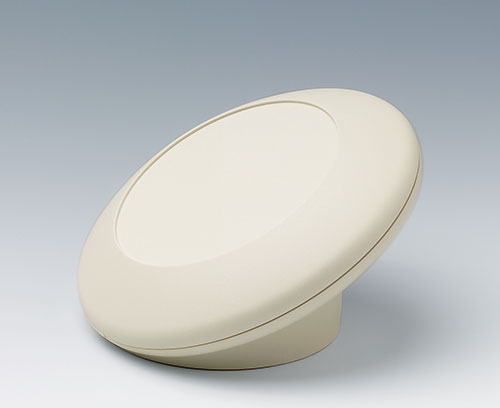

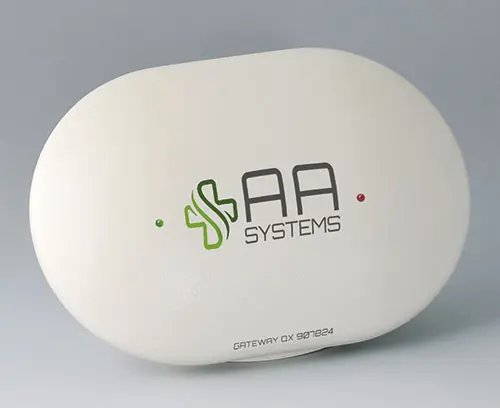

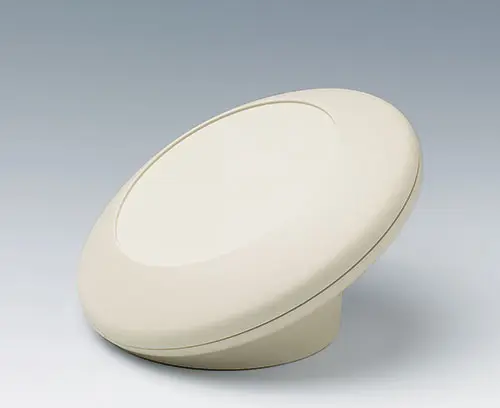

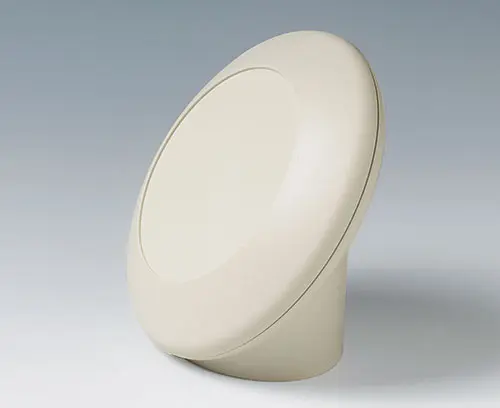

- 盒座具备 30° 或 55° 的符合人体工程学的倾斜度以简便放置和安装

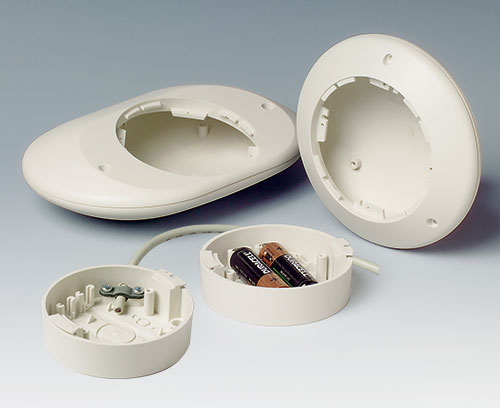

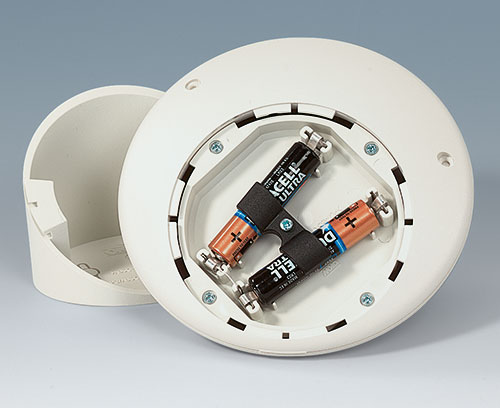

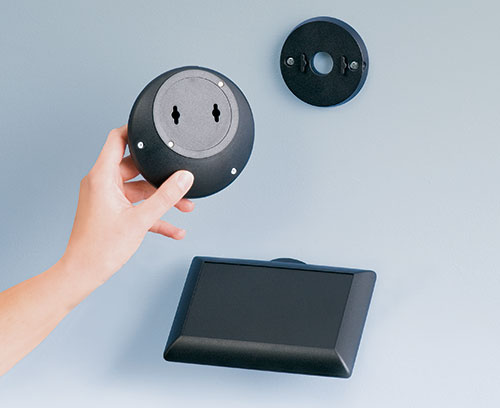

- 扁平盒座作为天花板或墙壁安装的间距件,包括适配 2 个 AA 电池的支架和应力消除件

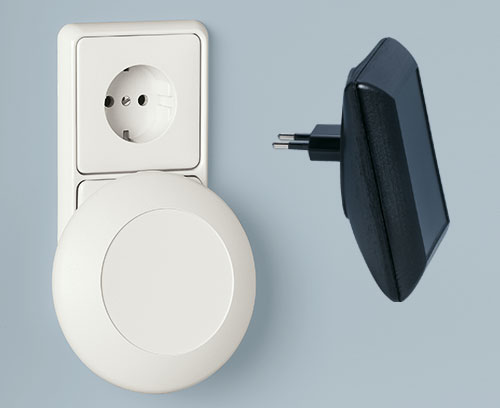

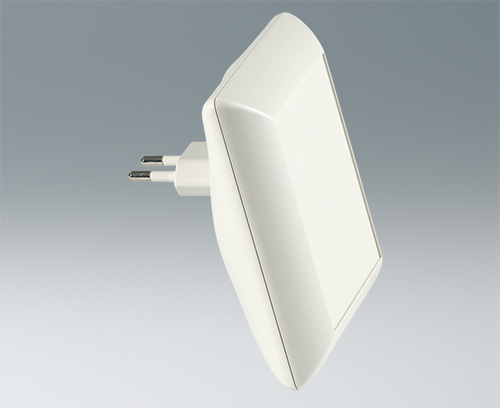

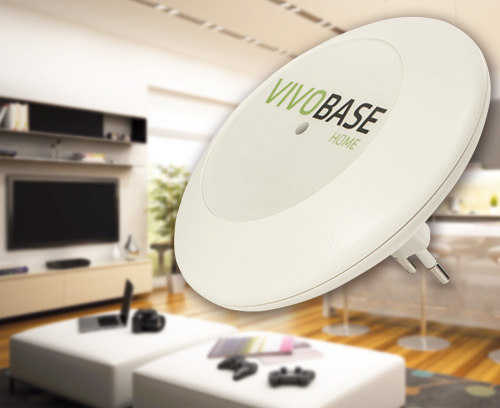

- 符合 DIN VDE 0620 第 101 部的欧式插头模块; 插头材料为阻燃材料 (UL 94 V-0)

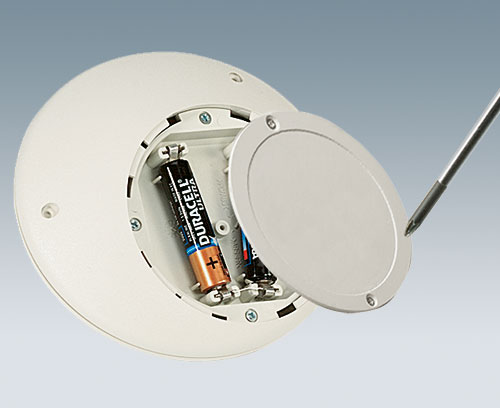

- 适配 2 个 AAA 电池的电池仓作为附件
- 防护等级 IP 40
- 固定柱用于固定电路板和元器件
应用范围

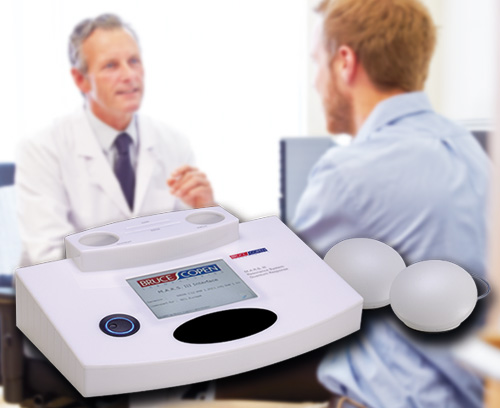

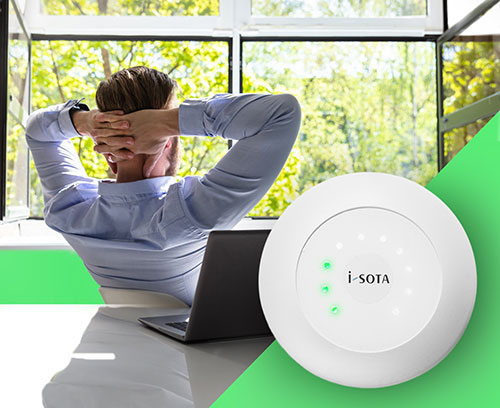

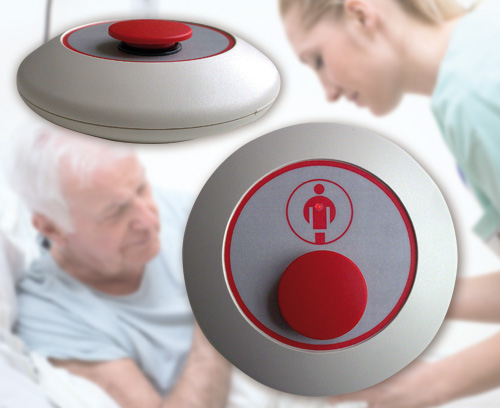

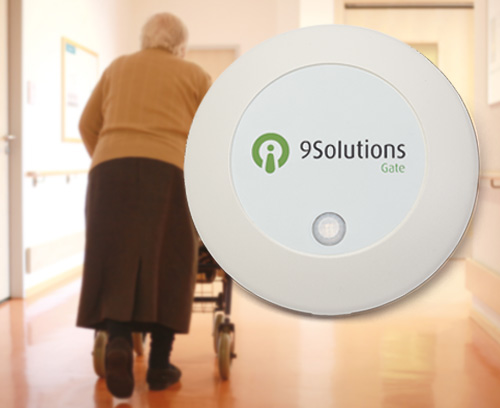

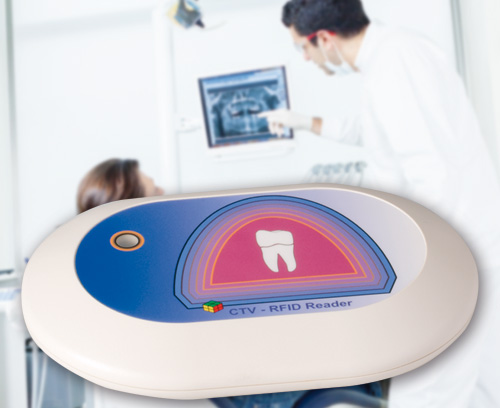

专门为室内的电气和电子应用设计,例如,建筑行业和家用技术的传输和接收单元,医疗技术,保健行业,计算机外围设备,网络技术,安全技术等请选择所需的产品类型或尺寸,或点击产品列表末尾的“选择所有产品”按键。
A9166001
Supply 4 single contacts
A9166001
Set of battery clips, 2 x AAAtin-plated
A9166002
Supply 1 battery contact
A9166002
Battery contact, 2 x AAAtin-plated
A9166003
Supply 1 battery holder, 1 self-tapping screw
A9166003
Battery holder, 2 x AAAblack RAL 9005
A9190002
Note application ART-CASE: only for base suitable (2 x AA).
Supply 1 double contact, 2 single contacts
A9190002
Set of battery clips, 2xN/2xAA/2xAAAtin-plated
A9199005
Supply 1 strain relief device, 2 screws
A9199005
Strain reliefvolcano
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mm
B5111107
Supply 1 battery compartment, assembly kit
B5111107
Battery compartment, 2 x AAAoff-white RAL 9002

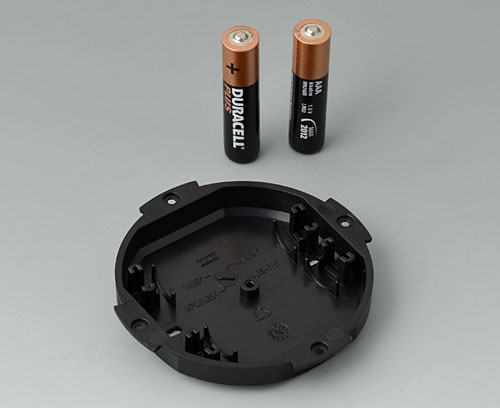

B5111109
Supply 1 battery compartment, assembly kit
B5111109
Battery compartment, 2 x AAAblack RAL 9005
B5111201
Supply 4 screws
B5111201
Set of screws
B5111307
Supply Wall mounting set, incl. safety screw
B5111307
Wall mounting setoff-white RAL 9002

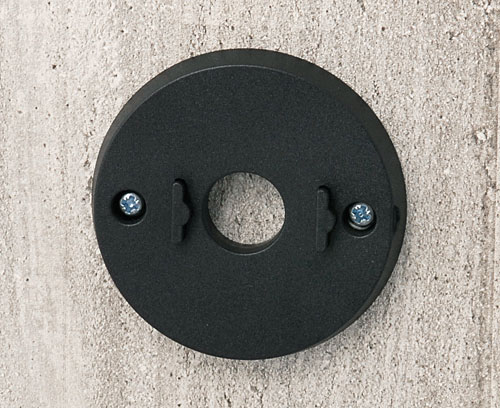

B5111309
Supply Wall mounting set, incl. safety screws
B5111309
Wall mounting setblack RAL 9005
B5111707
Supply Anti-rotation device, incl. screws
B5111707
Anti-rotation deviceoff-white RAL 9002
