Comtec 电讯盒

Comtec 电讯盒

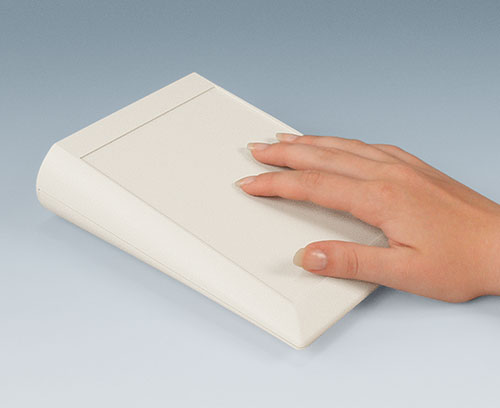

"圆软"设计款式的机盒

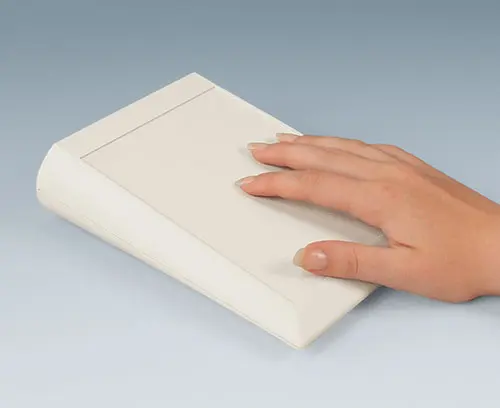

现代式舒适平坦的造型是 COMTEC 电讯盒系列的特征。圆润的表面给用户一种温柔的感觉,强度表现高的操作舒适度。

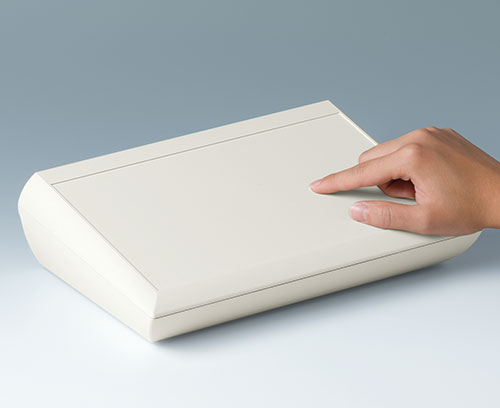

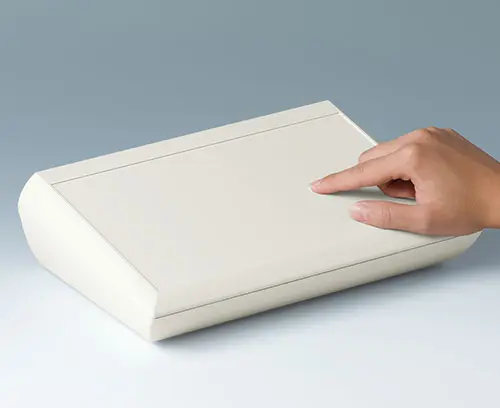

  • 具备符合人体工程学的 10° 倾斜操作面,利于操作和阅读

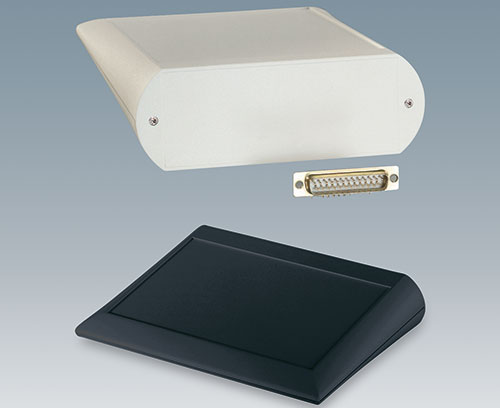

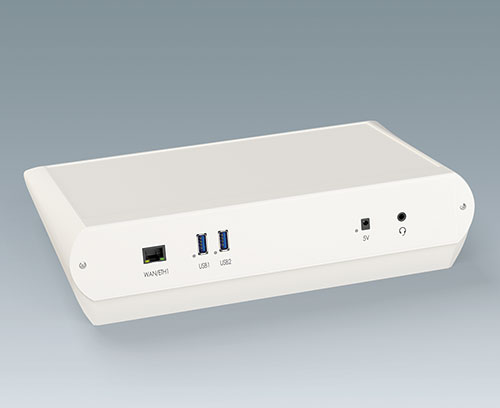

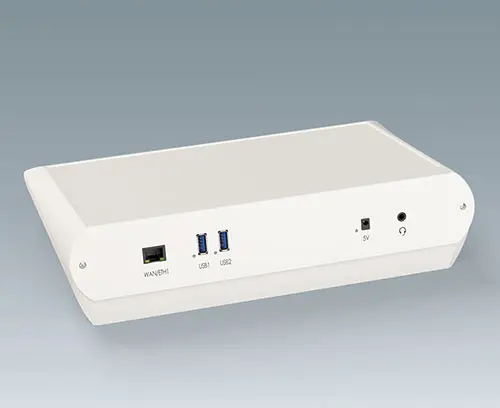

  • 上盒端面设有界面连接口,特别适配 D-SUB 连接器、圆形连接器等; 连接口可以预固在电路板上
  • 特别适合桌面或墙壁应用

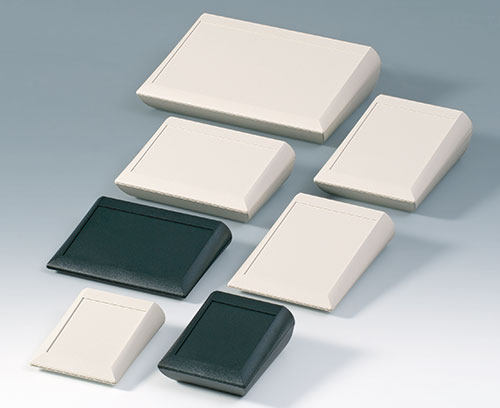

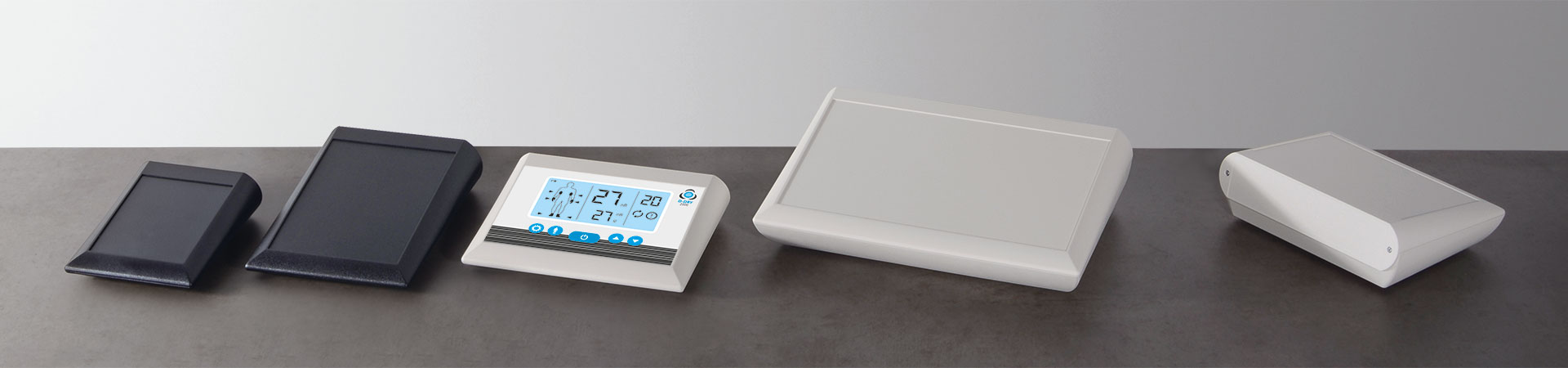

  • 7 种规格,2 种颜色

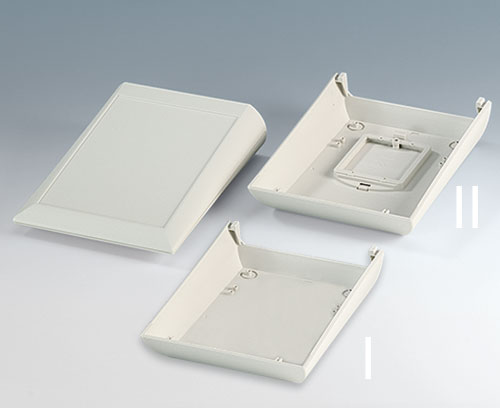

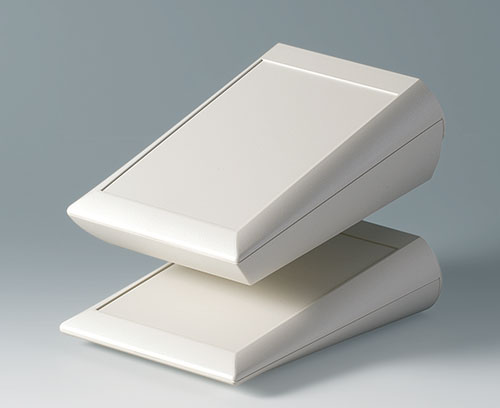

  • 平底盒或加高底盒可选
  • 型号 I 无电池仓盖

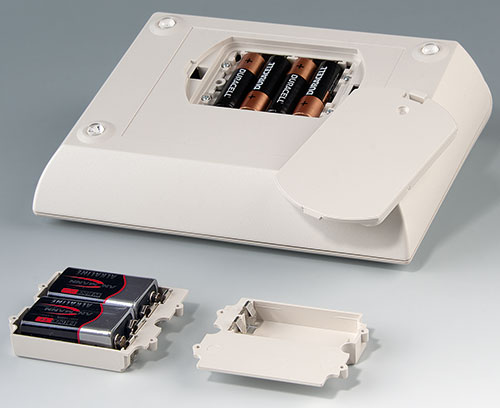

  • 型号 II 带电池仓盖
  • 适配 4 个 AA、1 个 9 V 或 2 个 9 V 电池的电池仓作为型号 II 的配件

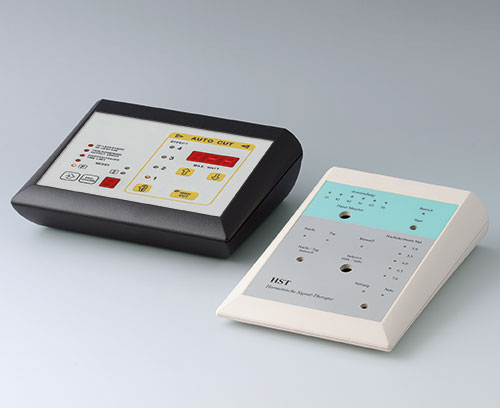

  • 操作区域凹陷,以保护膜键盘
  • 防护等级 IP 40
  • 自粘橡胶脚确保桌面应用的安全稳定性

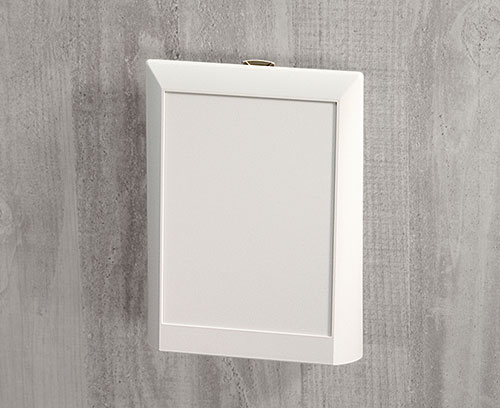

  • 墙挂固定套件作为附件

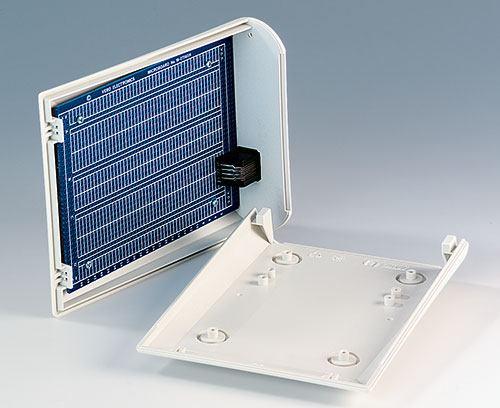

  • 固定柱用于固定电路板和元器件

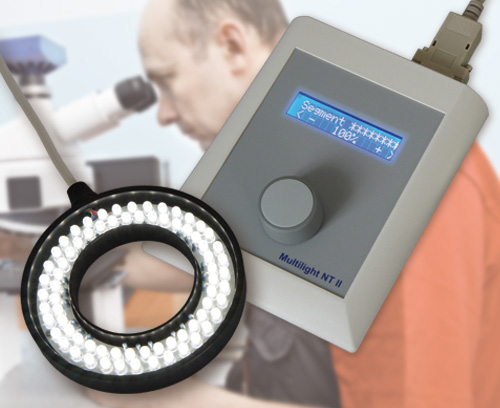

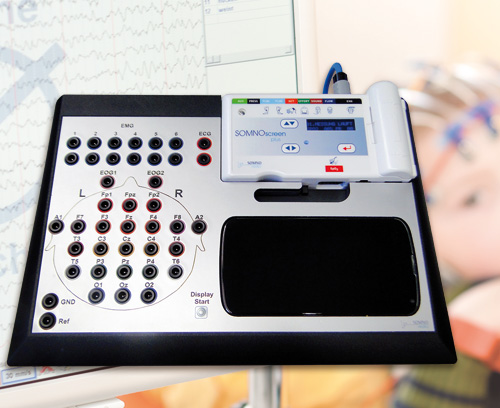

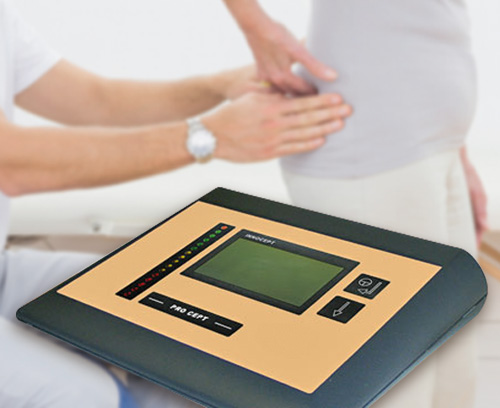

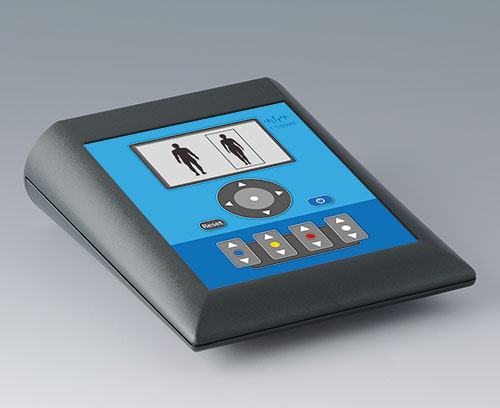

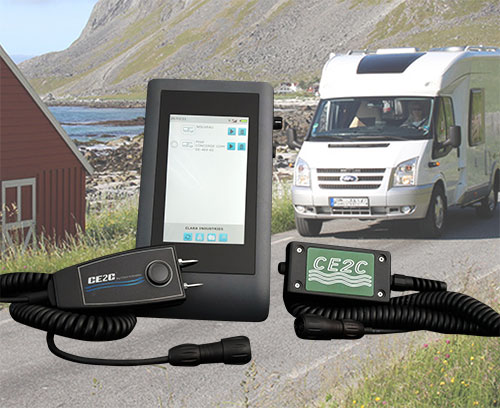

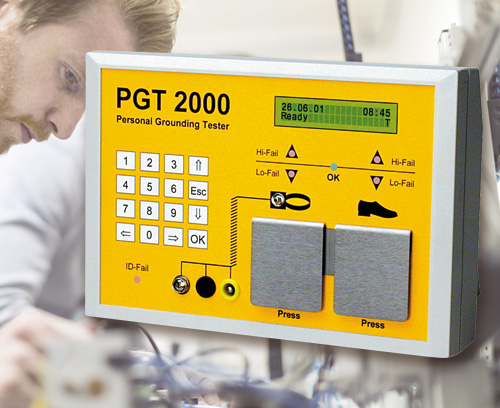

  • 应用示例

应用范围

  • 工作场所和机器的数据采集系统
  • 对讲机
  • 门禁控制和电脑周边设备
  • 实验室和医疗技术
  • 医疗保健领域
  • 测量和控制技术
  • 工业用自动控制系统
  • 类型
  • 配件
  • 按客户要求修改加工

选择类型和规格大小,然后点击“选择”。



机盒

COMTEC 机盒

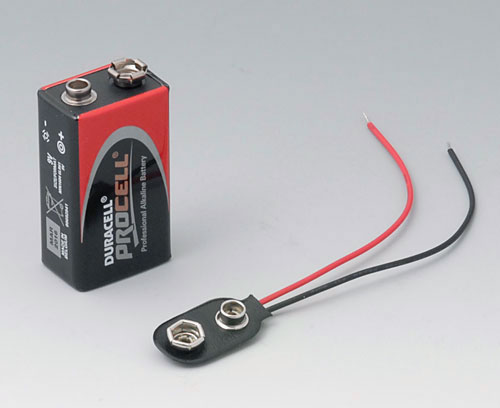

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

关闭

A9160003

Plug-in contact, 1 x 9 V (PP3)

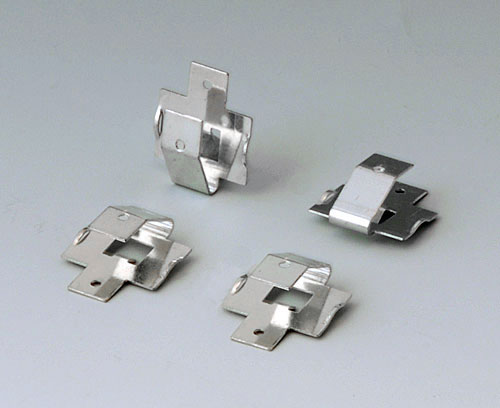

A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

关闭

A9161002

Set of battery clips, 2 x 9 V or 4 x AA Steel
tin-plated

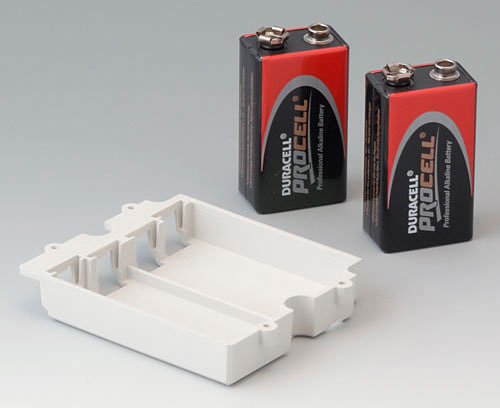

A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

关闭

A9174002

Battery compartment, 2 x 9 V ABS (UL 94 HB)
off-white RAL 9002

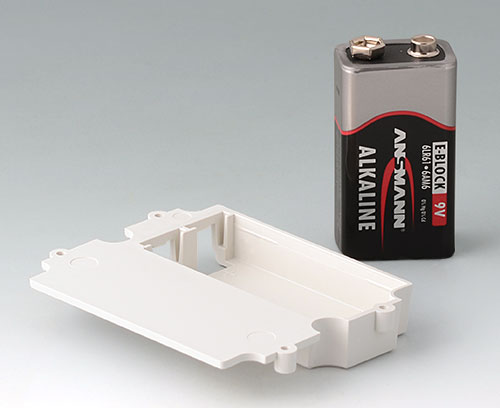

A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

关闭

A9174003

Battery compartment, 1 x 9 V ABS (UL 94 HB)
off-white RAL 9002

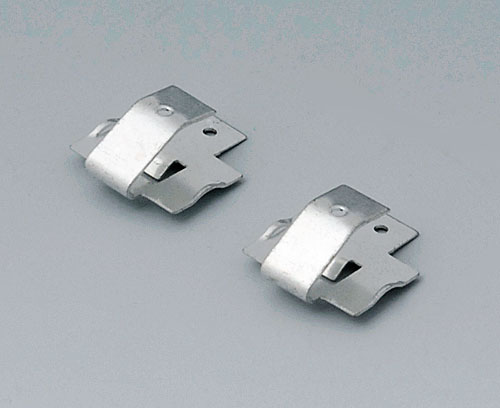

A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

关闭

A9174006

Set of battery clips, 1 x 9 V Steel
tin-plated
A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

关闭

A9199008

Set of screws

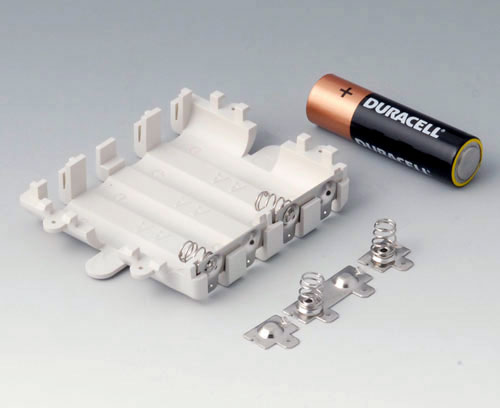

A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

关闭

A9345217

Set of battery compartment, 4 x AA ABS (UL 94 HB)
off-white RAL 9002

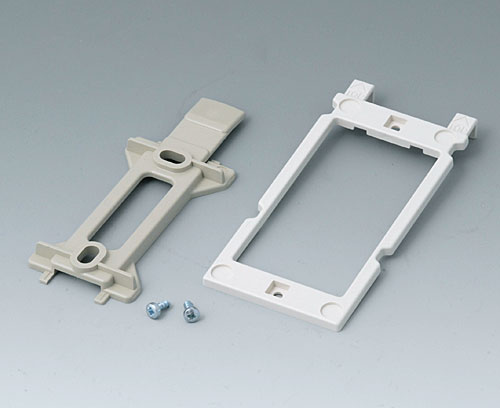

B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

关闭

B1350048

Wall suspension elements ABS (UL 94 HB)
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

关闭

B1360048

Wall suspension elements ABS (UL 94 HB)
pebble grey RAL 7032

产品类型用于 Comtec 电讯盒

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
