Soft-Case 园边机盒

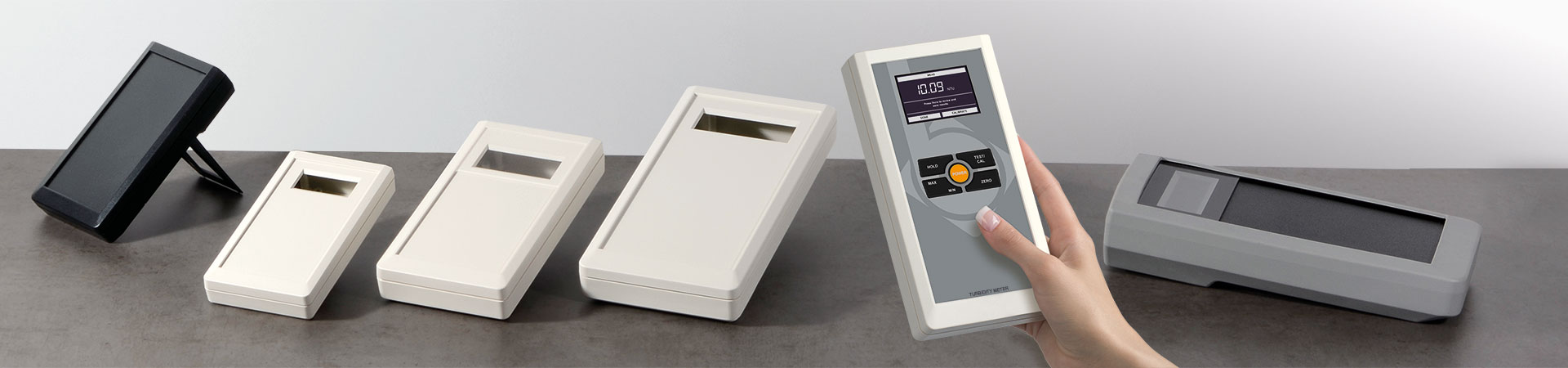

Datec-Mobil-Box 移动式手持盒

特坚固手持盒

名称为 DATEC-MOBIL-BOX 移动式手持盒的系列机盒,是专门针对移动式数据采集技术领域开发的。

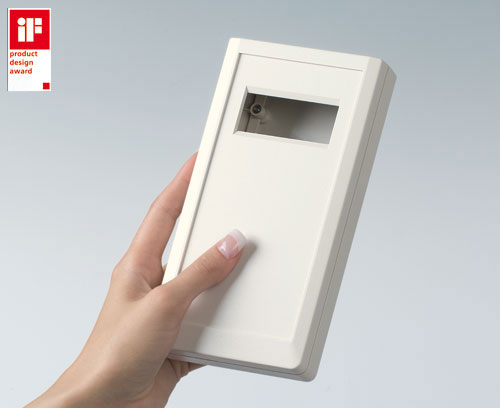

  • 通过壳底符合人体工程学的花纹达到安全稳固的持握和操作
  • 坚固性和密封性,防护等级达到 IP 65,密封件作为附件

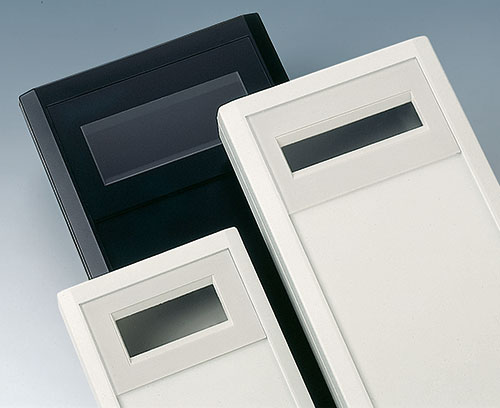

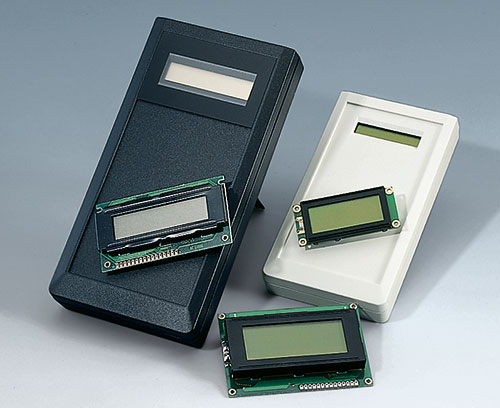

  • 配备了标准化的液晶显示器; 显示窗口面板保护内设的显示模块,并保证在显示区域达到高的保护等级
  • 具备用于接口连接的设置平面

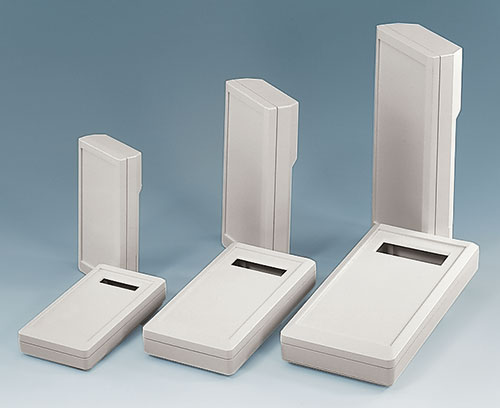

  • 3 种规格,2 种颜色

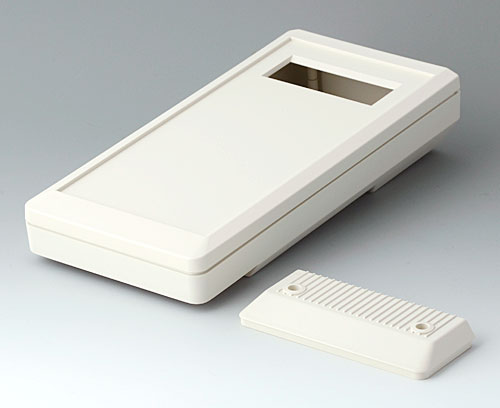

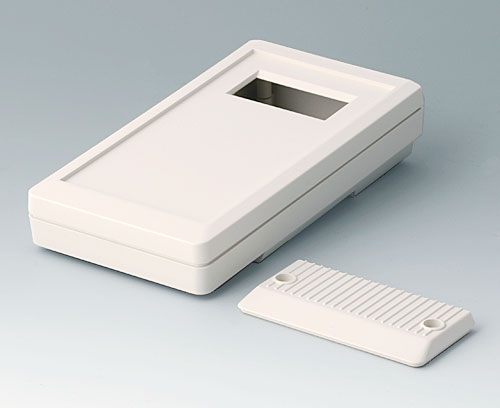

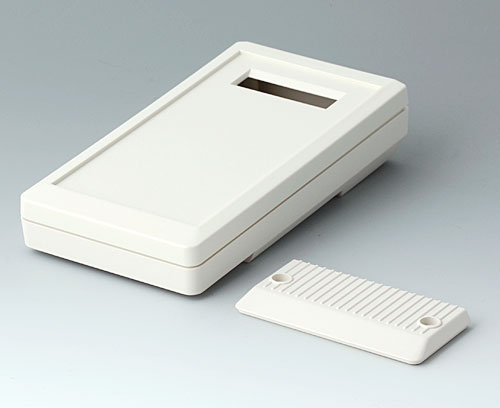

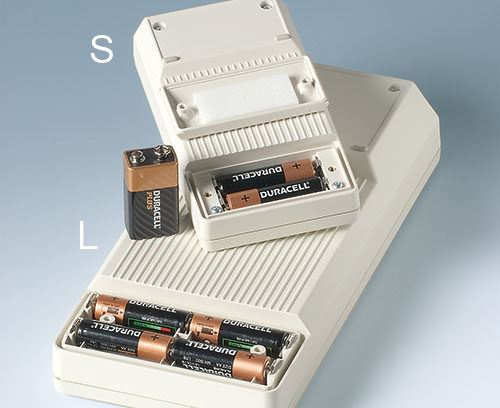

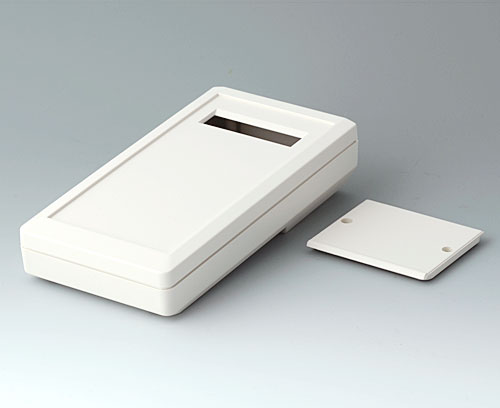

  • DATEC-MOBIL-BOX 移动式手持盒, 规格 S 和 L 具备无/带电池盒

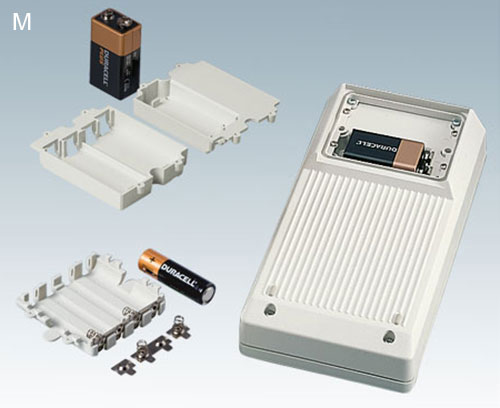

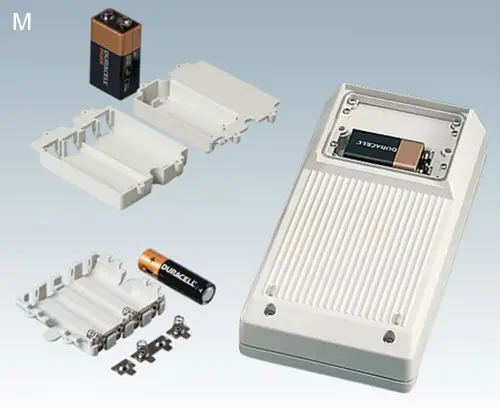

  • DATEC-MOBIL-BOX 移动式手持盒, 规格 M 可以根据需要选择电池盒

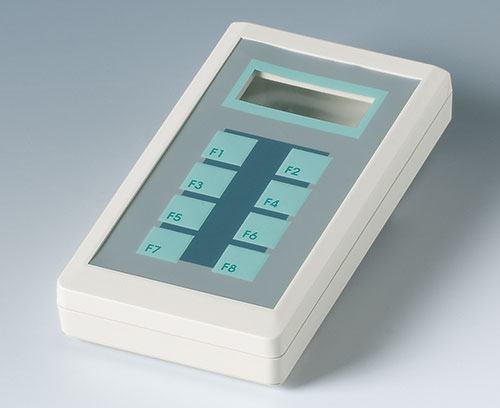

  • 凹陷的操作区域以保护膜键盘
  • 固定柱用于固定电路板和元器件,欧洲卡格式用于 L 规格
  • 支座底架提供符合人体工程学的倾斜面(附件)

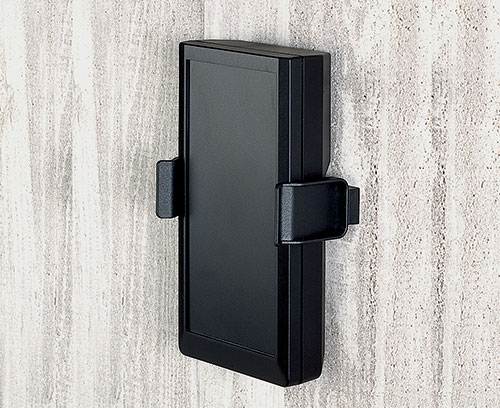

  • 壁挂安装套件保证手持盒的安全放置(附件)

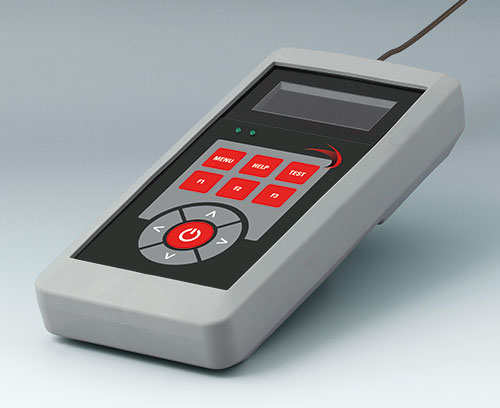

  • 保护套用于防碰撞和保护表面(L 规格的附件)

设计师声明

“DATEC-MOBIL-BOX 移动式手持盒是一个真正的节省空间的神奇物。 如果同时观察 DATEC-POCKET-BOX 机盒系列,您将发现六种与市售组件相匹配的机盒尺寸选项,其内部的每个空间甚至每一个角落都可以有效地被利用。 这些移动机盒中的每一个都可以说是空间与功能的最佳结合,如标准显示器、标准操作面、标准接口界面和标准电源供给等功能。 就紧凑型和移动式机盒产品而言,这款机盒的设计可以说是无与伦比。”
摘自Martin Nußberger, polyform Industrie Design

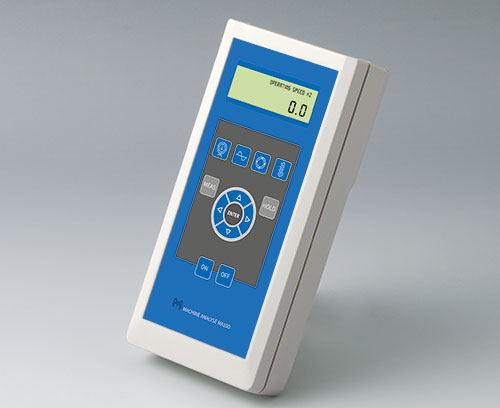

  • 应用示例

应用范围

  • 非常适合在恶劣的环境中使用
  • 移动式数据采集和传送
  • 测量和控制技术
  • 存储和销售物流
  • 数字控制技术
  • 类型
  • 配件
  • 按客户要求修改加工

选择类型和规格大小,然后点击“选择”。



无显示屏

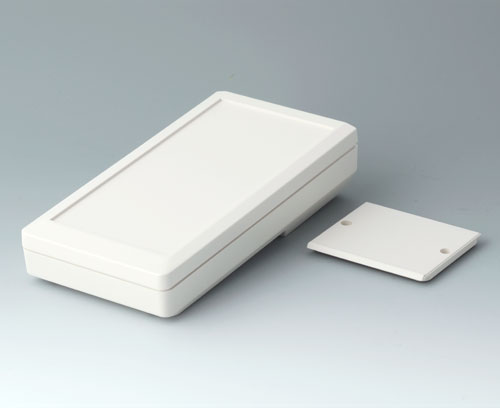

DATEC-MOBIL-BOX 无显示屏

适配 LCD 规格 2"-LC-玻璃

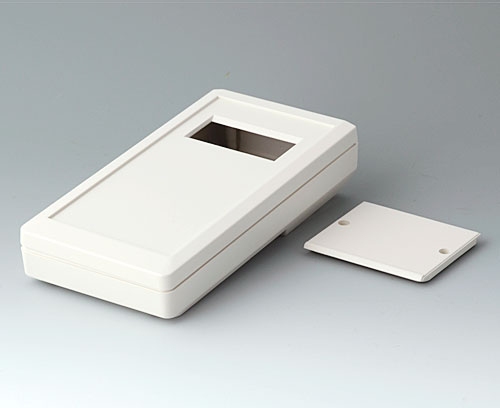

DATEC-MOBIL-BOX 适配 LCD 规格 2"-LC-玻璃

适配 LCD 规格 2 x 16 集成式

DATEC-MOBIL-BOX 适配 LCD 规格 2 x 16 集成式

适配 LCD 规格 2 x 16 标准式

DATEC-MOBIL-BOX 适配 LCD 规格 4 x 16 标准式

适配 LCD 规格 4 x 16 标准式

DATEC-MOBIL-BOX 适配 LCD 规格 4 x 16 标准式

适配 LCD 规格 2 x 20 微型

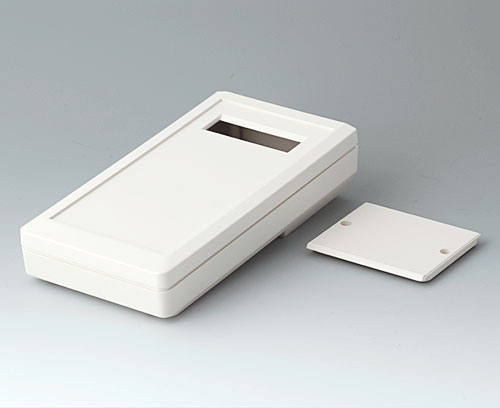

DATEC-MOBIL-BOX 适配 LCD 规格 2 x 20 微型

适配 LCD 规格 4 x 20

DATEC-MOBIL-BOX 适配 LCD 规格 4 x 20

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

关闭

A9100002

Ring eyelet PA 6
volcano
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

关闭

A9160003

Plug-in contact, 1 x 9 V (PP3)
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

关闭

A9161002

Set of battery clips, 2 x 9 V or 4 x AA Steel
tin-plated
A9173001 Sealing kit S

A9173001

Sealing kit S Application: for increasing the protection class, of DATEC-MOBIL-BOX S.

Supply 2 sealings, 4 sealing rings

关闭

A9173001

Sealing kit S
A9173007 Display window, border off-white

A9173007

Display window, border off-white Application: The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version: II.

Supply 1 display window, 1 adhesive foil

关闭

A9173007

Display window, border off-white Acrylglas
transparent
A9173009 Display window, border black

A9173009

Display window, border black Application: The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version: II.

Supply 1 display window, 1 adhesive foil

关闭

A9173009

Display window, border black Acrylglas
transparent
A9173010 9 V contact kit, 1 x 9 V

A9173010

9 V contact kit, 1 x 9 V For 1 x 9 V flat battery (PP3), Offering polarity and torsion protection. Alternative to the traditional plug-in contact.

Supply 1 plug-in contact set

关闭

A9173010

9 V contact kit, 1 x 9 V ABS (UL 94 HB)
A9173307 Display window, border off-white

A9173307

Display window, border off-white Application: The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version: III.

Supply 1 display window, 1 adhesive foil

关闭

A9173307

Display window, border off-white Acrylglas
transparent
A9173309 Display window, border black

A9173309

Display window, border black Application: The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version: III.

Supply 1 display window, 1 adhesive foil

关闭

A9173309

Display window, border black Acrylglas
transparent
A9173407 Display window, border off-white

A9173407

Display window, border off-white Application: The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version: IV.

Supply 1 display window, 1 adhesive foil

关闭

A9173407

Display window, border off-white Acrylglas
transparent
A9173409 Display window, border black

A9173409

Display window, border black Application: The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version: IV.

Supply 1 display window, 1 adhesive foil

关闭

A9173409

Display window, border black Acrylglas
transparent
A9174001 Sealing kit M

A9174001

Sealing kit M Application: for increasing the protection class of DATEC-MOBIL-BOX M.

Supply 2 sealings, 4 sealing rings

关闭

A9174001

Sealing kit M
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

关闭

A9174002

Battery compartment, 2 x 9 V ABS (UL 94 HB)
off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

关闭

A9174003

Battery compartment, 1 x 9 V ABS (UL 94 HB)
off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

关闭

A9174006

Set of battery clips, 1 x 9 V Steel
tin-plated
A9174007 Display window, border off-white

A9174007

Display window, border off-white Application: The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version: II.

Supply 1 display window, 1 adhesive foil

关闭

A9174007

Display window, border off-white Acrylglas
transparent
A9174009 Display window, border black

A9174009

Display window, border black Application: The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version: II.

Supply 1 display window, 1 adhesive foil

关闭

A9174009

Display window, border black Acrylglas
transparent
A9174307 Display window, border off-white

A9174307

Display window, border off-white Application: The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version: III.

Supply 1 display window, 1 adhesive foil

关闭

A9174307

Display window, border off-white Acrylglas
transparent
A9174309 Display window, border black

A9174309

Display window, border black Application: The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version: III.

Supply 1 display window, 1 adhesive foil

关闭

A9174309

Display window, border black Acrylglas
transparent
A9174407 Display window, border off-white

A9174407

Display window, border off-white Application: The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For Version: IV

Supply 1 display window, 1 adhesive foil

关闭

A9174407

Display window, border off-white Acrylglas
transparent
A9174409 Display window, border black

A9174409

Display window, border black Application: The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version: IV.

Supply 1 display window, 1 adhesive foil

关闭

A9174409

Display window, border black Acrylglas
transparent
A9175001 Sealing kit L

A9175001

Sealing kit L Application: for increasing the protection class of DATEC-MOBIL-BOX L.

Supply 2 sealings, 4 sealings rings

关闭

A9175001

Sealing kit L
A9175007 Display window, border off-white

A9175007

Display window, border off-white Application: The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.

Supply 1 display window, 1 adhesive foil

关闭

A9175007

Display window, border off-white Acrylglas
transparent
A9175009 Display window, border black

A9175009

Display window, border black Application: The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.

Supply 1 display window, 1 adhesive foil

关闭

A9175009

Display window, border black Acrylglas
transparent
A9175108 Protector L

A9175108

Protector L Special protector for DATEC-MOBIL-BOX L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

关闭

A9175108

Protector L SBS (TPE)
volcano
A9190011 Set of battery clips, 2 x AA

A9190011

Set of battery clips, 2 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 1 single contact positive, 1 single contact negative

关闭

A9190011

Set of battery clips, 2 x AA Steel
nickel-plated
A9190012 Set of battery clips, 4 x AA

A9190012

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 2 single contact positive, 2 single contact negative

关闭

A9190012

Set of battery clips, 4 x AA Steel
nickel-plated
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

关闭

A9207150

Anti-slide feet 6.5 x 2 mm transparent
A9226127 Wall suspension element

A9226127

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX L. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

关闭

A9226127

Wall suspension element ABS (UL 94 HB)
off-white RAL 9002
A9226129 Wall suspension element

A9226129

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX L. Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

关闭

A9226129

Wall suspension element ABS (UL 94 HB)
black RAL 9005
A9226227 Wall suspension element

A9226227

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

关闭

A9226227

Wall suspension element ABS (UL 94 HB)
off-white RAL 9002
A9226229 Wall suspension element

A9226229

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

关闭

A9226229

Wall suspension element ABS (UL 94 HB)
black RAL 9005
A9226237 Wall suspension element

A9226237

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX S + SENSO-CASE M. Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

关闭

A9226237

Wall suspension element ABS (UL 94 HB)
off-white RAL 9002
A9226239 Wall suspension element

A9226239

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX S + SENSO-CASE M. Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

关闭

A9226239

Wall suspension element ABS (UL 94 HB)
black RAL 9005
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

关闭

A9250250

Battery spacer PE foam
50x25x4mm
A9250907 Tilt foot bar

A9250907

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

关闭

A9250907

Tilt foot bar ABS (UL 94 HB)
off-white RAL 9002
A9250909 Tilt foot bar

A9250909

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

关闭

A9250909

Tilt foot bar ABS (UL 94 HB)
black RAL 9005
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

关闭

A9345217

Set of battery compartment, 4 x AA ABS (UL 94 HB)
off-white RAL 9002

产品类型用于 Datec-Mobil-Box 移动式手持盒

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
