A9173409

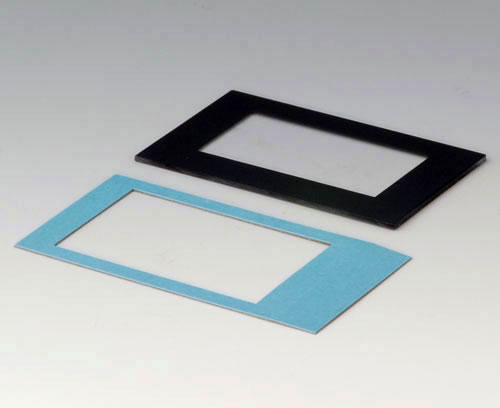

Display window S, border black

The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply

1 display window, 1 adhesive foil

2D PDF 视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 A9173409

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
A9073409 DATEC-MOBIL-BOX S, Vers. IV

A9073409

DATEC-MOBIL-BOX S, Vers. IV Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters

Supply Case-top and base, battery compartment lid, assembly kit

A9073409

DATEC-MOBIL-BOX S, Vers. IV
产品已添加到关注清单中

black RAL 9005
152x83x33.5mm
A9073419 DATEC-MOBIL-BOX S, Vers. IV

A9073419

DATEC-MOBIL-BOX S, Vers. IV Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters

Supply Case-top and base, assembly kit

A9073419

DATEC-MOBIL-BOX S, Vers. IV
产品已添加到关注清单中

black RAL 9005
152x83x33.5mm

Customising options for A9173409

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
transparent
标准根据
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A9173409请务必索取报价！
