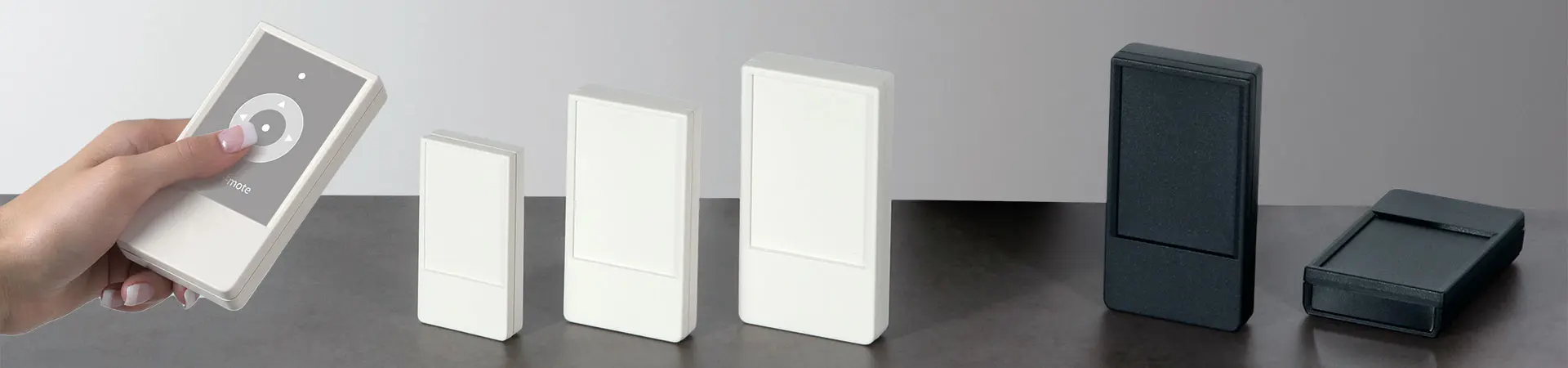

Datec-Pocket-Box 袖珍手持盒

Datec-Pocket-Box 袖珍手持盒

袖珍手持盒

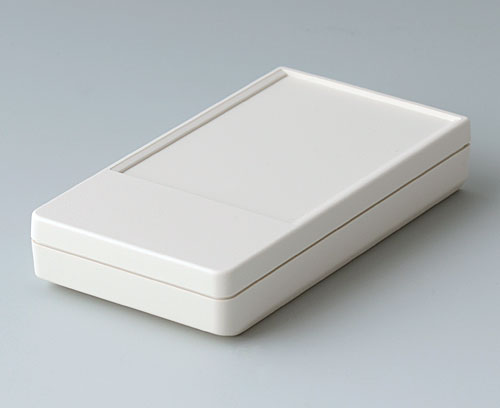

DATEC-POCKET 袖珍手持盒系列使大量的技术置于狭小的空间且坚固耐用 并提供口袋大小的规格。

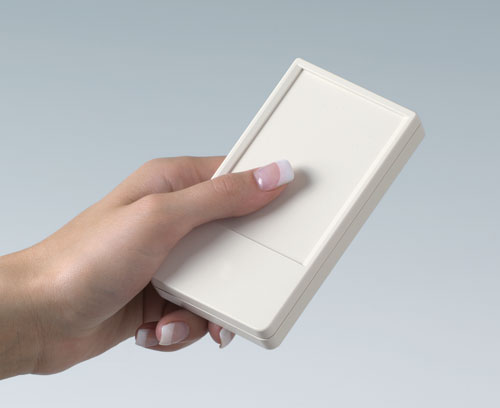

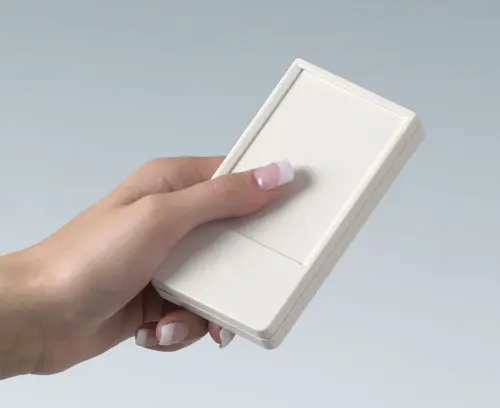

  • 扁平的外壳设计使手持舒适

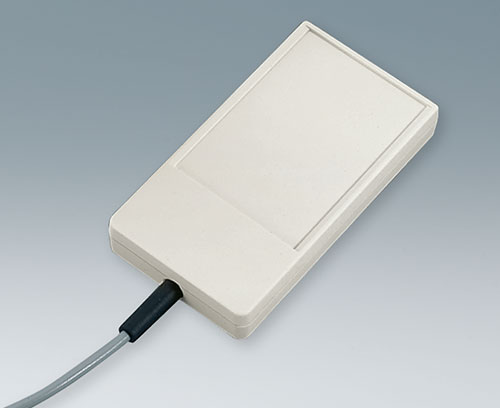

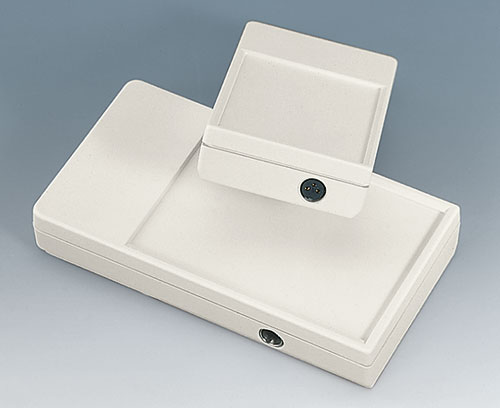

  • 平坦的表面简便操作并可提供特殊接口

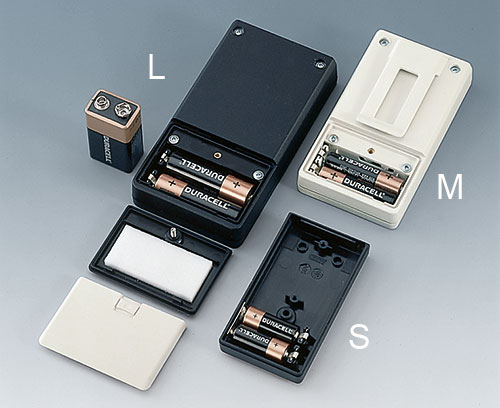

  • 电池隔室适配 N、AA、AAA 和 9 V 扁平电池

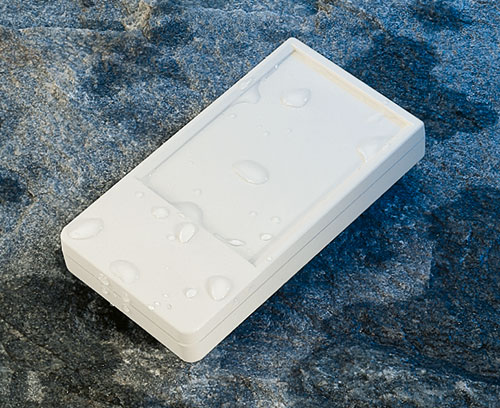

  • 压装有密封圈的机盒符合防止灰尘和水的及在恶劣的环境中的更高的保护要求

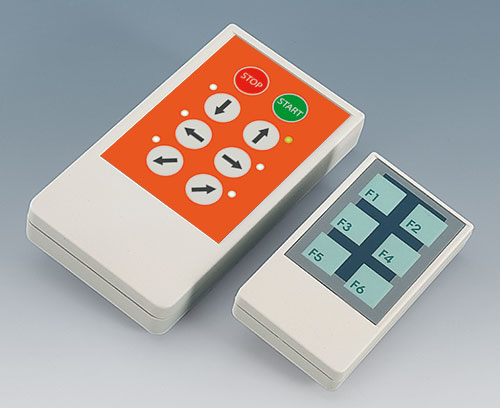

  • 凹陷的操作区域以保护膜键盘或装饰膜

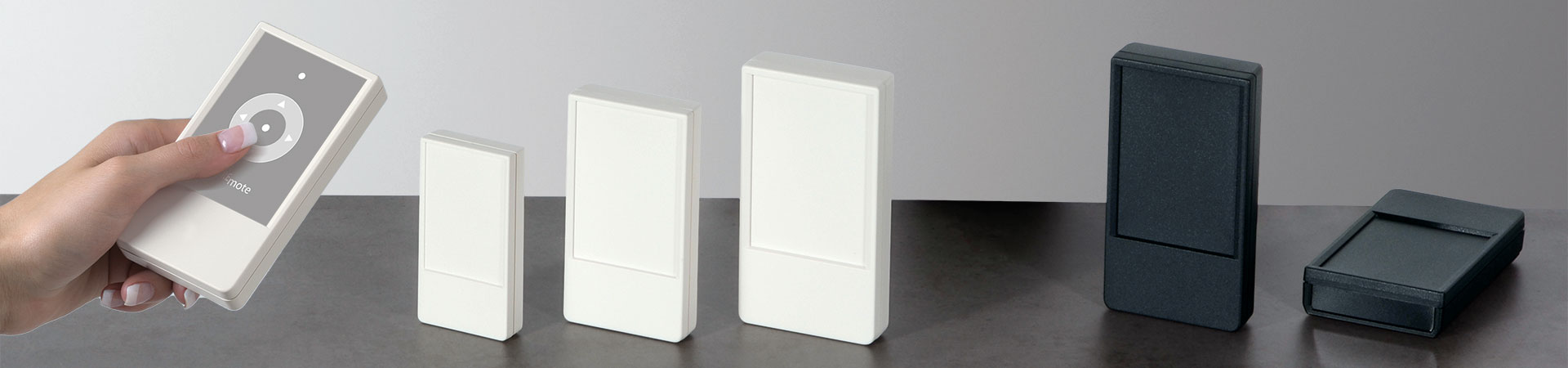

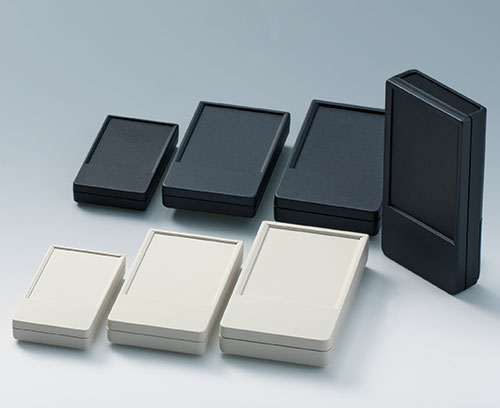

  • 3 种规格,2 种颜色

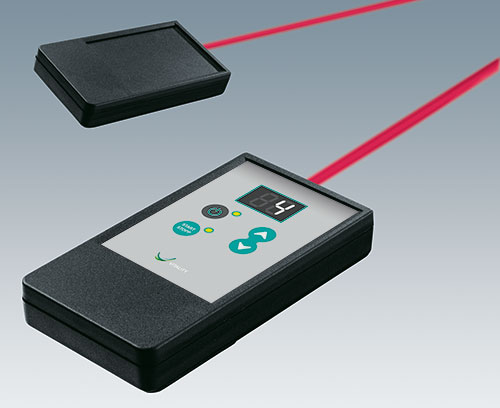

  • ABS(UL 94 HB) 材质或 PMMA(UL 94 HB) 红外透明的有机玻璃; 前表面通过抛光和置后设置提供最佳效率(规格 M 和 L)

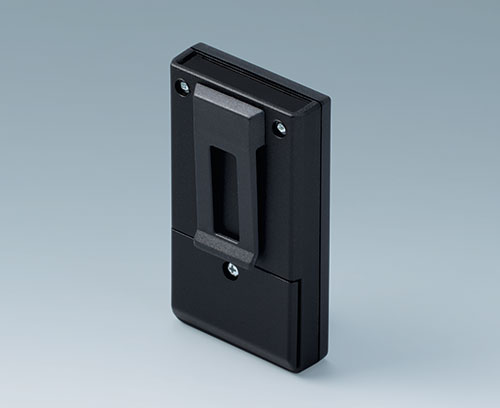

  • 卡夹作为配件
  • 固定柱用于固定电路板和元器件
  • 应用示例

应用范围

  • 最理想用于脉冲发生器和接收器
  • 适合用于测量和控制工程
  • 用于超声和红外脉冲发生
  • 各种遥控
  • 无线通信
  • 移动数据采集
  • 类型
  • 配件
  • 按客户要求修改加工

选择类型和规格大小,然后点击“选择”。



无密封件

DATEC-POCKET-BOX 无密封件

带密封件 (IP 54)

DATEC-POCKET-BOX 带密封件 (IP 54)

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)

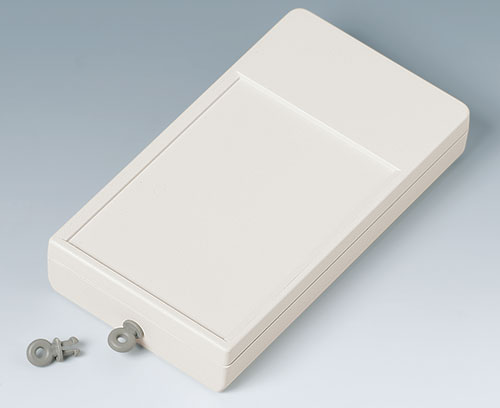

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

关闭

A9100001

Ring eyelet PA 6
volcano
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

关闭

A9160003

Plug-in contact, 1 x 9 V (PP3)
A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

关闭

A9172107

Belt/Pocket clip ABS (UL 94 HB)
off-white RAL 9002
62x30mm
A9172109 Belt/Pocket clip

A9172109

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

关闭

A9172109

Belt/Pocket clip ABS (UL 94 HB)
black RAL 9005
62x30mm
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

关闭

A9190002

Set of battery clips, 2xN/2xAA/2xAAA Steel
tin-plated
A9190003 Set of battery clips, 2xN/2xAA/2xAAA

A9190003

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

关闭

A9190003

Set of battery clips, 2xN/2xAA/2xAAA Steel
nickel-plated
A9250251 Battery spacer

A9250251

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-POCKET-BOX L.

Supply 1 spacer

关闭

A9250251

Battery spacer PE foam
50x25x3mm

产品类型用于 Datec-Pocket-Box 袖珍手持盒

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
