Easytec 简易盒
用于现代化传感器应用的法兰机盒

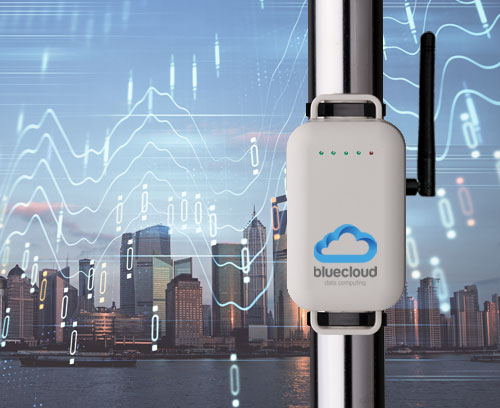

新型 EASYTEC 简易盒产品系列专门为工业物联网 （IIoT） 和 IoT 的智能传感器集成应用而设计。
- 具备高度稳定性的现代化机盒设计

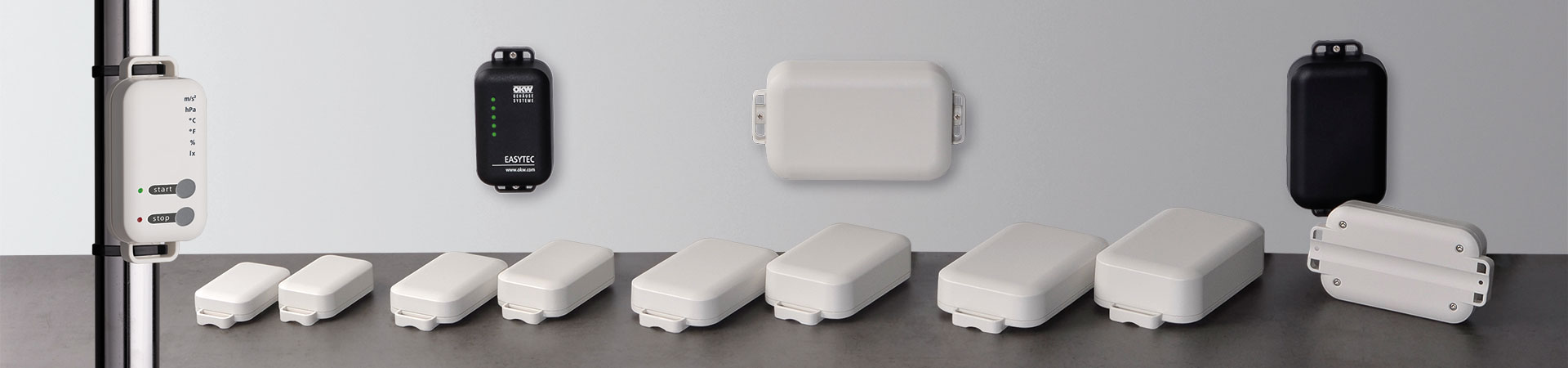

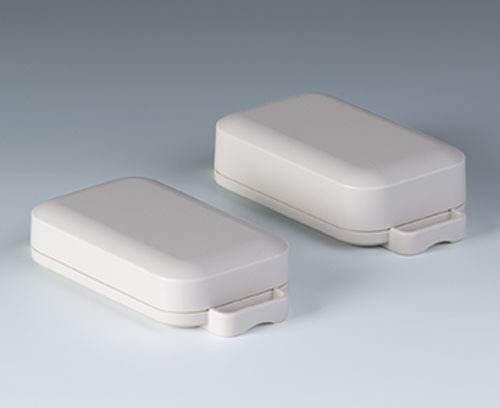

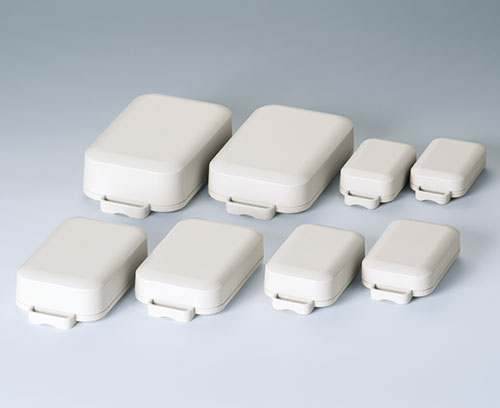

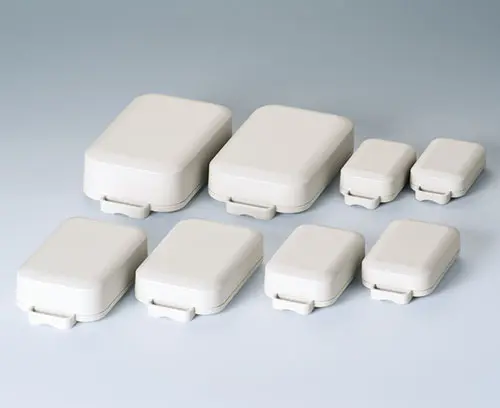

- 四种大小规格为 80、100、 125 和 150，每种可提供两种高度

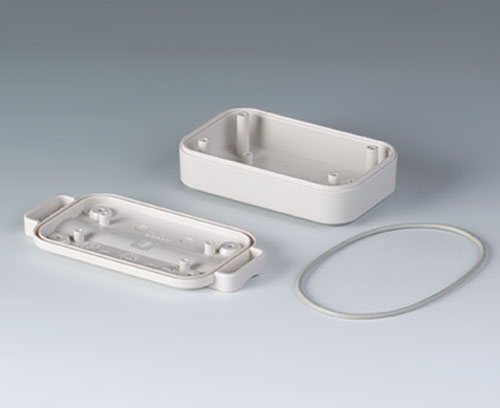

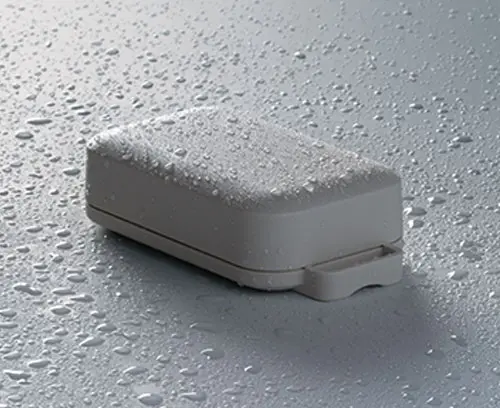

- 阻燃材料 ASA+PC-FR 和可选的防护等级 ip 65（密封件作为附件），适用于坚固的室内和室外应用

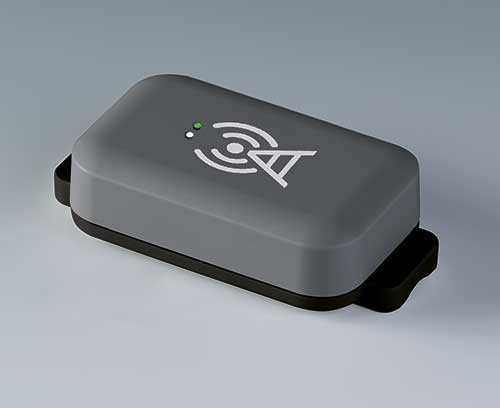

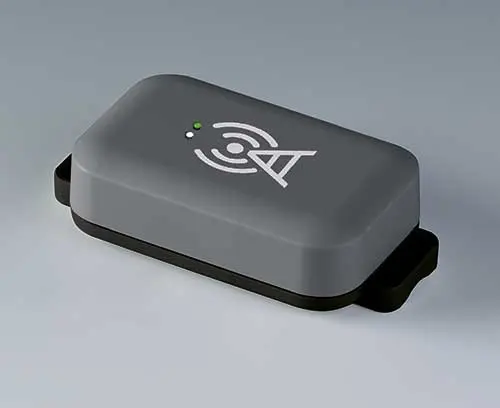

- 中性的标准颜色灰白色（ral 9002）支持广泛的应用可能 - 根据要求，我们也可以生产其他颜色的机盒

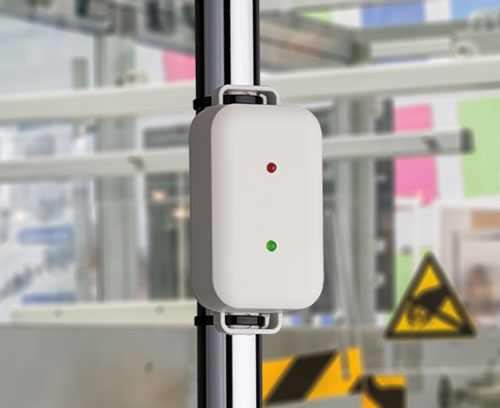

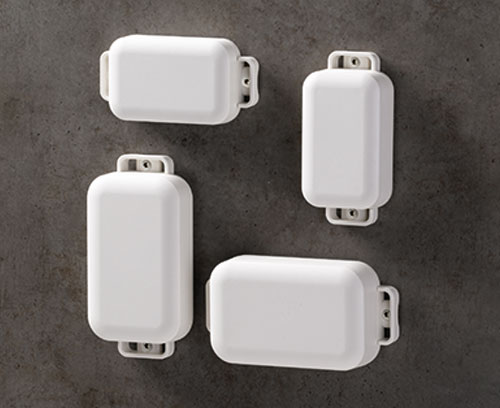

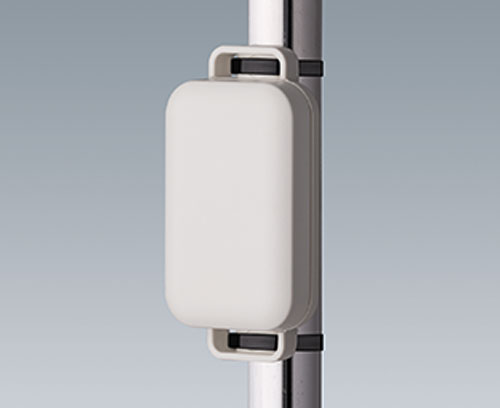

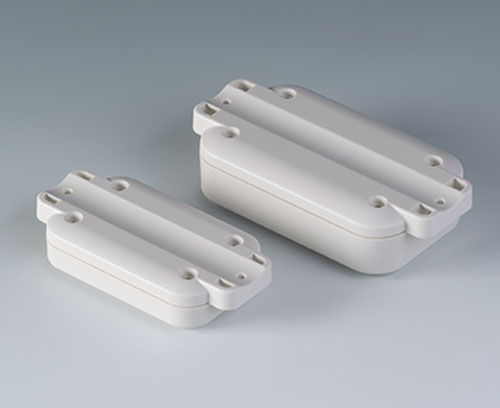

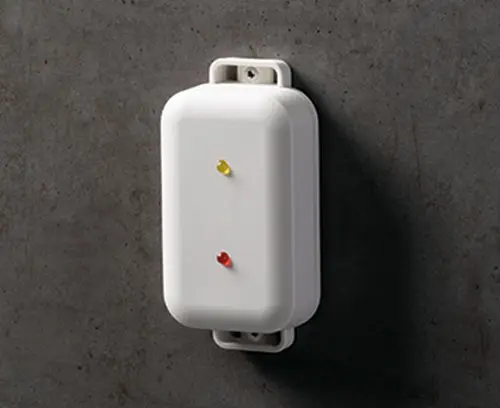

- 底座配备 2 个翼耳，用于快速安装在墙壁上或圆管上及圆型材上
- 密封的电器空间，带有两个电路板安装区（分别于上盒和下盒）
- 用不锈钢螺钉和 torx 驱动器进行连接
应用范围

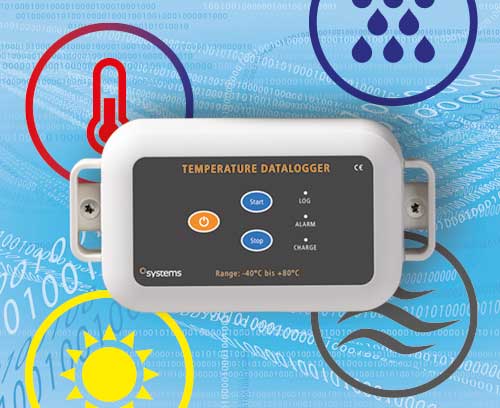

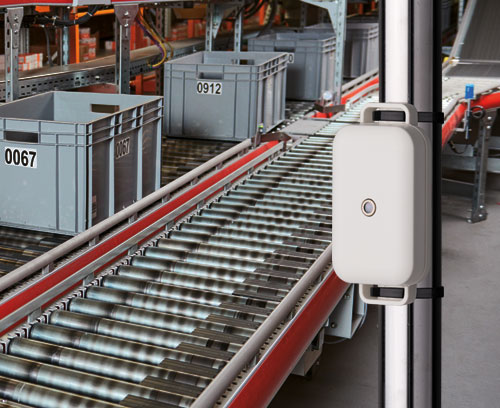

IoT/IIoT 领域。 传感器技术。 环境保护。 测量控制技术。 控制系统技术。 医疗和实验室技术。 安全保险和监控技术。 信息通讯技术。

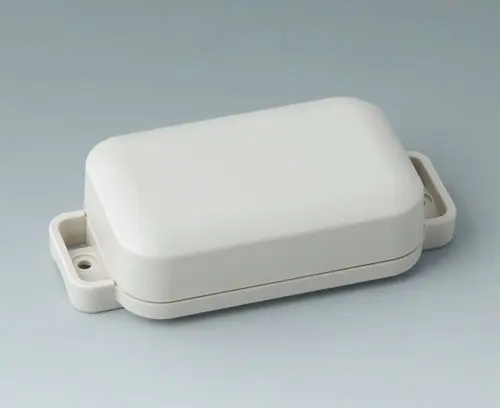

C3204107
EASYTEC 80
2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part flat
Supply Top and bottom part, assembly kit
C3204107
EASYTEC 80产品已添加到关注清单中
off-white RAL 9002
101x50x22mm
,
C3204207
EASYTEC 80
2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part high
Supply Top and bottom part, assembly kit
C3204207
EASYTEC 80产品已添加到关注清单中
off-white RAL 9002
101x50x26mm
,

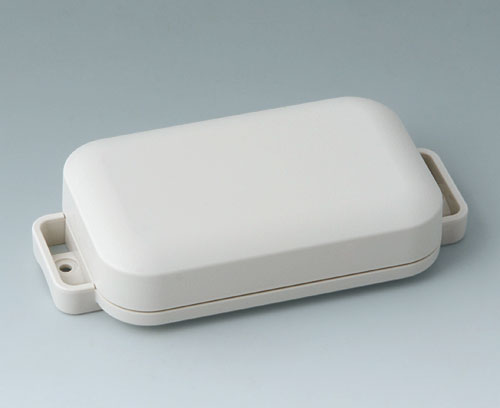

C3206107
EASYTEC 100
2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part flat
Supply Top and bottom part, assembly kit
C3206107
EASYTEC 100产品已添加到关注清单中
off-white RAL 9002
121x62x26mm
,
C3206207
EASYTEC 100
2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part high
Supply Top and bottom part, assembly kit
C3206207
EASYTEC 100产品已添加到关注清单中
off-white RAL 9002
121x62x31mm
,
C3207107
EASYTEC 125
2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part flat
Supply Top and bottom part, assembly kit
C3207107
EASYTEC 125产品已添加到关注清单中
off-white RAL 9002
147x78x30mm
,
C3207207
EASYTEC 125
2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part high
Supply Top and bottom part, assembly kit
C3207207
EASYTEC 125产品已添加到关注清单中
off-white RAL 9002
147x78x37mm
,
C3208107
EASYTEC 150
2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part flat
Supply Top and bottom part, assembly kit
C3208107
EASYTEC 150产品已添加到关注清单中
off-white RAL 9002
172x93x36mm
,

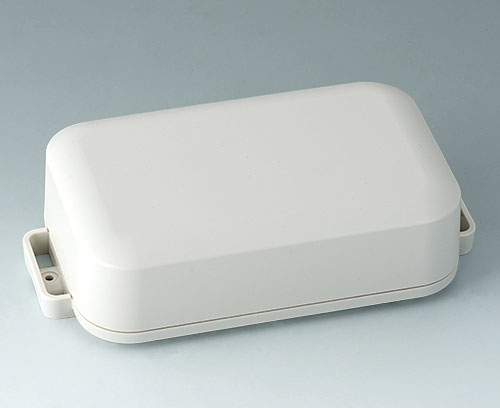

C3208207
EASYTEC 150
2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part high
Supply Top and bottom part, assembly kit
C3208207
EASYTEC 150产品已添加到关注清单中
off-white RAL 9002
172x93x46mm
,
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)产品已添加到关注清单中
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)产品已添加到关注清单中

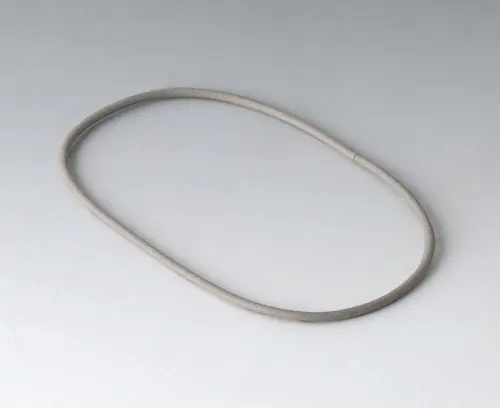

A9500030
Sealing 80
Application: for increasing the protection class. Bottom part with groove accepts the seal.
Supply 1 seal
A9500030
Sealing 80产品已添加到关注清单中
A9502030
Sealing 100
Application: for increasing the protection class. Bottom part with groove accepts the seal.
Supply 1 seal
A9502030
Sealing 100产品已添加到关注清单中
A9503030
Sealing 125
Application: for increasing the protection class. Bottom part with groove accepts the seal.
Supply 1 seal
A9503030
Sealing 125产品已添加到关注清单中
A9504030
Sealing 150
Application: for increasing the protection class. Bottom part with groove accepts the seal.
Supply 1 seal
A9504030
Sealing 150产品已添加到关注清单中
