Evotec 创新机盒

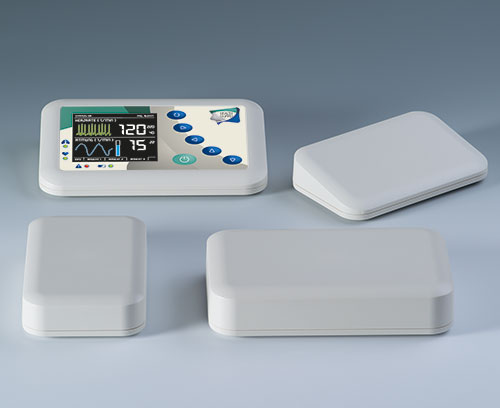

现代式桌面使用创新机盒
EVOTEC 创新机盒通过其坚固的款式结构同时引人注目的设计，非常适合恶劣的工作环境。多相的操作面提供了一个大的设置自由性。

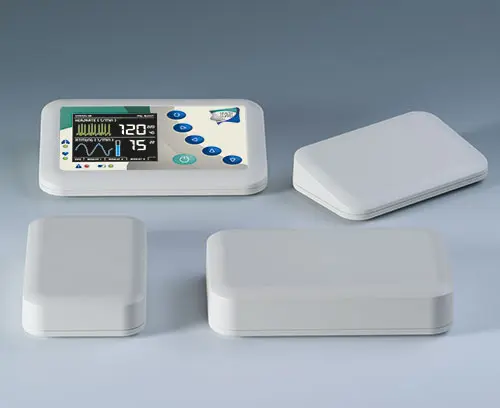

- 园柔的轮廓使机盒体现优雅的外观

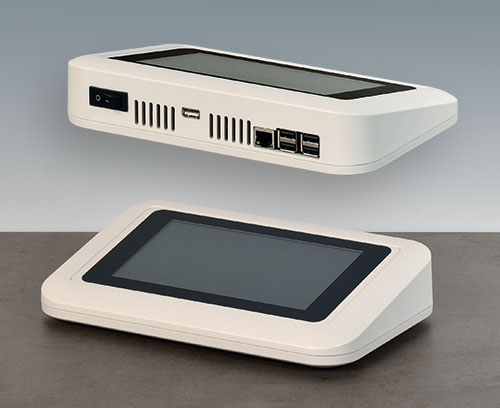

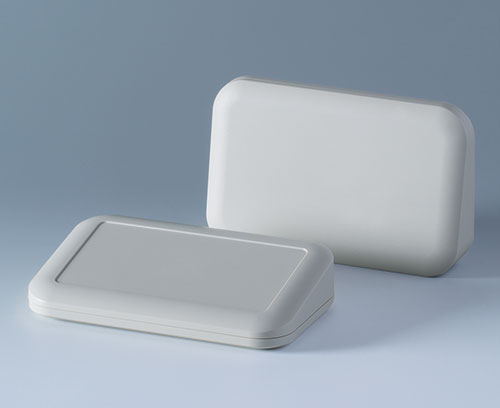

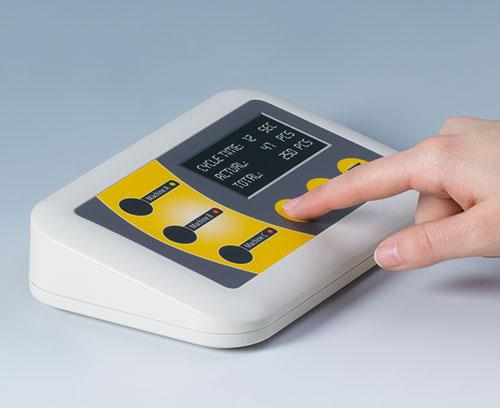

- 平面上盒型或带符合人体工程学的 12° 倾斜操作面型可选

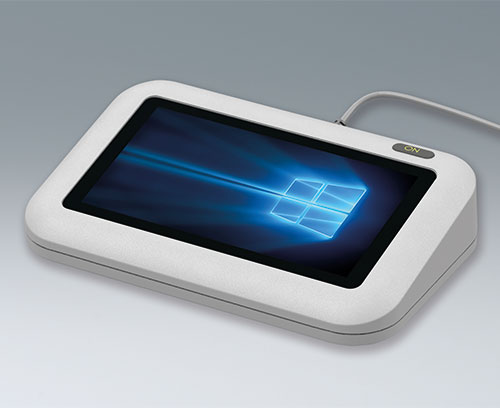

- 具备最大可能的操作面用于设置开关、按钮和触摸屏
- 倾斜操作面型可选带或不带凹陷的操作表面以保护膜键盘或装饰膜

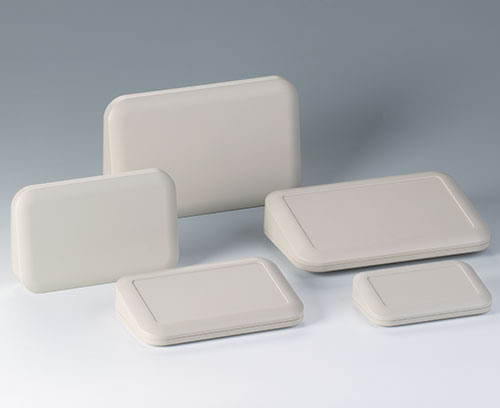

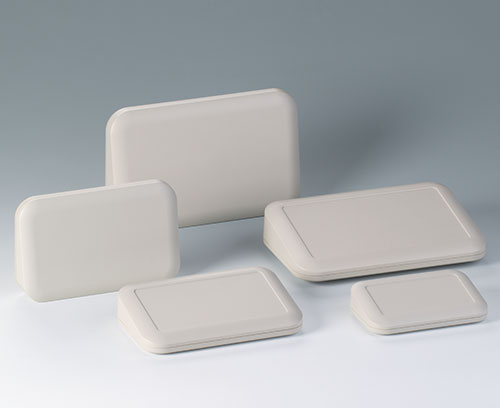

- Evotec 创新机盒规格

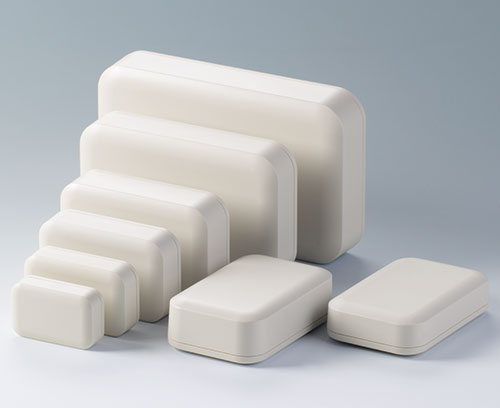

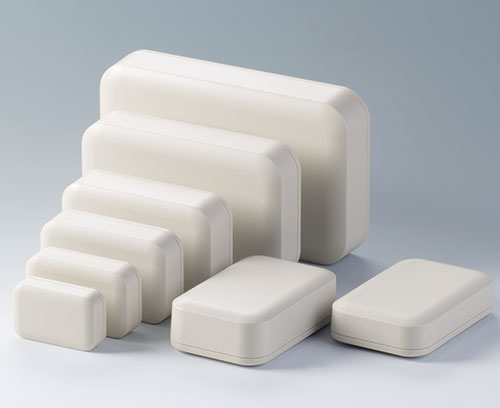

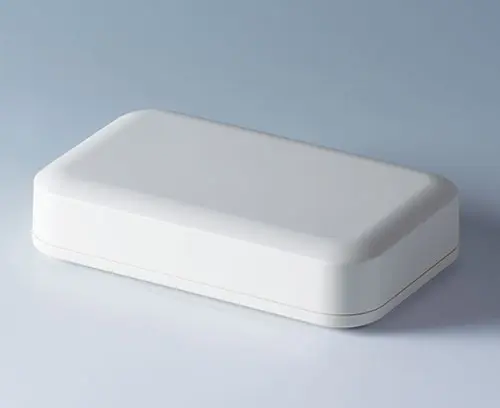

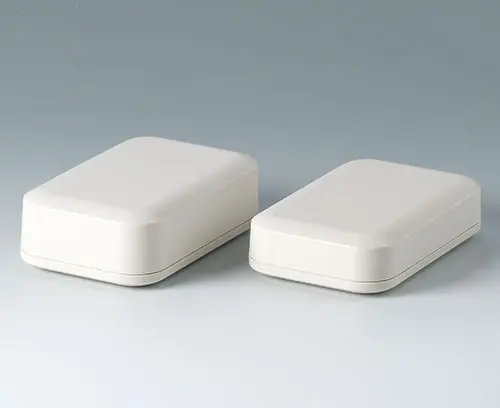

平面上盒型: 规格 80、100、125、150、200 和 250

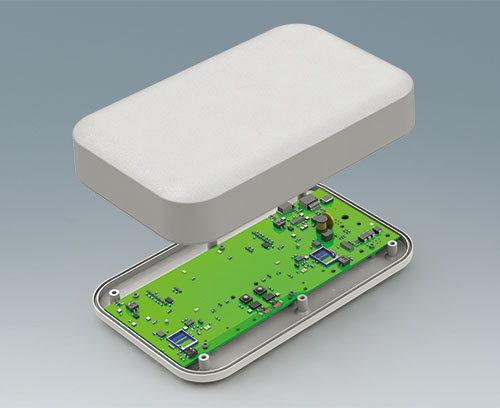

倾斜型: 规格 150、200 和 250 - 在上盒和下盒都可以安装电路板
- 高质并具有高防紫外线的 ASA+PC-FR 材料，标准颜色灰白色 (RAL 9002)
- 强大的坚固性
- 使防护等级达到 IP 65 的密封件作为附件
- 橡胶脚垫可确保机盒在桌面上的安全放置
- 带 Torx 梅花头不锈钢螺钉
应用范围

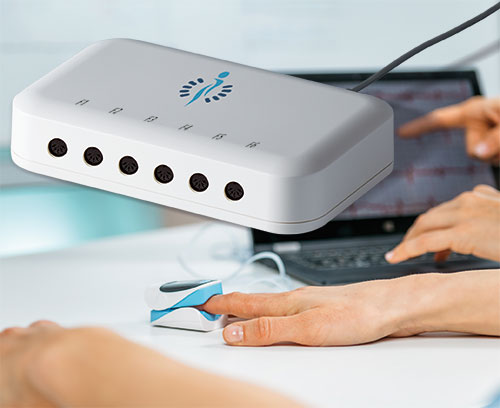

测量控制技术。 自动化控制技术。 实验室和医疗技术。 环保技术。 通信技术。 IoT/IIoT。
请选择所需的产品类型或尺寸，或点击产品列表末尾的“选择所有产品”按键。
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)产品已添加到关注清单中
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)产品已添加到关注清单中
A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracket产品已添加到关注清单中
anthracite grey RAL 7016
100x100x20mm
A9500030
Sealing 80
Application: for increasing the protection class. Bottom part with groove accepts the seal.
Supply 1 seal
A9500030
Sealing 80产品已添加到关注清单中
A9502030
Sealing 100
Application: for increasing the protection class. Bottom part with groove accepts the seal.
Supply 1 seal
A9502030
Sealing 100产品已添加到关注清单中
A9503030
Sealing 125
Application: for increasing the protection class. Bottom part with groove accepts the seal.
Supply 1 seal
A9503030
Sealing 125产品已添加到关注清单中
A9504030
Sealing 150
Application: for increasing the protection class. Bottom part with groove accepts the seal.
Supply 1 seal
A9504030
Sealing 150产品已添加到关注清单中
A9506030
Sealing 200
Application: for increasing the protection class. Bottom part with groove accepts the seal.
Supply 1 seal
A9506030
Sealing 200产品已添加到关注清单中
A9506117

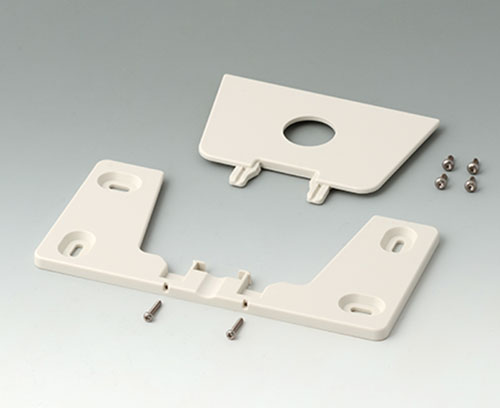

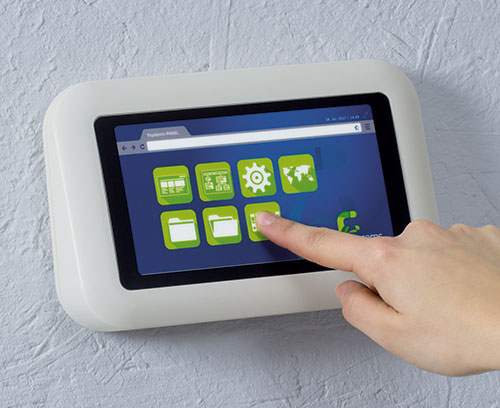

Wall suspension element
Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (106 x 75 mm) is attached to the bottom part of the enclosure by 4 screws. 4 boreholes ø 3.5 mm are required. The adapter makes it possible to clip the enclosure quickly and easily into the holder mounted on the wall. Optionally, the parts can be secured with 2 screws, thus offering additional protection against removal.
The adapter (106 x 75 mm) is attached to the bottom part of the enclosure by 4 screws. 4 boreholes ø 3.5 mm are required. The adapter makes it possible to clip the enclosure quickly and easily into the holder mounted on the wall. Optionally, the parts can be secured with 2 screws, thus offering additional protection against removal.
Supply 1 adapter, 1 holder, 4 Torx stainless steel screws, 2 securing screws
A9506117
Wall suspension element产品已添加到关注清单中
off-white RAL 9002
A9508030

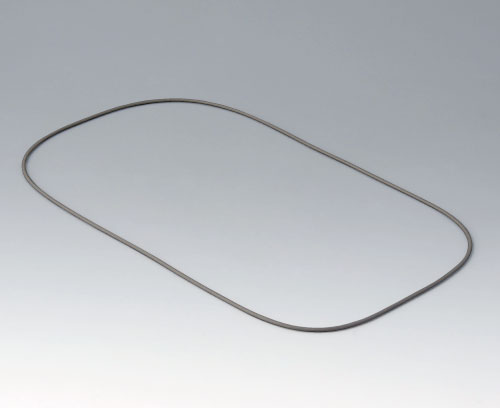

Sealing 250
Application: for increasing the protection class. Bottom part with groove accepts the seal.
Supply 1 seal
A9508030
Sealing 250产品已添加到关注清单中
B1300017

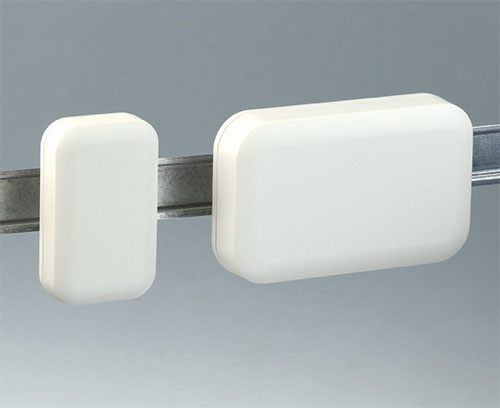

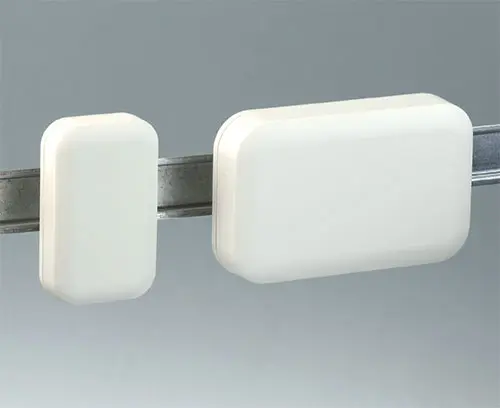

Fastening element for DIN-Rails
Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.
Supply 1 piece incl, assembly kit
B1300017
Fastening element for DIN-Rails产品已添加到关注清单中
off-white RAL 9002
