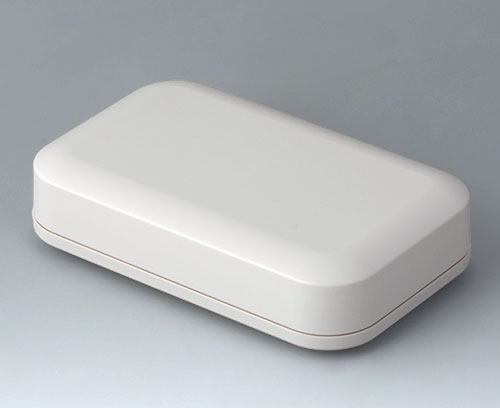

A9441107
EVOTEC 150, Vers. I
2-part plastic enclosure with flat top part, height 35. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part "Flat"
Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
A9441107
EVOTEC 150, Vers. I产品已添加到关注清单中
off-white RAL 9002
150x93x35mm
,

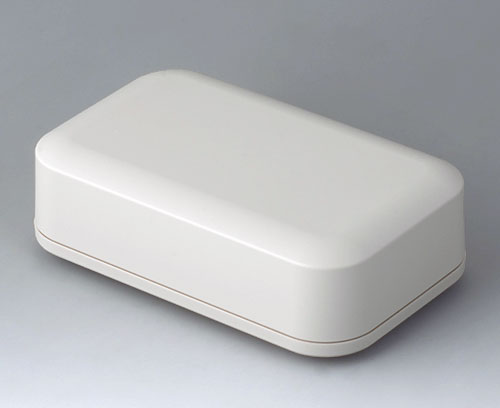

A9443107
EVOTEC 150, Vers. I
2-part plastic enclosure with flat top part, height 45. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part "Flat"
Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
A9443107
EVOTEC 150, Vers. I产品已添加到关注清单中
off-white RAL 9002
150x93x45mm
,
A9446107
EVOTEC 150, Vers. III
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part "Desktop", operating area recessed by 1 mm
Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
A9446107
EVOTEC 150, Vers. III产品已添加到关注清单中
off-white RAL 9002
150x93x36mm
,

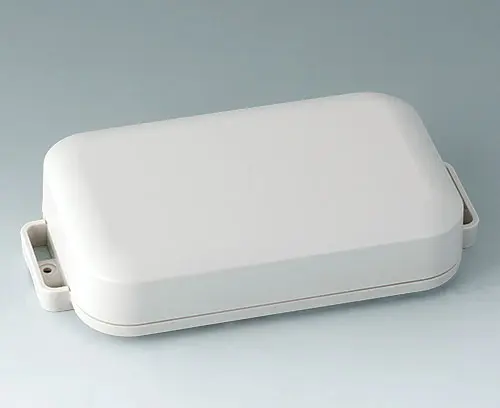

C3208107
EASYTEC 150
2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part flat
Supply Top and bottom part, assembly kit
C3208107
EASYTEC 150产品已添加到关注清单中
off-white RAL 9002
172x93x36mm
,

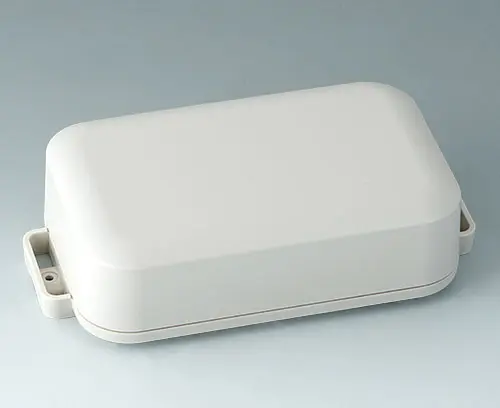

C3208207
EASYTEC 150
2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part high
Supply Top and bottom part, assembly kit
C3208207
EASYTEC 150产品已添加到关注清单中
off-white RAL 9002
172x93x46mm
,
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
(OKW product)
40081900
Country of manufacture
Germany
