In-Box 工业用机盒

In-Box 工业用机盒

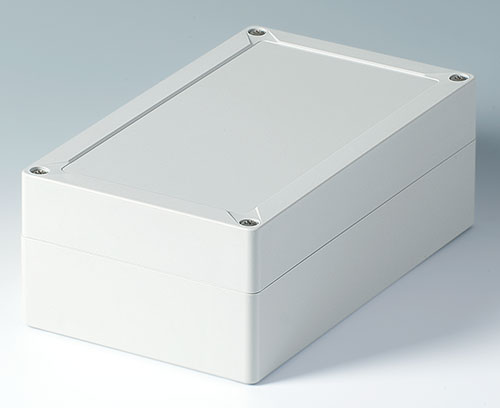

坚固耐用的工业用机盒

作为接线盒和电子器件盒的 IN-BOX- 工业用机盒产品系列提供很多不同的应用方式。

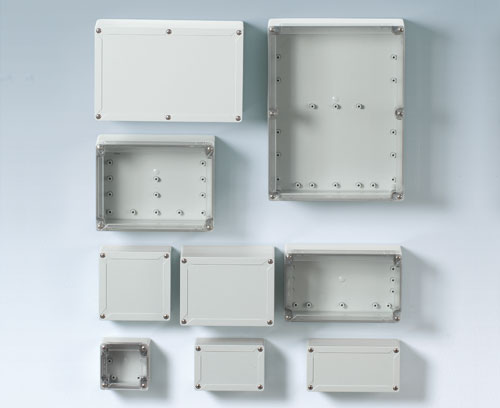

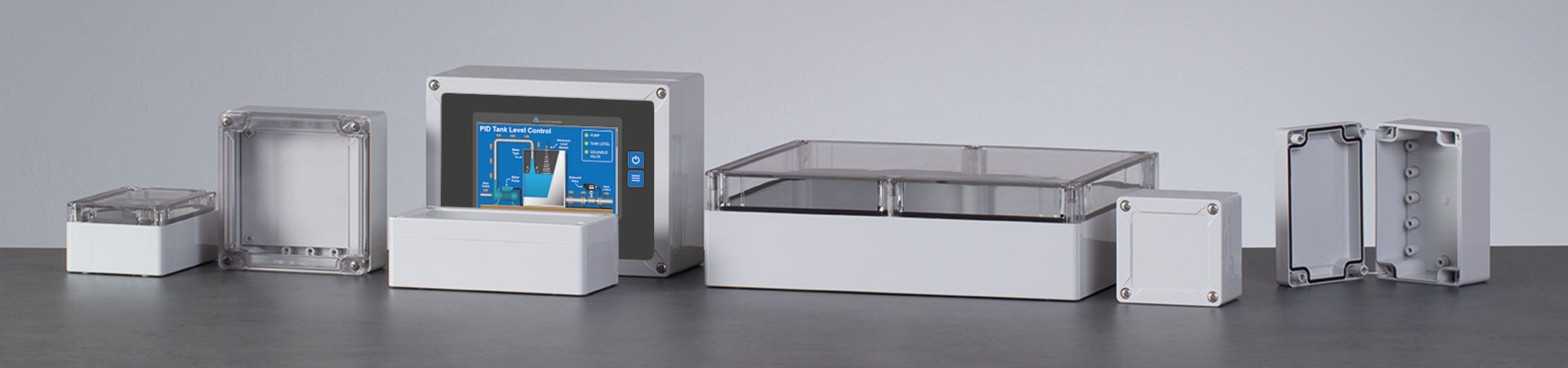

  • 9 种精亮表面的基础盒及各种高度规格
  • 两种标准材质: ABS (UL 94 HB) 或 PC (V-2) 塑料;
    整个机盒为 PC 塑料材质能使其达到防火等级 UL 94 5V (优于 V-0 ), 尽管该材料等级只有 V-2
  • 高防护等级 IP 66/67; 盒盖已配备密封泡沫
  • 高度的抗冲击性 IK07 (ABS 材质), IK08 (PC 材质)

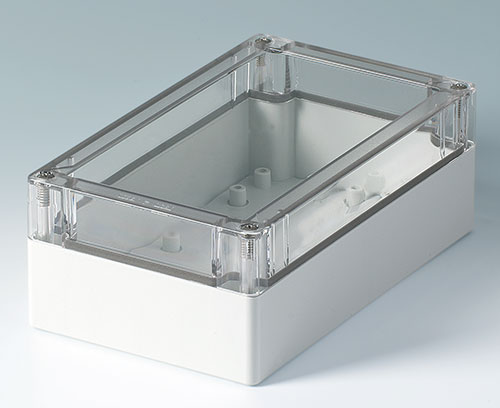

  • 壳盖与壳体的颜色相同或透明颜色

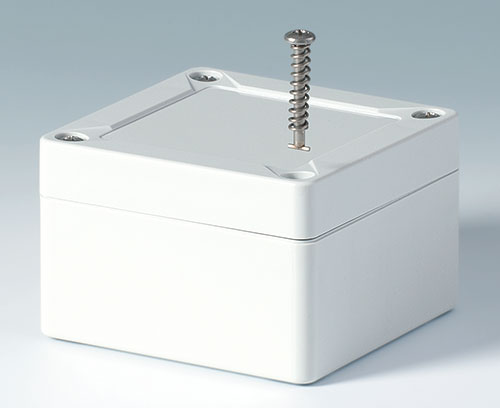

  • 具备不锈钢材质的理性快速拆卸结构

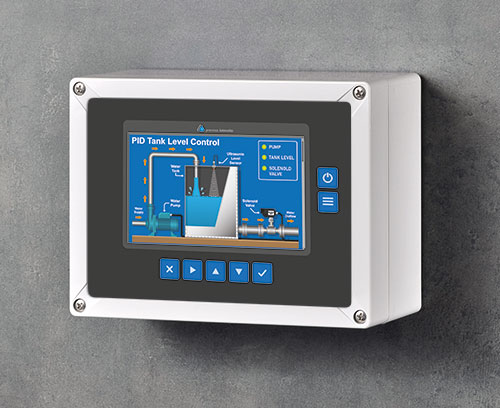

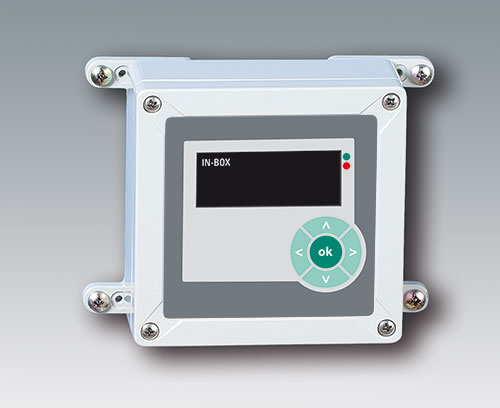

  • 凹陷的操作区域,以保护膜键盘

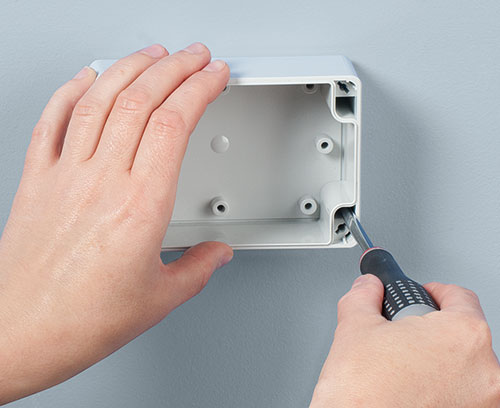

  • 直接安装在墙壁内或通过墙托架安装墙外部; 如有必要可利用内部铰链进行安装

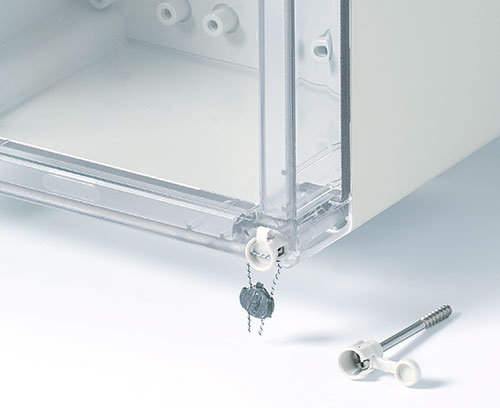

  • 蜡封装置可选,以防侵权操动

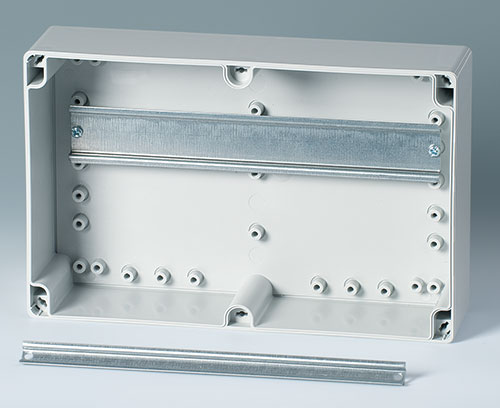

  • 如有需要可配置标准导轨和特殊安装板
  • 集成固定柱用于固定电路板、DIN 标准导轨、安装板和元器件

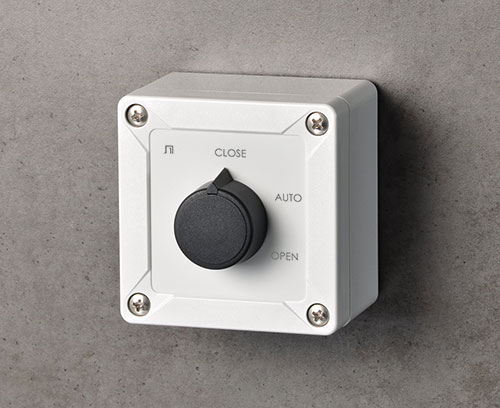

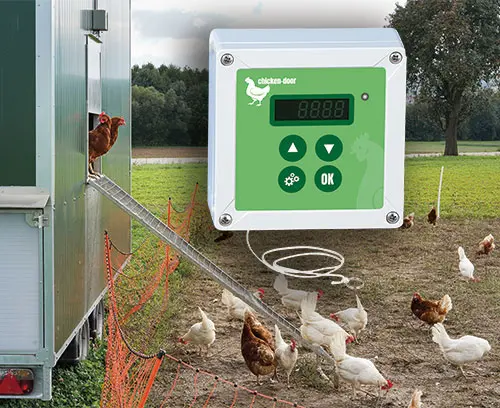

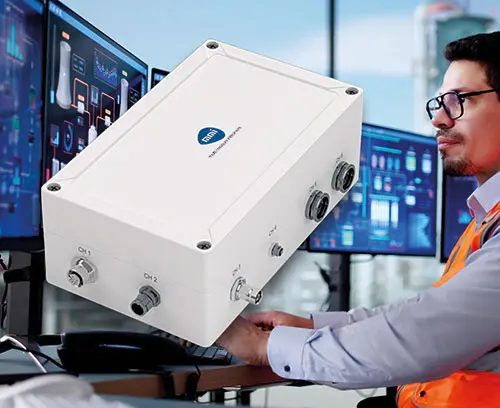

  • 应用示例

应用范围

  • 特别适用于电气安装,例如用于供暖、通风和空调设备的控制和监视、用于机器设备及安全工程等
  • 但也可用于电子领域,例如用于数字和模拟测量仪器、传感器应用、作为接口机盒,报警机盒等
  • 类型
  • 配件
  • 按客户要求修改加工

选择类型和规格大小,然后点击“选择”。



ABS (UL 94 HB) 材料

IN-BOX ABS (UL 94 HB) 材料

ABS/PC 透明材质上盒

IN-BOX ABS/PC 透明材质上盒

PC 塑料

IN-BOX PC  塑料

C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure > 6 bar.
Temperature range -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

关闭

C2306917

Pressure equalisation element M6x0.75 PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure > 6 bar.
Temperature range -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

关闭

C2310917

Pressure equalisation element M10x1 PA 6 (UL 94 HB)
light grey RAL 7035
IP 56

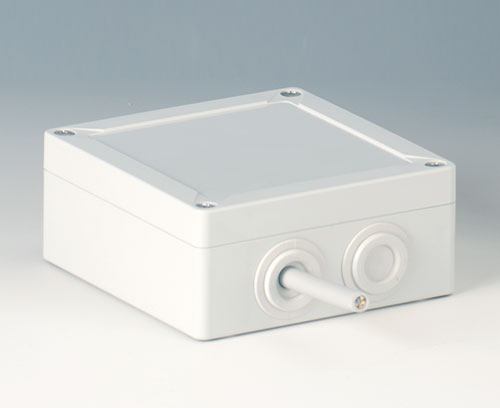

C2320137 Cable grommet

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

关闭

C2320137

Cable grommet EPDM
light grey RAL 7035
IP 67
C2325147 Cable grommet

C2325147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3.5 mm and for cable diameters from 8 - 17 mm. Operating temperatures from -40°C to +100°C. Borehole ø 25.5 mm.

Supply 1 cable grommet

关闭

C2325147

Cable grommet TPE
light grey RAL 7035
IP 67
C7100092 Wall-mounting brackets

C7100092

Wall-mounting brackets Wall-mounting brackets made of plastic for external wall mounting. Installation above, below or laterally, as required.

Supply 4 wall-mounting brackets incl. fasteners

关闭

C7100092

Wall-mounting brackets PC GF15
C7100128 Security kit

C7100128

Security kit To secure the enclosure against unauthorised access.

Supply 1 security kit

关闭

C7100128

Security kit PP
C7100138 Security kit

C7100138

Security kit To secure the enclosure against unauthorised access.

Supply 1 security kit

关闭

C7100138

Security kit PP

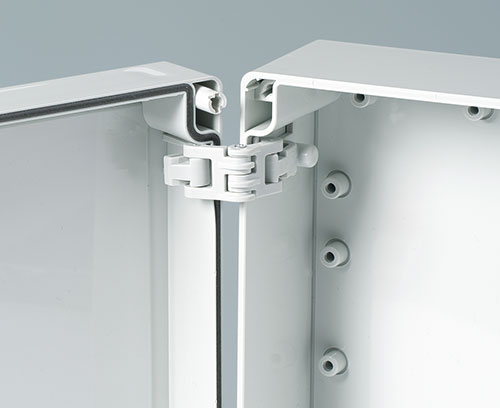

C7100142 Inside hinge

C7100142

Inside hinge For converting the top part of the enclosure into a folding door.

Supply 2 hinges, fastening screws with drill template

关闭

C7100142

Inside hinge PC
C7100167 Screw 3.9 x 9 mm

C7100167

Screw 3.9 x 9 mm For fitting standard DIN rails, mounting plates, PCBs, components etc.

Supply 1 self-tapping screw

关闭

C7100167

Screw 3.9 x 9 mm
C7110056 Mounting plate

C7110056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

关闭

C7110056

Mounting plate 73x53x2.5mm
C7110077 Standard DIN rail, Type TH 35

C7110077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

关闭

C7110077

Standard DIN rail, Type TH 35 Steel
66x35x7.5mm
C7110087 Standard DIN rail, Type TH 15

C7110087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

关闭

C7110087

Standard DIN rail, Type TH 15 Steel
66x15x5.5mm
C7111056 Mounting plate

C7111056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

关闭

C7111056

Mounting plate 91x73x2.5mm
C7111077 Standard DIN rail, Type TH 35

C7111077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

关闭

C7111077

Standard DIN rail, Type TH 35 Steel
104x35x7.5mm
C7111087 Standard DIN rail, Type TH 15

C7111087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

关闭

C7111087

Standard DIN rail, Type TH 15 Steel
104x15x5.5mm

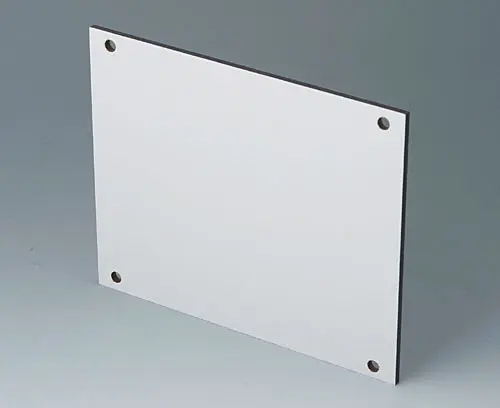

C7112056 Mounting plate

C7112056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

关闭

C7112056

Mounting plate 113x93x2.5mm

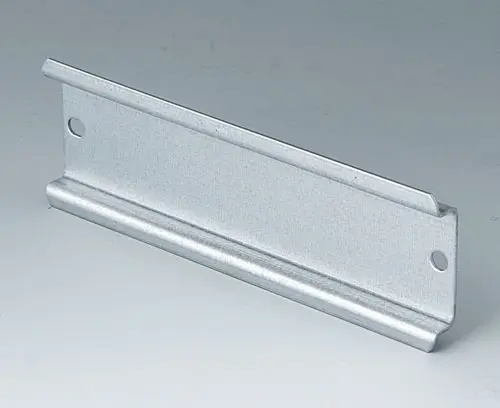

C7112077 Standard DIN rail, Type TH 35

C7112077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

关闭

C7112077

Standard DIN rail, Type TH 35 Steel
108x35x7.5mm
C7112087 Standard DIN rail, Type TH 15

C7112087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

关闭

C7112087

Standard DIN rail, Type TH 15 Steel
108x15x5.5mm
C7113056 Mounting plate

C7113056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

关闭

C7113056

Mounting plate 131x73x2.5mm
C7113077 Standard DIN rail, Type TH 35

C7113077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

关闭

C7113077

Standard DIN rail, Type TH 35 Steel
144x35x7.5mm
C7113087 Standard DIN rail, Type TH 15

C7113087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

关闭

C7113087

Standard DIN rail, Type TH 15 Steel
144x15x5.5mm
C7114056 Mounting plate

C7114056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

关闭

C7114056

Mounting plate 131x113x2.5mm
C7115056 Mounting plate

C7115056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

关闭

C7115056

Mounting plate 171x113x2.5mm
C7115077 Standard DIN rail, Type TH 35

C7115077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

关闭

C7115077

Standard DIN rail, Type TH 35 Steel
184x35x7.5mm
C7115087 Standard DIN rail, Type TH 15

C7115087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

关闭

C7115087

Standard DIN rail, Type TH 15 Steel
184x15x5.5mm
C7116056 Mounting plate

C7116056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

关闭

C7116056

Mounting plate 171x143x2.5mm
C7116077 Standard DIN rail, Type TH 35

C7116077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

关闭

C7116077

Standard DIN rail, Type TH 35 Steel
168x35x7.5mm
C7116087 Standard DIN rail, Type TH 15

C7116087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

关闭

C7116087

Standard DIN rail, Type TH 15 Steel
168x15x5.5mm
C7117056 Mounting plate

C7117056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

关闭

C7117056

Mounting plate 220.5x152.5x2.5mm
C7117077 Standard DIN rail, Type TH 35

C7117077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

关闭

C7117077

Standard DIN rail, Type TH 35 Steel
220x35x7.5mm
C7117087 Standard DIN rail, Type TH 15

C7117087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

关闭

C7117087

Standard DIN rail, Type TH 15 Steel
220x15x5.5mm
C7118056 Mounting plate

C7118056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

关闭

C7118056

Mounting plate 270.5x222.5x2.5mm
C7118077 Standard DIN rail, Type TH 35

C7118077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

关闭

C7118077

Standard DIN rail, Type TH 35 Steel
283.5x35x7.5mm
C7118087 Standard DIN rail, Type TH 15

C7118087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

关闭

C7118087

Standard DIN rail, Type TH 15 Steel
283.5x15x5.5mm

产品类型用于 In-Box 工业用机盒

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
