Interface-Terminal 界面终端盒
多功能电子元件盒

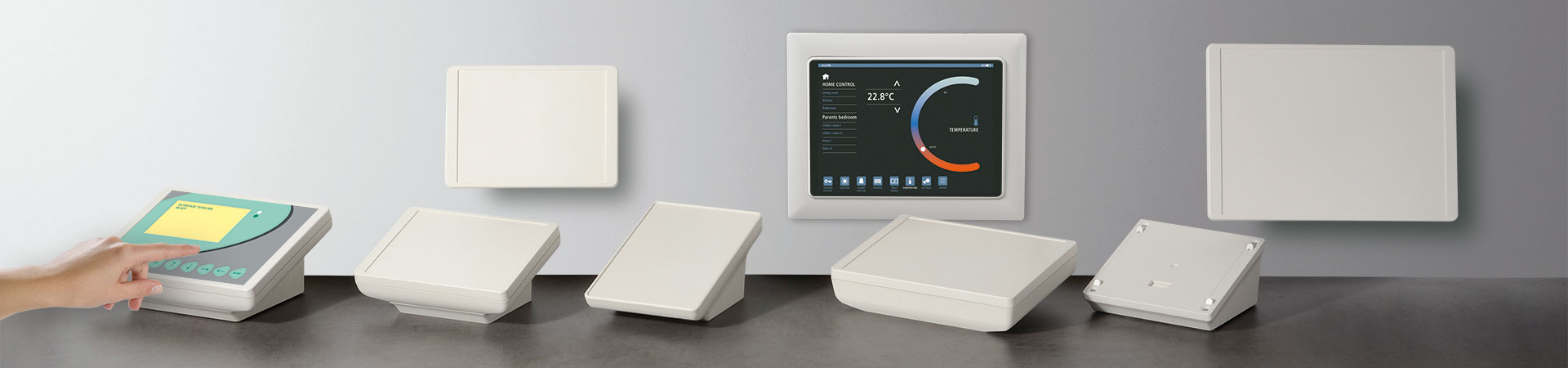

创新的 INTERFACE-TERMINAL 界面终端盒为现代化人机界面提供了便利.
- 美观的设计
- 用户可自己决定是否想将设备指定为移动式和 / 或固定式使用

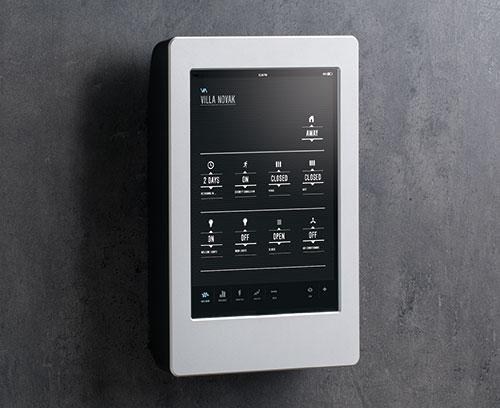

- 充足的空间用于安装电子元件、图形显示屏或触摸屏

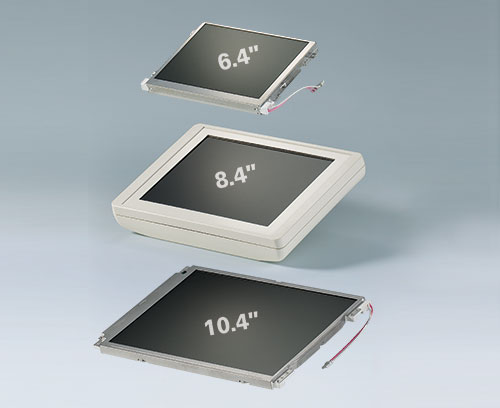

(S: 6,4"/16 cm, M: 8,4"/21 cm, L: 10,4"/26 cm) - 可选择厚度较低或者厚度较高的底盒用于独特配置、界面接口、电线进出口连接等的安装
- 前面板形式可选择: ABS 材质的上盖和前面板、铝制前面板、保护触摸屏的玻璃面板
根据要求可安装平板电脑 - 防护等级 IP 54: 如使用密封圈 (作为附件)

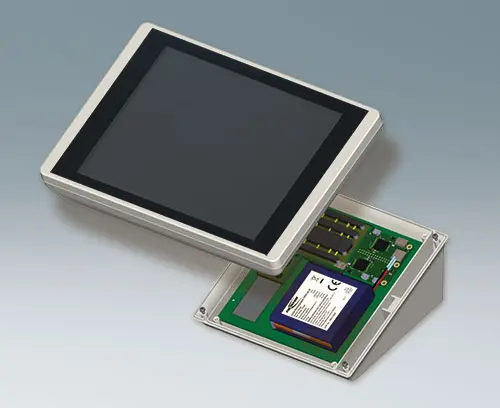

- 固定柱用于安装电路板和元器件
- 可自行组合的机盒安装系列包含:

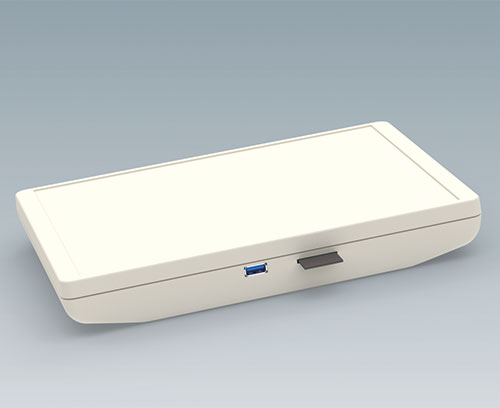

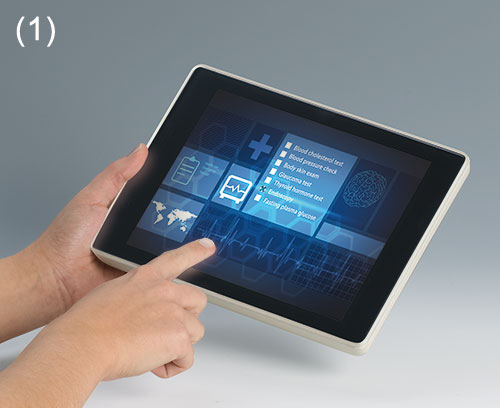

- 移动式 (1)

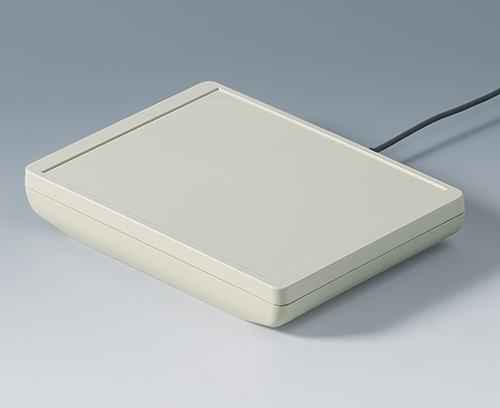

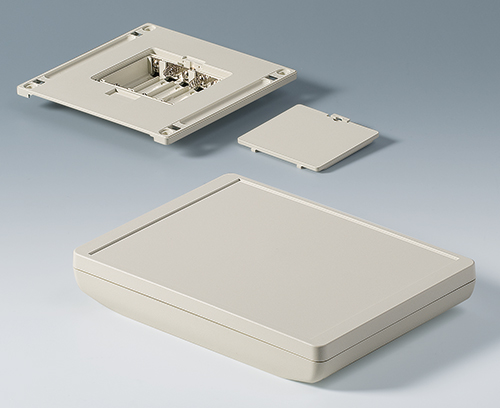

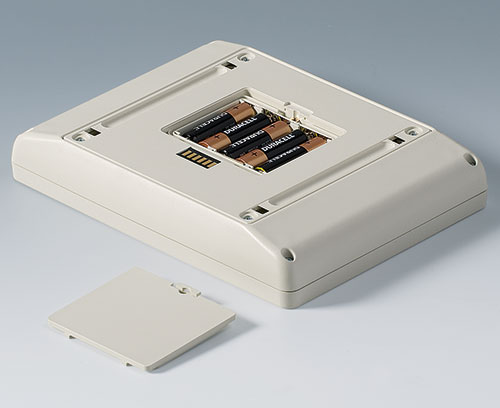

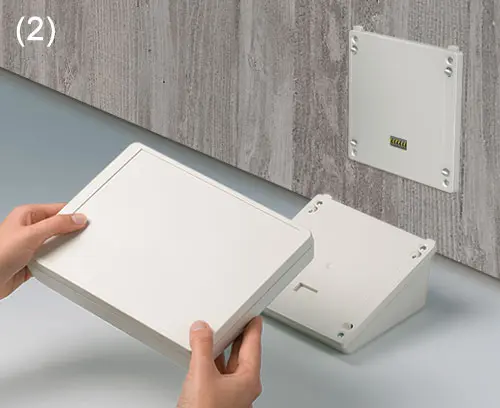

可选择无或带外装电池盒 (适配 5 个 AA 电池)，包括防电极误接和防扭保护、操作舒适便利的结构、具有扁平样式的手柄、背面的指槽用于安全的持握 - 带有充电座或扁平墙面支座的机盒 (2)

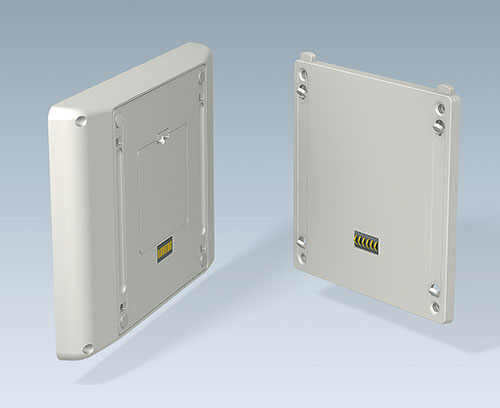

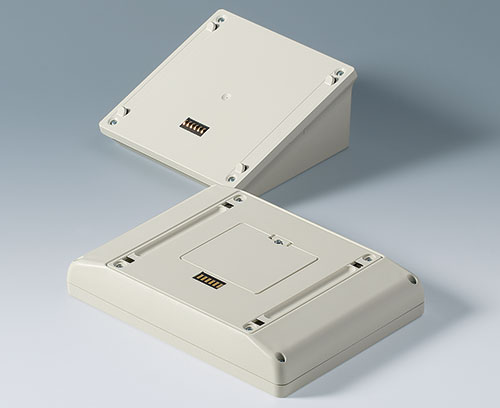

机盒卡接于插座或扁平挂墙支座上; 简便的数据传输和充电接触件作为附件; 机盒可根据纵向或者横向取向要求进行放置; 底座为电子设备提供充足的空间 - 倾斜机盒，螺栓固定式 (3)

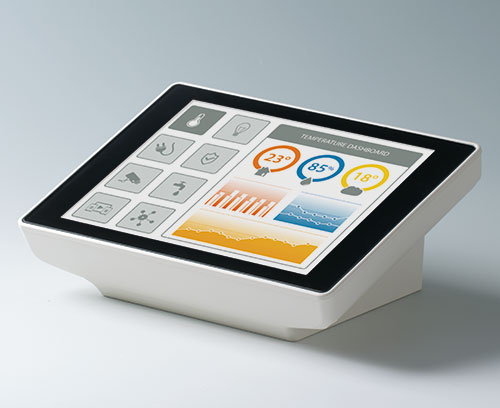

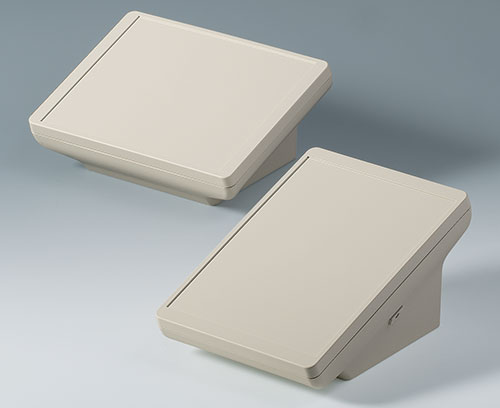

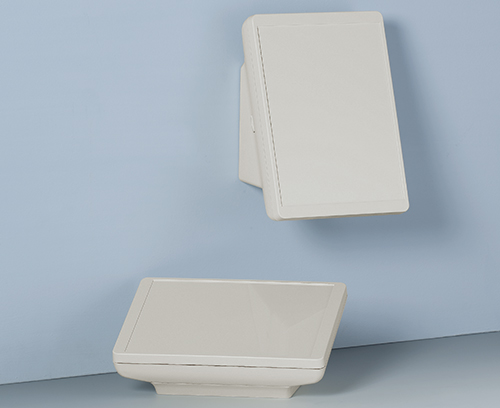

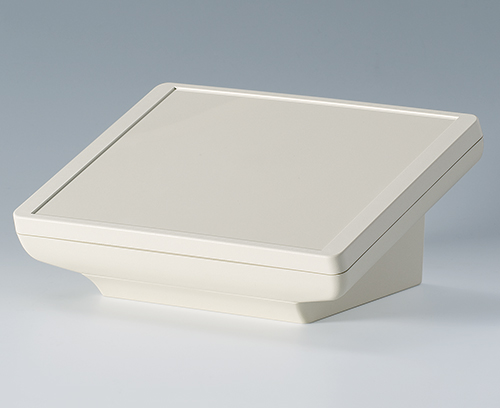

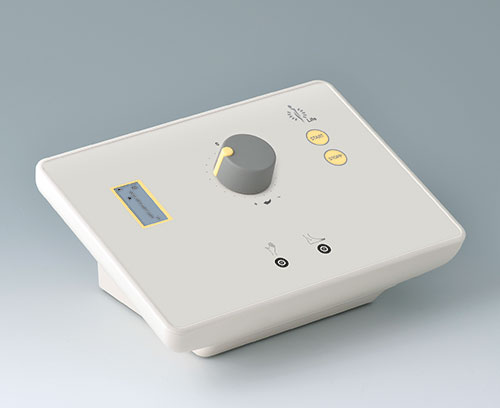

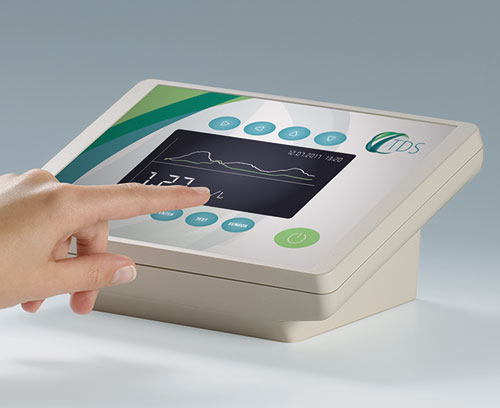

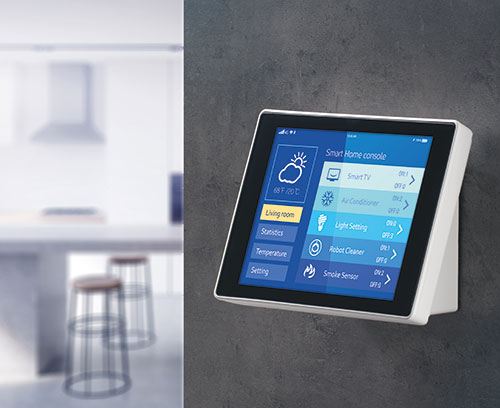

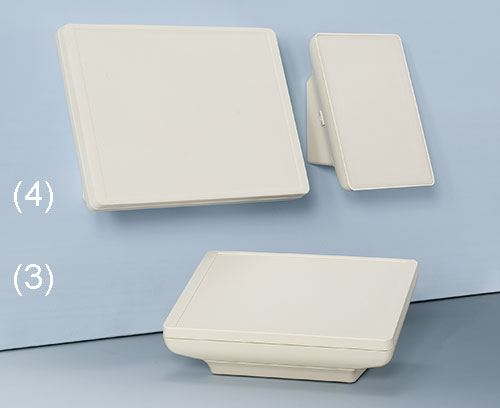

操作面提供符合人体工程学的 20 度倾斜; 可纵向或者横向进行安装; 螺栓连接位于非可视面; 底座为接插件、电子设备、布线提供充足的空间。橡胶垫脚为台式机盒提供安全稳固的放置 - 倾斜卡插台式机盒或墙挂式机盒，带旋转插销锁 (4)

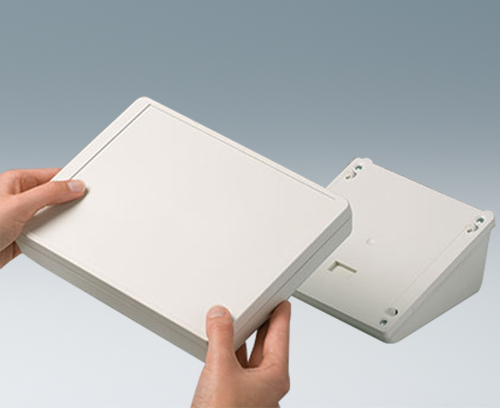

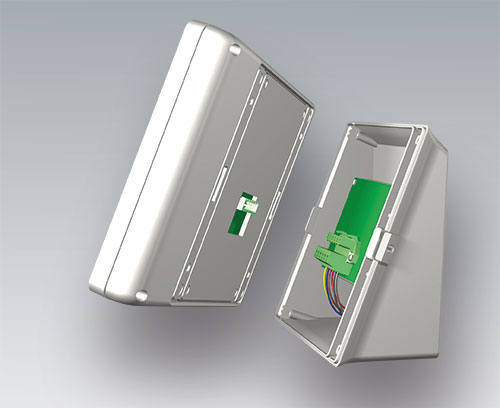

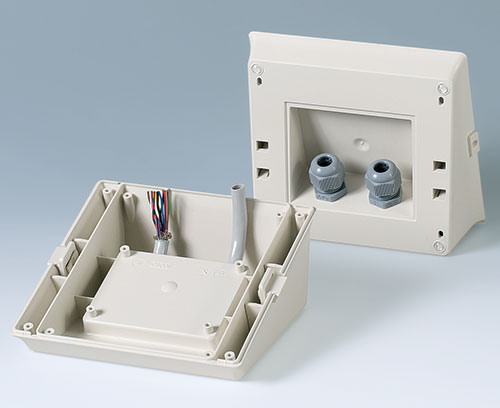

移动部件和固定部件之间的连接方式特别独特; 通过事先设定的卡夹式位于机盒和底座的接口可以让安装变得非常简便; 底座为接插件、电子设备安装以及布线提供充足的空间，并提供良好的组装性; 底座可直接安装在墙上; 可移动组件可纵向或者横向进行安装 - 嵌入式机盒 (5)

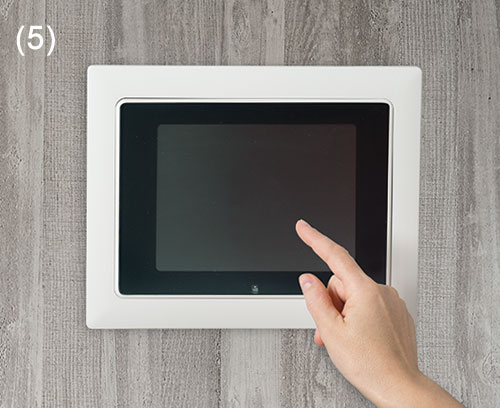

对于有特殊要求的建筑物或历史建筑物，机盒可和谐地安装在墙壁内或与表面安装板形成一体; 更进一步也可将机盒安装在机器或者设备中; 内置安装套件使安装简便
应用范围

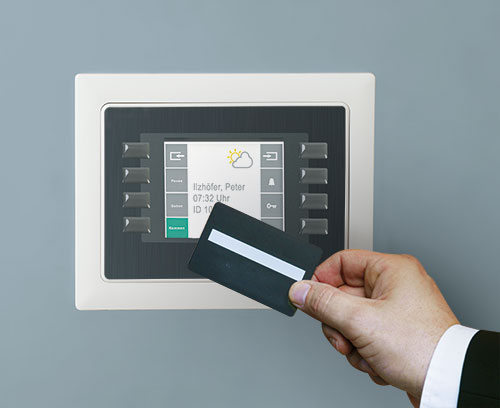

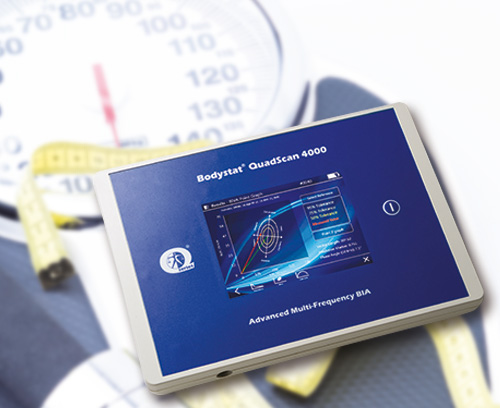

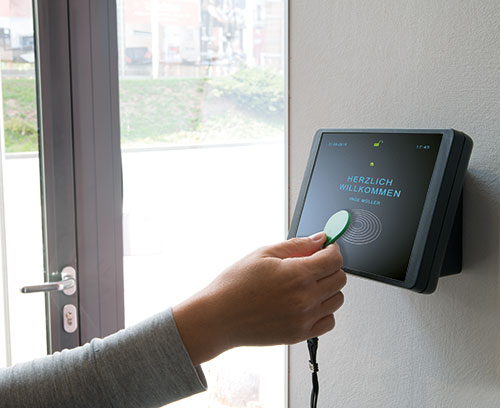

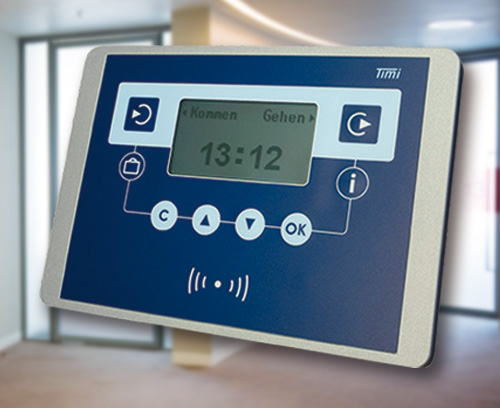

独特的应用广泛的类型: 移动式 – 倾斜台式 – 壁挂式 – 嵌入式: 外围设备和界面设备。 办公室。 通信技术。 安全技术。 生物识别。 医药和实验室技术。 健康。 卫生保健。 IoT/IIoT。 自动化。 测量/调节/控制。
请选择所需的产品类型或尺寸，或点击产品列表末尾的“选择所有产品”按键。
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, male产品已添加到关注清单中
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178008
Contacts, female产品已添加到关注清单中
B4142005
Sealing S (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply 1 sealing
B4142005
Sealing S (bottom part - front design)产品已添加到关注清单中
B4142006
Sealing S (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply 1 sealing
B4142006
Sealing S (bottom part - base/bot. panel/bat. comp...)产品已添加到关注清单中
B4144005

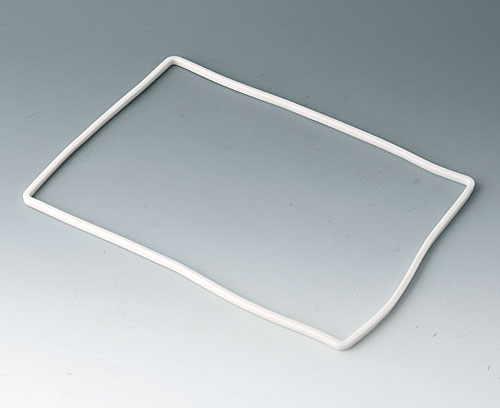

Sealing M (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply 1 sealing
B4144005
Sealing M (bottom part - front design)产品已添加到关注清单中

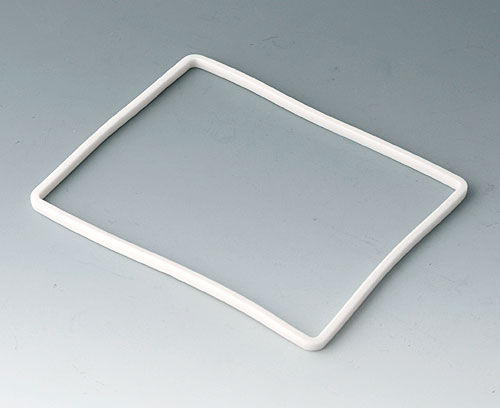

B4144006
Sealing M (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply 1 sealing
B4144006
Sealing M (bottom part - base/bot. panel/bat. comp...)产品已添加到关注清单中
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply 1 sealing
B4146005
Sealing L (bottom part - front design)产品已添加到关注清单中
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply 1 sealing
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)产品已添加到关注清单中
