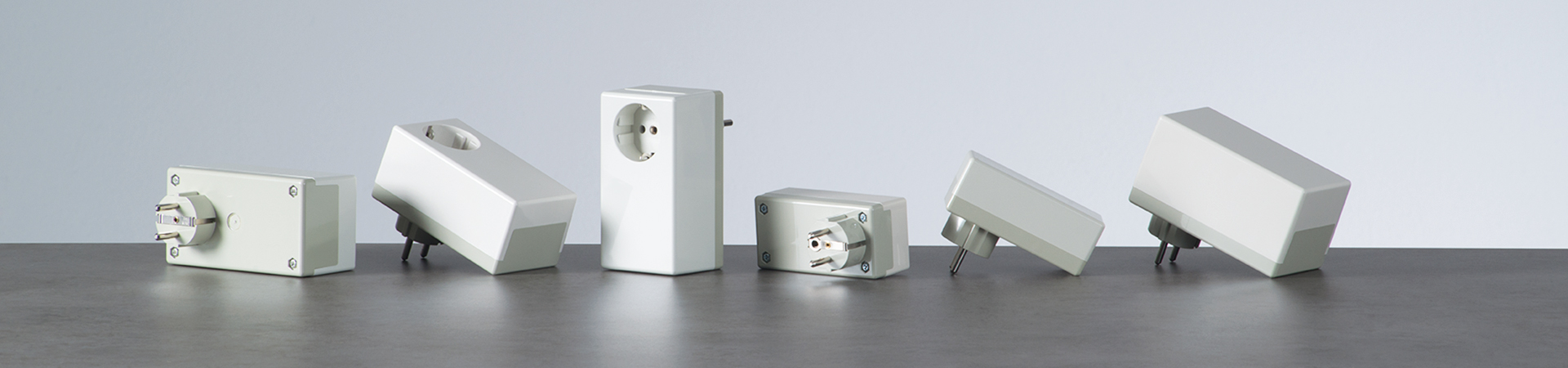

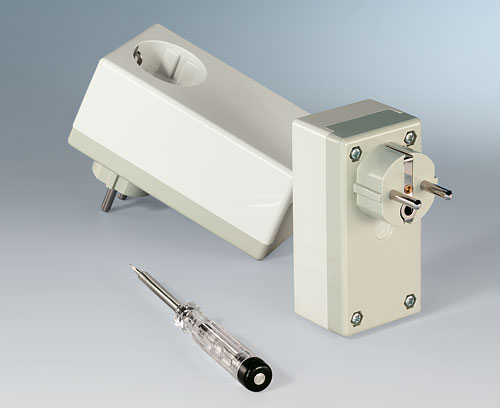

Plug Cases 连接器盒

Plug Cases 连接器盒

带集成连接器的机盒

Plug Cases 连接器盒是一款非常实用的电子产品解决方案 - 坚固耐撞耐用。

  • 阻燃材料制作 (UL 94 V-0)

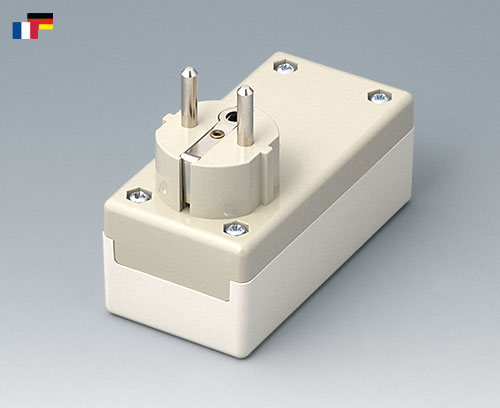

  • 提供国家专型“德国”款和“法国”款

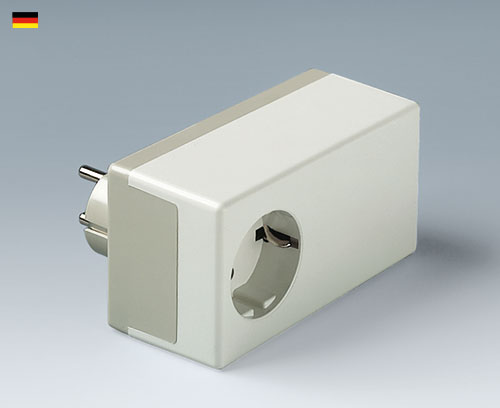

  • 德国款提供带插座型
  • 坚固耐撞耐用; 所有下盒在 125℃ 下通过球压测试
  • 内设固定柱用于固定电路板; 配套自成型螺钉 (4 颗)
  • 防护等级 < IP40

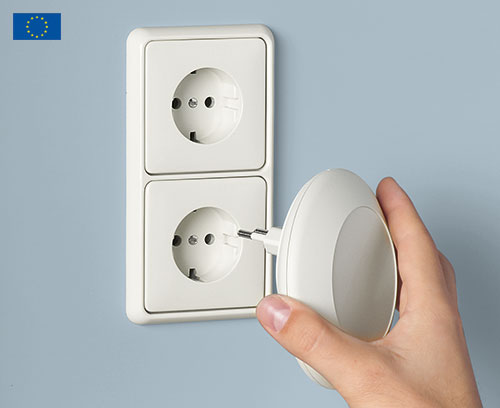

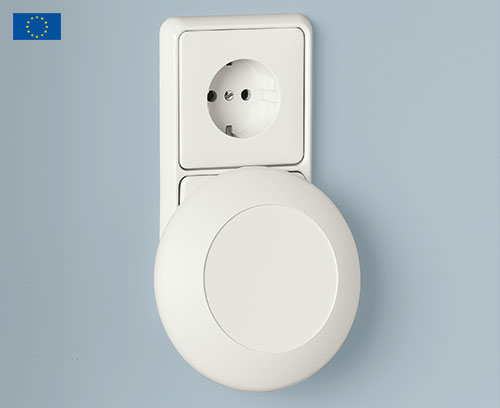

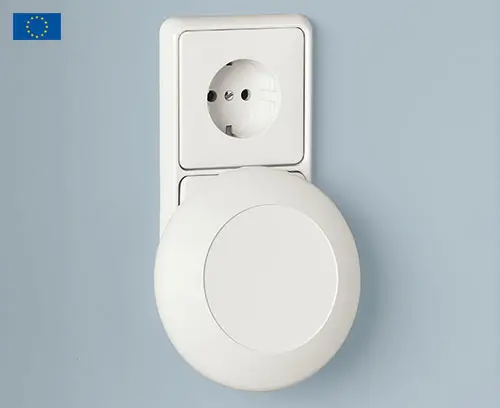

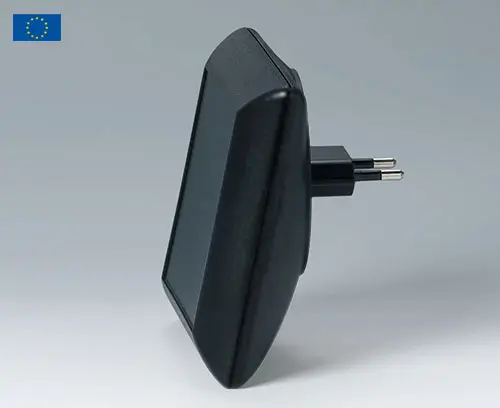

带欧式插头模块的机盒请参阅 ART-CASE 艺术状机盒

应用范围

  • 直接电源连接用插头机盒, 用于转换电压或调节其他器件的电流,例如,电路控制、分配器等
  • 选择所有项目
  • 配件
  • 按客户要求修改加工

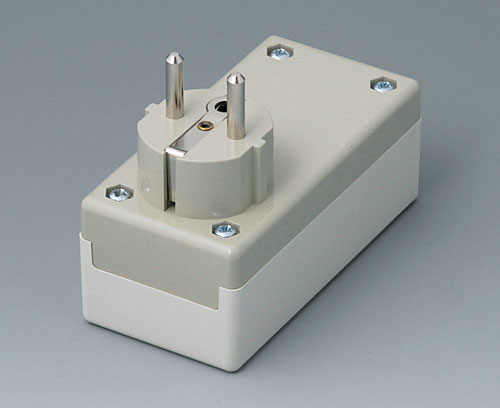

A9011665 PLUG CASE F / D, Vers. I

A9011665

PLUG CASE F / D, Vers. I Two-part plug case, French / German version. Live parts ABS-PC V-0. Fixing towers for the PCB assembly.

Version Without integrated socket, plug according to DIN 49441 R2

Supply 1 top and base part, assembly kit including 4 screws for the PCB fixing

关闭

A9011665

PLUG CASE F / D, Vers. I ABS (UL 94 V-0)
off-white RAL 9002
100x50x40mm

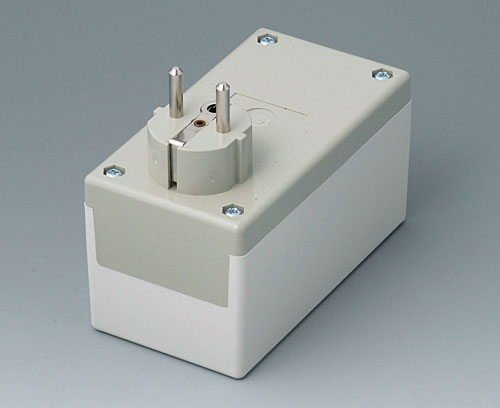

A9021665 PLUG CASE F / D, Vers. I

A9021665

PLUG CASE F / D, Vers. I Two-part plug case, French / German version. Live parts ABS-PC V-0. Fixing towers for the PCB assembly.

Version Without integrated socket, plug according to DIN 49441 R2

Supply 1 top and base part, assembly kit including 4 screws for the PCB fixing

关闭

A9021665

PLUG CASE F / D, Vers. I ABS (UL 94 V-0)
off-white RAL 9002
120x65x65mm

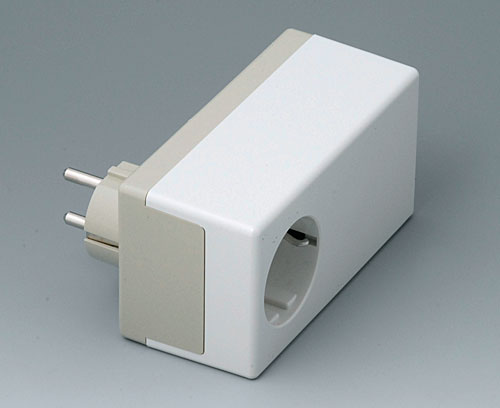

A9022465 PLUG CASE D, Vers. II

A9022465

PLUG CASE D, Vers. II Two-part plug case, German version. Live parts ABS-PC V-0. Fixing towers for the PCB assembly.

Version With integrated socket DIN 49440 and plug section DIN 49441 R2

Supply 1 top and base part, assembly kit including 4 screws for the PCB fixing

关闭

A9022465

PLUG CASE D, Vers. II PC+ABS (UL 94 V-0)
off-white RAL 9002
120x65x55mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0308031

Self-tapping screws 3 x 8 mm (PZ1)

产品类型用于 Plug Cases 连接器盒

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
