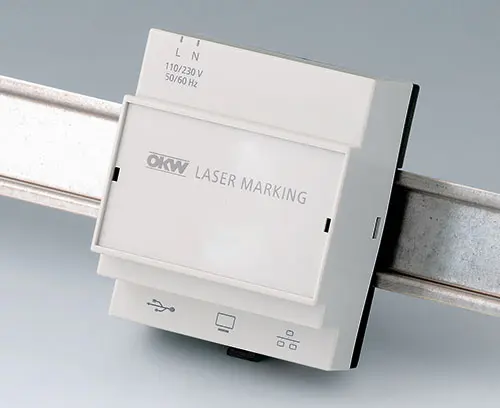

Railtec B 型导轨盒 B

Railtec B 型导轨盒 B

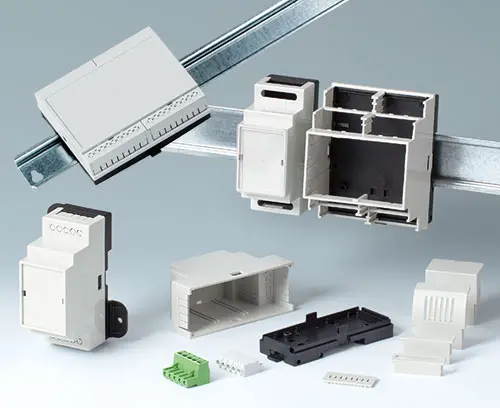

多用途 DIN - 标准导轨盒

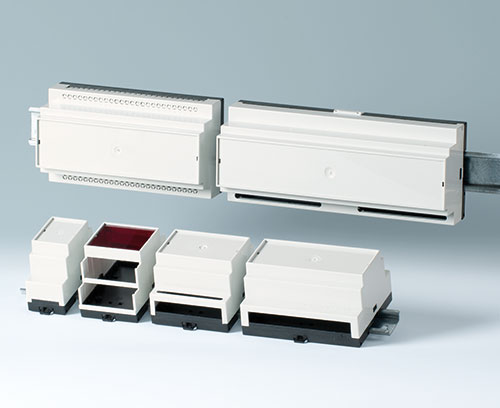

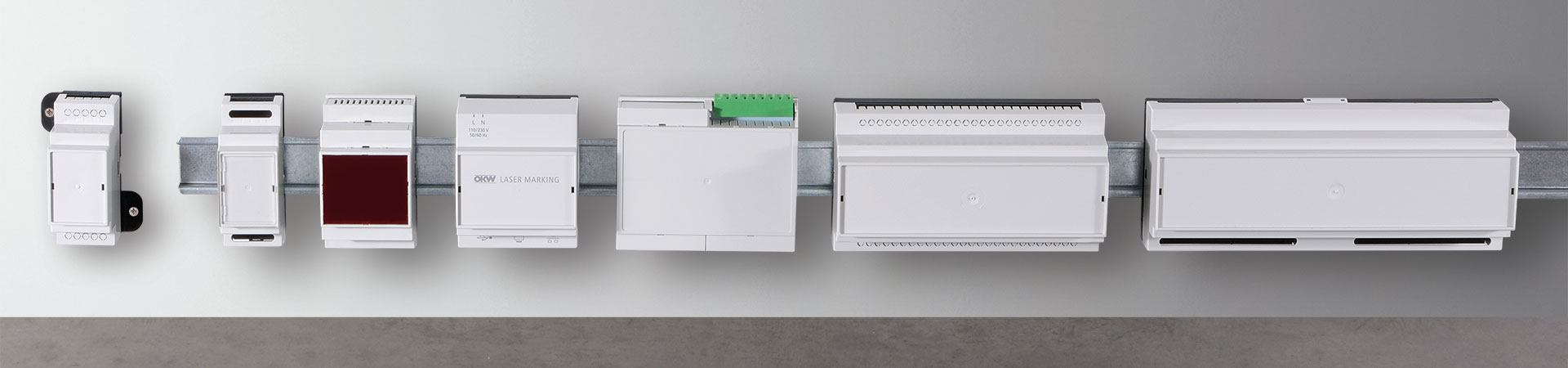

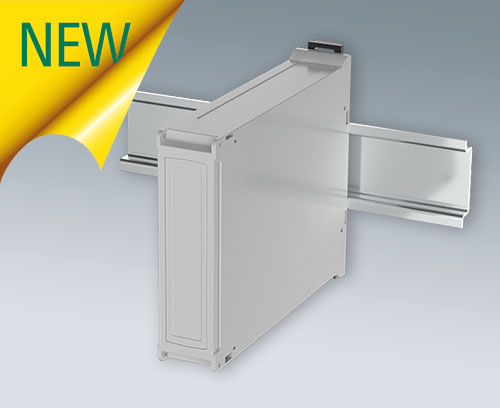

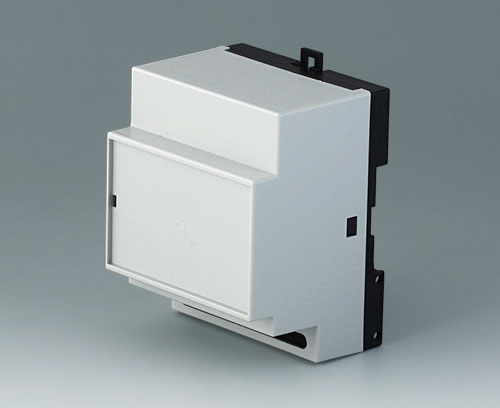

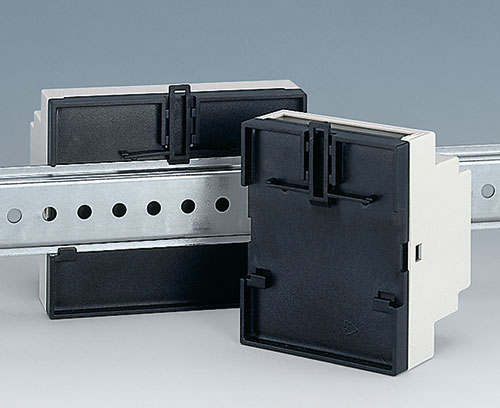

简单快速的适配 EN 60715 TH35 的 DIN 标准导轨的卡扣式安装体现了 RAILTEC B 型导轨盒 B 产品系列的特征。

  • 6 种规格 (2-12 个模块) 符合 DIN 43880 标准, 款式 1;
    4 种规格 (2、4、 6 和 9 个模块) 配扁平上盒;
    4 种规格 (2、4、 6 和 9 个模块) 配备扁平或较高上盒达到各 3 种款式
  • 根据 VBG 4 及 IEC 529 / DIN VDE 0470-1 标准提供完全绝缘性和触摸安全性
  • 阻燃材料 (UL 94 V-0)

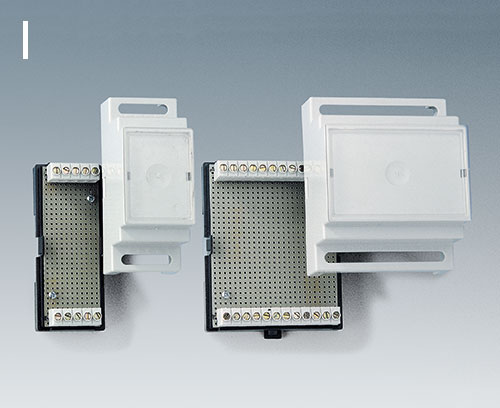

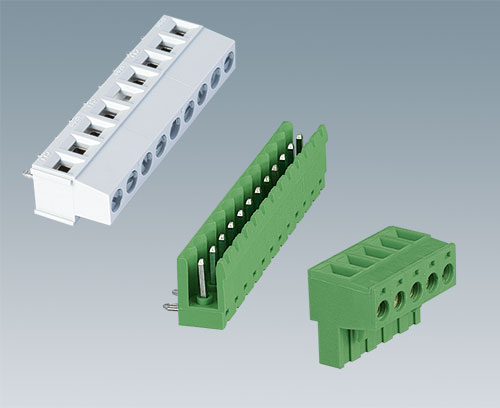

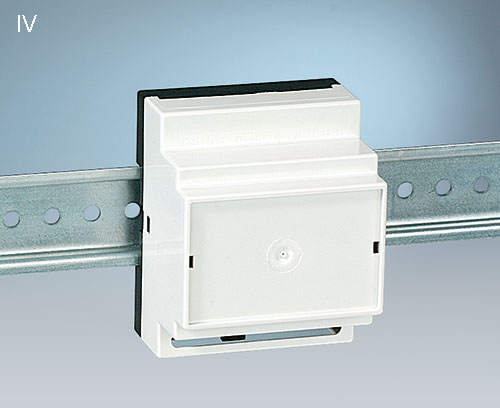

  • 类型 I 和 XI: 适配接线端子排网格 5,0/5,08

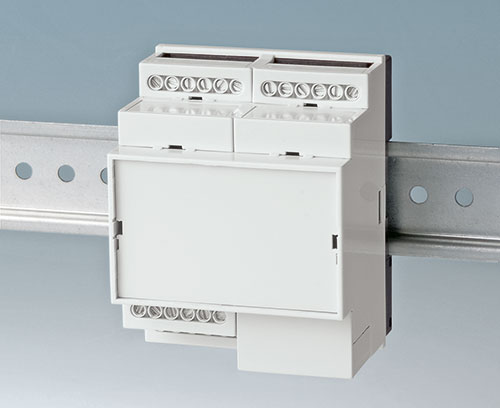

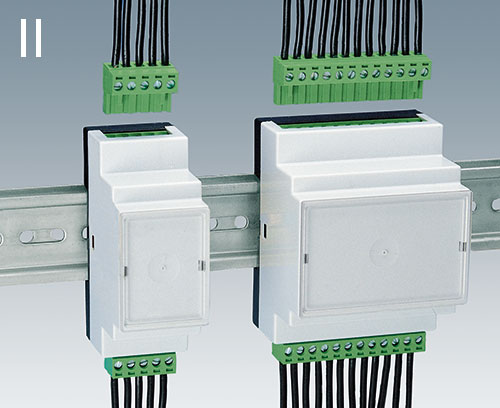

  • 类型 II 和 XII: 适配接线端子排网格 5,0/5,08

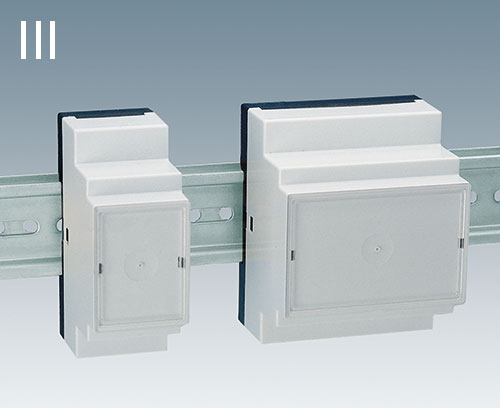

  • 类型 III 和 XIII: 封闭式机盒,例如用于前置连接器、D-SUB 插头等
  • 类型 IV: 适配接线端子排网格 5,0/5,08 (仅限于下部)

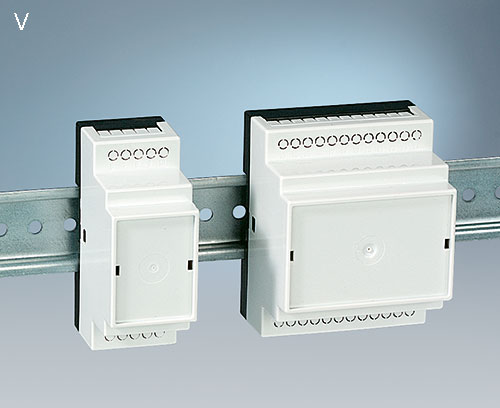

  • 类型 V: 带有穿孔网格 5,0

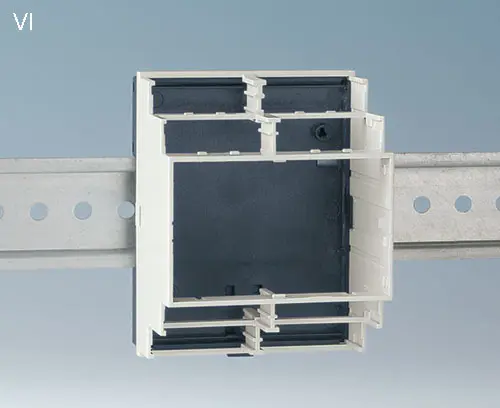

  • 类型 VI: 敞开式机盒用于定制件组合(带端子排盖或分隔板),可选的 1 或 2 个连接端子排

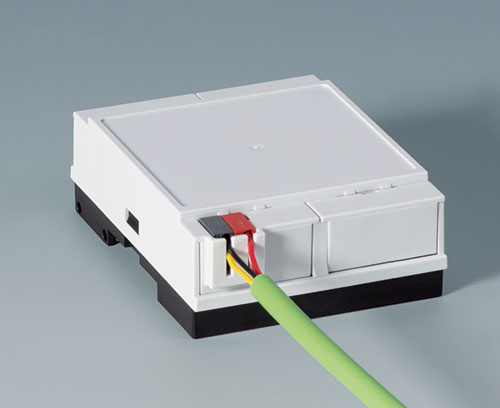

  • 连接器盖适配 KNX 插头,适用于模块宽度 2 和 4 (机盒类型 VI 或带扁平上盒的机盒)

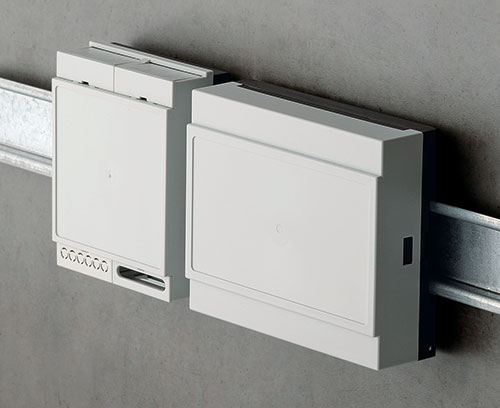

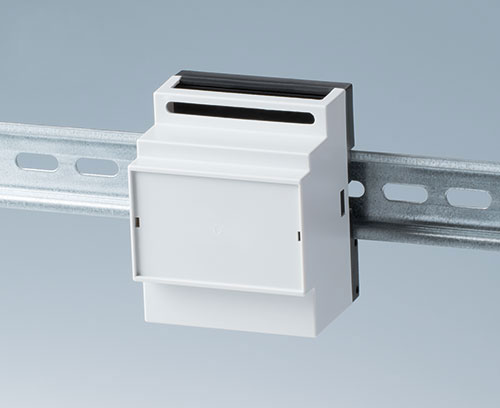

  • 适合安装于 EN 60715 TH35 的 DIN 标准导轨上或直接安装于墙壁上

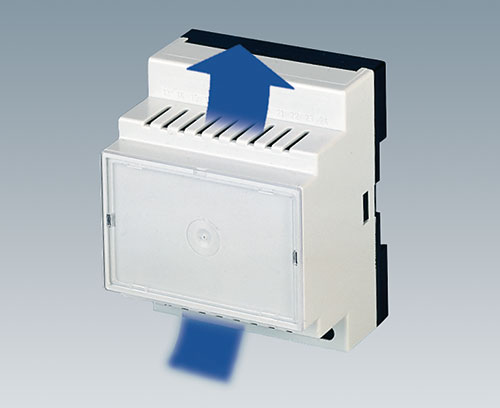

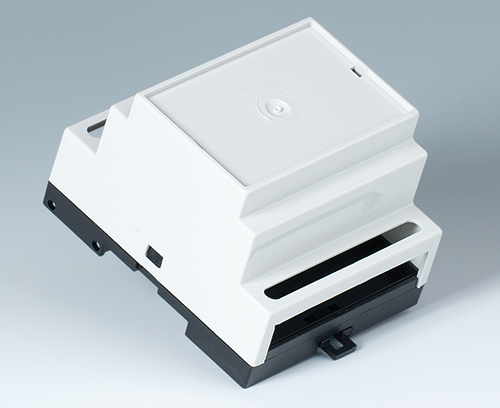

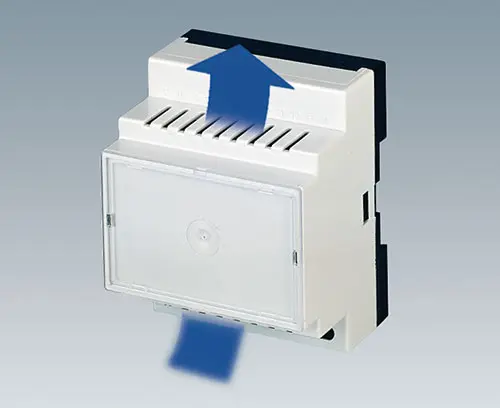

  • 无或带通风槽,利于散热

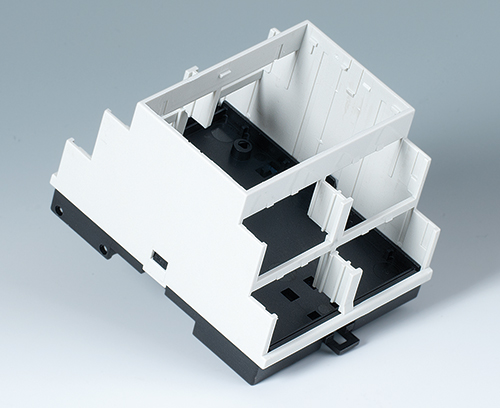

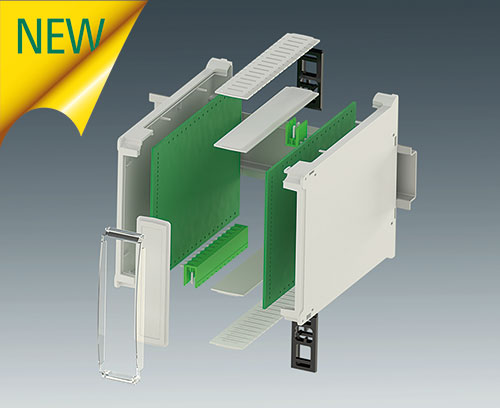

  • 组装灵活:电路板可在所有三个空间方向安装; 下盒设有固定柱,上盒设有导槽
  • 下盒已预先组装好卡夹环

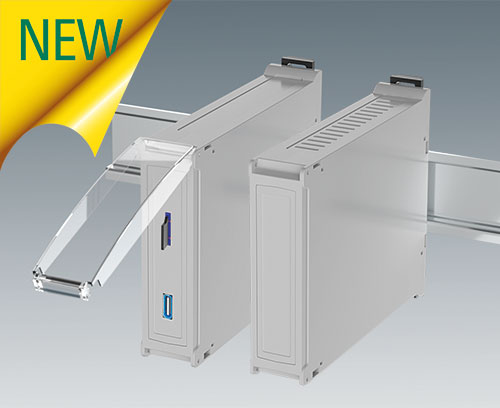

  • 透明盒盖(较高类型的附件)用于保护显示屏和操作元件
  • 防护等级 < IP 40
  • 应用示例

应用范围

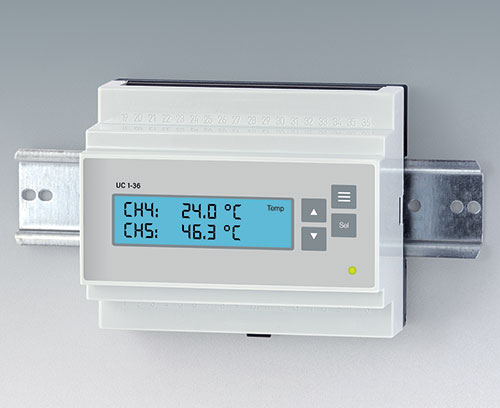

  • 通用式设备安装盒
  • 符合机器设备和车辆行业的专业规格
  •  特别适用于控制和自动化技术
  • 类型
  • 配件
  • 按客户要求修改加工

选择类型和规格大小,然后点击“选择”。



无通风槽

RAILTEC B 无通风槽

配备扁平或较高连接面

RAILTEC B 配备扁平或较高连接面

带通风槽

RAILTEC B 带通风槽

独特配置相关系统组件

RAILTEC B 独特配置相关系统组件

扁平上盒

RAILTEC B 扁平上盒

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)

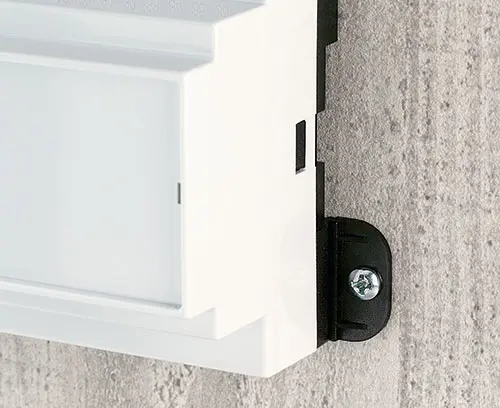

B6600334 Wall suspension elements

B6600334

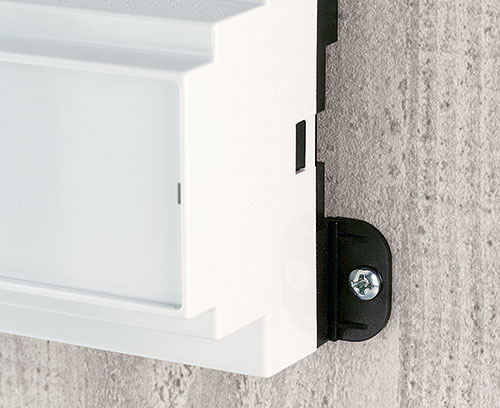

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

关闭

B6600334

Wall suspension elements PPO (UL 94 V-0)
black

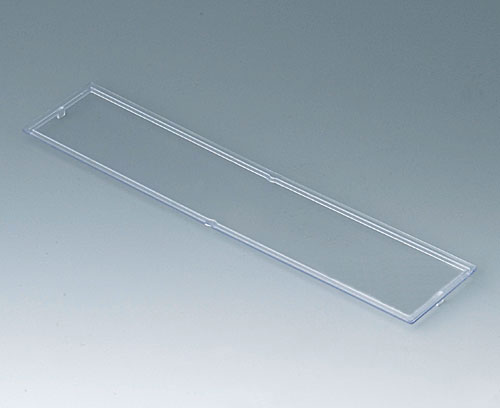

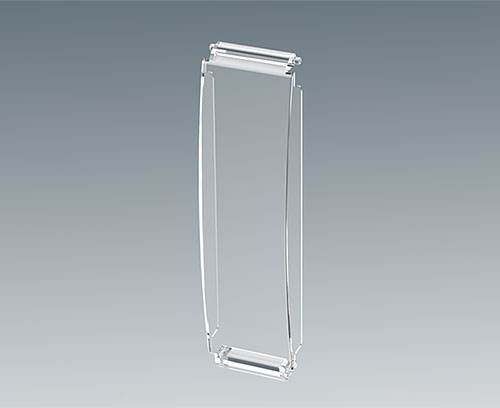

B6601100 Lid, 2 modules

B6601100

Lid, 2 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

关闭

B6601100

Lid, 2 modules PC (UL 94 V-0)
transparent

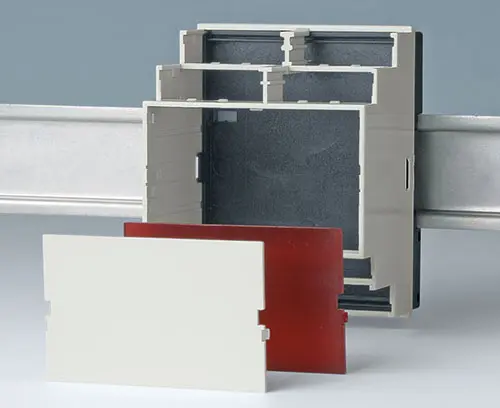

B6601180 Front panel, 2 modules, Vers. VI

B6601180

Front panel, 2 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6601180

Front panel, 2 modules, Vers. VI PC (UL 94 V-0)
light grey
32x42mm
B6601480 Front panel, 2 modules, Vers. VI

B6601480

Front panel, 2 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6601480

Front panel, 2 modules, Vers. VI PC (UL 94 V-0)
red transparent
32x42mm

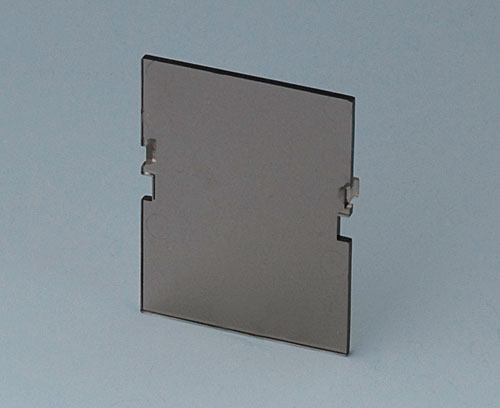

B6601580 Front panel, 2 modules, Vers. VI

B6601580

Front panel, 2 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6601580

Front panel, 2 modules, Vers. VI PC (UL 94 V-0)
smoked glass
32x42mm
B6602100 Lid, 3 modules

B6602100

Lid, 3 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

关闭

B6602100

Lid, 3 modules PC (UL 94 V-0)
transparent

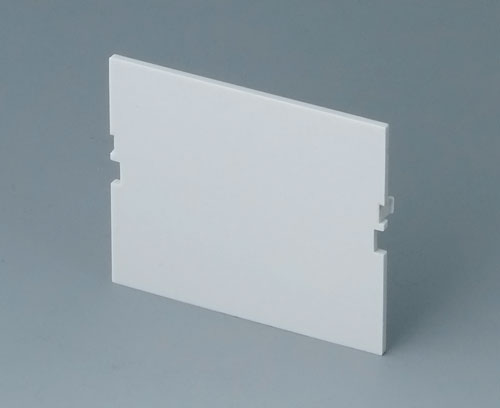

B6602180 Front panel, 3 modules, Vers. VI

B6602180

Front panel, 3 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6602180

Front panel, 3 modules, Vers. VI PC (UL 94 V-0)
light grey
49x42mm

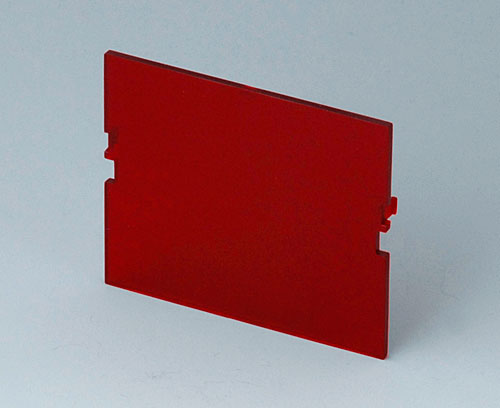

B6602480 Front panel, 3 modules, Vers. VI

B6602480

Front panel, 3 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6602480

Front panel, 3 modules, Vers. VI PC (UL 94 V-0)
red transparent
49x42mm

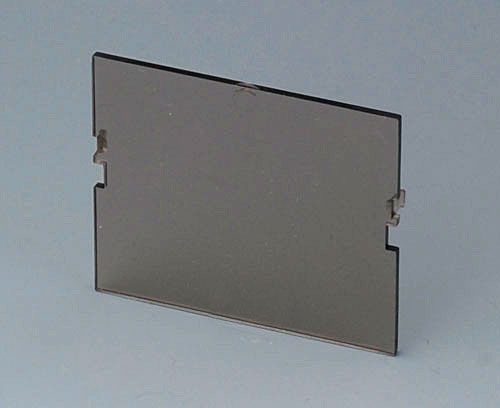

B6602580 Front panel, 3 modules, Vers. VI

B6602580

Front panel, 3 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6602580

Front panel, 3 modules, Vers. VI PC (UL 94 V-0)
smoked glass
42x49mm
B6603100 Lid, 4 modules

B6603100

Lid, 4 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

关闭

B6603100

Lid, 4 modules PC (UL 94 V-0)
transparent

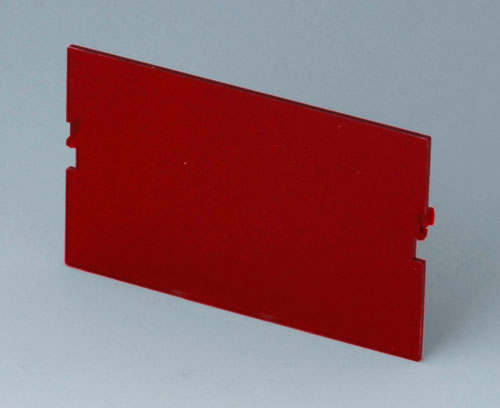

B6603180 Front panel, 4 modules, Vers. VI

B6603180

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6603180

Front panel, 4 modules, Vers. VI PC (UL 94 V-0)
light grey
67x42mm
B6603480 Front panel, 4 modules, Vers. VI

B6603480

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6603480

Front panel, 4 modules, Vers. VI PC (UL 94 V-0)
red transparent
67x42mm

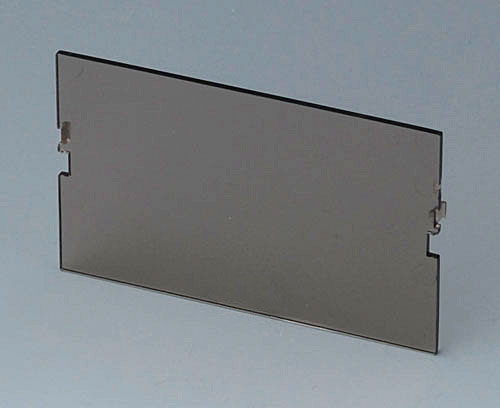

B6603580 Front panel, 4 modules, Vers. VI

B6603580

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6603580

Front panel, 4 modules, Vers. VI PC (UL 94 V-0)
smoked glass
67x42mm
B6604100 Lid, 6 modules

B6604100

Lid, 6 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

关闭

B6604100

Lid, 6 modules PC (UL 94 V-0)
transparent
B6604180 Front panel, 6 modules, Vers. VI

B6604180

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6604180

Front panel, 6 modules, Vers. VI PC (UL 94 V-0)
light grey
102x42mm
B6604480 Front panel, 6 modules, Vers. VI

B6604480

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6604480

Front panel, 6 modules, Vers. VI PC (UL 94 V-0)
red transparent
102x42mm
B6604580 Front panel, 6 modules, Vers. VI

B6604580

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6604580

Front panel, 6 modules, Vers. VI PC (UL 94 V-0)
smoked glass
102x42mm
B6605100 Lid, 9 modules

B6605100

Lid, 9 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

关闭

B6605100

Lid, 9 modules PC (UL 94 V-0)
transparent
B6605180 Front panel, 9 modules, Vers. VI

B6605180

Front panel, 9 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6605180

Front panel, 9 modules, Vers. VI PC (UL 94 V-0)
light grey
155x42mm
B6605480 Front panel, 9 modules, Vers. VI

B6605480

Front panel, 9 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6605480

Front panel, 9 modules, Vers. VI PC (UL 94 V-0)
red transparent
155x42mm
B6605580 Front panel, 9 modules, Vers. VI

B6605580

Front panel, 9 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6605580

Front panel, 9 modules, Vers. VI PC (UL 94 V-0)
smoked glass
155x42mm
B6606100 Lid, 12 modules

B6606100

Lid, 12 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

关闭

B6606100

Lid, 12 modules PC (UL 94 V-0)
transparent
B6606180 Front panel, 12 modules, Vers. VI

B6606180

Front panel, 12 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6606180

Front panel, 12 modules, Vers. VI PC (UL 94 V-0)
light grey
206x42mm
B6606480 Front panel, 12 modules, Vers. VI

B6606480

Front panel, 12 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6606480

Front panel, 12 modules, Vers. VI PC (UL 94 V-0)
red transparent
206x42mm
B6606580 Front panel, 12 modules, Vers. VI

B6606580

Front panel, 12 modules, Vers. VI Snap-in.

Supply 1 front panel

关闭

B6606580

Front panel, 12 modules, Vers. VI PC (UL 94 V-0)
smoked glass
206x42mm
B6607140 Terminal guards, flat

B6607140

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

关闭

B6607140

Terminal guards, flat PC (UL 94 V-0)
light grey
B6607141 Terminal guards, flat

B6607141

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

关闭

B6607141

Terminal guards, flat PC (UL 94 V-0)
light grey
B6607142 Terminal guards, flat

B6607142

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version For terminal block, block 5.0, 6-poles

Supply 1 piece

关闭

B6607142

Terminal guards, flat PC (UL 94 V-0)
light grey
B6607143 Terminal guards, flat

B6607143

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Perforated, for block 5.0

Supply 1 piece

关闭

B6607143

Terminal guards, flat PC (UL 94 V-0)
light grey

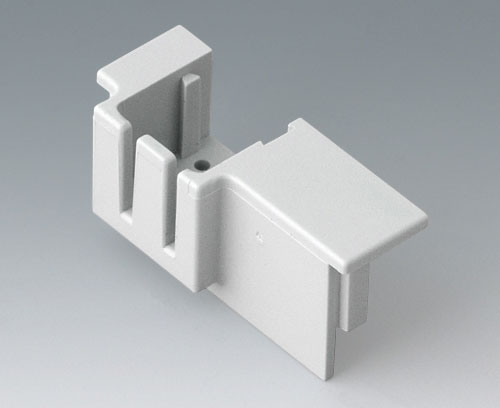

B6607145 KNX Cover, flat

B6607145

KNX Cover, flat Easy assembly through snap-in installation of the case parts.

Version For KNX connector

Supply 1 piece

关闭

B6607145

KNX Cover, flat PC (UL 94 V-0)
light grey
B6607160 Terminal guards, high

B6607160

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

关闭

B6607160

Terminal guards, high PC (UL 94 V-0)
light grey

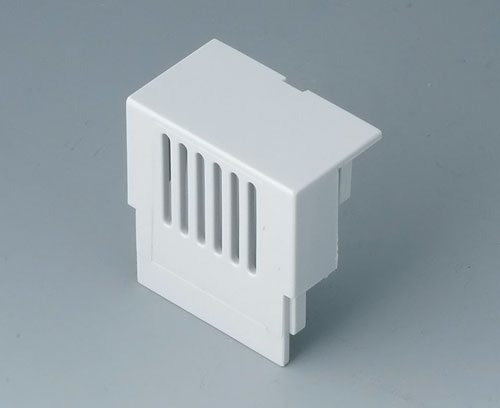

B6607161 Terminal guards, high

B6607161

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

关闭

B6607161

Terminal guards, high PC (UL 94 V-0)
light grey
B6607162 Terminal guards, high

B6607162

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, closed

Supply 1 piece

关闭

B6607162

Terminal guards, high PC (UL 94 V-0)
light grey
B6607163 Terminal guards, high

B6607163

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, with ventilation slots

Supply 1 piece

关闭

B6607163

Terminal guards, high PC (UL 94 V-0)
light grey

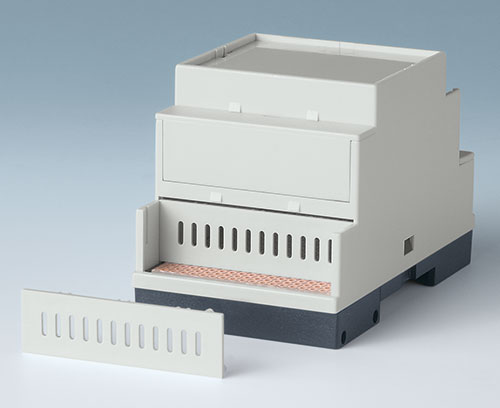

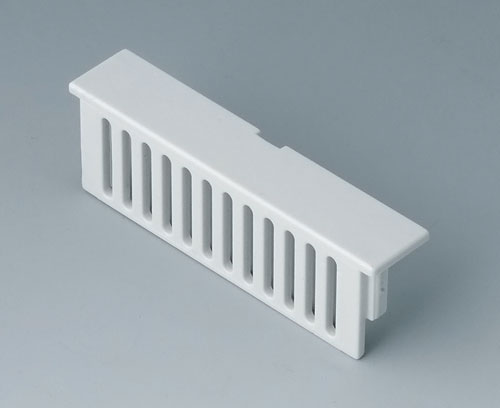

B6607191 Partition plate

B6607191

Partition plate Separates the electronic and terminal area when used without terminal guard (undermost level). Connections externally accessible. Simple insertion into the guides.

Version With ventilation slots

Supply 1 piece

关闭

B6607191

Partition plate PC (UL 94 V-0)
light grey

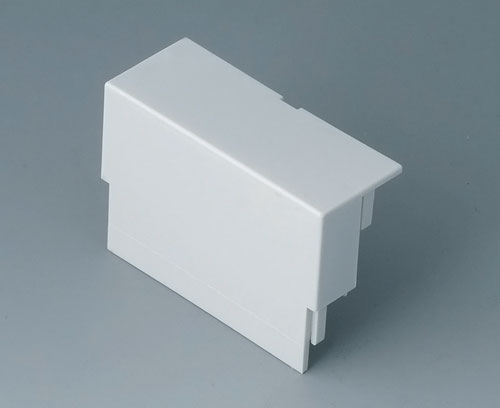

B6608140 Terminal guards, flat

B6608140

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

关闭

B6608140

Terminal guards, flat PC (UL 94 V-0)
light grey
B6608141 Terminal guards, flat

B6608141

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

关闭

B6608141

Terminal guards, flat PC (UL 94 V-0)
light grey
B6608142 Terminal guards, flat

B6608142

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version For terminal block, block 5.0, 9-poles

Supply 1 piece

关闭

B6608142

Terminal guards, flat PC (UL 94 V-0)
light grey
B6608143 Terminal guards, flat

B6608143

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Perforated, for block 5.0

Supply 1 piece

关闭

B6608143

Terminal guards, flat PC (UL 94 V-0)
light grey

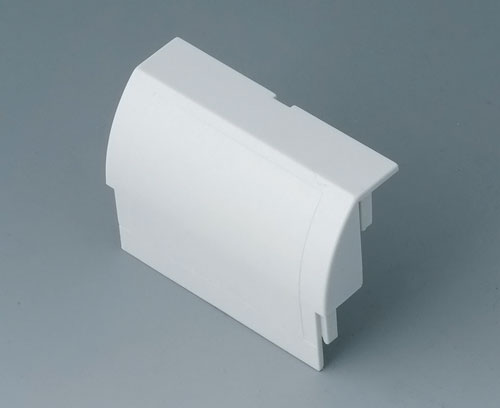

B6608160 Terminal guards, high

B6608160

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

关闭

B6608160

Terminal guards, high PC (UL 94 V-0)
light grey
B6608161 Terminal guards, high

B6608161

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

关闭

B6608161

Terminal guards, high PC (UL 94 V-0)
light grey
B6608162 Terminal guards, high

B6608162

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, closed

Supply 1 piece

关闭

B6608162

Terminal guards, high PC (UL 94 V-0)
light grey

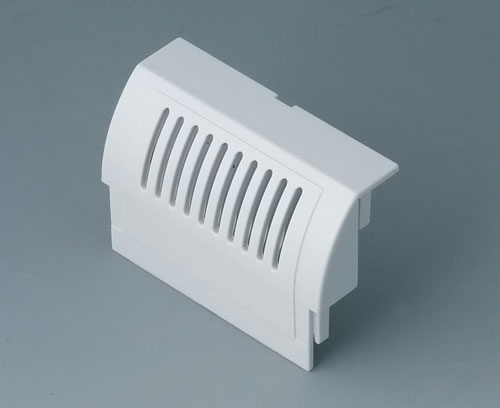

B6608163 Terminal guards, high
