B6607163 Terminal guards, high

B6607163

Terminal guards, high

Easy assembly through snap-in installation of the case parts.

Version

Convex, with ventilation slots

Supply

1 piece

  • 应用于
  • 按客户要求修改加工

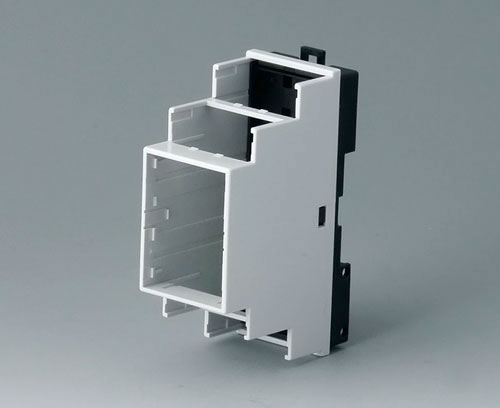

B6501121 RAILTEC B, 2 modules, Vers. VI

B6501121

RAILTEC B, 2 modules, Vers. VI Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

关闭

B6501121

RAILTEC B, 2 modules, Vers. VI
产品已添加到关注清单中
PC (UL 94 V-0)
light grey RAL 7035
35x90x58mm

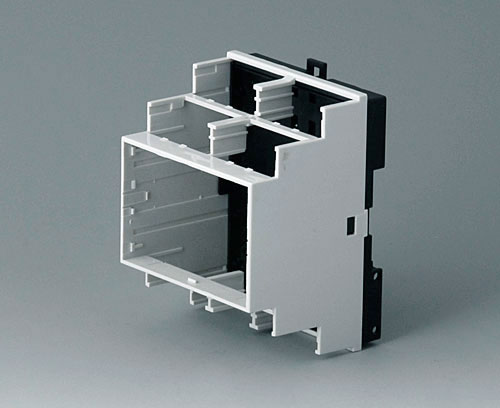

B6503121 RAILTEC B, 4 modules, Vers. VI

B6503121

RAILTEC B, 4 modules, Vers. VI Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

关闭

B6503121

RAILTEC B, 4 modules, Vers. VI
产品已添加到关注清单中
PC (UL 94 V-0)
light grey RAL 7035
70x90x58mm

Customising options for B6607163

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
light grey
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
