B6503121

RAILTEC B, 4 modules, Vers. VI

Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version

Individual configuration see accessories

Supply

1 base part with locking clip, 1 top part

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 B6503121

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

“挂墙支架” 配件

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

B6600334

Wall suspension elements
产品已添加到关注清单中

black

“端子” 配件

B6600111 Terminal block, block 5.0

B6600111

Terminal block, block 5.0 PCB terminal block, 5.0. 36-pin.

Supply 1 piece

B6600111

Terminal block, block 5.0
产品已添加到关注清单中

light grey
B6607111 Terminal block, block 5.0

B6607111

Terminal block, block 5.0 PCB terminal block, 5.0. 6-pin.

Supply 1 piece

B6607111

Terminal block, block 5.0
产品已添加到关注清单中
B6608222 Plug header, block 5.08

B6608222

Plug header, block 5.08 Male terminal block, 5.08. 6-pin.

Supply 1 piece

B6608222

Plug header, block 5.08
产品已添加到关注清单中
B6608223 Plug header, block 5.08

B6608223

Plug header, block 5.08 Female terminal block, 5.08. 6-pin.

Supply 1 piece

B6608223

Plug header, block 5.08
产品已添加到关注清单中

“端子盖” 配件

B6607140 Terminal guards, flat

B6607140

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

B6607140

Terminal guards, flat
产品已添加到关注清单中

light grey
B6607141 Terminal guards, flat

B6607141

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

B6607141

Terminal guards, flat
产品已添加到关注清单中

light grey
B6607142 Terminal guards, flat

B6607142

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version For terminal block, block 5.0, 6-poles

Supply 1 piece

B6607142

Terminal guards, flat
产品已添加到关注清单中

light grey
B6607143 Terminal guards, flat

B6607143

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Perforated, for block 5.0

Supply 1 piece

B6607143

Terminal guards, flat
产品已添加到关注清单中

light grey
B6607145 KNX Cover, flat

B6607145

KNX Cover, flat Easy assembly through snap-in installation of the case parts.

Version For KNX connector

Supply 1 piece

B6607145

KNX Cover, flat
产品已添加到关注清单中

light grey
B6607160 Terminal guards, high

B6607160

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

B6607160

Terminal guards, high
产品已添加到关注清单中

light grey
B6607161 Terminal guards, high

B6607161

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

B6607161

Terminal guards, high
产品已添加到关注清单中

light grey
B6607162 Terminal guards, high

B6607162

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, closed

Supply 1 piece

B6607162

Terminal guards, high
产品已添加到关注清单中

light grey
B6607163 Terminal guards, high

B6607163

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, with ventilation slots

Supply 1 piece

B6607163

Terminal guards, high
产品已添加到关注清单中

light grey
B6607191 Partition plate

B6607191

Partition plate Separates the electronic and terminal area when used without terminal guard (undermost level). Connections externally accessible. Simple insertion into the guides.

Version With ventilation slots

Supply 1 piece

B6607191

Partition plate
产品已添加到关注清单中

light grey

“螺钉” 附件

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
产品已添加到关注清单中

附件

B6603100 Lid, 4 modules

B6603100

Lid, 4 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

B6603100

Lid, 4 modules
产品已添加到关注清单中

transparent
B6603180 Front panel, 4 modules, Vers. VI

B6603180

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

B6603180

Front panel, 4 modules, Vers. VI
产品已添加到关注清单中

light grey
67x42mm

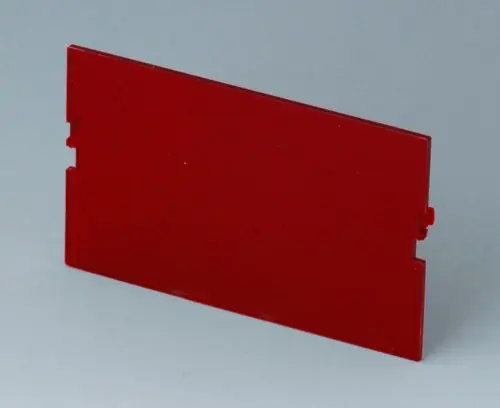

B6603480 Front panel, 4 modules, Vers. VI

B6603480

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

B6603480

Front panel, 4 modules, Vers. VI
产品已添加到关注清单中

red transparent
67x42mm

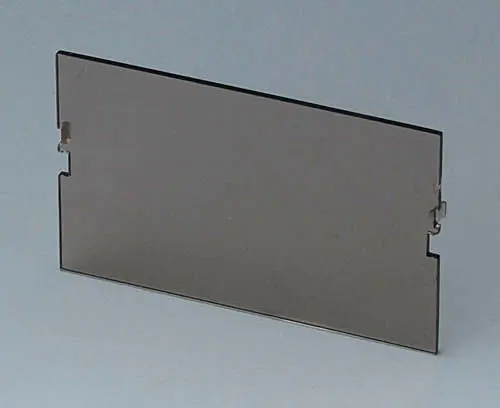

B6603580 Front panel, 4 modules, Vers. VI

B6603580

Front panel, 4 modules, Vers. VI Snap-in.

Supply 1 front panel

B6603580

Front panel, 4 modules, Vers. VI
产品已添加到关注清单中

smoked glass
67x42mm

Customising options for B6503121

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

Top part

Bottom part
颜色
Top part light grey RAL 7035,
Bottom part black,
Locking clip black
标准根据
RoHS compliant
DIN EN 60715 TH35
DIN VDE 0470-1
DIN 43880 unit 1
REACH compliant
VBG 4
IEC 529
宽度
70 mm
高度
90 mm
深度
58 mm
电路板长度，下盒
82 mm
电路板宽度，下盒
64 mm
Pitch
5.0 mm
Poles
≤ 48
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Miscellaneous information

Weight/1 part
42 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
