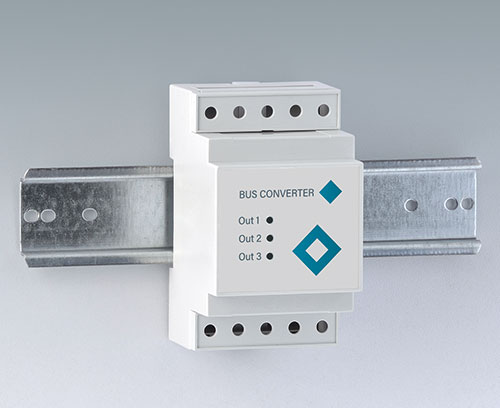

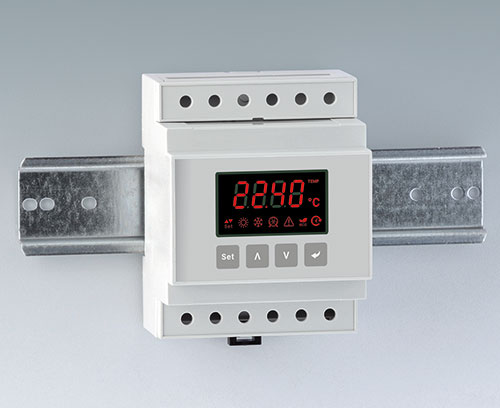

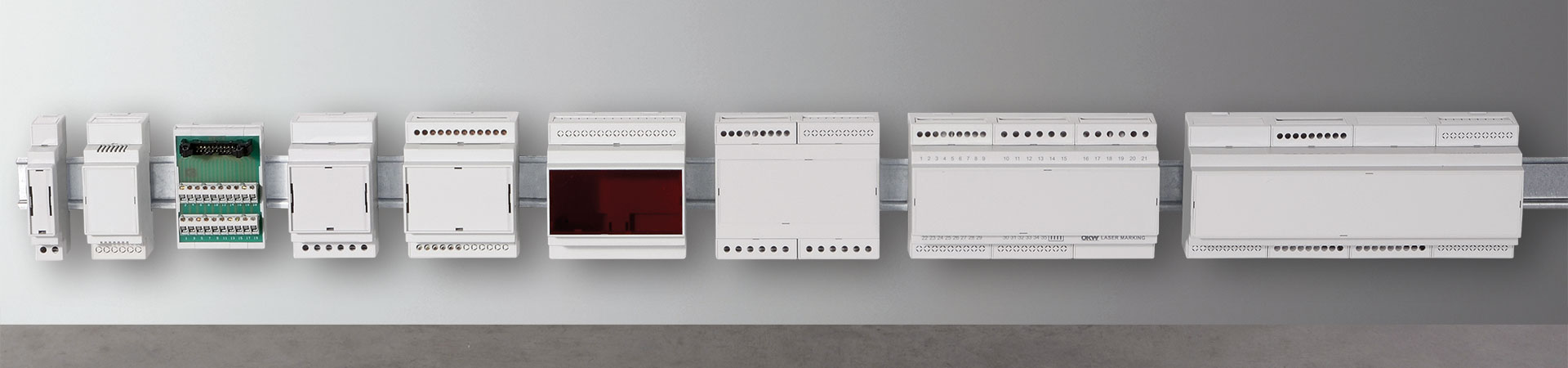

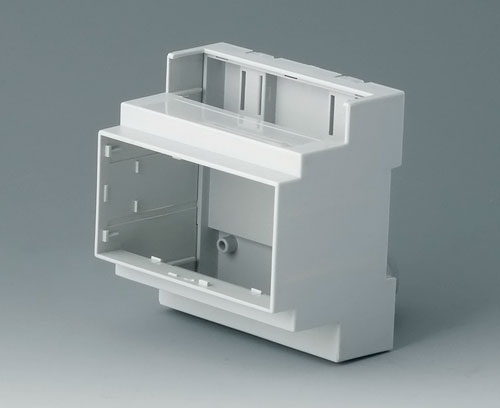

Railtec C 型导轨盒 C

Railtec C 型导轨盒 C

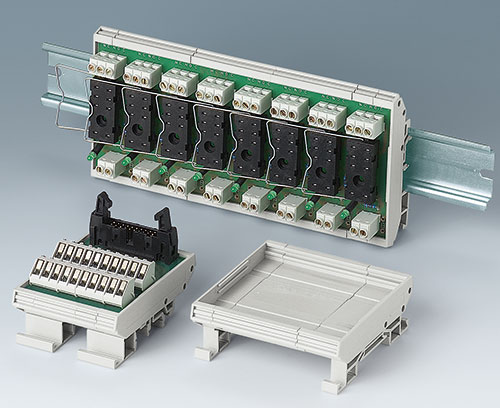

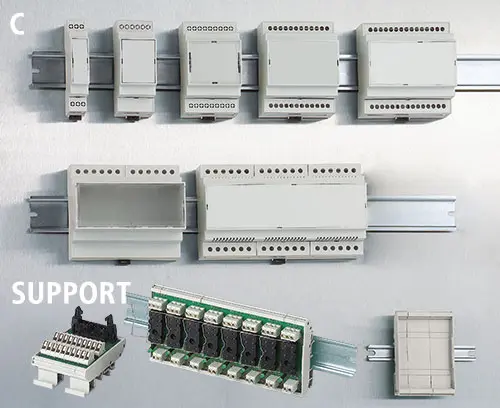

模块化 DIN 标准导轨盒和组装件

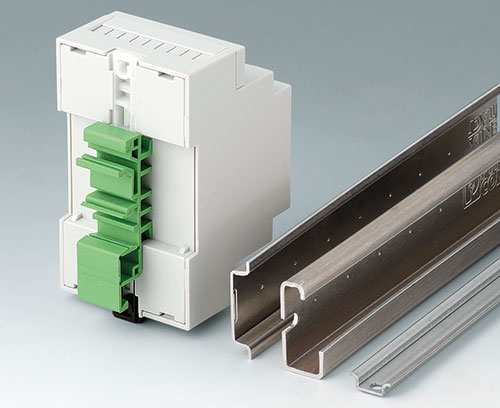

广泛的机盒产品系列并适配 DIN 标准 EN 60715 的导轨盒或直接安装于墙壁。该系列还包括个性化组装件,通过简单的接头界面更换达到更大的灵活性。

  • 所有类型的组装和连接工作都提供了最高度的组装简便性
  • 耐应力和耐高温性能优异的材料 (UL 94 V-0)
  • 通过简便的卡扣安装锁定机盒部件

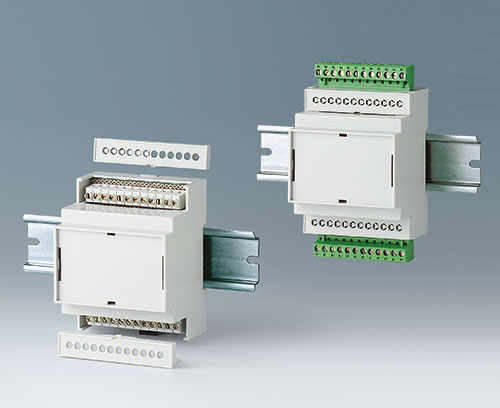

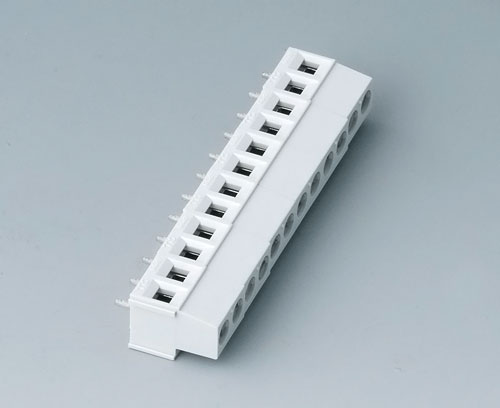

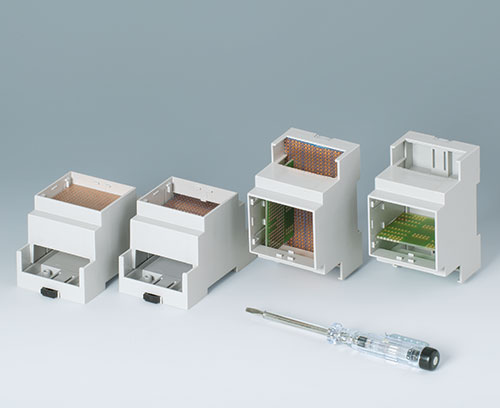

  • RAILTEC C 型导轨盒: 适配接线端子排、插针排和前置插头; 可选框架用于额外的电路板安置; 前面板和盒盖提供不同的款式; 1-12 个模块宽度; 适配 DIN 导轨 EN 60715 TH35; 电路板在所有 3 个空间方向的定位; 用于 TH15 和 G32(1-4 个模块)的适配器作为附件
    类型 I 前面敞开,接线端面畅通,
    无通风槽
    类型 II 前面敞开,接线端面畅通,
    带通风槽
    类型 III 前面敞开,接线端面的盒壁延长,
    无通风槽
    类型 IV 前面封闭,接线端面畅通,
    无通风槽
  • RAILTEC CB 型导轨盒 CB: 插针排网格为 5.0, 最多 12 销; 三面连接的可能性; 2 个标准宽度; 适配 DIN 标准导轨 EN 60715 TH35 和 G32
  • RAILTEC CV 型导轨盒 CV: 插入式接线端子为 16 销(4 x 4 销),网格 5.0; 无或带通风槽利于散热; 适配 DIN 标准导轨 EN 60715 TH35
  • RAILTEC CM 型导轨盒 CM: 8 个接线端子分别在四个接线面上; 17.5 mm 标准模块宽度; 适配 DIN 标准导轨 EN 60715 TH35; 适配装于 TH15 和 G32 的适配器作为附件
  • RAILTEC CC 型导轨盒 CC: 具备 12 个接线端子; 可拆卸前部带有卡夹用于标设字体; 适配 DIN 标准导轨 EN 60715 TH35; 适配装于 TH15 和 G32 的适配器作为附件
  • RAILTEC SUPPORT 型导轨盒 SUPPORT: 用于独特组装的模块化组装件; 适配 DIN 标准导轨 EN 60715 TH35,TH15 和 G32
  • 防护等级 < IP 40

应用范围

  • 工业自动化
  •  建筑和安全技术
  • 暖气和空调技术
  • 特别适合作为时间控制器、传感器、继电器、信号分配器等的调节器和控制器的外壳

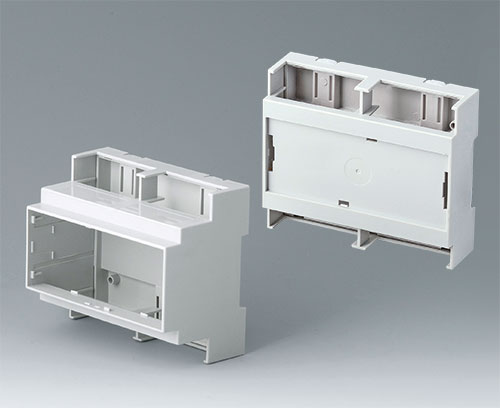

  • 类型

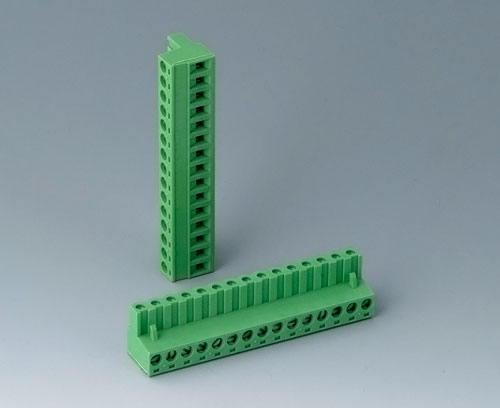

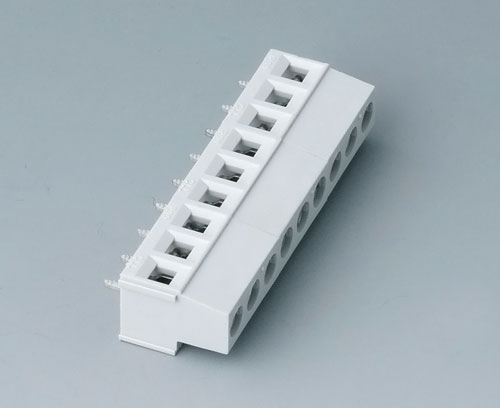

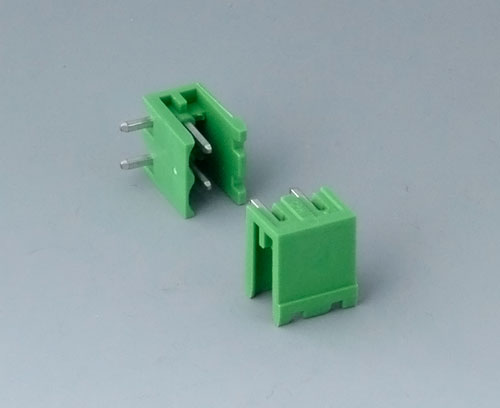

  • 配件

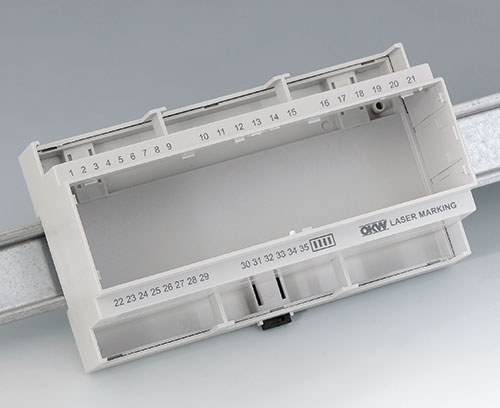

  • 按客户要求修改加工

选择类型和规格大小,然后点击“选择”。



无通风槽 ,1 个接线端面

RAILTEC C 无通风槽 ,1 个接线端面

无通风槽, 2 个接线端面

RAILTEC C 无通风槽,  2  个接线端面

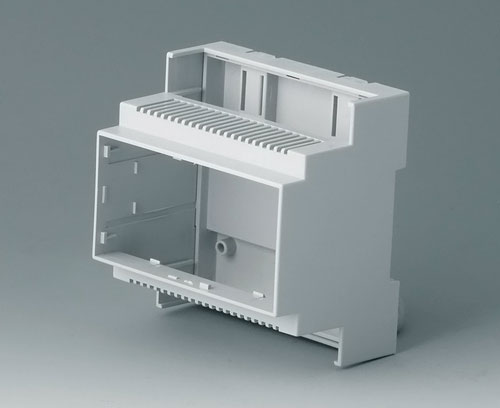

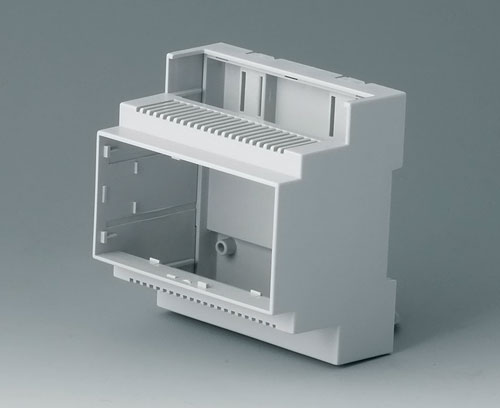

带通风槽, 1 个接线端面

RAILTEC C 带通风槽, 1 个接线端面

带通风槽, 2 个接线端面

RAILTEC C 带通风槽, 2  个接线端面

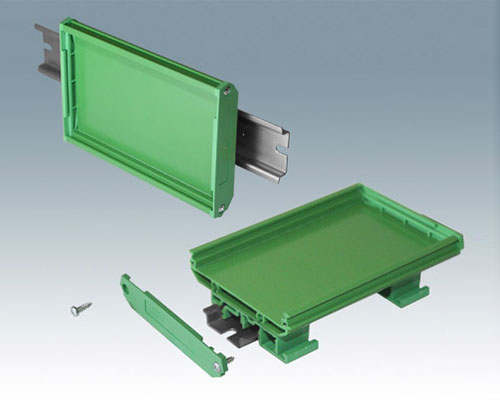

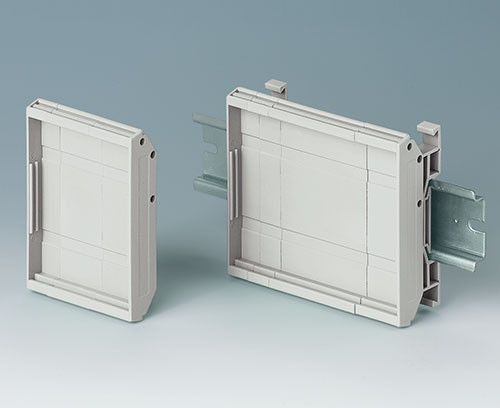

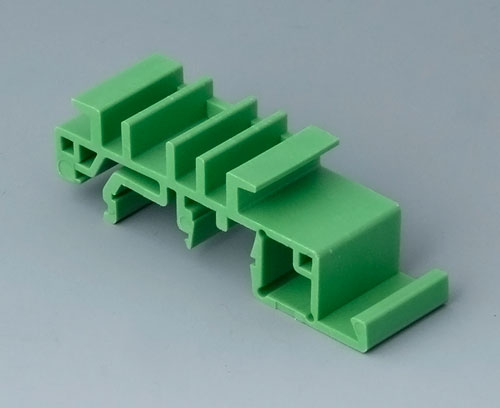

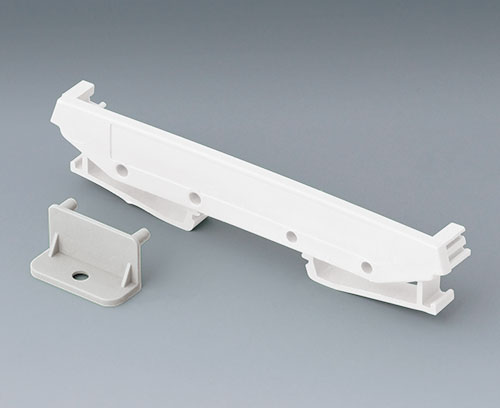

RAILTEC SUPPORT 型导轨盒

RAILTEC SUPPORT 型导轨盒

RAILTEC CB 型导轨盒 CB

RAILTEC CB 型导轨盒 CB

RAILTEC CV 型导轨盒 CV

RAILTEC CV

RAILTEC CM 型导轨盒 CM

RAILTEC CM

RAILTEC CC 型导轨盒 CC

RAILTEC CC

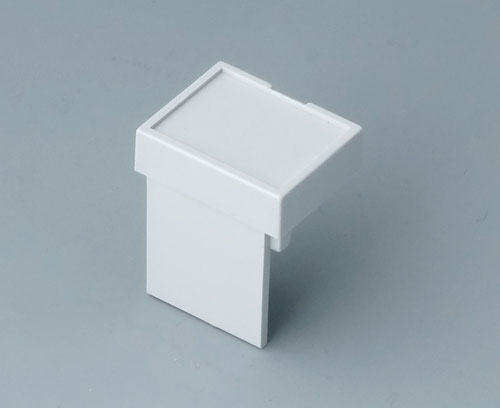

B6800111 Terminal guards, closed

B6800111

Terminal guards, closed Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

关闭

B6800111

Terminal guards, closed PC (UL 94 V-0)
light grey

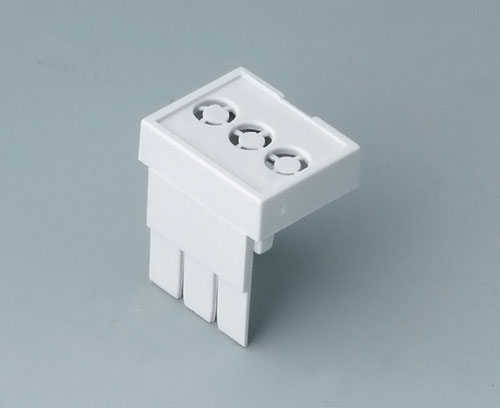

B6800112 Terminal guards, perforated, 5.08

B6800112

Terminal guards, perforated, 5.08 Easy assembly through snap-in installation of the case parts.

Version 3 poles (designed to allow the use of terminals, block 5,08)

Supply 1 piece

关闭

B6800112

Terminal guards, perforated, 5.08 PC (UL 94 V-0)
light grey

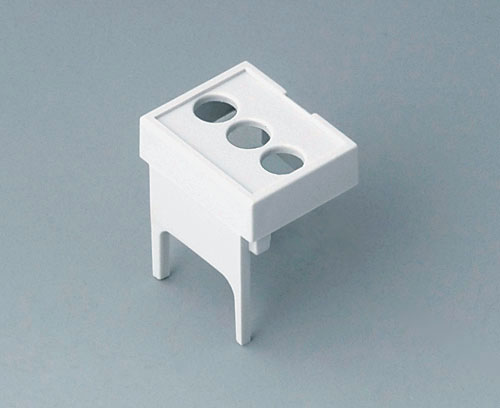

B6800113 Terminal guards, with holes, 5.08

B6800113

Terminal guards, with holes, 5.08 Easy assembly through snap-in installation of the case parts.

Version 3 poles (designed to allow the use of terminals, block 5,08)

Supply 1 piece

关闭

B6800113

Terminal guards, with holes, 5.08 PC (UL 94 V-0)
light grey
B6800114 Terminal guards, with holes, 7.5 & 7.62

B6800114

Terminal guards, with holes, 7.5 & 7.62 Easy assembly through snap-in installation of the case parts.

Version 2 poles (designed to allow the use of terminals, block 7,5 & 7,62)

Supply 1 piece

关闭

B6800114

Terminal guards, with holes, 7.5 & 7.62 PC (UL 94 V-0)
light grey

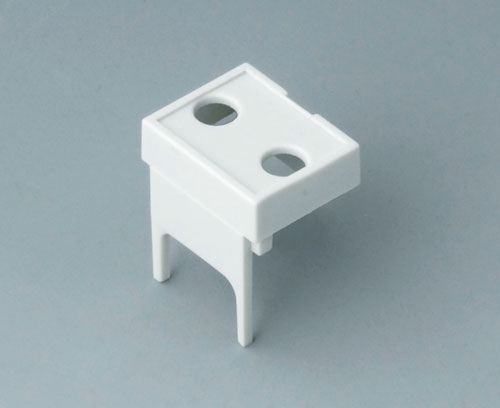

B6800115 Terminal guards, with holes, 10.16

B6800115

Terminal guards, with holes, 10.16 Easy assembly through snap-in installation of the case parts.

Version 2 poles (designed to allow the use of terminals, block 10,16).

Supply 1 piece

关闭

B6800115

Terminal guards, with holes, 10.16 PC (UL 94 V-0)
light grey

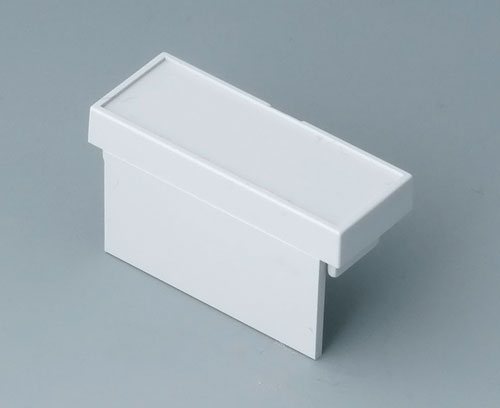

B6801111 Terminal guards, closed

B6801111

Terminal guards, closed Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

关闭

B6801111

Terminal guards, closed PC (UL 94 V-0)
light grey

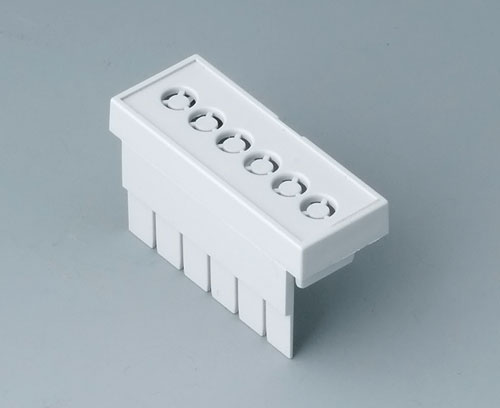

B6801112 Terminal guards, perforated, 5.08

B6801112

Terminal guards, perforated, 5.08 Easy assembly through snap-in installation of the case parts.

Version 6 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

关闭

B6801112

Terminal guards, perforated, 5.08 PC (UL 94 V-0)
light grey

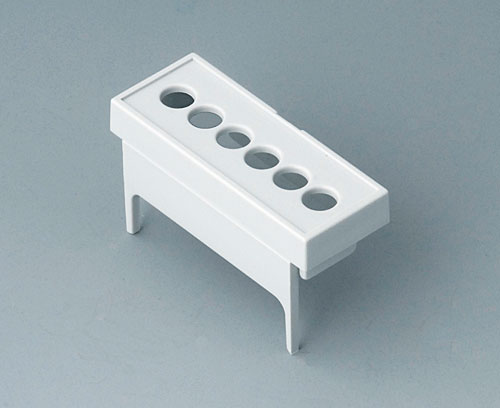

B6801113 Terminal guards, with holes, 5.08

B6801113

Terminal guards, with holes, 5.08 Easy assembly through snap-in installation of the case parts.

Version 6 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

关闭

B6801113

Terminal guards, with holes, 5.08 PC (UL 94 V-0)
light grey
B6801114 Terminal guards, with holes, 7.5 & 7.62

B6801114

Terminal guards, with holes, 7.5 & 7.62 Easy assembly through snap-in installation of the case parts.

Version 4 poles (designed to allow the use of terminals, block 7.5 & 7.62)

Supply 1 piece

关闭

B6801114

Terminal guards, with holes, 7.5 & 7.62 PC (UL 94 V-0)
light grey

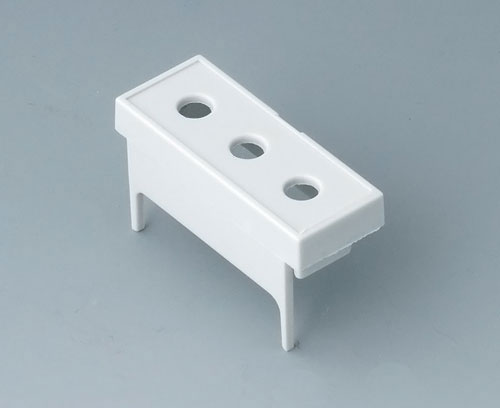

B6801115 Terminal guards, with holes, 10.16

B6801115

Terminal guards, with holes, 10.16 Easy assembly through snap-in installation of the case parts.

Version 3 poles (designed to allow the use of terminals, block 10.16)

Supply 1 piece

关闭

B6801115

Terminal guards, with holes, 10.16 PC (UL 94 V-0)
light grey
B6801120 Frame

B6801120

Frame Allows additional PCB position as well as the use of the front lid convex with hinge. Snap-in.

Supply 1 frame

关闭

B6801120

Frame PC (UL 94 V-0)
light grey

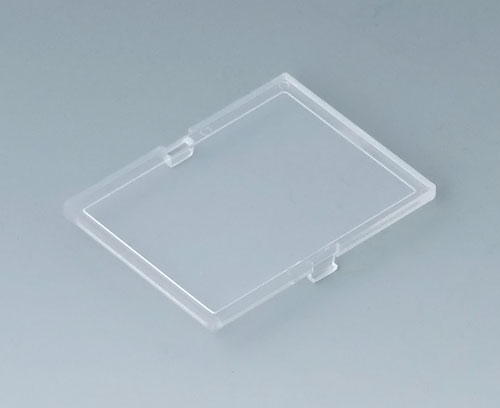

B6801202 Front lid convex with hinge

B6801202

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

关闭

B6801202

Front lid convex with hinge PC (UL 94 V-0)
transparent
B6801302 Front lid convex with hinge

B6801302

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

关闭

B6801302

Front lid convex with hinge PC (UL 94 V-0)
red transparent

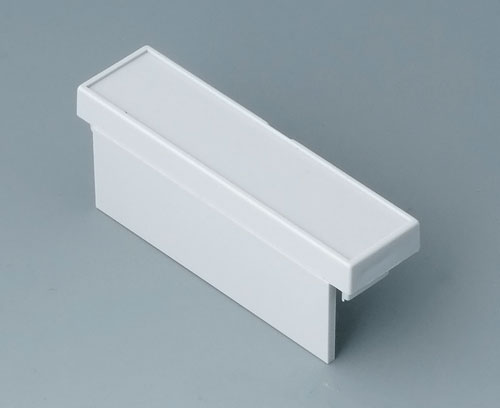

B6802111 Terminal guards, closed

B6802111

Terminal guards, closed Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

关闭

B6802111

Terminal guards, closed PC (UL 94 V-0)
light grey

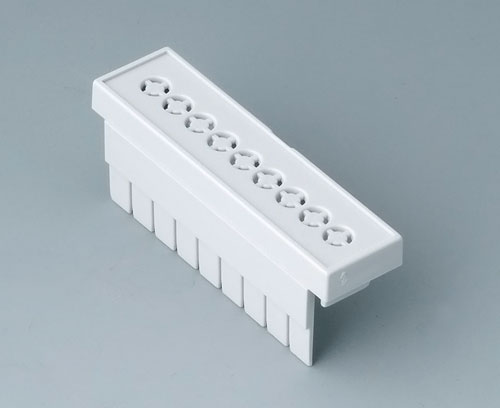

B6802112 Terminal guards, perforated, 5.08

B6802112

Terminal guards, perforated, 5.08 Easy assembly through snap-in installation of the case parts.

Version 9 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

关闭

B6802112

Terminal guards, perforated, 5.08 PC (UL 94 V-0)
light grey

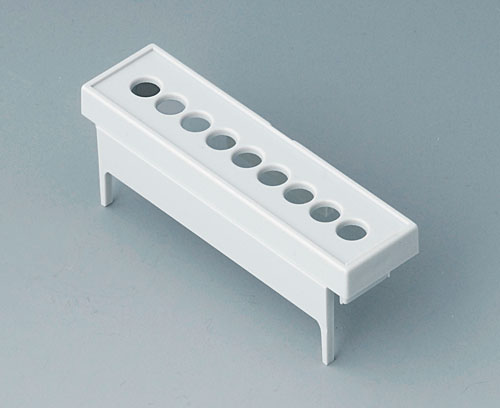

B6802113 Terminal guards, with holes, 5.08

B6802113

Terminal guards, with holes, 5.08 Easy assembly through snap-in installation of the case parts.

Version 9 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

关闭

B6802113

Terminal guards, with holes, 5.08 PC (UL 94 V-0)
light grey

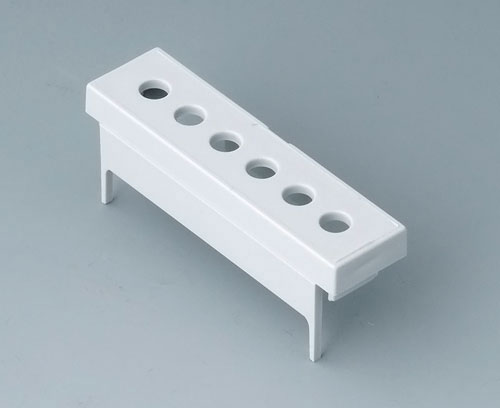

B6802114 Terminal guards, with holes, 7.5 & 7.62

B6802114

Terminal guards, with holes, 7.5 & 7.62 Easy assembly through snap-in installation of the case parts.

Version 6 poles (designed to allow the use of terminals, block 7.5 & 7.62)

Supply 1 piece

关闭

B6802114

Terminal guards, with holes, 7.5 & 7.62 PC (UL 94 V-0)
light grey
B6802115 Terminal guards, with holes, 10.16

B6802115

Terminal guards, with holes, 10.16 Easy assembly through snap-in installation of the case parts.

Version 5 poles (designed to allow the use of terminals, block 10.16)

Supply 1 piece

关闭

B6802115

Terminal guards, with holes, 10.16 PC (UL 94 V-0)
light grey
B6802120 Frame

B6802120

Frame Allows additional PCB position as well as the use of the front lid convex with hinge. Snap-in.

Supply 1 frame

关闭

B6802120

Frame PC (UL 94 V-0)
light grey
B6802202 Front lid convex with hinge

B6802202

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

关闭

B6802202

Front lid convex with hinge PC (UL 94 V-0)
transparent
B6802302 Front lid convex with hinge

B6802302

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

关闭

B6802302

Front lid convex with hinge PC (UL 94 V-0)
red transparent

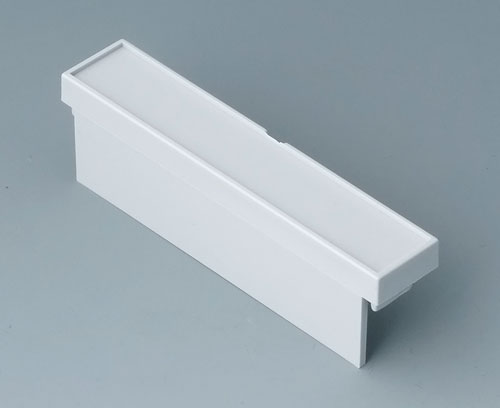

B6803111 Terminal guards, closed

B6803111

Terminal guards, closed Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

关闭

B6803111

Terminal guards, closed PC (UL 94 V-0)
light grey
B6803112 Terminal guards, perforated, 5.08

B6803112

Terminal guards, perforated, 5.08 Easy assembly through snap-in installation of the case parts.

Version 12 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

关闭

B6803112

Terminal guards, perforated, 5.08 PC (UL 94 V-0)
light grey

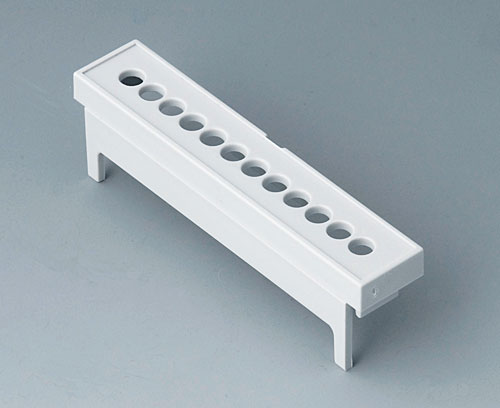

B6803113 Terminal guards, with holes, 5.08

B6803113

Terminal guards, with holes, 5.08 Easy assembly through snap-in installation of the case parts.

Version 12 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

关闭

B6803113

Terminal guards, with holes, 5.08 PC (UL 94 V-0)
light grey

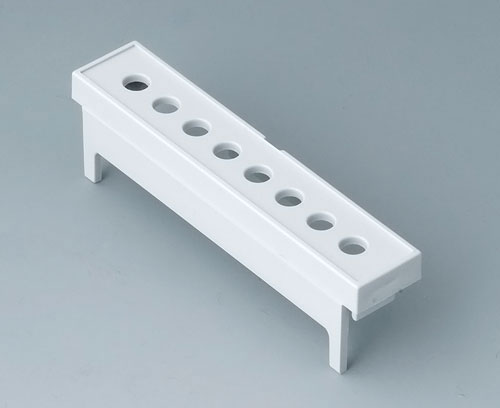

B6803114 Terminal guards, with holes, 7.5 & 7.62

B6803114

Terminal guards, with holes, 7.5 & 7.62 Easy assembly through snap-in installation of the case parts.

Version 8 poles (designed to allow the use of terminals, block 7.5 & 7.62)

Supply 1 piece

关闭

B6803114

Terminal guards, with holes, 7.5 & 7.62 PC (UL 94 V-0)
light grey

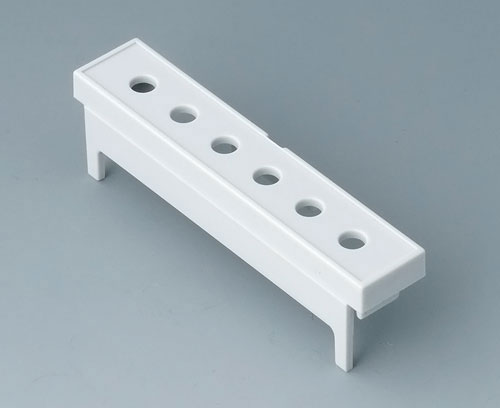

B6803115 Terminal guards, with holes, 10.16

B6803115

Terminal guards, with holes, 10.16 Easy assembly through snap-in installation of the case parts.

Version 6 poles (designed to allow the use of terminals, block 10.16)

Supply 1 piece

关闭

B6803115

Terminal guards, with holes, 10.16 PC (UL 94 V-0)
light grey
B6803120 Frame

B6803120

Frame Allows additional PCB position as well as the use of the front lid convex with hinge. Snap-in.

Supply 1 frame

关闭

B6803120

Frame PC (UL 94 V-0)
light grey
B6803202 Front lid convex with hinge

B6803202

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

关闭

B6803202

Front lid convex with hinge PC (UL 94 V-0)
transparent
B6803302 Front lid convex with hinge

B6803302

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

关闭

B6803302

Front lid convex with hinge PC (UL 94 V-0)
red transparent
B6804111 Terminal guards, closed

B6804111

Terminal guards, closed Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

关闭

B6804111

Terminal guards, closed PC (UL 94 V-0)
light grey
B6804112 Terminal guards, perforated, 5.08

B6804112

Terminal guards, perforated, 5.08 Easy assembly through snap-in installation of the case parts.

Version 15 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

关闭

B6804112

Terminal guards, perforated, 5.08 PC (UL 94 V-0)
light grey

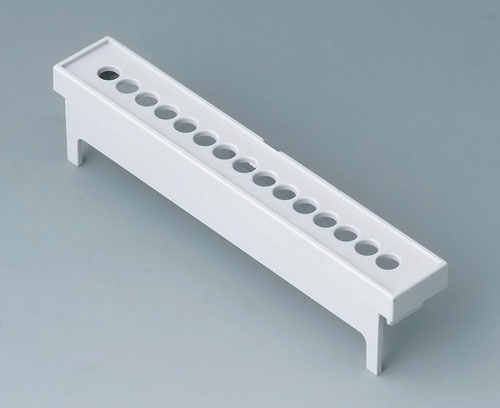

B6804113 Terminal guards, with holes, 5.08

B6804113

Terminal guards, with holes, 5.08 Easy assembly through snap-in installation of the case parts.

Version 15 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

关闭

B6804113

Terminal guards, with holes, 5.08 PC (UL 94 V-0)
light grey

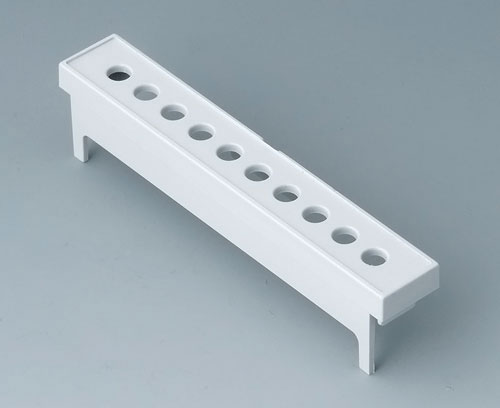

B6804114 Terminal guards, with holes, 7.5 & 7.62

B6804114

Terminal guards, with holes, 7.5 & 7.62 Easy assembly through snap-in installation of the case parts.

Version 10 poles (designed to allow the use of terminals, block 7.5 & 7.62)

Supply 1 piece

关闭

B6804114

Terminal guards, with holes, 7.5 & 7.62 PC (UL 94 V-0)
light grey

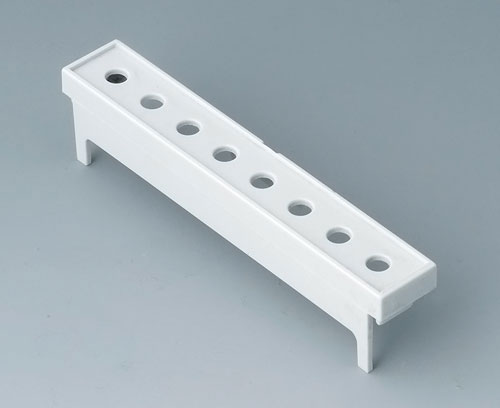

B6804115 Terminal guards, with holes, 10.16

B6804115

Terminal guards, with holes, 10.16 Easy assembly through snap-in installation of the case parts.

Version 7 poles (designed to allow the use of terminals, block 10.16)

Supply 1 piece

关闭

B6804115

Terminal guards, with holes, 10.16 PC (UL 94 V-0)
light grey
B6804120 Frame

B6804120

Frame Allows additional PCB position as well as the use of the front lid convex with hinge. Snap-in.

Supply 1 frame

关闭

B6804120

Frame PC (UL 94 V-0)
light grey
B6804202 Front lid convex with hinge

B6804202

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

关闭

B6804202

Front lid convex with hinge PC (UL 94 V-0)
transparent
B6804302 Front lid convex with hinge

B6804302

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

关闭

B6804302

Front lid convex with hinge PC (UL 94 V-0)
red transparent
B6805120 Frame

B6805120

Frame Allows additional PCB position as well as the use of the front lid convex with hinge. Snap-in.

Supply 1 frame

关闭

B6805120

Frame PC (UL 94 V-0)
light grey
B6805202 Front lid convex with hinge

B6805202

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

关闭

B6805202

Front lid convex with hinge PC (UL 94 V-0)
transparent
B6805302 Front lid convex with hinge

B6805302

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

关闭

B6805302

Front lid convex with hinge PC (UL 94 V-0)
red transparent
B6806120 Frame

B6806120

Frame Allows additional PCB position as well as the use of the front lid convex with hinge. Snap-in.

Supply 1 frame

关闭

B6806120

Frame PC (UL 94 V-0)
light grey
B6806202 Front lid convex with hinge

B6806202

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

关闭

B6806202

Front lid convex with hinge PC (UL 94 V-0)
transparent
B6806302 Front lid convex with hinge

B6806302

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

关闭

B6806302

Front lid convex with hinge PC (UL 94 V-0)
red transparent

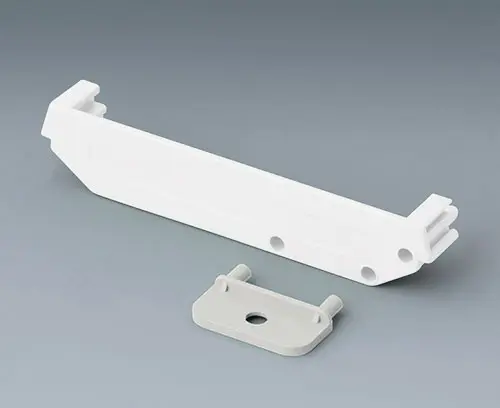

B6820532 Wall suspension element for SUP. 72

B6820532

Wall suspension element for SUP. 72 Allows direct wall-mounting, suitable for end section.

Supply 2 pieces as set

关闭

B6820532

Wall suspension element for SUP. 72 PA 6 (UL 94 V-0)
green

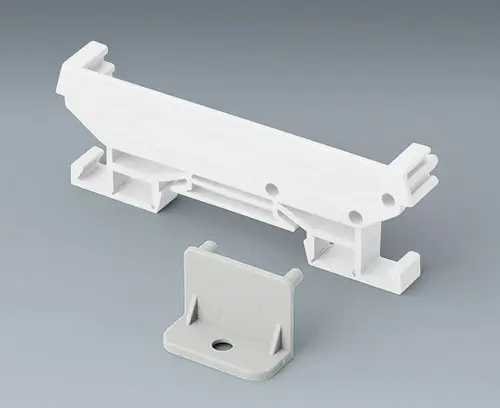

B6820533 Wall suspension element with foot, SUP.

B6820533

Wall suspension element with foot, SUP. Allows direct wall-mounting, suitable for end section with foot.

Supply 2 pieces as set

关闭

B6820533

Wall suspension element with foot, SUP. PA 6 (UL 94 V-0)
green
B6820542 Wall suspension element for SUP. 107

B6820542

Wall suspension element for SUP. 107 Allows direct wall mounting, suitable for end section.

Supply 2 pieces as set

关闭

B6820542

Wall suspension element for SUP. 107 PA 6 (UL 94 V-0)
green
B6820543 Wall suspension element with foot, SUP.

B6820543

Wall suspension element with foot, SUP. Allows direct wall mounting, suitable for end section with foot.

Supply 2 pieces as set

关闭

B6820543

Wall suspension element with foot, SUP. PA 6 (UL 94 V-0)
green

产品类型用于 Railtec C 型导轨盒 C

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
