B6805200

Front panel, 6 modules

Snap-in.

Supply

1 front panel

2D PDF 视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 B6805200

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

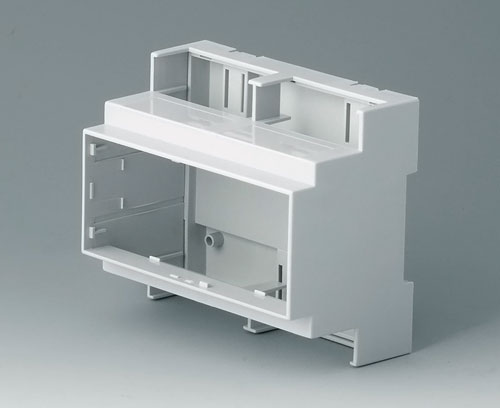

B6705100 RAILTEC C, 6 modules, Vers. I

B6705100

RAILTEC C, 6 modules, Vers. I Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

B6705100

RAILTEC C, 6 modules, Vers. I
产品已添加到关注清单中

light grey
106x90x58mm
B6705101 RAILTEC C, 6 modules, Vers. I

B6705101

RAILTEC C, 6 modules, Vers. I Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

B6705101

RAILTEC C, 6 modules, Vers. I
产品已添加到关注清单中

light grey
106x90x58mm

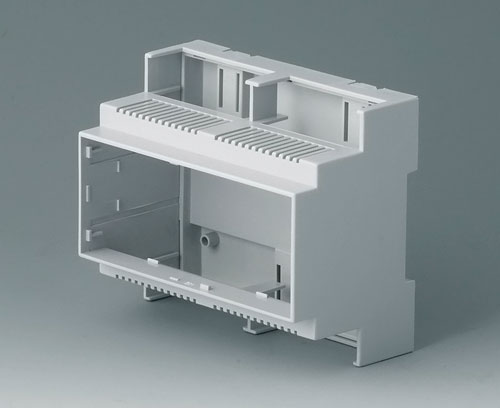

B6705102 RAILTEC C, 6 modules, Vers. II

B6705102

RAILTEC C, 6 modules, Vers. II Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories).Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

B6705102

RAILTEC C, 6 modules, Vers. II
产品已添加到关注清单中

light grey
106x90x58mm

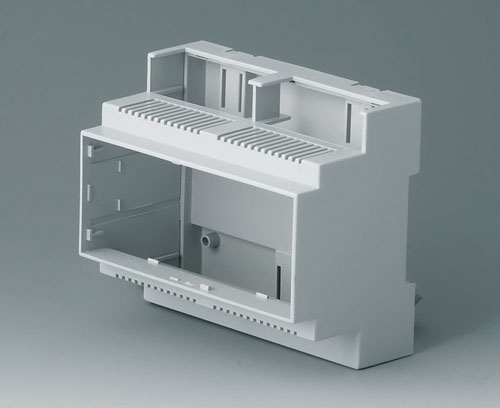

B6705103 RAILTEC C, 6 modules, Vers. II

B6705103

RAILTEC C, 6 modules, Vers. II Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

B6705103

RAILTEC C, 6 modules, Vers. II
产品已添加到关注清单中

light grey
106x90x58mm

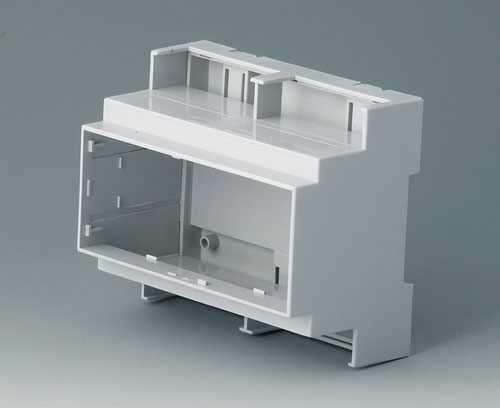

B6705104 RAILTEC C, 6 modules, Vers. III

B6705104

RAILTEC C, 6 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

B6705104

RAILTEC C, 6 modules, Vers. III
产品已添加到关注清单中

light grey
106x90x58mm

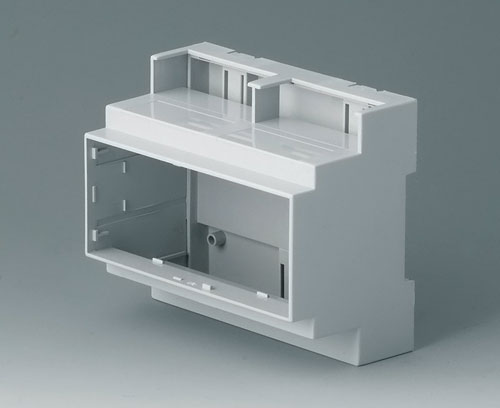

B6705105 RAILTEC C, 6 modules, Vers. III

B6705105

RAILTEC C, 6 modules, Vers. III Enclosure with 1 side open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

B6705105

RAILTEC C, 6 modules, Vers. III
产品已添加到关注清单中

light grey
106x90x58mm

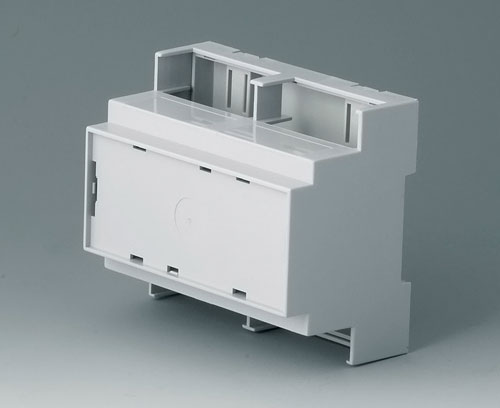

B6705106 RAILTEC C, 6 modules, Vers. IV

B6705106

RAILTEC C, 6 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

B6705106

RAILTEC C, 6 modules, Vers. IV
产品已添加到关注清单中

light grey
106x90x58mm

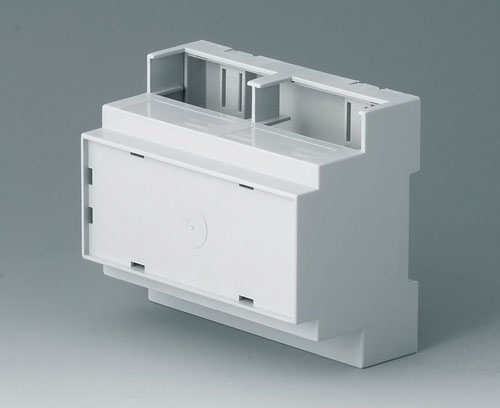

B6705107 RAILTEC C, 6 modules, Vers. IV

B6705107

RAILTEC C, 6 modules, Vers. IV Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version front closed, connection side with free through passage.

Supply 1 bottom part, 3 clips, 1 top part

B6705107

RAILTEC C, 6 modules, Vers. IV
产品已添加到关注清单中

light grey
106x90x58mm

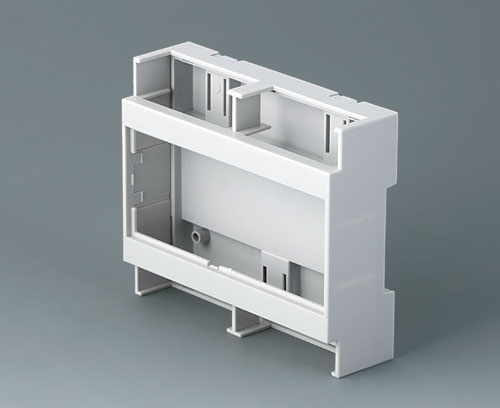

B6705800 RAILTEC C, 6 modules, flat, Vers. I

B6705800

RAILTEC C, 6 modules, flat, Vers. I Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*ridges give more stability during transport - easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

B6705800

RAILTEC C, 6 modules, flat, Vers. I
产品已添加到关注清单中

light grey
106.2x90x32mm

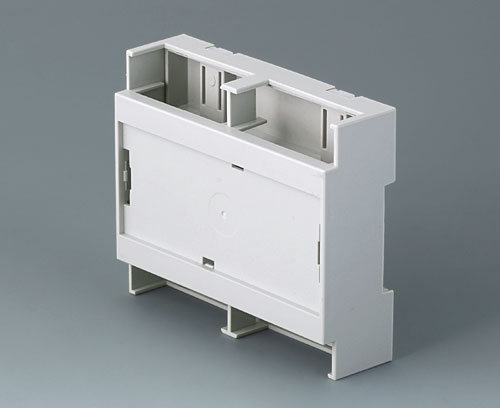

B6705806 RAILTEC C, 6 modules, flat, Vers. IV

B6705806

RAILTEC C, 6 modules, flat, Vers. IV Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

B6705806

RAILTEC C, 6 modules, flat, Vers. IV
产品已添加到关注清单中

light grey
106.2x90x32mm

Customising options for B6805200

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
transparent
标准根据
RoHS compliant
REACH compliant
宽度
102 mm
高度
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
9 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B6805200请务必索取报价！
