Robust-Box 坚固机盒

Robust-Box 坚固机盒

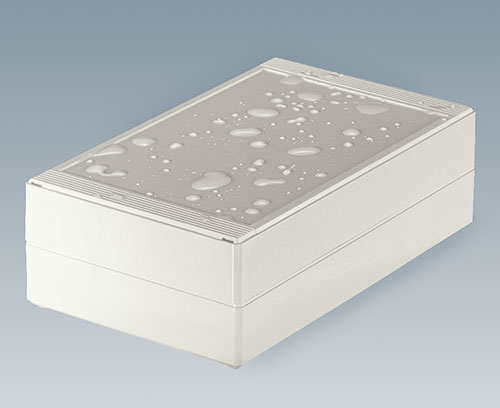

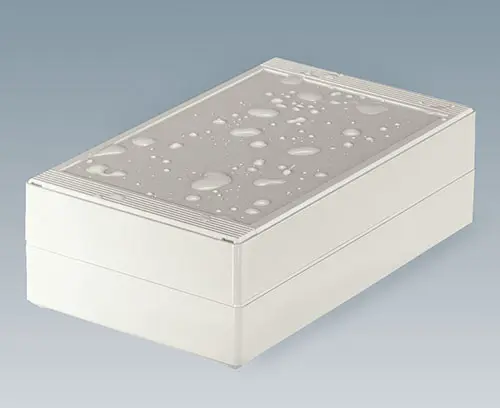

防护等级为 IP 66 的双壳体机盒系统

ROBUST-BOX 坚固机盒的两个壳体半部都设置有预成形的螺纹孔。您作为用户决定,是较低还是较高部分作为底座。

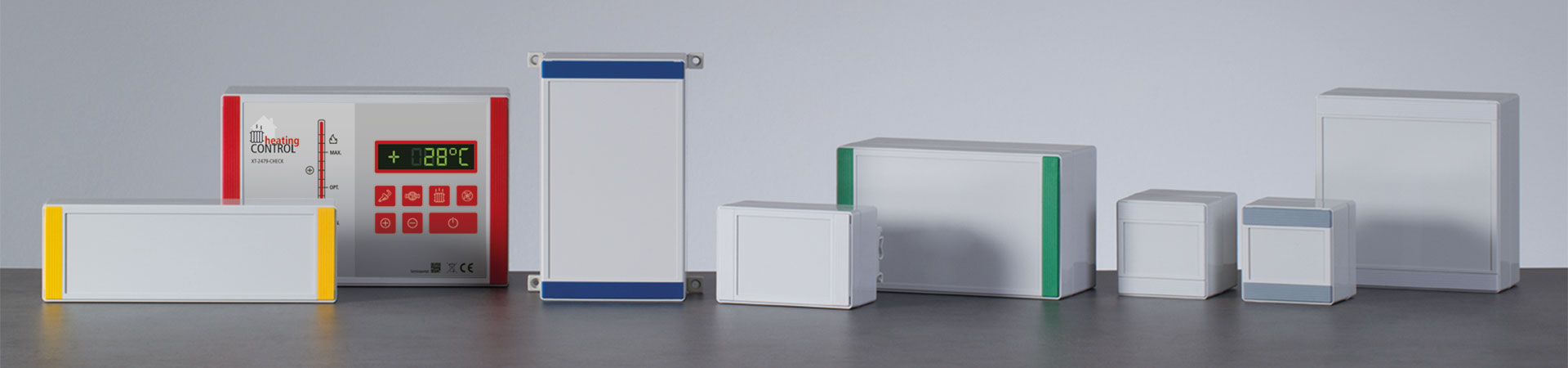

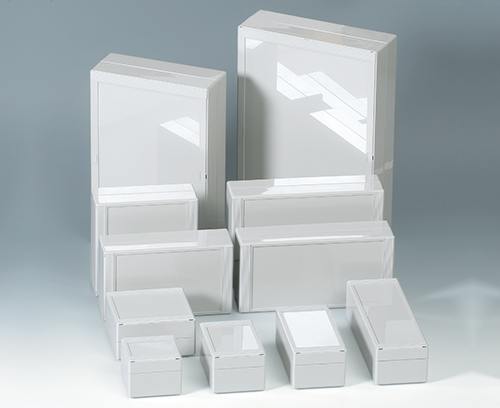

  • 坚固盒具备 11 种基础规格,不同的高度和 2 种标准材质
  • ABS (UL 94 HB) 材质盒,作为卡夹式安装盒已久经考验
  • PC (UL 94 HB) 材质盒,坚固耐用及适合恶劣环境下并耐高温的机盒

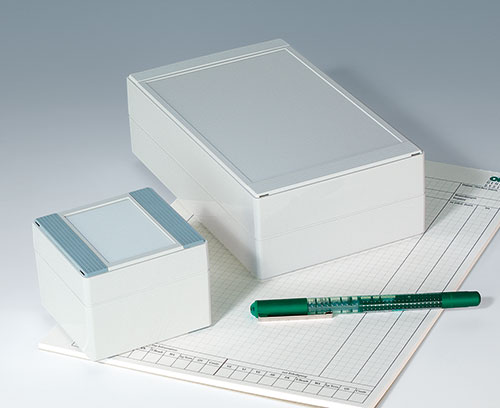

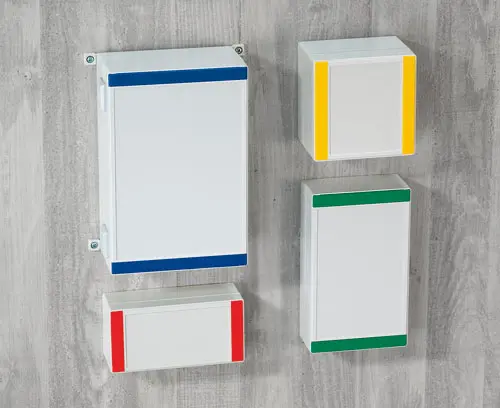

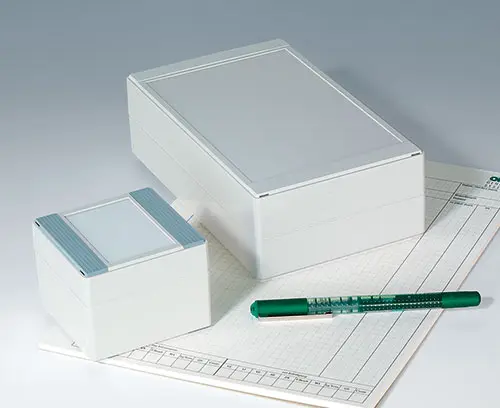

  • 也可作为桌式盒,壁挂盒和 DIN 轨道盒

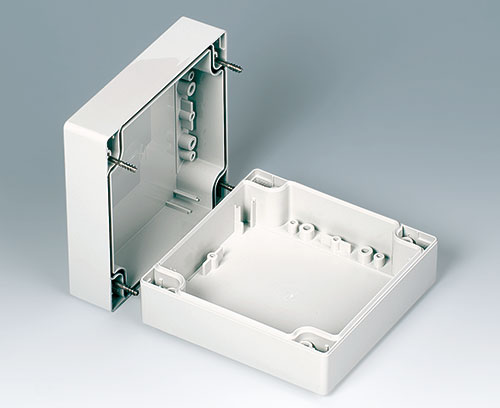

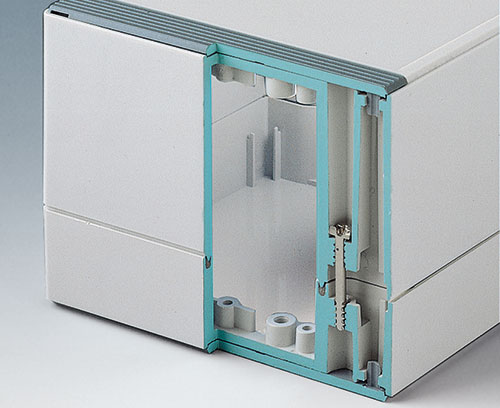

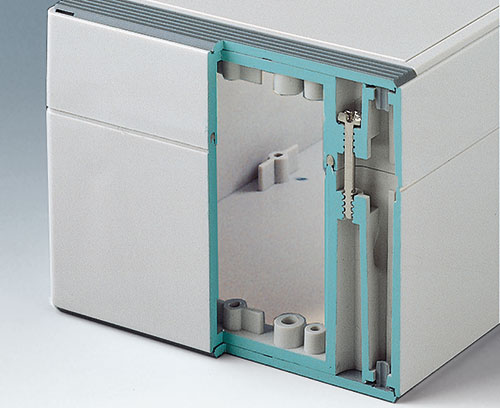

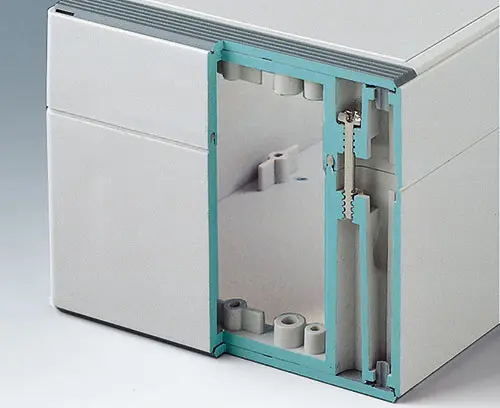

  • 易于安装; 两个带“突条和凹槽“的壳体半部都可作为上部或下部使用
  • 凹陷的操作区域
  • 盒盖的固定区位于密封区域外,并通过防丢不锈钢螺钉进行固定

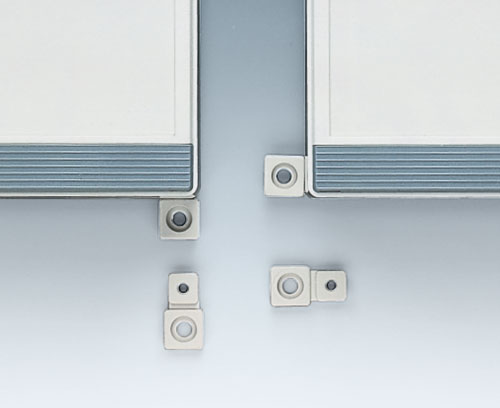

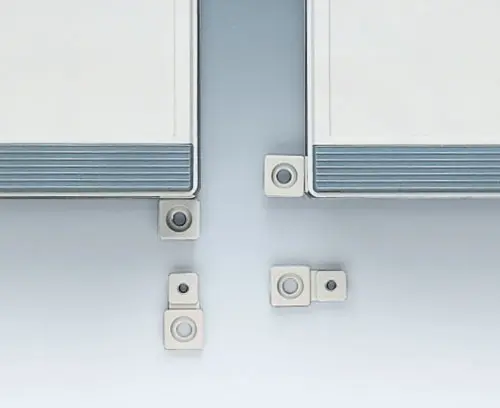

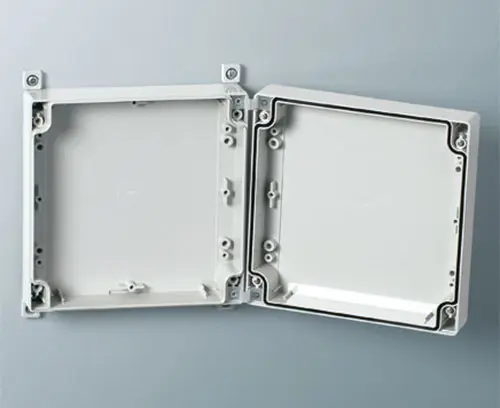

  • 可直接墙壁安装或通过另外设置的固定片进行固定

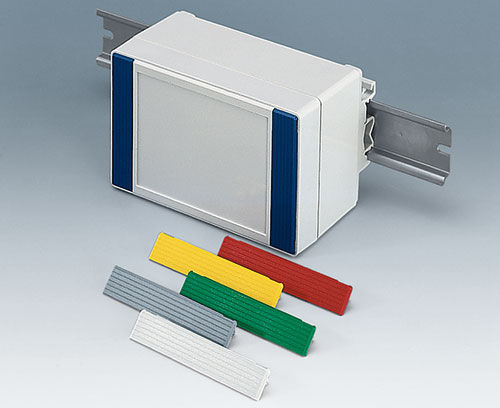

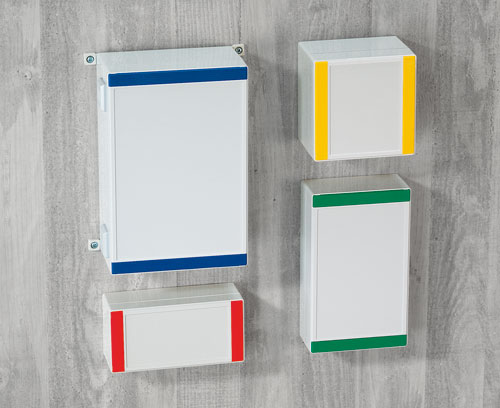

  • 着色盖条用于机盒的识别编码(区别于标准版本的浅灰色)

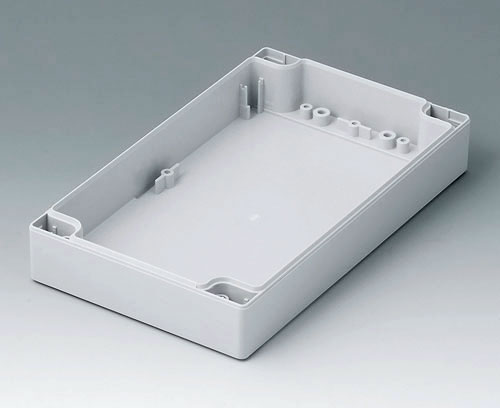

  • 固定柱用于固定电路板和元器件

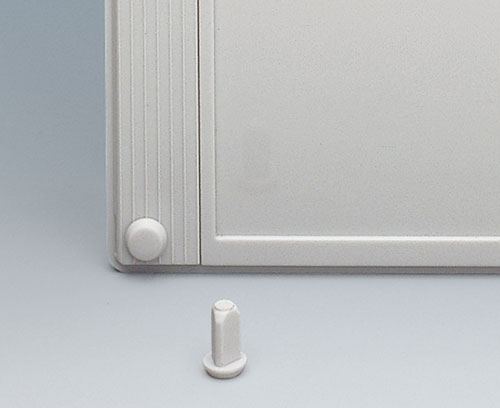

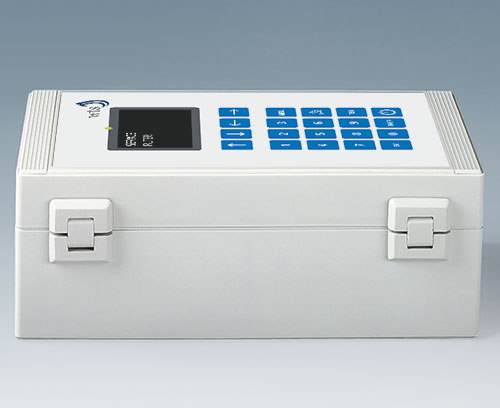

  • 广泛的配件: 盒脚、铰链、DIN 轨道安装件、电路板支架用于安装预组装套件等

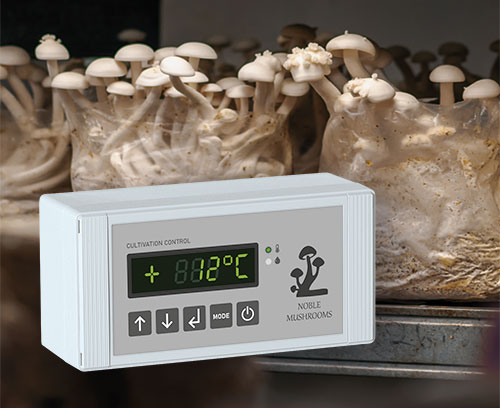

  • 应用示例

应用范围

  • 电气安装领域,例如用于取暖、通风和空调的命令和控制设备、机器设备工程和安全技术。
  • 此外在电子行业的应用,例如,作为按键机盒、控制机盒、室内传感器应用等
  • 类型
  • 配件
  • 按客户要求修改加工

选择类型和规格大小,然后点击“选择”。



完整机盒

ROBUST-BOX 完整机盒

单件

ROBUST-BOX 单件

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
C2200801 Cover strips 80, without holes

C2200801

Cover strips 80, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

关闭

C2200801

Cover strips 80, without holes PC (UL 94 HB)
light grey RAL 7035
C2201082 Cover strips 80

C2201082

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2201082

Cover strips 80 PC (UL 94 HB)
silver grey RAL 7001
C2201084 Cover strips 80

C2201084

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2201084

Cover strips 80 PC (UL 94 HB)
red RAL 3020
C2201085 Cover strips 80

C2201085

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2201085

Cover strips 80 PC (UL 94 HB)
yellow RAL 1023
C2201086 Cover strips 80

C2201086

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2201086

Cover strips 80 PC (UL 94 HB)
green RAL 6024
C2201087 Cover strips 80

C2201087

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2201087

Cover strips 80 PC (UL 94 HB)
blue RAL 5017

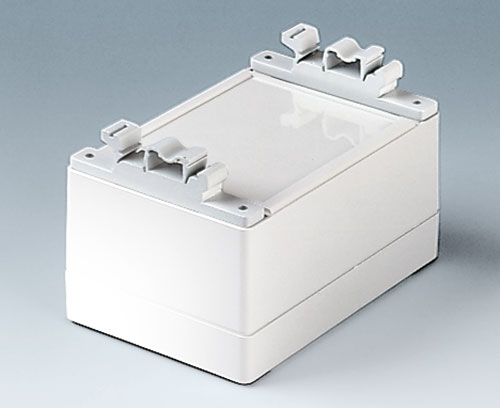

C2201088 Fastening elements to DIN-Rails

C2201088

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60 715 TH35. For ROBUST-BOX width 80.

Supply 2 fastening elements, assembly kit

关闭

C2201088

Fastening elements to DIN-Rails PA 6
light grey RAL 7035
C2201201 Cover strips 120, without holes

C2201201

Cover strips 120, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

关闭

C2201201

Cover strips 120, without holes PC (UL 94 HB)
light grey RAL 7035
C2201601 Cover strips 160, without holes

C2201601

Cover strips 160, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

关闭

C2201601

Cover strips 160, without holes PC (UL 94 HB)
light grey RAL 7035
C2202001 Cover strips 200, without holes

C2202001

Cover strips 200, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

关闭

C2202001

Cover strips 200, without holes PC (UL 94 HB)
light grey RAL 7035
C2202401 Cover strips 240, without holes

C2202401

Cover strips 240, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

关闭

C2202401

Cover strips 240, without holes PC (UL 94 HB)
light grey RAL 7035
C2203123 Cover strips 120

C2203123

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2203123

Cover strips 120 PC (UL 94 HB)
silver grey RAL 7001
C2203124 Cover strips 120

C2203124

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2203124

Cover strips 120 PC (UL 94 HB)
red RAL 3020
C2203125 Cover strips 120

C2203125

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2203125

Cover strips 120 PC (UL 94 HB)
yellow RAL 1023
C2203126 Cover strips 120

C2203126

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2203126

Cover strips 120 PC (UL 94 HB)
green RAL 6024
C2203127 Cover strips 120

C2203127

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2203127

Cover strips 120 PC (UL 94 HB)
blue RAL 5017
C2203128 Fastening elements to DIN-Rails

C2203128

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 120.

Supply 2 fastening elements, assembly kit

关闭

C2203128

Fastening elements to DIN-Rails PA 6
light grey RAL 7035
C2204162 Cover strips 160

C2204162

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2204162

Cover strips 160 PC (UL 94 HB)
silver grey RAL 7001
C2204164 Cover strips 160

C2204164

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2204164

Cover strips 160 PC (UL 94 HB)
red RAL 3020
C2204165 Cover strips 160

C2204165

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2204165

Cover strips 160 PC (UL 94 HB)
yellow RAL 1023
C2204166 Cover strips 160

C2204166

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2204166

Cover strips 160 PC (UL 94 HB)
green RAL 6024
C2204167 Cover strips 160

C2204167

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2204167

Cover strips 160 PC (UL 94 HB)
blue RAL 5017
C2204168 Fastening elements to DIN-Rails

C2204168

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 160.

Supply 2 fastening elements, assembly kit

关闭

C2204168

Fastening elements to DIN-Rails PA 6
light grey RAL 7035
C2210801 Cover strips 80, with holes

C2210801

Cover strips 80, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

关闭

C2210801

Cover strips 80, with holes PC (UL 94 HB)
light grey RAL 7035
C2211201 Cover strips 120, with holes

C2211201

Cover strips 120, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

关闭

C2211201

Cover strips 120, with holes PC (UL 94 HB)
light grey RAL 7035
C2211601 Cover strips 160, with holes

C2211601

Cover strips 160, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

关闭

C2211601

Cover strips 160, with holes PC (UL 94 HB)
light grey RAL 7035
C2212001 Cover strips 200, with holes

C2212001

Cover strips 200, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

关闭

C2212001

Cover strips 200, with holes PC (UL 94 HB)
light grey RAL 7035
C2212401 Cover strips 240, with holes

C2212401

Cover strips 240, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

关闭

C2212401

Cover strips 240, with holes PC (UL 94 HB)
light grey RAL 7035

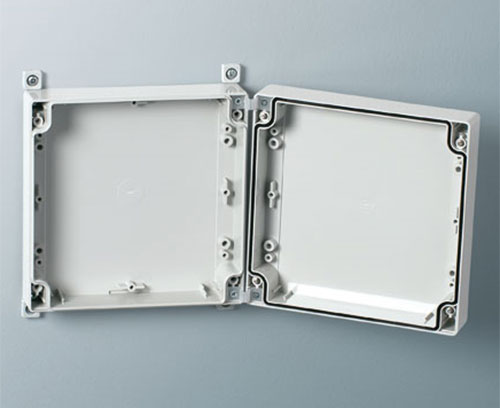

C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

关闭

C2299028

Wall mounting brackets PA 6 (UL 94 HB)
light grey RAL 7035

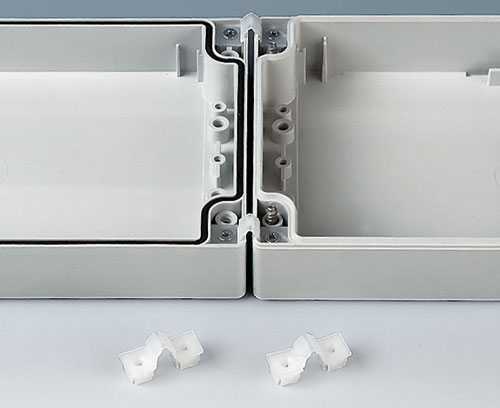

C2299031 Securing hinge for the cover

C2299031

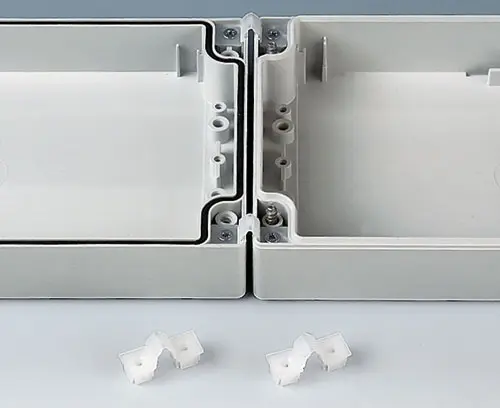

Securing hinge for the cover For securing the cover, e.g. during servicing. Can be fitted to any case side. Not applicable for sizes 200 x 300 and 240 x 360 mm.

Supply 2 securing hinges

关闭

C2299031

Securing hinge for the cover PP
natural-coloured

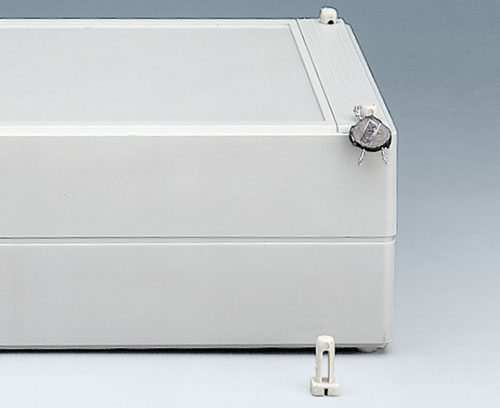

C2299042 Security kit width 120

C2299042

Security kit width 120 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

关闭

C2299042

Security kit width 120 PA 6 (UL 94 HB)
light grey RAL 7035
C2299046 Security kit width 160

C2299046

Security kit width 160 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

关闭

C2299046

Security kit width 160 PA 6 (UL 94 HB)
light grey RAL 7035
C2299048 Security kit width 80

C2299048

Security kit width 80 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

关闭

C2299048

Security kit width 80 PA 6 (UL 94 HB)
light grey RAL 7035

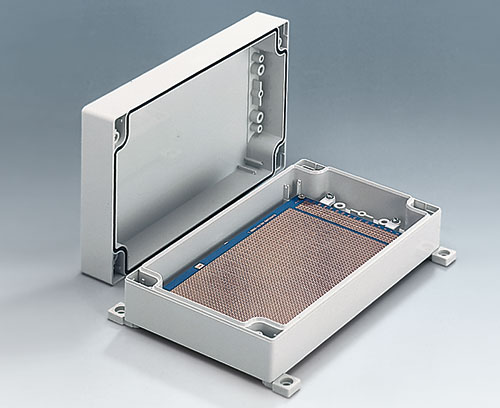

C2299058 PCB support

C2299058

PCB support For mounting pre-assembled PCB units. Suitable for: 200 x 120 mm for Eurocard size and all other cases width 120 mm.

Supply 2 PCB support, assembly kit (threaded bushes, screws)

关闭

C2299058

PCB support PC (UL 94 HB)
light grey RAL 7035
C2299068 PCB support

C2299068

PCB support For mounting pre-assembled PCB units. Suitable for ROBUST-BOXES width 80 mm and width 160 mm.

Supply 4 PCB support, assembly kit (threaded bushes, screws)

关闭

C2299068

PCB support PC (UL 94 HB)
light grey RAL 7035
C2299088 Hinge

C2299088

Hinge For cases: 120, 160, 200 and 240 mm length or width. Additional machining (drilling) required.

Supply 2 complete hinges

关闭

C2299088

Hinge PA 6
light grey RAL 7035
C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure > 6 bar.
Temperature range -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

关闭

C2306917

Pressure equalisation element M6x0.75 PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure > 6 bar.
Temperature range -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

关闭

C2310917

Pressure equalisation element M10x1 PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2320137 Cable grommet

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

关闭

C2320137

Cable grommet EPDM
light grey RAL 7035
IP 67

产品类型用于 Robust-Box 坚固机盒

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
