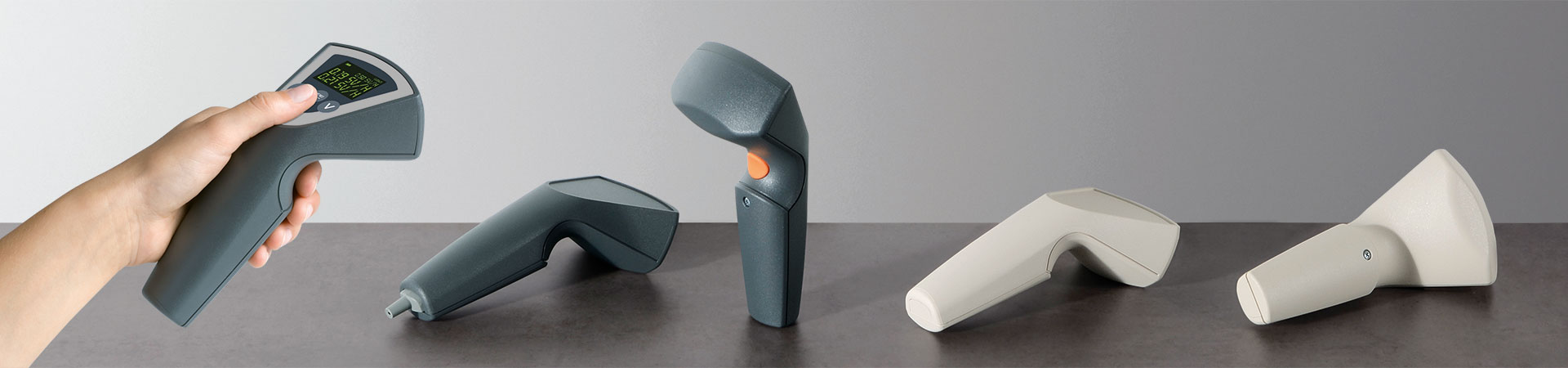

Senso-Case 感应器盒

Senso-Case 感应器盒

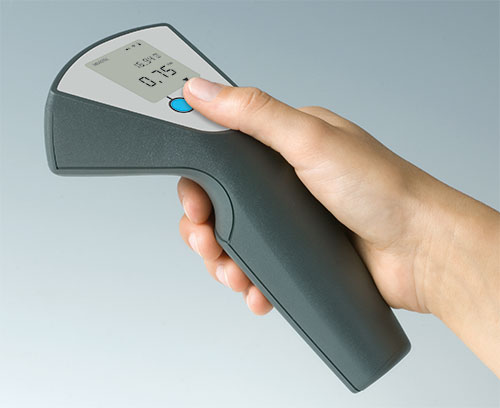

符合人体工程学的单手操作机盒

使用光电元件执行测量、控制和信令任务以及数据记录,可以通过 SENSO-CASE 感应器盒舒适、快速和安全地达到运行完成。

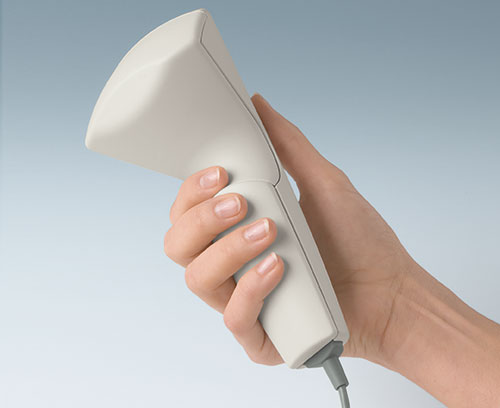

  • 通过符合人体工程学的手柄使操作非常方便,既适合左手也适合右手操作
  • 均衡的重量分布

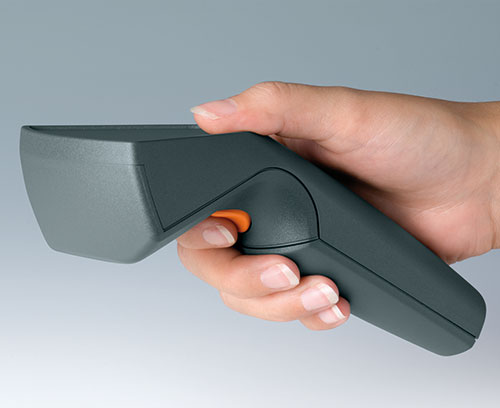

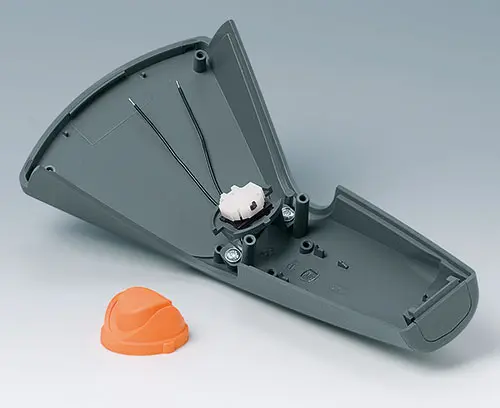

  • 机盒可选带集成开关用于立即启动的功能和/或有时间限制的启动功能(待机)

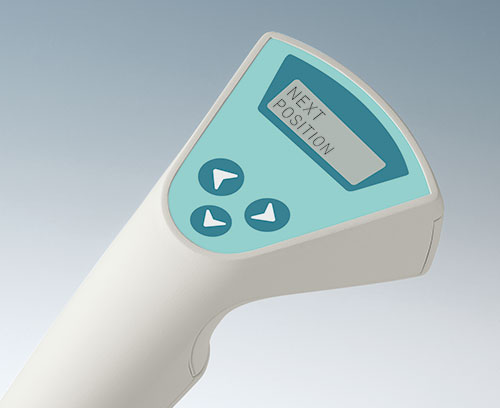

  • 凹陷的操作区域以保护薄膜键盘、硅酮键盘、按钮和显示模块
  • 非常理想用于已预组装的电子封装,封装也可具有集成接口

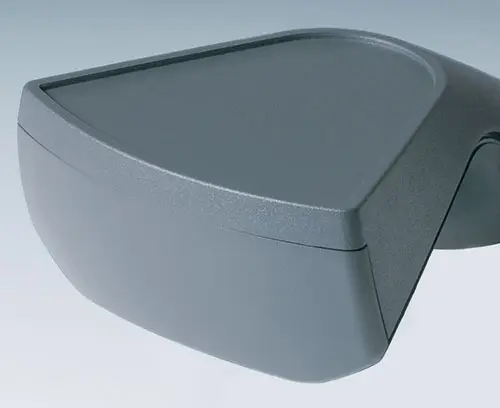

  • 前面具备安装传感器的大面积接口界面
  • 可同时使用电池/充电电池和电缆的可能性

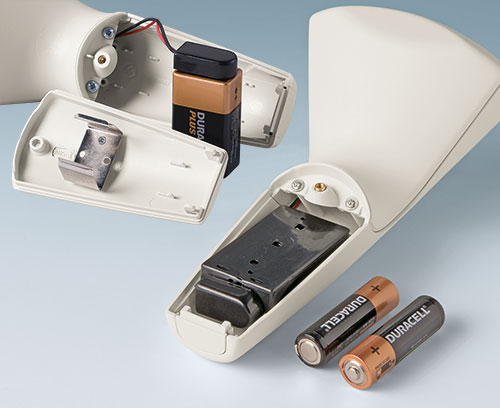

  • 2 个 AA 或 1个 9 V 电池提供内部电源供给; 电池盒作为附件
  • 电缆套使终端形状完美; 防拉套件作为附件

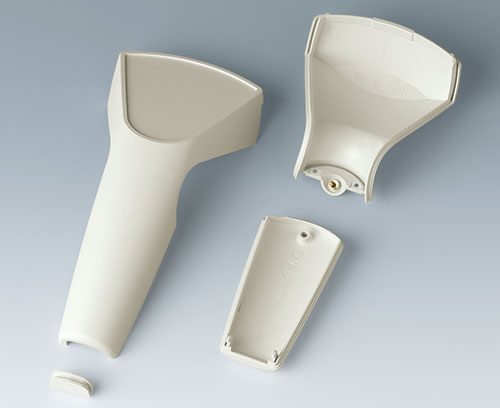

  • 4 个部件结构: 顶部、底部、手柄盖、电缆套或成型端件用于封闭端部开口; 带开关功能的机盒供货范围包括开关和连接线

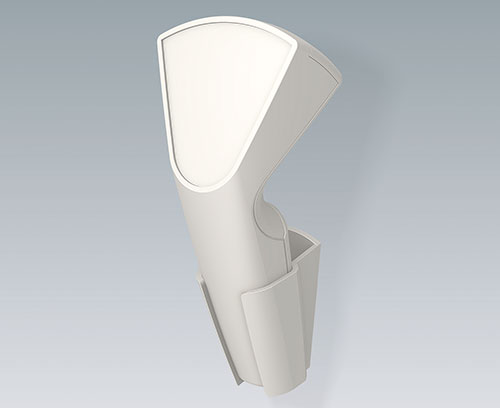

  • 挂墙支架作为附件
  • 固定柱用于固定电路板和元器件

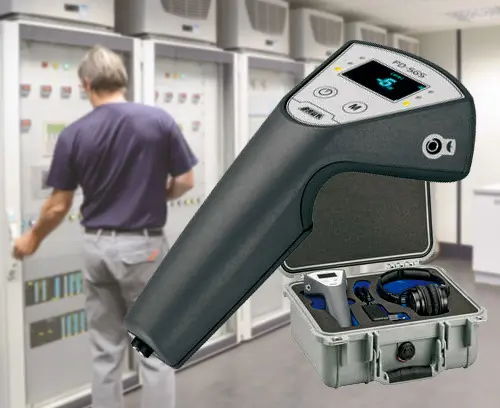

  • 应用示例

应用范围

  • 传感器技术
  • 光电技术
  • 光电数字技术
  • 工业图像处理领域
  • 测量和控制技术
  • 存储和销售物流领域
  • 医疗和实验室设备技术
  • 通信技术
  • 选择所有项目
  • 配件
  • 按客户要求修改加工

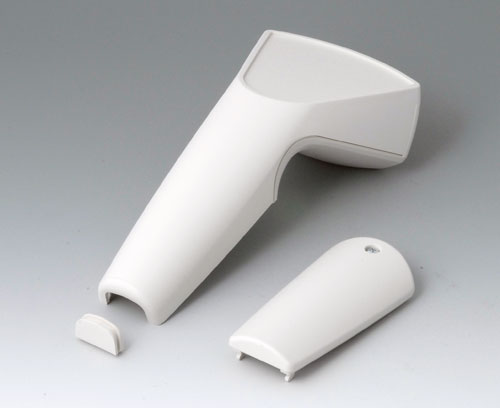

A9056107 SENSO-CASE M

A9056107

SENSO-CASE M Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable.

Supply Top and bottom part , moulded part, battery compartment lid, assembly kit

关闭

A9056107

SENSO-CASE M
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
180x86x45mm
IP 41
A9056108 SENSO-CASE M

A9056108

SENSO-CASE M Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable.

Supply Top and bottom part , moulded part, battery compartment lid, assembly kit

关闭

A9056108

SENSO-CASE M
产品已添加到关注清单中
ABS (UL 94 HB)
lava
180x86x45mm
IP 41

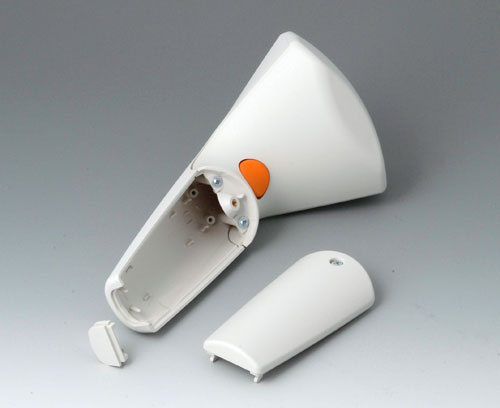

A9056207 SENSO-CASE M

A9056207

SENSO-CASE M Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable. Equipment: with single-pole push-button.

Supply Top and bottom part , moulded part, battery compartment lid, push-buttom with connection cables, assembly kit

关闭

A9056207

SENSO-CASE M
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
180x86x45mm
IP 41

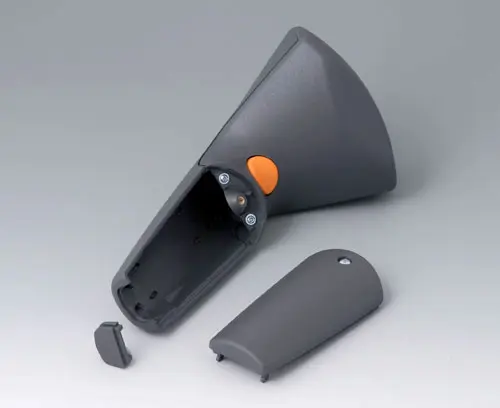

A9056208 SENSO-CASE M

A9056208

SENSO-CASE M Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable. Equipment: with single-pole push-button.

Supply Top and bottom part , moulded part, battery compartment lid, push-buttom with connection cables, assembly kit

关闭

A9056208

SENSO-CASE M
产品已添加到关注清单中
ABS (UL 94 HB)
lava
180x86x45mm
IP 41
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
产品已添加到关注清单中
A9100002 Ring eyelet

A9100002

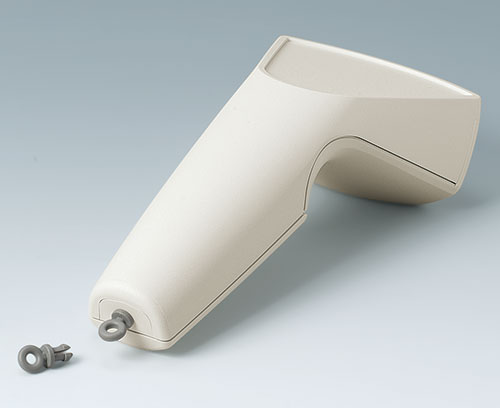

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

关闭

A9100002

Ring eyelet
产品已添加到关注清单中
PA 6
volcano

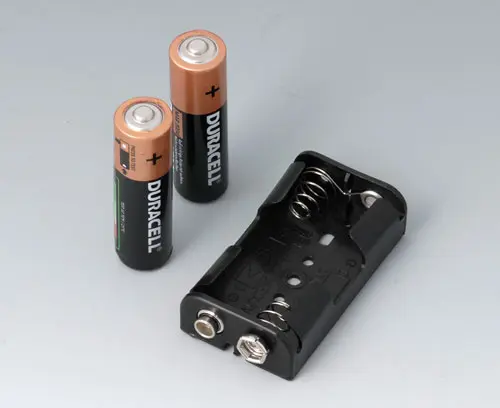

A9156001 Battery holder, 2 x AA

A9156001

Battery holder, 2 x AA For 2 x 1.5 V mignon-cells (AA). Contacts suitable for plug-in contact (sep. asseccory).

Supply 1 battery holder

关闭

A9156001

Battery holder, 2 x AA
产品已添加到关注清单中
PP
black RAL 9005

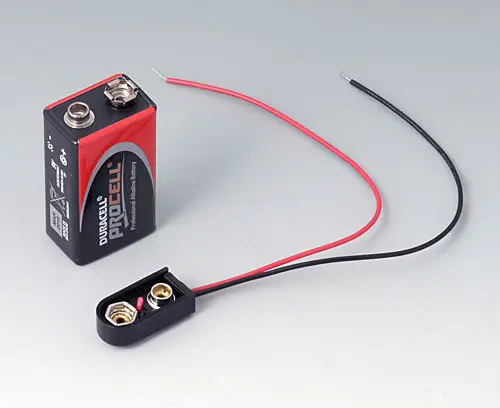

A9156002 Plug-in contact, 1 x 9 V (PP3)

A9156002

Plug-in contact, 1 x 9 V (PP3) Version: With protective case. Cable length approx. 152 mm. Contact diameters 5.7 / 5.3 mm.
Application: suitable for 9 V flat battery (PP3) or battery holder A9156001.

Supply 1 plug-in contact

关闭

A9156002

Plug-in contact, 1 x 9 V (PP3)
产品已添加到关注清单中

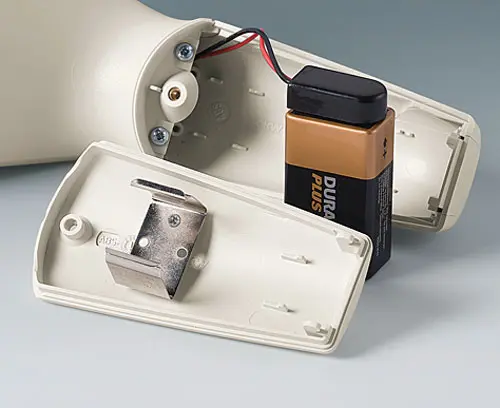

A9156003 Battery holder, 1 x 9 V (PP3)

A9156003

Battery holder, 1 x 9 V (PP3) For 1 x 9 V flat battery (PP3).

Supply 1 battery holder, 2 self-tapping screws

关闭

A9156003

Battery holder, 1 x 9 V (PP3)
产品已添加到关注清单中
Steel
nickel-plated

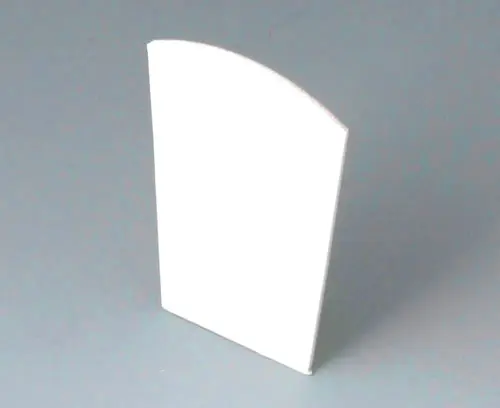

A9156005 Adhesive foil

A9156005

Adhesive foil For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

关闭

A9156005

Adhesive foil
产品已添加到关注清单中
A9156307 Holder

A9156307

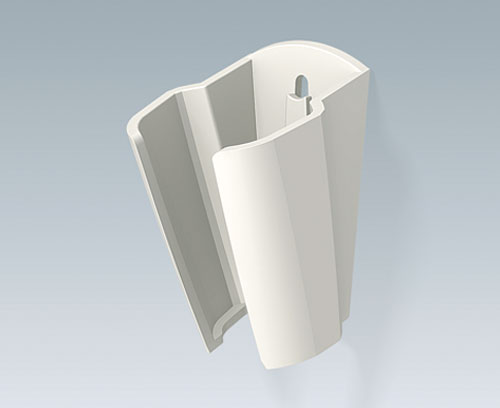

Holder Special holder for SENSO-CASE for safe storing of cable-connected or wireless applications. Fixing at the wall or other surfaces by commercial screws or by adhesive foil (sep. article).

Supply 1 holder

关闭

A9156307

Holder
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
A9156308 Holder

A9156308

Holder Special holder for SENSO-CASE for safe storing of cable-connected or wireless applications. Fixing at the wall or other surfaces by commercial screws or by adhesive foil (sep. article).

Supply 1 holder

关闭

A9156308

Holder
产品已添加到关注清单中
ABS (UL 94 HB)
lava
A9166004 Set of pull-relief

A9166004

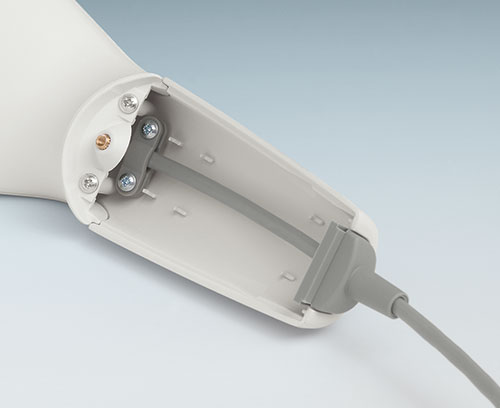

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

关闭

A9166004

Set of pull-relief
产品已添加到关注清单中
PA 6
volcano
A9166101 Cable strain, 5.0 - 5.9

A9166101

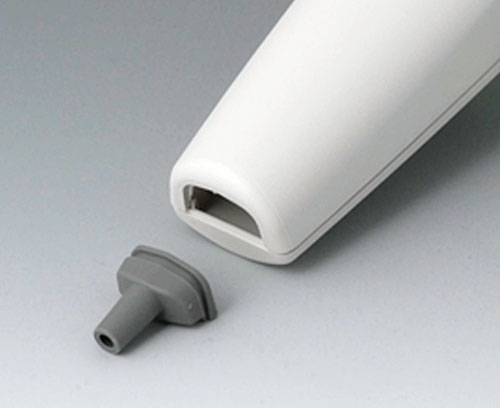

Cable strain, 5.0 - 5.9 The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 5.0 - 5.9 mm.

Supply 1 cable strain relief

关闭

A9166101

Cable strain, 5.0 - 5.9
产品已添加到关注清单中
SEBS (TPE)
volcano
A9166131 Cable strain, 4.2 - 5.0

A9166131

Cable strain, 4.2 - 5.0 The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 4.2 - 5.0 mm.

Supply 1 cable strain relief

关闭

A9166131

Cable strain, 4.2 - 5.0
产品已添加到关注清单中
SEBS (TPE)
volcano
A9166161 Cable strain, 3.4 - 4.2

A9166161

Cable strain, 3.4 - 4.2 The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 3.4 - 4.2 mm.

Supply 1 cable strain relief

关闭

A9166161

Cable strain, 3.4 - 4.2
产品已添加到关注清单中
SEBS (TPE)
volcano

产品类型用于 Senso-Case 感应器盒

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
