SYNERGY 谐料机盒

Synergy 谐料机盒

合谐材料组合机盒

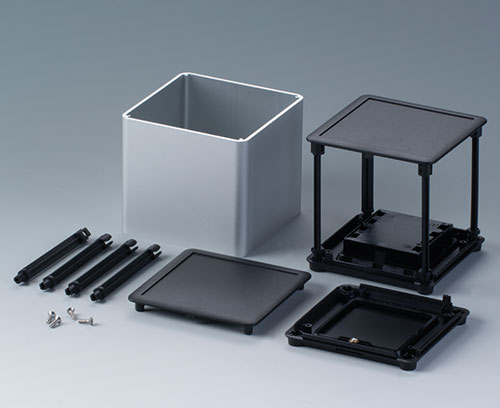

新型 SYNERGY 谐料机盒将塑料和铝材质的优势结合在一个机盒中:

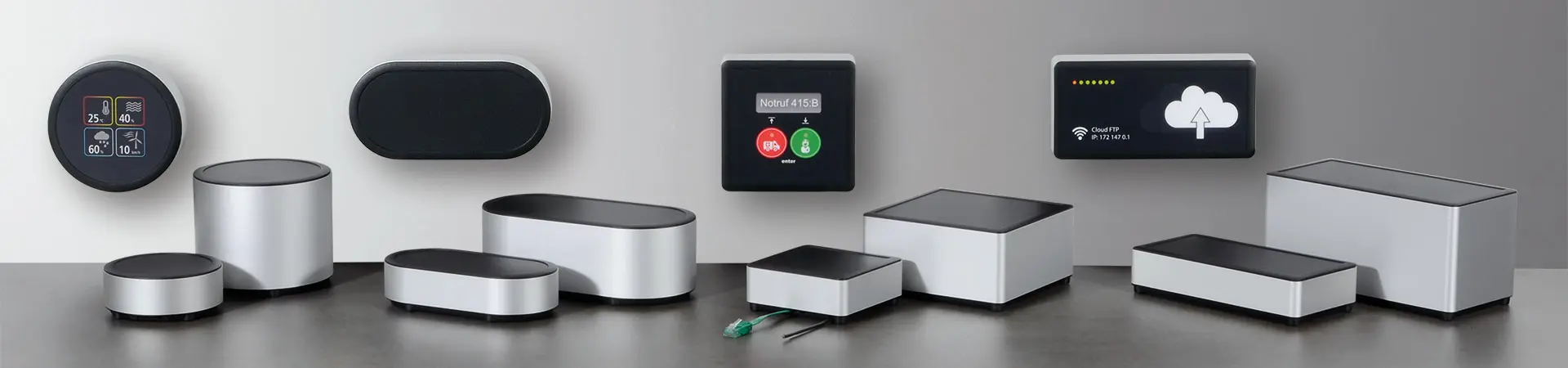

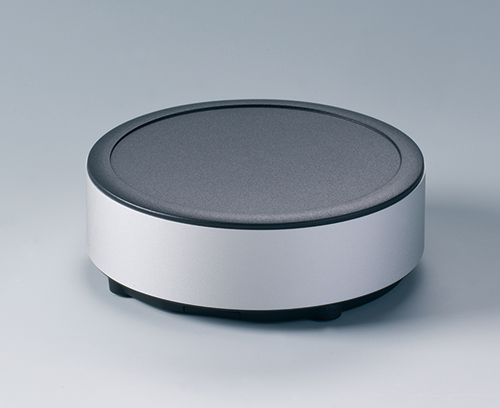

  • 现代设计式机盒产品系列提供 4 个基本形状 - 正方形,矩形,圆形和椭圆形 *** iF 产品设计奖 ***
  • 36 种规格的机盒为电子元件和操作件提供充足的空间

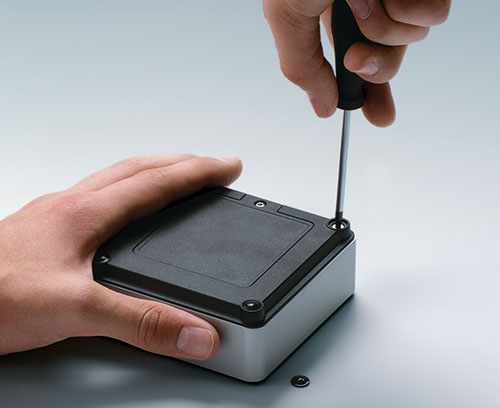

  • 提供梅花头不锈钢螺钉

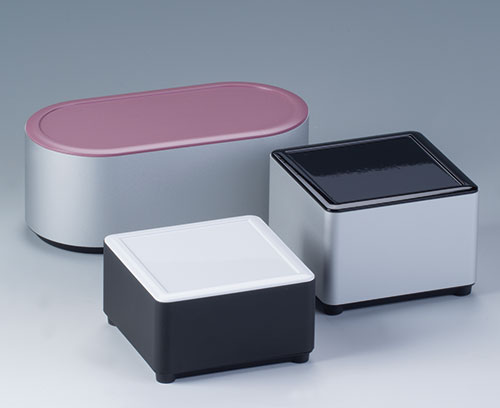

  • 颜色组合: 氧化铝银色或塑料件黑色
  • 接口空间大、没有塑形斜边、简易安装

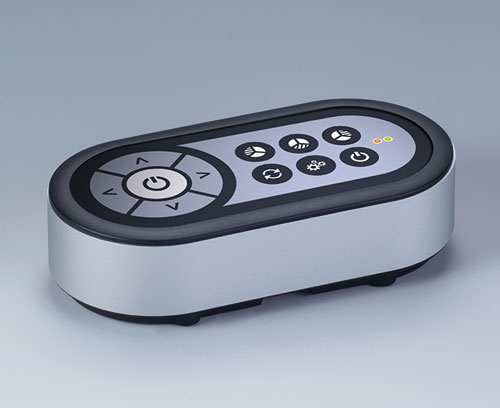

  • 上盒带凹陷表面利于配装装饰膜或膜键盘

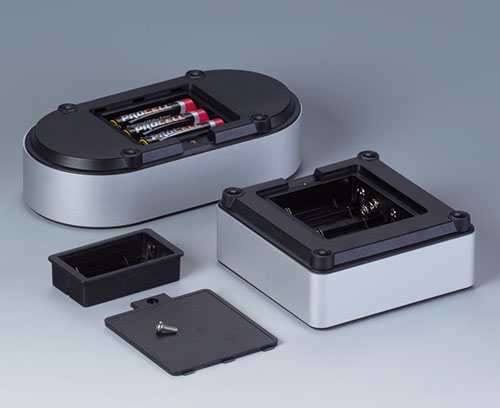

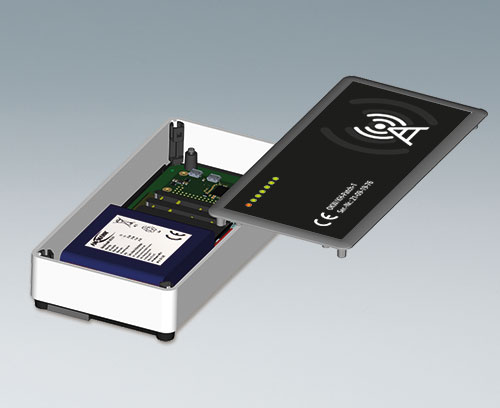

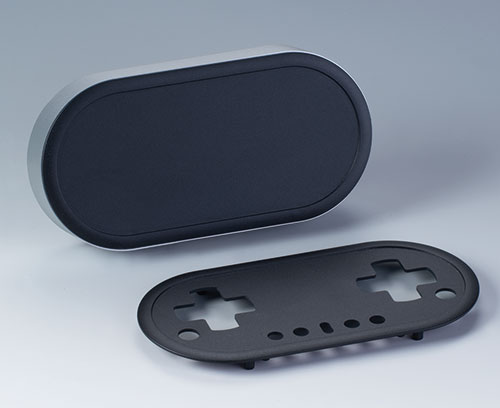

  • 带开口和盖子的下盒适合螺钉固定: 特别适配安装电池仓或方便进入内部,例如用于安装存储卡或直接连接到电路板上的电池; 电池仓套件,电池夹环和钮扣电池座作为附件

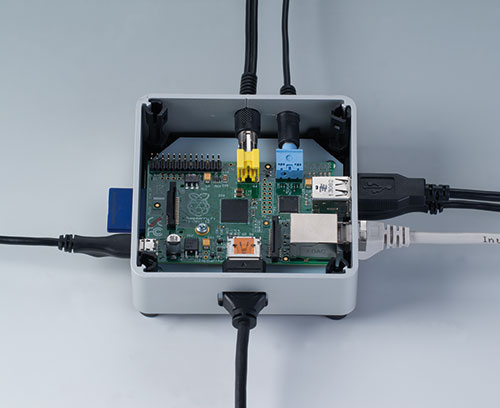

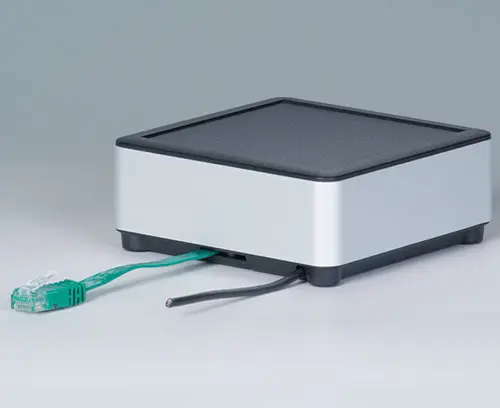

  • 电缆出口位于下盒(特扁平网线,圆形电缆直径至 ø4 mm)

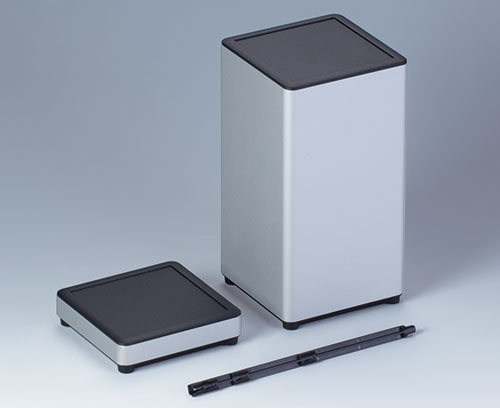

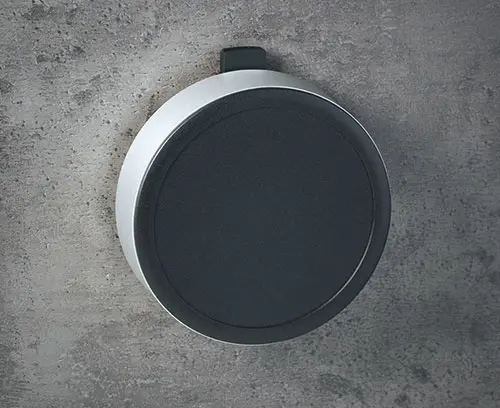

  • 延长件(固定柱延长)和挂墙支架作为附件
  • 客户要求定制解决方案可询问

设计师声明

“SYNERGY 谐料机盒的特别之处在于其体现高贵品质的外观款形。 从第一个设想起,首先考虑到,塑料和铝材质的质量是开发的重点。 永恒和对称的基本几何形状、大方花纹和精巧的控制表面以及智能装配技术配合统一的机盒,达到符合客户的严厉审美要求。 由于每个单件可以进行长度的单独加工,因此在多种形状、各种尺寸和功能变体方面可以提供多样的组装可能性: 全面挑战问题的解决方案。”
摘自Martin Nußberger, polyform Industrie Design

  • 录像

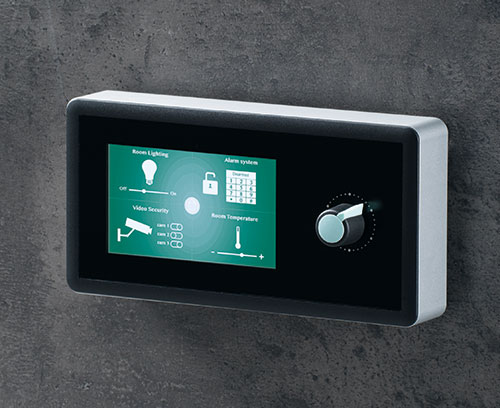

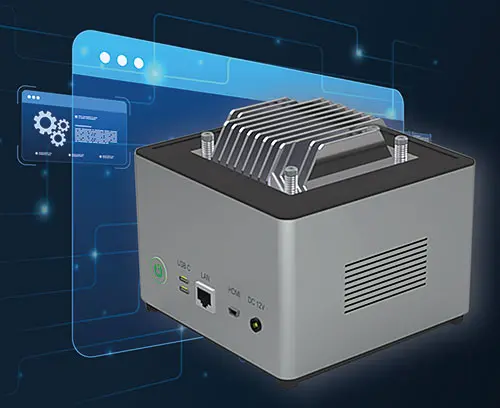

  • 应用示例

应用范围

  • 计算机外围设备
  • 网络技术
  • 建筑技术
  • 安全技术
  • 医疗技术和治疗应用
  • 测量控制技术等等
  • IoT/IIoT
  • 类型
  • 配件
  • 按客户要求修改加工

选择类型和规格大小,然后点击“选择”。



款式 S

SYNERGY 款式 S

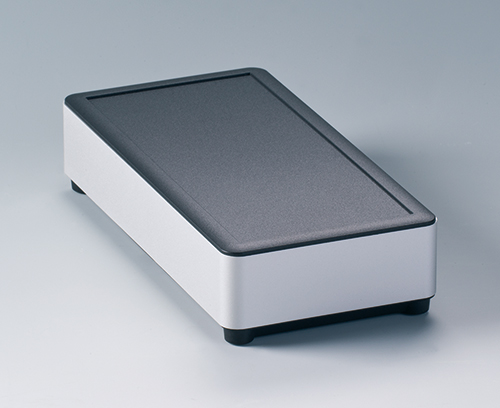

款式 R

SYNERGY 款式 R

款式 E

SYNERGY 款式 E

款式 O

SYNERGY 款式 O

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

关闭

A0399T10

Torx T10 screwdriver
A9193033 Polarity reversal protection device, positive terminal

A9193033

Polarity reversal protection device, positive terminal For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

关闭

A9193033

Polarity reversal protection device, positive terminal ABS (UL 94 HB)
off-white RAL 9002
A9193034 Polarity reversal protection device, positive terminal

A9193034

Polarity reversal protection device, positive terminal For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

关闭

A9193034

Polarity reversal protection device, positive terminal ABS (UL 94 HB)
off-white RAL 9002
A9193035 Battery clip

A9193035

Battery clip For AA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

关闭

A9193035

Battery clip Steel
nickel-plated
A9193036 Battery clip

A9193036

Battery clip For AAA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

关闭

A9193036

Battery clip Steel
nickel-plated

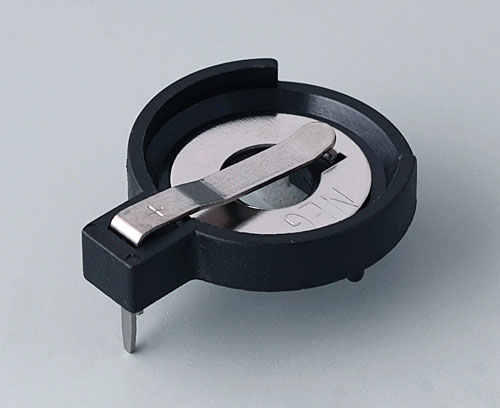

A9193037 Button cell holder

A9193037

Button cell holder For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

关闭

A9193037

Button cell holder

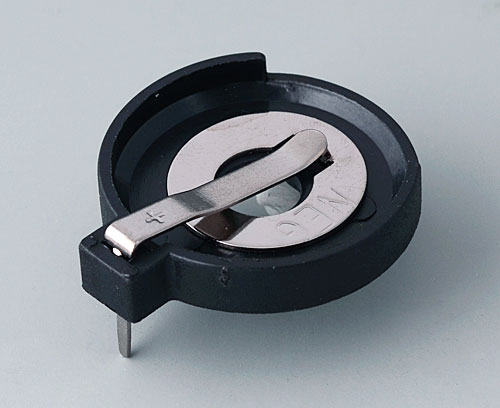

A9193038 Button cell holder

A9193038

Button cell holder For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

关闭

A9193038

Button cell holder

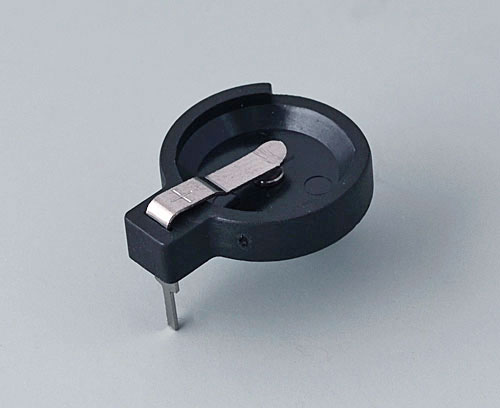

A9193039 Button cell holder

A9193039

Button cell holder For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

关闭

A9193039

Button cell holder

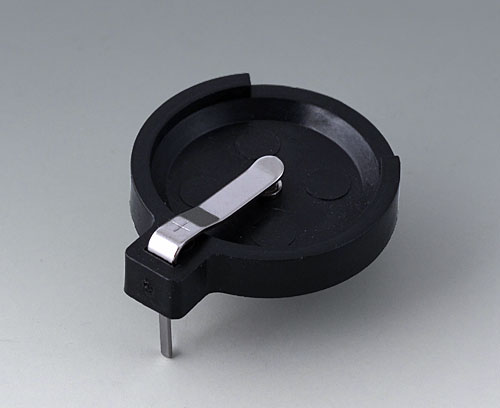

A9193040 Button cell holder

A9193040

Button cell holder For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

关闭

A9193040

Button cell holder
A9305019 Wall suspension elements

A9305019

Wall suspension elements Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply 1 adapter, 2 adhesive foils, 1 holder, 2 locking pins

关闭

A9305019

Wall suspension elements ASA+PC-FR (UL 94 V-0)
black RAL 9005

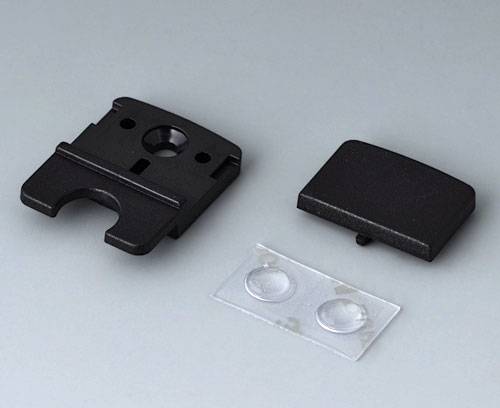

EZ030109 Wall suspension element

EZ030109

Wall suspension element Optional wall mounting with only one screw.

Supply 1 holder and cover plate, 2 anti-slide feet

关闭

EZ030109

Wall suspension element ASA+PC-FR (UL 94 V-0)
black RAL 9005

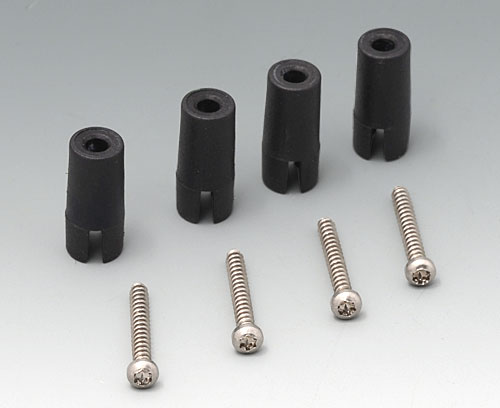

EZ031209 Extender kit

EZ031209

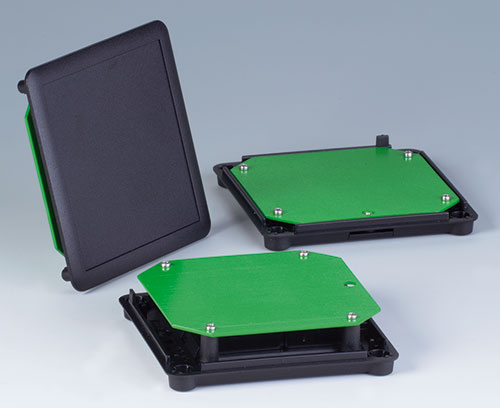

Extender kit For increasing the height of the attachment domes for PCBs. Required when installing a PCB above the battery compartment (acc.) in the bottom part.

Supply 4 extender, 4 screws (Torx 8)

关闭

EZ031209

Extender kit ASA+PC-FR (UL 94 V-0)
black RAL 9005
EZ040609 Battery compartment, 3 x AA

EZ040609

Battery compartment, 3 x AA For 3 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.

Supply 1 battery compartment, set of battery clips

关闭

EZ040609

Battery compartment, 3 x AA ASA+PC-FR (UL 94 V-0)
black RAL 9005
EZ050609 Battery compartment, 4 x AA

EZ050609

Battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.

Supply 1 battery compartment, set of battery clips

关闭

EZ050609

Battery compartment, 4 x AA ASA+PC-FR (UL 94 V-0)
black RAL 9005
EZ060609 Battery compartment, 2 x AA

EZ060609

Battery compartment, 2 x AA For 2 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.

Supply 1 battery compartment, set of battery clips

关闭

EZ060609

Battery compartment, 2 x AA ASA+PC-FR (UL 94 V-0)
black RAL 9005

产品类型用于 Synergy 谐料机盒

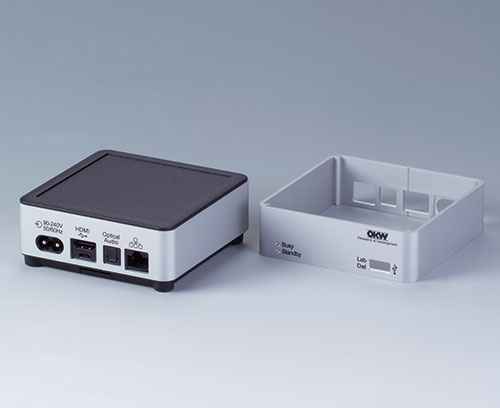

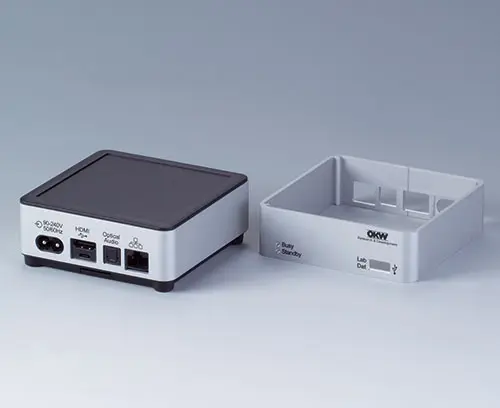

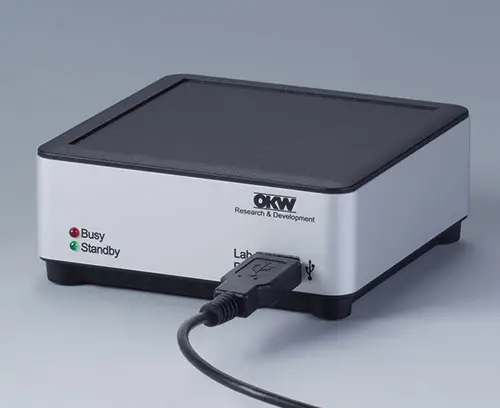

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
