B5011327

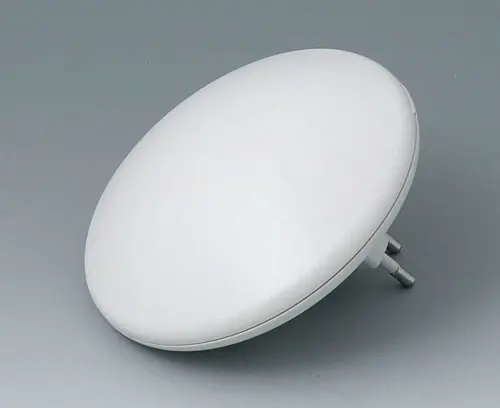

ART-CASE R110 H

Electronic case with EURO plug section according to DIN VDE 0620 part 101. High top part.
Not suitable for sockets with integrated, increased protection against contact!

Version

Bottom part "inclined" with plug section

Supply

1 bottom part, 1 plug section and 1 top part R110 H, assembly kit

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 B5011327

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

“螺钉” 附件

B5111201 Set of screws

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.

Supply 4 screws

B5111201

Set of screws
产品已添加到关注清单中

Customising options for B5011327

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

Plug section

Bottom and top part
防护等级
颜色
off-white RAL 9002
标准根据
RoHS compliant
REACH compliant
DIN VDE 0620 part 101
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
直径
⌀ 110 mm
高度
41 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
71 g
Customs tariff number
(OKW product)
85480090
Country of manufacture
Germany

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B5011327请务必索取报价！
