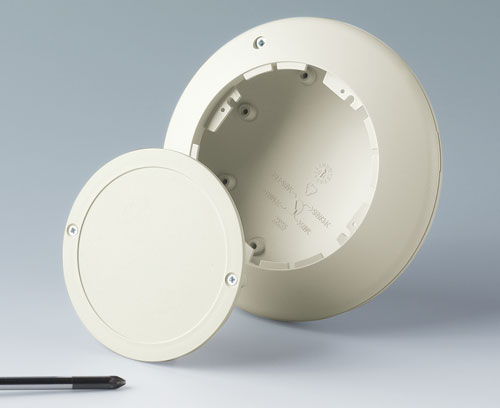

B5011847 Lid

B5011847

Lid

Assembly unit: suitable for all bottom parts, screw-down (not suitable for use with battery compartment).

Supply

1 lid, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

圆形 R

正方形 S

椭圆形 O

矩形 E

至少组件
1 个上盒和下盒 E160.
1 个底盖 / 电池盒盖 / 底座 / 底座 30° 或 底座 55° (取决于下部和电池盒插入件的结构设计).

系统组件使产品完整

B5017207 Bottom and top part E160 F

B5017207

Bottom and top part E160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part E160 F, assembly kit

关闭

B5017207

Bottom and top part E160 F
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
160x110x38mm

“挂墙支架” 配件

B5111307 Wall mounting set

B5111307

Wall mounting set Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).

Supply Wall mounting set, incl. safety screw

关闭

B5111307

Wall mounting set
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002

“螺钉” 附件

B5111201 Set of screws

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.

Supply 4 screws

关闭

B5111201

Set of screws
产品已添加到关注清单中

附件

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

关闭

A9207150

Anti-slide feet 6.5 x 2 mm
产品已添加到关注清单中
transparent

Customising options for B5011847

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
9 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
