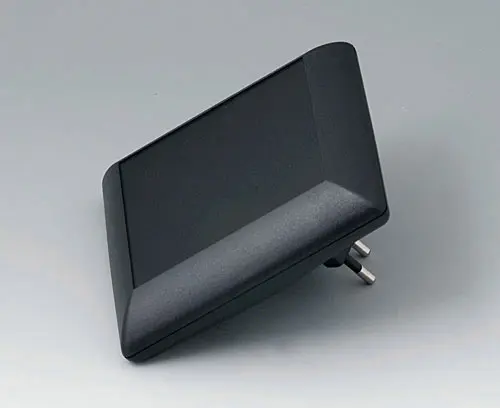

B5013229 ART-CASE S110 F

B5013229

ART-CASE S110 F

Electronic case with Euro plug section according to DIN VDE 0620 part 101. Top part with recessed area for membrane keyboards.
Not suitable for sockets with integrated, increased protection against contact!

Version

Bottom part "inclined" with plug section

Supply

1 bottom part, 1 plug section and 1 top part S110 F, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“螺钉” 附件

B5111201 Set of screws

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.

Supply 4 screws

关闭

B5111201

Set of screws
产品已添加到关注清单中

Customising options for B5013229

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
材料
PC+ABS (UL 94 V-0)
Plug section
ABS (UL 94 HB)
Bottom and top part
防护等级
颜色
black RAL 9005
标准根据
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
110 mm
Width
110 mm
Height
38 mm
电路板长度,上盒
94 mm
电路板宽度,上盒
78 mm
Keypad length
79.5 mm
Keypad width
79.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
83 g
Customs tariff number
(OKW product)
85480090
Country of manufacture
Germany
