DIN 标准导轨接线盒

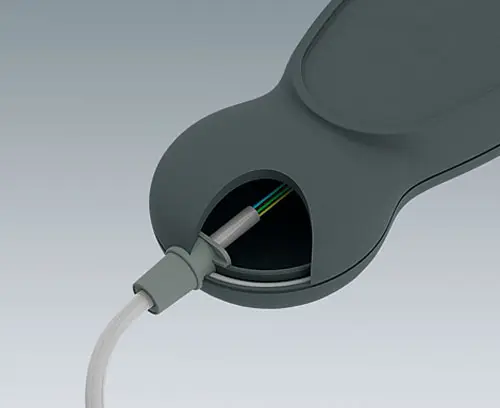

B2610101
Cable strain, 5.0 - 5.9
For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.
VersionFor cables Ø 5.0 - 5.9 mm
Supply1 cable bushing
添加到购物车内
B2510107
BLOB UNIT
A genuine hand held enclosure that can be held and operated with one hand. Two-part enclosure design. Recessed surface for membrane keyboards. Attachment domes for a PCB in the top part.
Supply Top and bottom parts, assembly kit
B2510107
BLOB UNIT产品已添加到关注清单中
off-white RAL 9002
130x60x30mm

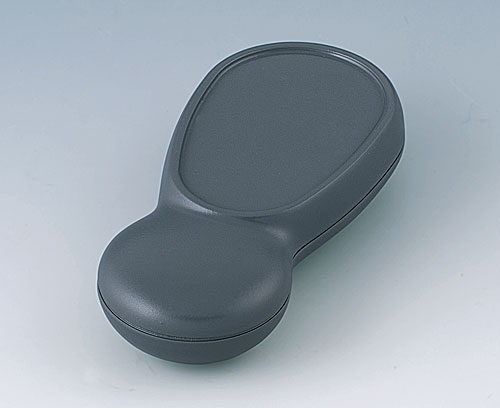

B2510108
BLOB UNIT
A genuine hand held enclosure that can be held and operated with one hand. Two-part enclosure design. Recessed surface for membrane keyboards. Attachment domes for a PCB in the top part.
Supply Top and bottom parts, assembly kit
B2510108
BLOB UNIT产品已添加到关注清单中
lava
130x60x30mm

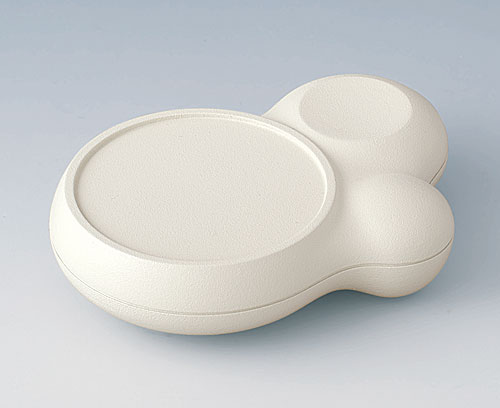

B2512107
BLOB CONTROL
An enclosure that can be held with one hand and operated with the second hand. Two-part enclosure design. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.
Supply Top and bottom parts, assembly kit
B2512107
BLOB CONTROL产品已添加到关注清单中
off-white RAL 9002
114x76x31mm

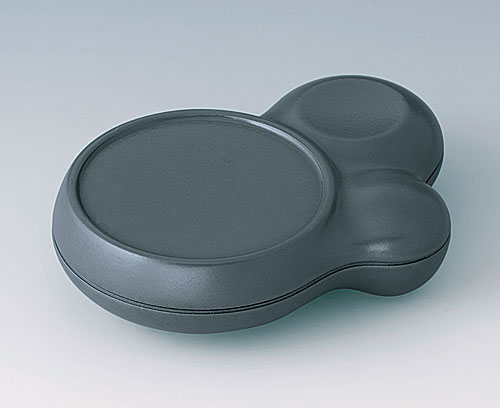

B2512108
BLOB CONTROL
An enclosure that can be held with one hand and operated with the second hand. Two-part enclosure design. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.
Supply Top and bottom parts, assembly kit
B2512108
BLOB CONTROL产品已添加到关注清单中
lava
114x76x31mm
B2514107
BLOB PANEL
An enclosure that can be held and operated with two hands. Two-part enclosure design with symmetrically positioned gripping areas. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.
Supply Top and bottom parts, assembly kit
B2514107
BLOB PANEL产品已添加到关注清单中
off-white RAL 9002
200x165x36mm
B2514108
BLOB PANEL
An enclosure that can be held and operated with two hands. Two-part enclosure design with symmetrically positioned gripping areas. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.
Supply Top and bottom parts, assembly kit
B2514108
BLOB PANEL产品已添加到关注清单中
lava
200x165x36mm
- 技术数据
-
图纸或资料
- 采购有关数据
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 205 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00013644.x_t 291 KB
- 00013644.step 864 KB
- 00013644.sat 690 KB
Weight/1 part
2 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
