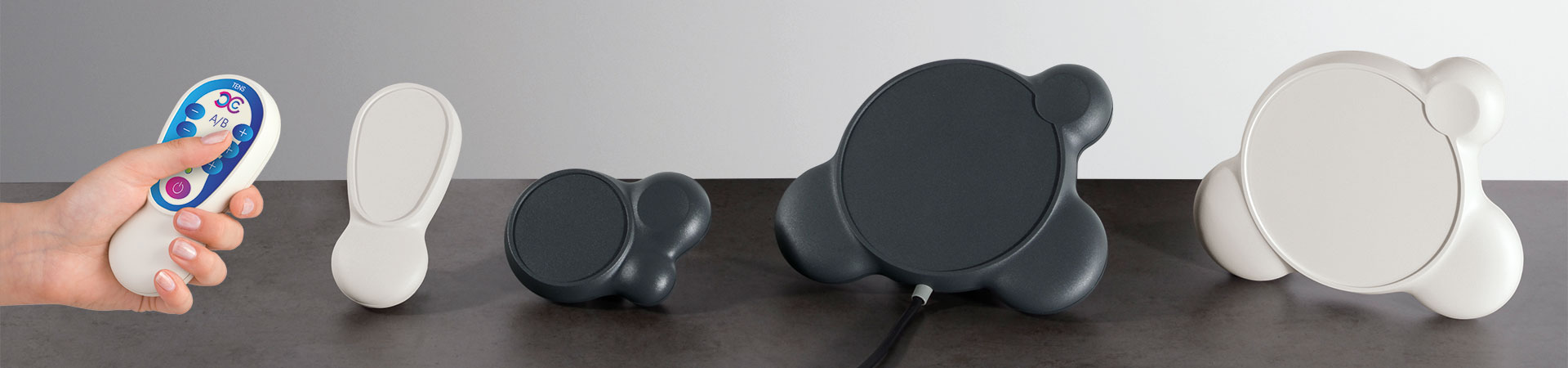

Blob 滴状机盒

特为手形设计的机盒

为了达到优质的触感性，BLOB 滴状机盒实现了符合用户需求的最完美的设计形式。

  • 通过体验令人信服的 3D 触觉达到很高的实用价值; 促使使用者的手自动地抓拿机盒以了解其功能

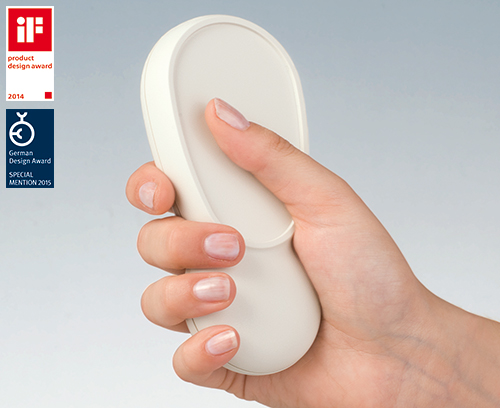

    ** iF 产品设计大奖 2014 年 | 德国设计大奖 2015 年**
  • 轻松自然毫不费力的抓拿、保险握紧、精确的操作和使用
  • 既圆滑轻巧又坚固耐用
  • 范围广大的应用

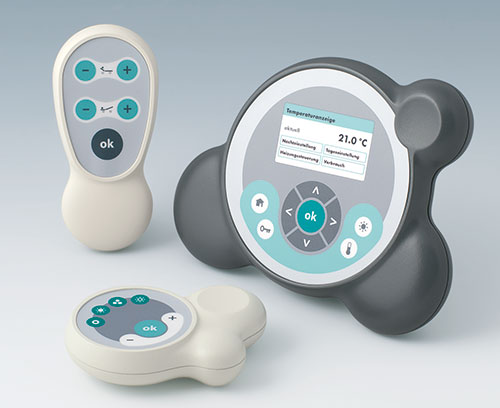

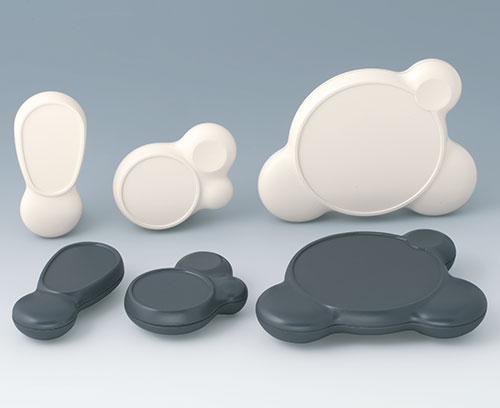

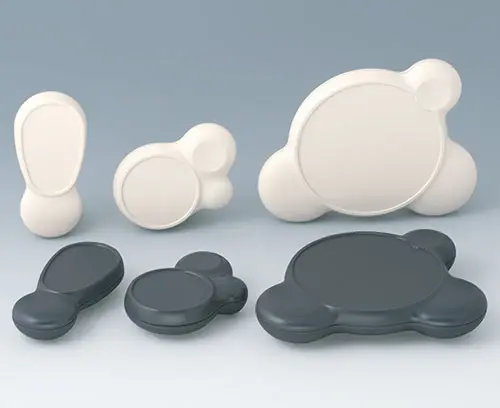

  • 3 种类型

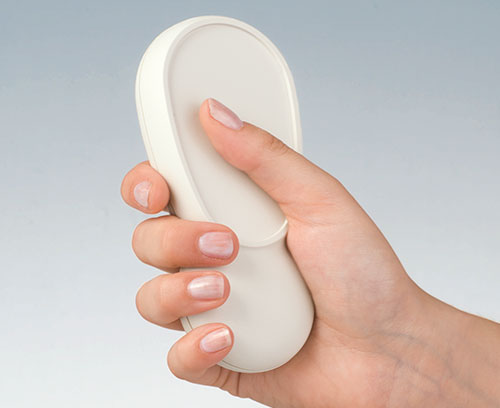

  • UNIT 通用型 - 带键盘和手柄的可单手操作型

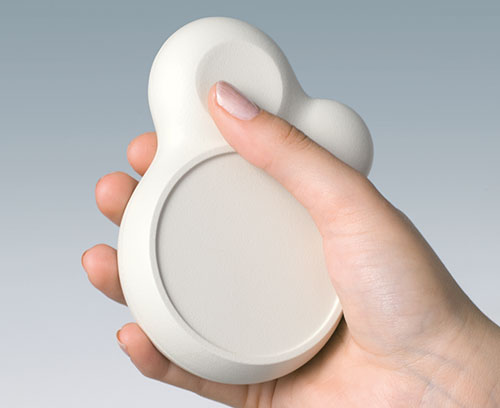

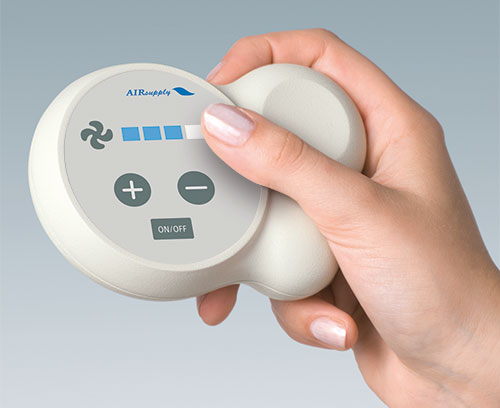

  • CONTROL 调控型 - 机盒单手持握，用另一只手操作，带键盘和专门的特殊功能区

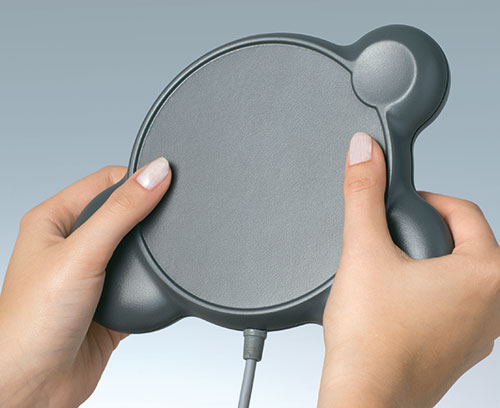

  • PANEL 平板型 - 机盒可用双手持握和操作，带键盘和专门的特殊功能区

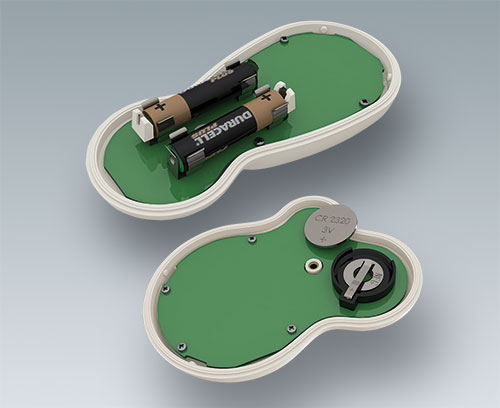

  • 适配 电池的卡夹或 ø12-23 毫米纽扣电池的电池仓作为附件

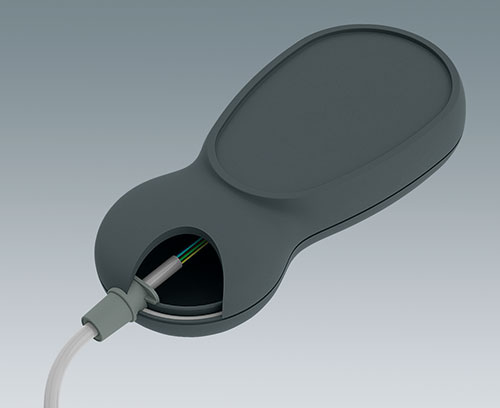

  • 电缆套的布置可利用壳体的整个内壁周边
  • 操作区域凹陷，以保护膜键盘/装饰膜
  • ABS（UL 94 HB）材质，两种颜色
  • 保护等级高达 IP 54，如选用密封件

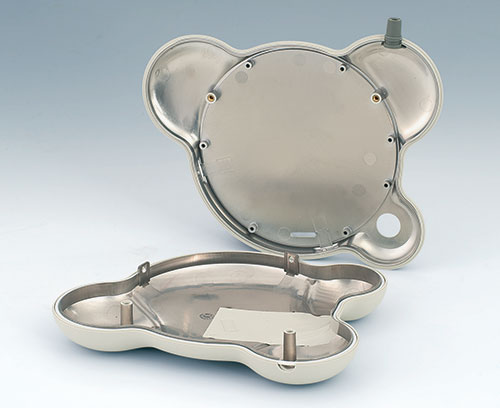

  • 固定柱用于固定电路板和元器件

设计师声明

““哇，持握它的手感非常好！”这是对这款移动产品在通用设计款型的第一个评价。 BLOB 滴状机盒的智能形状是通过优化人体工程学要求而创建的。 无论年轻还是年老，每个人都应该能够简便直观地操作机盒。 此外，机盒提供足够的灵活性，可以覆盖各种应用环境和用户独特要求。
这个名字有何来由？ 来自其构造：Blob 意为水汲，代表'Binary Large OBject'，既一种形状可以无限塑造的水滴状化合物。”
摘自Martin Nußberger, polyform Industrie Design

PDF 导出

我们需要得到您的同意之后, 才能加载视频服务（Vimeo）。

我们使用第三方服务功能，以嵌入视频内容。此服务有收集您的活动数据的可能性。请查看我司的隐私政策，并同意使用此服务功能，以观看此视频。

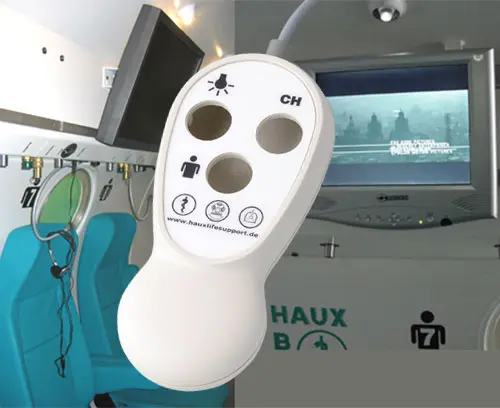

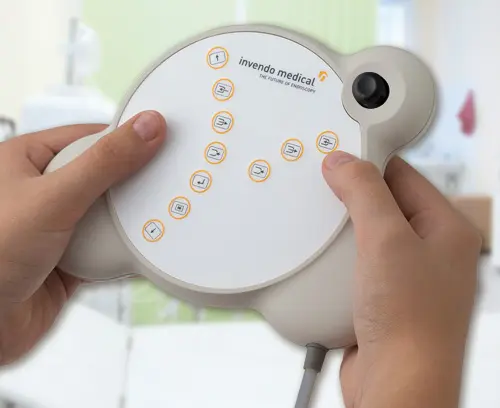

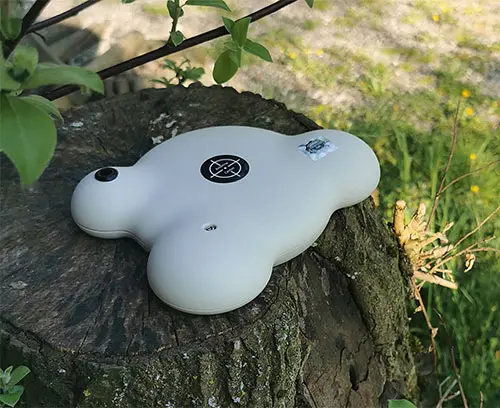

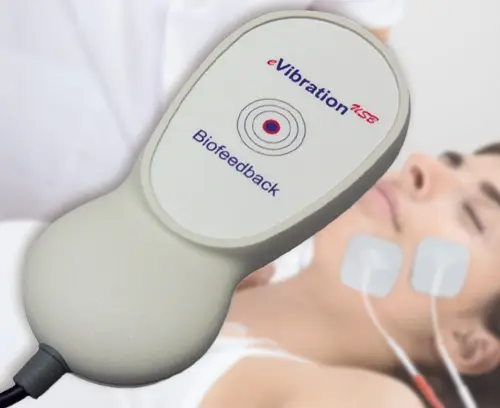

应用范围

继“通用设计”的原则，BLOB 滴状机盒提供足够的灵活性，促使满足各种使用者的不同的手大小的应用。

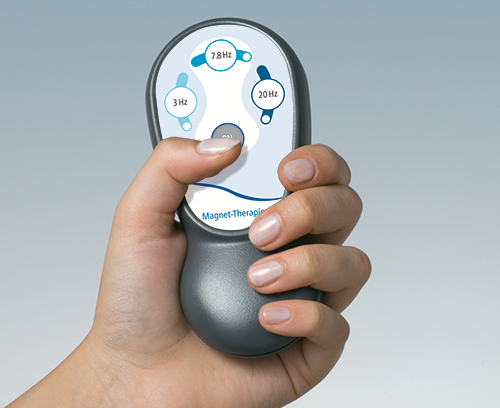

面向用户的各种应用类型，提供有线和无线式，可作为一个独立的单元、集成式或复合式。特别适用于诊断，治疗，实验室，工业，办公，家居，休闲等领域。

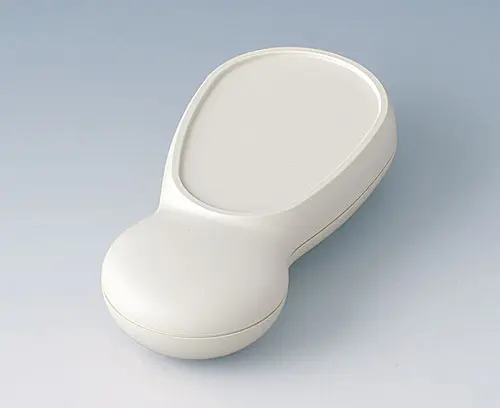

B2510107 BLOB UNIT

B2510107

BLOB UNIT A genuine hand held enclosure that can be held and operated with one hand. Two-part enclosure design. Recessed surface for membrane keyboards. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

B2510107

BLOB UNIT
产品已添加到关注清单中

off-white RAL 9002
130x60x30mm

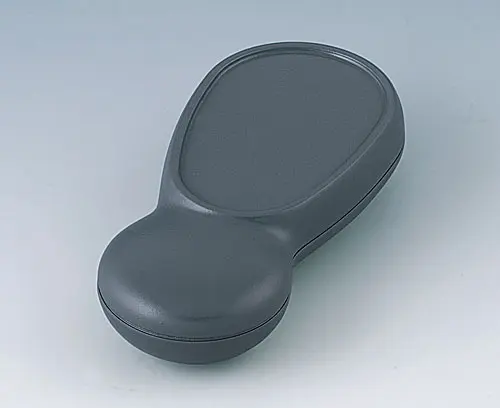

B2510108 BLOB UNIT

B2510108

BLOB UNIT A genuine hand held enclosure that can be held and operated with one hand. Two-part enclosure design. Recessed surface for membrane keyboards. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

B2510108

BLOB UNIT
产品已添加到关注清单中

lava
130x60x30mm

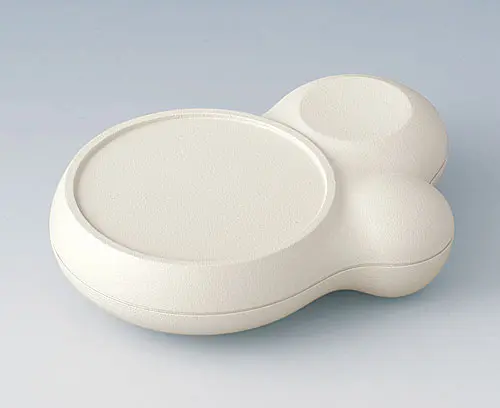

B2512107 BLOB CONTROL

B2512107

BLOB CONTROL An enclosure that can be held with one hand and operated with the second hand. Two-part enclosure design. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

B2512107

BLOB CONTROL
产品已添加到关注清单中

off-white RAL 9002
114x76x31mm

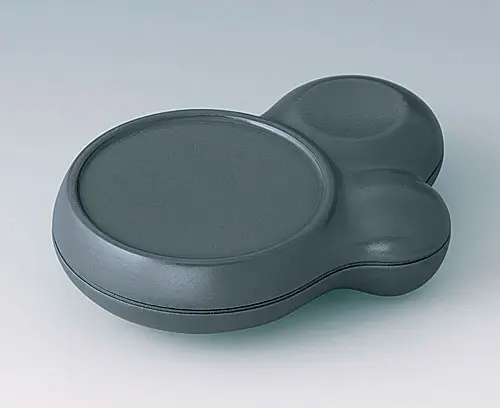

B2512108 BLOB CONTROL

B2512108

BLOB CONTROL An enclosure that can be held with one hand and operated with the second hand. Two-part enclosure design. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

B2512108

BLOB CONTROL
产品已添加到关注清单中

lava
114x76x31mm

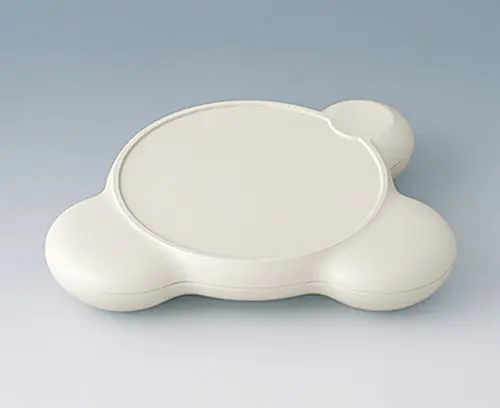

B2514107 BLOB PANEL

B2514107

BLOB PANEL An enclosure that can be held and operated with two hands. Two-part enclosure design with symmetrically positioned gripping areas. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

B2514107

BLOB PANEL
产品已添加到关注清单中

off-white RAL 9002
200x165x36mm

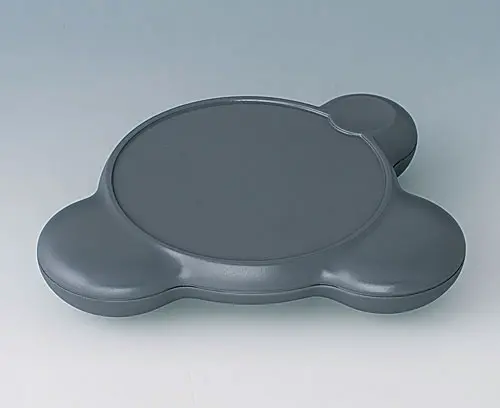

B2514108 BLOB PANEL

B2514108

BLOB PANEL An enclosure that can be held and operated with two hands. Two-part enclosure design with symmetrically positioned gripping areas. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

B2514108

BLOB PANEL
产品已添加到关注清单中

lava
200x165x36mm
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
产品已添加到关注清单中
A9193033 Polarity reversal protection device, positive terminal AA

A9193033

Polarity reversal protection device, positive terminal AA For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

A9193033

Polarity reversal protection device, positive terminal AA
产品已添加到关注清单中

off-white RAL 9002
A9193034 Polarity reversal protection device, positive terminal AAA

A9193034

Polarity reversal protection device, positive terminal AAA For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

A9193034

Polarity reversal protection device, positive terminal AAA
产品已添加到关注清单中

off-white RAL 9002
A9193035 Battery clip, AA

A9193035

Battery clip, AA For AA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

A9193035

Battery clip, AA
产品已添加到关注清单中

nickel-plated
A9193036 Battery clip, AAA

A9193036

Battery clip, AAA For AAA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

A9193036

Battery clip, AAA
产品已添加到关注清单中

nickel-plated
A9193037 Button cell holder, Ø 20 mm

A9193037

Button cell holder, Ø 20 mm For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

A9193037

Button cell holder, Ø 20 mm
产品已添加到关注清单中
A9193038 Button cell holder, Ø 23 mm

A9193038

Button cell holder, Ø 23 mm For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

A9193038

Button cell holder, Ø 23 mm
产品已添加到关注清单中
A9193039 Button cell holder, Ø 12 mm

A9193039

Button cell holder, Ø 12 mm For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

A9193039

Button cell holder, Ø 12 mm
产品已添加到关注清单中
A9193040 Button cell holder, Ø 16 mm

A9193040

Button cell holder, Ø 16 mm For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

A9193040

Button cell holder, Ø 16 mm
产品已添加到关注清单中
B2610001 Sealing Unit

B2610001

Sealing Unit Application: for increasing the protection class, of BLOB UNIT.

Supply 1 sealing

B2610001

Sealing Unit
产品已添加到关注清单中

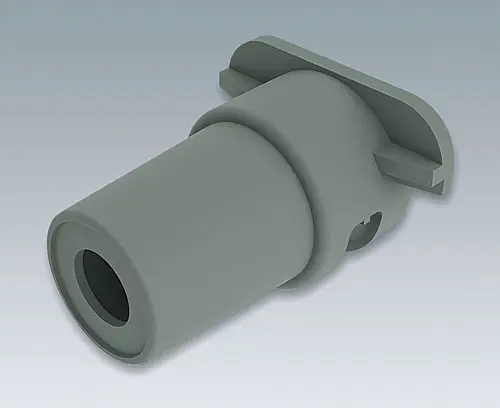

B2610101 Cable strain, 5.0 - 5.9

B2610101

Cable strain, 5.0 - 5.9 For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version For cables Ø 5.0 - 5.9 mm

Supply 1 cable bushing

B2610101

Cable strain, 5.0 - 5.9
产品已添加到关注清单中

volcano
B2610111 Cable strain, 4.2 - 5.0

B2610111

Cable strain, 4.2 - 5.0 For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version For cables Ø 4.2 - 5.0 mm

Supply 1 cable bushing

B2610111

Cable strain, 4.2 - 5.0
产品已添加到关注清单中

volcano
B2610121 Cable strain, 3.4 - 4.2

B2610121

Cable strain, 3.4 - 4.2 For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version For cables Ø 3.4 - 4.2 mm

Supply 1 cable bushing

B2610121

Cable strain, 3.4 - 4.2
产品已添加到关注清单中

volcano

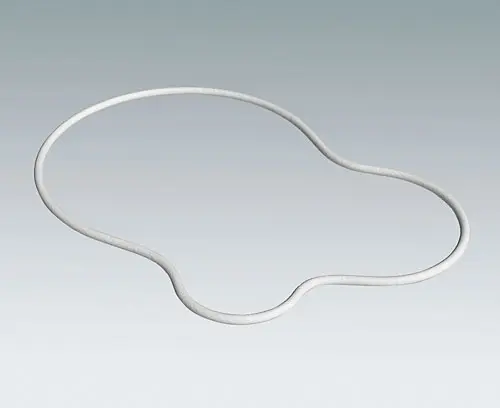

B2612001 Sealing Control

B2612001

Sealing Control

Application: for increasing the protection class, of BLOB CONTROL.

Supply 1 sealing

B2612001

Sealing Control
产品已添加到关注清单中

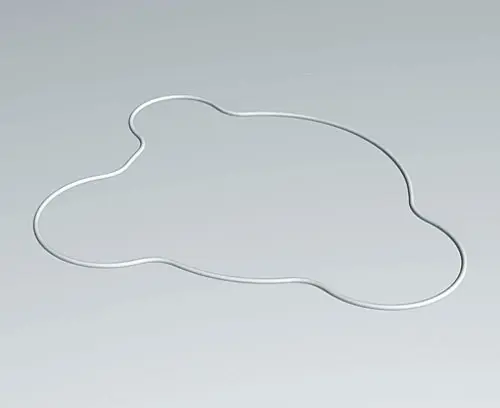

B2614001 Sealing Panel

B2614001

Sealing Panel Application: for increasing the protection class, of BLOB PANEL.

Supply 1 sealing

B2614001

Sealing Panel
产品已添加到关注清单中

产品类型用于 Blob 滴状机盒

如何体现您的特殊产品？ 如有需要，我们执行所有必要的修改和精加工，提供组装完毕的机盒。
