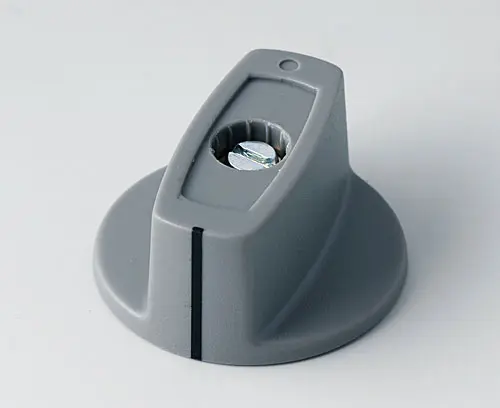

SPINDLE-SHAPED KNOB 31, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.
1 spindle-shaped knob
添加到购物车内
系统组件使产品完整
A5031000

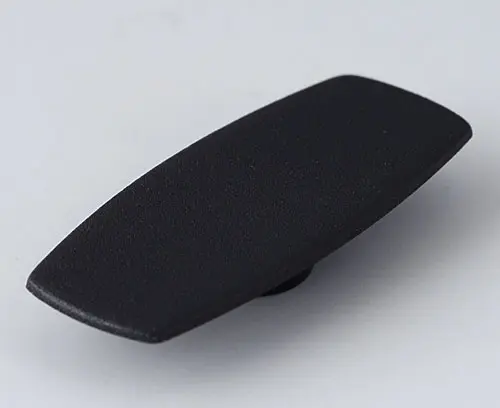

Cover 31, without line
Suitable for spindle-shaped knob 31. Cover simply to pin up.
Supply 1 cover
A5031000
Cover 31, without line产品已添加到关注清单中
black RAL 9005
A5031008

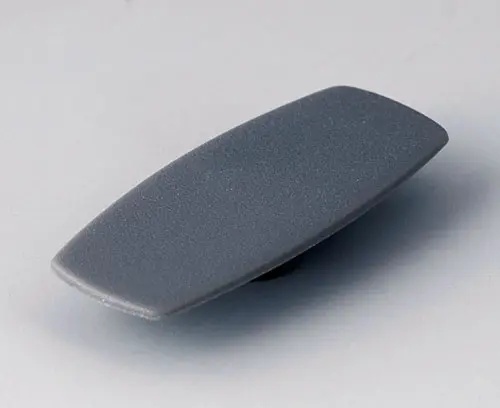

Cover 31, without line
Suitable for spindle-shaped knob 31. Cover simply to pin up.
Supply 1 cover
A5031008
Cover 31, without line产品已添加到关注清单中
dusty grey RAL 7037
A5031100

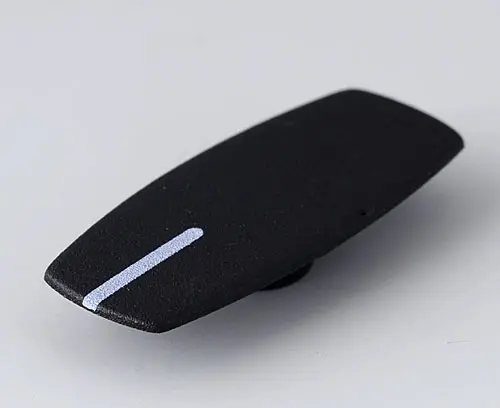

Cover 31, with line
Suitable for spindle-shaped knob 31. Cover simply to pin up. White marking.
Supply 1 cover
A5031100
Cover 31, with line产品已添加到关注清单中
black RAL 9005
A5031107

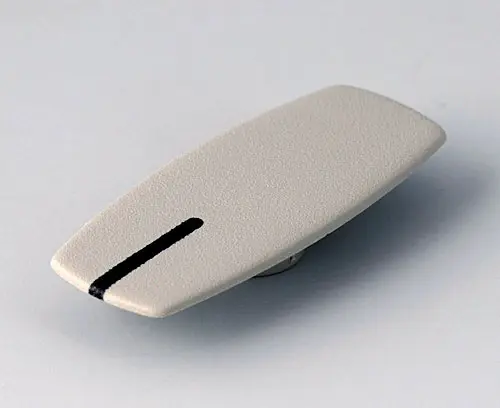

Cover 31, with line
Suitable for spindle-shaped knob 31. Cover simply to pin up. Black marking.
Supply 1 cover
A5031107
Cover 31, with line产品已添加到关注清单中
pebble grey RAL 7032
A5031108

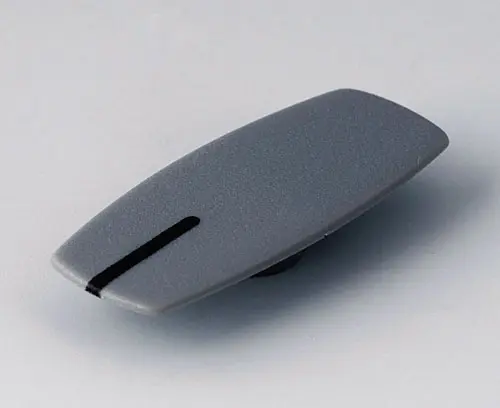

Cover 31, with line
Suitable for spindle-shaped knob 31. Cover simply to pin up. Black marking.
Supply 1 cover
A5031108
Cover 31, with line产品已添加到关注清单中
dusty grey RAL 7037
“螺钉” 附件
A5131000
Nut cover 31, without line
Suitable for spindle-shaped knob 31. Nut cover simply to pin up.
Supply 1 nut cover
A5131000
Nut cover 31, without line产品已添加到关注清单中
black RAL 9005
A5131008
Nut cover 31, without line
Suitable for spindle-shaped knob 31. Nut cover simply to pin up.
Supply 1 nut cover
A5131008
Nut cover 31, without line产品已添加到关注清单中
dusty grey RAL 7037
A6207009
Round nut M7 x 0.75
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6207009
Round nut M7 x 0.75产品已添加到关注清单中
A6210009
Round nut M10 x 0.75
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6210009
Round nut M10 x 0.75产品已添加到关注清单中
A6295009
Round nut 3/8"-32G
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6295009
Round nut 3/8"-32G产品已添加到关注清单中
A6300000
Spanner
For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.
Supply 1 spanner
A6300000
Spanner产品已添加到关注清单中
- 技术数据
-
图纸或资料
- 采购有关数据
直径
31 mm
高度
16 mm
轴孔
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 111 KB
- AutoCAD DWG-File 180 KB
- AutoCAD DXF-File 620 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 440 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027232.x_t 401 KB
- 00027232.step 928 KB
- 00027232.sat 1,022 KB
Weight/1 part
9 g
Customs tariff number
(OKW product)
(OKW product)
84879090
Country of manufacture
Germany
