Combination Knobs 组合式旋钮

Combination Knobs 组合式旋钮

型式多样的卡夹固定旋钮

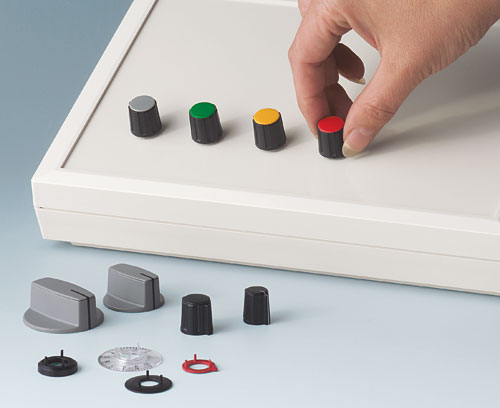

我们的 Combination Knobs 组合式旋钮代表了极其实用并具备可靠的卡夹头系统的旋钮系列。 无论是圆形旋钮、切换旋钮还是带翼旋钮都提供极广泛的配件,由此达到极广泛的各种应用。

  • 圆形旋钮、切换旋钮和带翼旋钮提供协调一致的设计款式和糙面外观形象

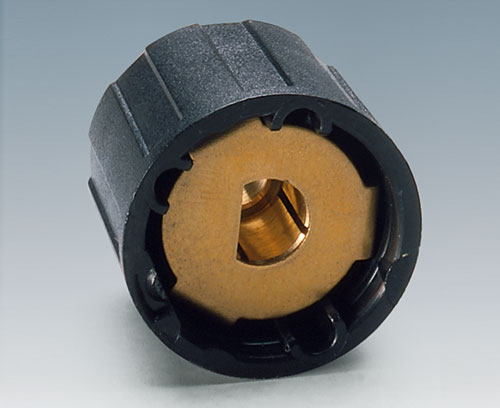

  • 经过验证的卡夹式夹头安装使操作安全
  • 前方按钮固定使安装舒适并达到固定于轴上的安全稳固性

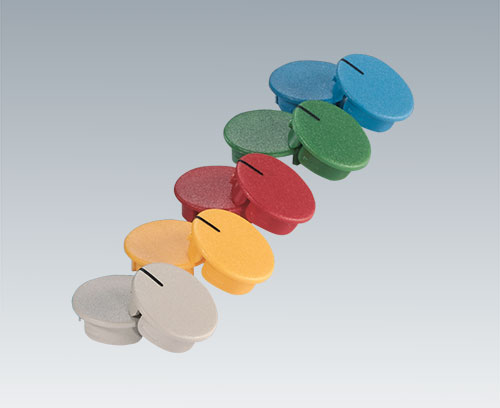

  • 各种颜色的旋钮盖可简便地套插于旋钮上
  • 箭头指示盘、覆盖盘、刻度盘、定位盘和螺母盖均可单个组合
  • 带或不带标记件可选
  • 6 /4.6 毫米轮纹轴的扭曲保护件作为附件(适合圆形和带翼旋钮径 ø20 至 50 毫米,适配安装于 6 毫米轴孔径)

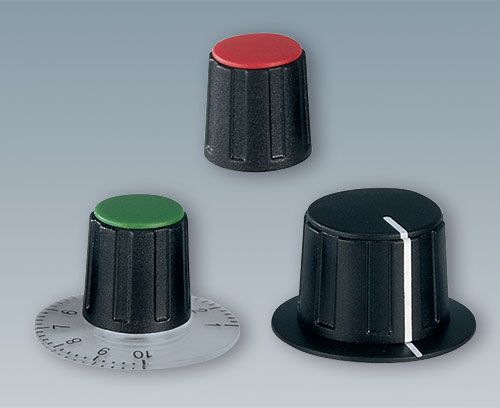

圆形旋钮
ø 9、10、13,5、16、20、 23、31、 40、50 mm
适配安装于轴孔径 3、4、6、 8 mm、1/8"、1/4" (根据旋钮规格大小)

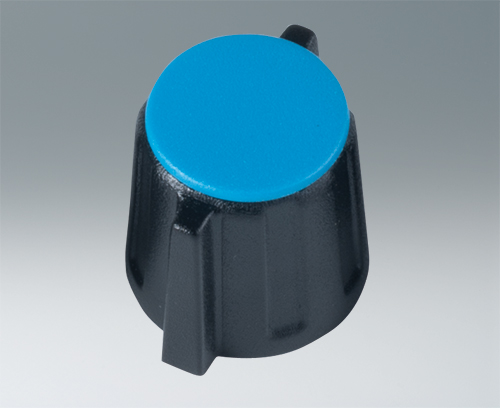

带翼旋钮
ø 13,5、16 mm 适配安装于轴孔径 6 mm

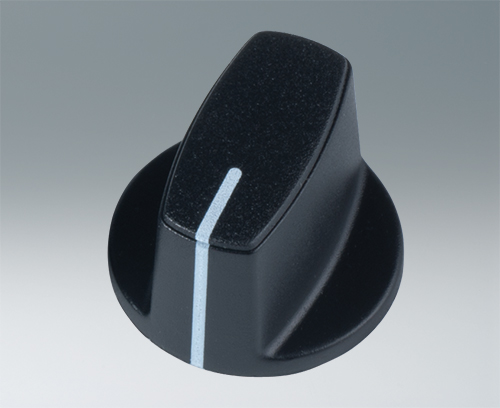

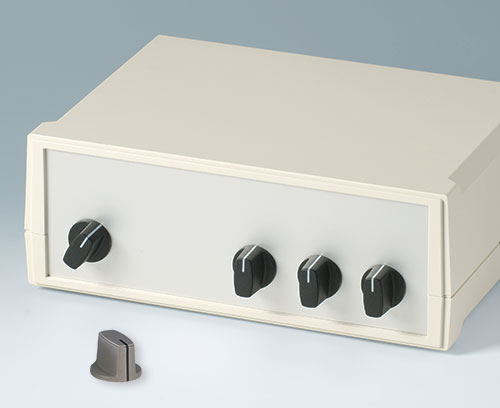

切换旋钮
ø 16、23、 31、40 mm 适配安装于轴孔径 3、 4、 6 mm (根据旋钮规格大小)

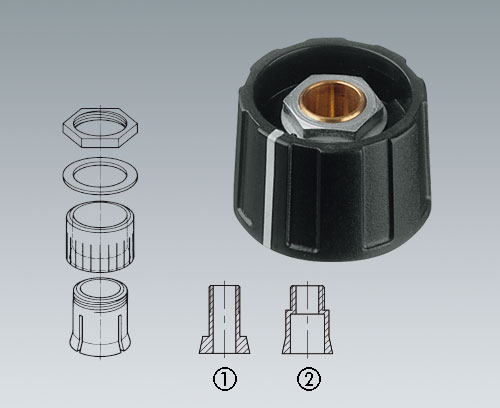

卡夹固定型
规格 10 和 13: 盲孔和螺钉固定
规格 16 和 20: 适配阶梯式轴孔径,除轴孔径 4 mm 是单级式外
从规格 23 起: 轴孔径单级

应用范围

适配安装于符合 DIN 41591 标准的带圆形轴端的旋转电位器。如配合使用扭曲保护件也适配安装于轴孔径 6 /4.6 毫米

  • 测量和控制技术
  • 医疗和实验室技术
  • 健康和医疗保健技术
  • 暖气和空调设施
  •  通信技术
  • 建筑领域
  • 类型
  • 配件
  • 按客户要求修改加工

选择类型和规格大小,然后点击“选择”。



圆形旋钮

圆形旋钮

带翼旋钮

带翼旋钮

切换旋钮

切换旋钮

A4210000 Arrow disk 10

A4210000

Arrow disk 10 Suitable for round knob 10. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4210000

Arrow disk 10 ABS (UL 94 HB)
black RAL 9005
A4210002 Arrow disk 10

A4210002

Arrow disk 10 Suitable for round knob 10. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4210002

Arrow disk 10 ABS (UL 94 HB)
red RAL F12/0-10
A4210008 Arrow disk 10

A4210008

Arrow disk 10 Suitable for round knob 10. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4210008

Arrow disk 10 ABS (UL 94 HB)
dusty grey RAL 7037
A4213000 Arrow disk 13.5

A4213000

Arrow disk 13.5 Suitable for round knob 13,5. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4213000

Arrow disk 13.5 ABS (UL 94 HB)
black RAL 9005
A4213002 Arrow disk 13.5

A4213002

Arrow disk 13.5 Suitable for round knob 13,5. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4213002

Arrow disk 13.5 ABS (UL 94 HB)
red RAL F12/0-10
A4213008 Arrow disk 13.5

A4213008

Arrow disk 13.5 Suitable for round knob 13,5. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4213008

Arrow disk 13.5 ABS (UL 94 HB)
dusty grey RAL 7037
A4216000 Arrow disk 16

A4216000

Arrow disk 16 Suitable for round knob 16. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4216000

Arrow disk 16 ABS (UL 94 HB)
black RAL 9005
A4216002 Arrow disk 16

A4216002

Arrow disk 16 Suitable for round knob 16. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4216002

Arrow disk 16 ABS (UL 94 HB)
red RAL F12/0-10
A4216008 Arrow disk 16

A4216008

Arrow disk 16 Suitable for round knob 16. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4216008

Arrow disk 16 ABS (UL 94 HB)
dusty grey RAL 7037
A4220000 Arrow disk 20

A4220000

Arrow disk 20 Suitable for round knob 20. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4220000

Arrow disk 20 ABS (UL 94 HB)
black RAL 9005
A4220002 Arrow disk 20

A4220002

Arrow disk 20 Suitable for round knob 20. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4220002

Arrow disk 20 ABS (UL 94 HB)
red RAL F12/0-10
A4220008 Arrow disk 20

A4220008

Arrow disk 20 Suitable for round knob 20. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4220008

Arrow disk 20 ABS (UL 94 HB)
dusty grey RAL 7037
A4223000 Arrow disk 23

A4223000

Arrow disk 23 Suitable for round knob 23. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4223000

Arrow disk 23 ABS (UL 94 HB)
black RAL 9005
A4223002 Arrow disk 23

A4223002

Arrow disk 23 Suitable for round knob 23. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4223002

Arrow disk 23 ABS (UL 94 HB)
red RAL F12/0-10
A4223008 Arrow disk 23

A4223008

Arrow disk 23 Suitable for round knob 23. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4223008

Arrow disk 23 ABS (UL 94 HB)
dusty grey RAL 7037
A4231000 Arrow disk 31

A4231000

Arrow disk 31 Suitable for round knob 31. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4231000

Arrow disk 31 ABS (UL 94 HB)
black RAL 9005
A4231002 Arrow disk 31

A4231002

Arrow disk 31 Suitable for round knob 31. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4231002

Arrow disk 31 ABS (UL 94 HB)
red RAL F12/0-10
A4231008 Arrow disk 31

A4231008

Arrow disk 31 Suitable for round knob 31. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4231008

Arrow disk 31 ABS (UL 94 HB)
dusty grey RAL 7037
A4240000 Arrow disk 40

A4240000

Arrow disk 40 Suitable for round knob 40. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4240000

Arrow disk 40 ABS (UL 94 HB)
black RAL 9005
A4240008 Arrow disk 40

A4240008

Arrow disk 40

Suitable for round knob 40. Arrow disk simply to pin up.

Supply 1 arrow disk

关闭

A4240008

Arrow disk 40 ABS (UL 94 HB)
dusty grey RAL 7037

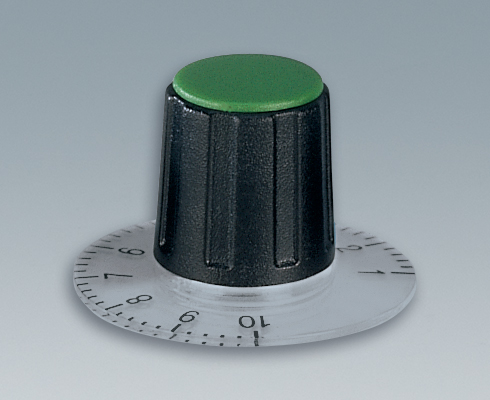

A4410060 Dial 10

A4410060

Dial 10 Dial simply to pin up for round and wing knob 10. Surface mat. Black symbol.

Supply 1 dial

关闭

A4410060

Dial 10 PC (UL 94 HB)
transparent
A4413010 Dial 13.5

A4413010

Dial 13.5 Dial simply to pin up for round and wing knob 13.5. Surface bright. Black symbol.

Supply 1 dial

关闭

A4413010

Dial 13.5 PC (UL 94 HB)
transparent
A4413020 Dial 13.5

A4413020

Dial 13.5 Dial simply to pin up for round and wing knob 13.5. Surface bright. Black symbol.

Supply 1 dial

关闭

A4413020

Dial 13.5 PC (UL 94 HB)
transparent
A4413049 Dial 13.5

A4413049

Dial 13.5 Dial simply to pin up for round and wing knob 13.5. Surface bright. Silver symbol.

Supply 1 dial

关闭

A4413049

Dial 13.5 PC (UL 94 HB)
transparent
A4413060 Dial 13.5

A4413060

Dial 13.5 Dial simply to pin up for round and wing knob 13.5. Surface bright. Black symbol.

Supply 1 dial

关闭

A4413060

Dial 13.5 PC (UL 94 HB)
transparent
A4416001 Dial 16

A4416001

Dial 16 Dial simply to pin up for round and wing knob 16 / COM-KNOB 16. Surface bright.

Supply 1 dial

关闭

A4416001

Dial 16 PC (UL 94 HB)
transparent
A4416010 Dial 16

A4416010

Dial 16 Dial simply to pin up for round and wing knob 16 / COM-KNOB 16. Surface bright. Black symbol.

Supply 1 dial

关闭

A4416010

Dial 16 PC (UL 94 HB)
transparent
A4416020 Dial 16

A4416020

Dial 16 Dial simply to pin up for round and wing knob 16 / COM-KNOB 16. Surface bright. Black symbol.

Supply 1 dial

关闭

A4416020

Dial 16 PC (UL 94 HB)
transparent
A4416060 Dial 16

A4416060

Dial 16 Dial simply to pin up for round and wing knob 16 / COM-KNOB 16. Surface bright. Black symbol.

Supply 1 dial

关闭

A4416060

Dial 16 PC (UL 94 HB)
transparent
A4420001 Dial 20

A4420001

Dial 20 Dial simply to pin up for round and wing knob 20 / COM-KNOB 20. Surface bright.

Supply 1 dial

关闭

A4420001

Dial 20 PC (UL 94 HB)
transparent
A4420010 Dial 20

A4420010

Dial 20 Dial simply to pin up for round and wing knob 20 / COM-KNOB 20. Surface bright. Black symbol.

Supply 1 dial

关闭

A4420010

Dial 20 PC (UL 94 HB)
transparent
A4420060 Dial 20

A4420060

Dial 20 Dial simply to pin up for round and wing knob 20 / COM-KNOB 20. Surface bright. Black symbol.

Supply 1 dial

关闭

A4420060

Dial 20 PC (UL 94 HB)
transparent
A4423010 Dial 23

A4423010

Dial 23 Dial simply to pin up for round knob 23 / COM-KNOB 23. Surface bright. Black symbol.

Supply 1 dial

关闭

A4423010

Dial 23 PC (UL 94 HB)
transparent
A4423020 Dial 23

A4423020

Dial 23 Dial simply to pin up for round knob 23 / COM-KNOB 23. Surface bright.

Version Black symbol.

Supply 1 dial

关闭

A4423020

Dial 23 PC (UL 94 HB)
transparent
A4423039 Dial 23

A4423039

Dial 23 Dial simply to pin up for round knob 23 / COM-KNOB 23. Surface bright. Black symbol.

Supply 1 dial

关闭

A4423039

Dial 23 PC (UL 94 HB)
transparent
A4423060 Dial 23

A4423060

Dial 23 Dial simply to pin up for round knob 23 / COM-KNOB 23. Surface bright. Black symbol.

Supply 1 dial

关闭

A4423060

Dial 23 PC (UL 94 HB)
transparent
A4431010 Dial 31

A4431010

Dial 31 Dial simply to pin up for round knob 31 / COM-KNOB 31. Surface bright. Black symbol.

Supply 1 dial

关闭

A4431010

Dial 31 PC (UL 94 HB)
transparent
A4431060 Dial 31

A4431060

Dial 31 Dial simply to pin up for round knob 31 / COM-KNOB 31. Surface bright. Black symbol.

Supply 1 dial

关闭

A4431060

Dial 31 PC (UL 94 HB)
transparent
A5116000 Nut cover 16, without line

A5116000

Nut cover 16, without line Suitable for spindle-shaped knob 16. Nut cover simply to pin up.

Supply 1 nut cover

关闭

A5116000

Nut cover 16, without line ABS (UL 94 HB)
black RAL 9005
A5123000 Nut cover 23, without line

A5123000

Nut cover 23, without line Suitable for spindle-shaped knob 23. Nut cover simply to pin up.

Supply 1 nut cover

关闭

A5123000

Nut cover 23, without line ABS (UL 94 HB)
black RAL 9005
A5123008 Nut cover 23, without line

A5123008

Nut cover 23, without line Suitable for spindle-shaped knob 23. Nut cover simply to pin up.

Supply 1 nut cover

关闭

A5123008

Nut cover 23, without line ABS (UL 94 HB)
dusty grey RAL 7037
A5131000 Nut cover 31, without line

A5131000

Nut cover 31, without line Suitable for spindle-shaped knob 31. Nut cover simply to pin up.

Supply 1 nut cover

关闭

A5131000

Nut cover 31, without line ABS (UL 94 HB)
black RAL 9005
A5131008 Nut cover 31, without line

A5131008

Nut cover 31, without line Suitable for spindle-shaped knob 31. Nut cover simply to pin up.

Supply 1 nut cover

关闭

A5131008

Nut cover 31, without line ABS (UL 94 HB)
dusty grey RAL 7037
A5140000 Nut cover 40, without line

A5140000

Nut cover 40, without line Suitable for spindle-shaped knob 40. Nut cover simply to pin up.

Supply 1 nut cover

关闭

A5140000

Nut cover 40, without line ABS (UL 94 HB)
black RAL 9005
A6016019 Stator 16

A6016019

Stator 16 Suitable for round and wing knobs 16 / COM-KNOB 16. Stator with self-adhesive foil. Black marking.

Supply 1 Stator

关闭

A6016019

Stator 16 Aluminium
A6020019 Stator 20

A6020019

Stator 20 Suitable for round and wing knobs 20 / COM-KNOB 20. Stator with self-adhesive foil. Black marking.

Supply 1 Stator

关闭

A6020019

Stator 20 Aluminium
A6023019 Stator 23

A6023019

Stator 23 Suitable for round knobs 23 / COM-KNOB 23. Stator with self-adhesive foil. Black marking.

Supply 1 Stator

关闭

A6023019

Stator 23 Aluminium

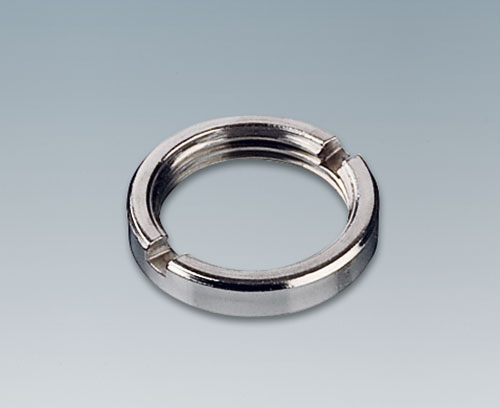

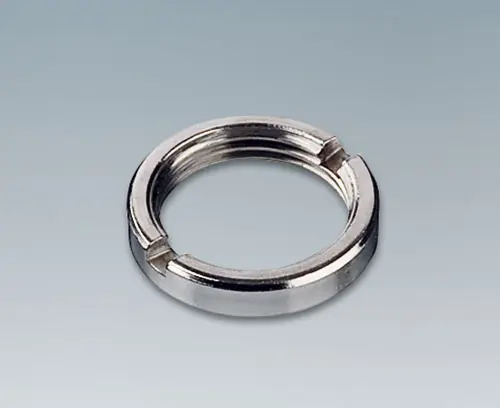

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75 For fixing the potentiometers to screens. Fits under knob and nut cover. Suitable for round, wing and spindle-shape knobs from ø 10.

Supply 1 round nut

关闭

A6207009

Round nut M7 x 0.75
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75 For fixing the potentiometers to screens. Fits under knob and nut cover. Suitable for round, wing and spindle-shape knobs from ø 10.

Supply 1 round nut

关闭

A6210009

Round nut M10 x 0.75
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers to screens. Fits under knob and nut cover. Suitable for round, wing and spindle-shaped knob from ø 10.

Supply 1 round nut

关闭

A6295009

Round nut 3/8"-32G
A6300000 Spanner

A6300000

Spanner For tightening the round nut.

Supply 1 spanner

关闭

A6300000

Spanner
A6402005 Adjusting key 10/13/16

A6402005

Adjusting key 10/13/16 For exact adjustment of combination knobs with marking elements, dials, arrow disks. Unproblematic knob assembly. Suitable for round knobs ø 10, 13.5 and 16.

Supply 1 adjusting key

关闭

A6402005

Adjusting key 10/13/16 ABS (UL 94 HB)
green
A6403005 Adjusting key 20/23/31

A6403005

Adjusting key 20/23/31 For exact adjustment of combination knobs with marking elements, dials, arrow disks. Unproblematic knob assembly. Suitable for round knobs ø 20, 23 and 31.

Supply 1 adjusting key

关闭

A6403005

Adjusting key 20/23/31 ABS (UL 94 HB)
green
A6600064 Torsion protection 6/4.6

A6600064

Torsion protection 6/4.6 Makes torsion-free knob assembly onto profile axles 6/4.6mm possible. Suitable for round knob sizes 20 to 50.

Supply 1 torsion protection

关闭

A6600064

Torsion protection 6/4.6
A7316000 Disk 16, without line

A7316000

Disk 16, without line Suitable for round and wing knob 16 / COM-KNOB 16. Disk simply to pin up.

Supply 1 disk

关闭

A7316000

Disk 16, without line ABS (UL 94 HB)
black RAL 9005
A7316010 Disk 16, with line

A7316010

Disk 16, with line Suitable for round and wing knob 16 / COM-KNOB 16. Disk simply to pin up. White marking.

Supply 1 disk

关闭

A7316010

Disk 16, with line ABS (UL 94 HB)
black RAL 9005
A7323010 Disk 23, with line

A7323010

Disk 23, with line Suitable for round knob 23 / COM-KNOB 23. Disk simply to pin up. Black marking.

Supply 1 disk

关闭

A7323010

Disk 23, with line ABS (UL 94 HB)
black RAL 9005
A7331000 Disk 31, without line

A7331000

Disk 31, without line Suitable for round knob 31 / COM-KNOB 31. Disk simply to pin up.

Supply 1 disk

关闭

A7331000

Disk 31, without line ABS (UL 94 HB)
black RAL 9005
A7331010 Disk 31, with line

A7331010

Disk 31, with line Suitable for round knob 31 / COM-KNOB 31. Disk simply to pin up. White marking.

Supply 1 disk

关闭

A7331010

Disk 31, with line ABS (UL 94 HB)
black RAL 9005
A7340010 Disk 40, with line

A7340010

Disk 40, with line Suitable for round knob 40 / COM-KNOB 40. Disk simply to pin up. White marking.

Supply 1 disk

关闭

A7340010

Disk 40, with line ABS (UL 94 HB)
black RAL 9005
A7510000 Nut cover 10, without line

A7510000

Nut cover 10, without line Suitable for round knob 10. Nut cover simply to pin up.

Supply 1 nut cover

关闭

A7510000

Nut cover 10, without line ABS (UL 94 HB)
black RAL 9005
A7510010 Nut cover 10, with line

A7510010

Nut cover 10, with line Suitable for round knob 10. Nut cover simply to pin up. White marking.

Supply 1 nut cover

关闭

A7510010

Nut cover 10, with line ABS (UL 94 HB)
black RAL 9005
A7510018 Nut cover 10, with line

A7510018

Nut cover 10, with line Suitable for round knob 10. Nut cover simply to pin up. Black marking.

Supply 1 nut cover

关闭

A7510018

Nut cover 10, with line ABS (UL 94 HB)
dusty grey RAL 7037
A7513000 Nut cover 13.5, without line

A7513000

Nut cover 13.5, without line Suitable for round and wing knob 13,5. Nut cover simply to pin up.

Supply 1 nut cover

关闭

A7513000

Nut cover 13.5, without line ABS (UL 94 HB)
black RAL 9005
A7513010 Nut cover 13.5, with line

A7513010

Nut cover 13.5, with line Suitable for round and wing knob 13,5. Nut cover simply to pin up. White marking.

Supply 1 nut cover

关闭

A7513010

Nut cover 13.5, with line ABS (UL 94 HB)
black RAL 9005
A7513018 Nut cover 13.5, with line

A7513018

Nut cover 13.5, with line Suitable for round and wing knob 13,5. Nut cover simply to pin up. Black marking.

Supply 1 nut cover

关闭

A7513018

Nut cover 13.5, with line ABS (UL 94 HB)
dusty grey RAL 7037
A7516000 Nut cover 16, without line

A7516000

Nut cover 16, without line Suitable for round and wing knob 16 / COM-KNOB 16. Nut cover simply to pin up.

Supply 1 nut cover

关闭

A7516000

Nut cover 16, without line ABS (UL 94 HB)
black RAL 9005
A7516010 Nut cover 16, with line

A7516010

Nut cover 16, with line Suitable for round and wing knob 16 / COM-KNOB 16. Nut cover simply to pin up.

Version White marking.

Supply 1 nut cover

关闭

A7516010

Nut cover 16, with line ABS (UL 94 HB)
black RAL 9005
A7516018 Nut cover 16, with line

A7516018

Nut cover 16, with line Suitable for round and wing knob 16 / COM-KNOB 16. Nut cover simply to pin up.

Version Black marking.

Supply 1 nut cover

关闭

A7516018

Nut cover 16, with line ABS (UL 94 HB)
dusty grey RAL 7037
A7616000 Nut cover 16, without line

A7616000

Nut cover 16, without line Suitable for round and wing knobs 16 / COM-KNOB 16. Nut cover with arrow simply to pin up.

Supply 1 nut cover

关闭

A7616000

Nut cover 16, without line ABS (UL 94 HB)
black RAL 9005
A7616008 Nut cover 16, without line

A7616008

Nut cover 16, without line Suitable for round and wing knobs 16 / COM-KNOB 16. Nut cover with arrow simply to pin up.

Supply 1 nut cover

关闭

A7616008

Nut cover 16, without line ABS (UL 94 HB)
dusty grey RAL 7037

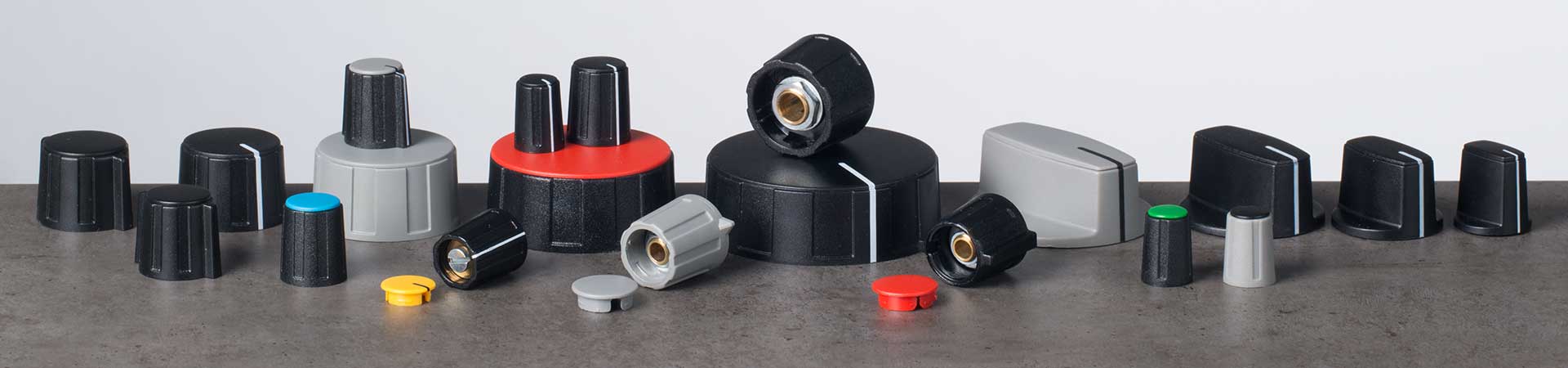

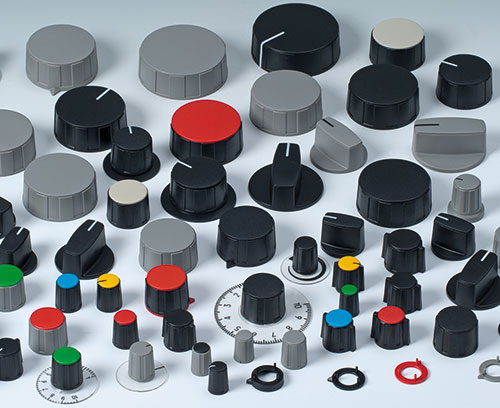

产品类型用于 Combination Knobs 组合式旋钮

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
