A0612007 COMTEC 120 F, Vers. I

A0612007

COMTEC 120 F, Vers. I

Two-part case in flat construction for table top and wall-mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version

Without battery compartment

Supply

1 top and bottom part, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“挂墙支架” 配件

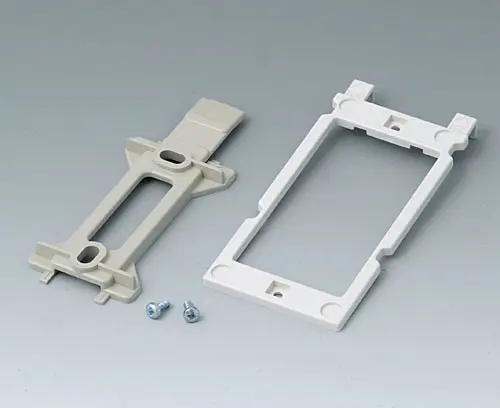

B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

关闭

B1350048

Wall suspension elements
产品已添加到关注清单中
ABS (UL 94 HB)
pebble grey RAL 7032

“螺钉” 附件

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

关闭

A9199008

Set of screws
产品已添加到关注清单中

Customising options for A0612007

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 应用示例
  • 采购有关数据
防护等级
颜色
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
120 mm
Depth
150 mm
Height
42.8 mm
电路板长度,下盒
128 mm
电路板宽度,下盒
94 mm
电路板长度,上盒
137 mm
电路板宽度,上盒
105 mm
Keypad length
109.85 mm
Keypad width
87.85 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
132 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
