DIN 标准导轨接线盒
B2824109
CONNECT S

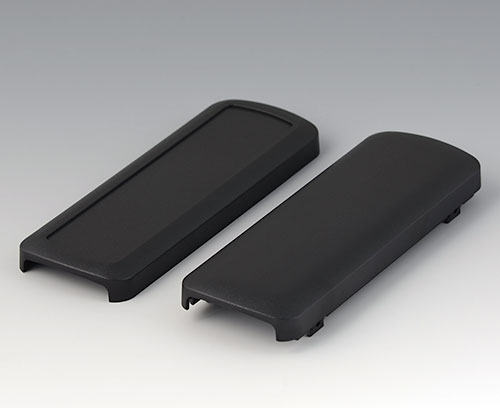

Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply1 shell convex and 1 flattened shell with recessed surface
添加到购物车内
需加附件使产品完整
B2811207
End part
Universal plug-in component.
Supply 1 piece
B2811207
End part产品已添加到关注清单中
off-white RAL 9002
B2811209
End part
Universal plug-in component.
Supply 1 piece
B2811209
End part产品已添加到关注清单中
black RAL 9005
B2911308
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911308
Cable gland kit, 3.4 - 4.2产品已添加到关注清单中
volcano
B2911309
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911309
Cable gland kit, 3.4 - 4.2产品已添加到关注清单中
black RAL 9005
B2911318
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911318
Cable gland kit, 4.2 - 5.0产品已添加到关注清单中
volcano
B2911319
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911319
Cable gland kit, 4.2 - 5.0产品已添加到关注清单中
black RAL 9005
B2911328
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911328
Cable gland kit, 5.0 - 5.9产品已添加到关注清单中
volcano
B2911329
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911329
Cable gland kit, 5.0 - 5.9产品已添加到关注清单中
black RAL 9005
“挂墙支架” 配件
A9167029
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167029
Holding clamp产品已添加到关注清单中
black RAL 9005
B2921509
Holder S
Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921509
Holder S产品已添加到关注清单中
black RAL 9005
“螺钉” 附件
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)产品已添加到关注清单中
Customising options for B2824109
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 应用示例
- 采购有关数据
长度
120 mm
宽度
42 mm
高度
22 mm
电路板长度，下盒
101 mm
电路板宽度，下盒
34 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 206 KB
- AutoCAD DWG-File 743 KB
- AutoCAD DXF-File 2,873 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 2,334 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00028776.x_t 7,870 KB
- 00028776.step 23,134 KB
- 00028776.sat 22,023 KB
Weight/1 part
42 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B2824109请务必索取报价！
