Connect 接线盒
最佳的连接盒

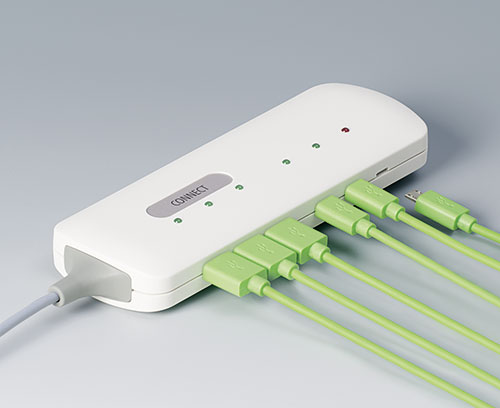

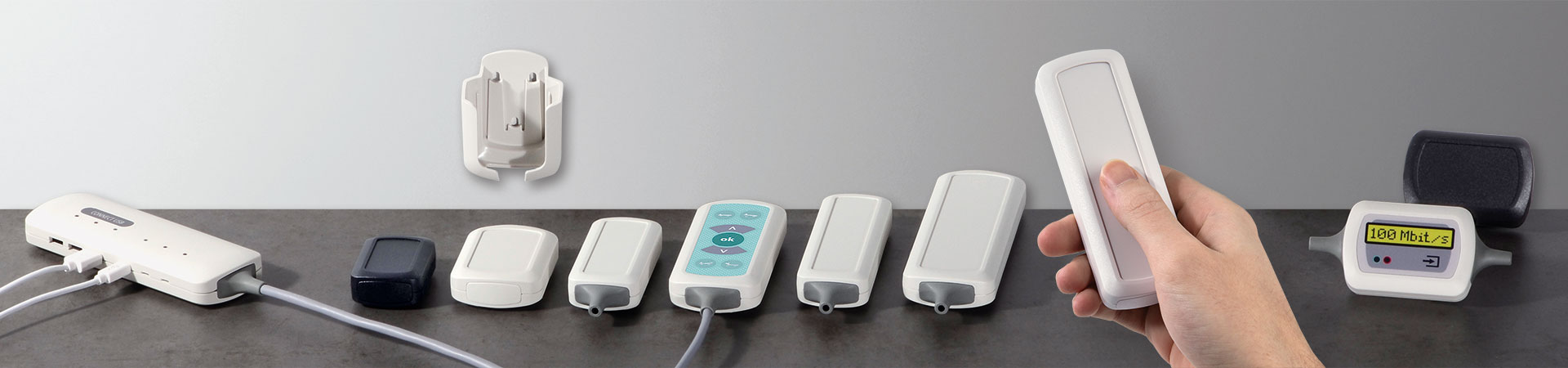

CONNECT 接线盒产品系列是专门为带线应用和带电池供电的移动式应用而开发设计。

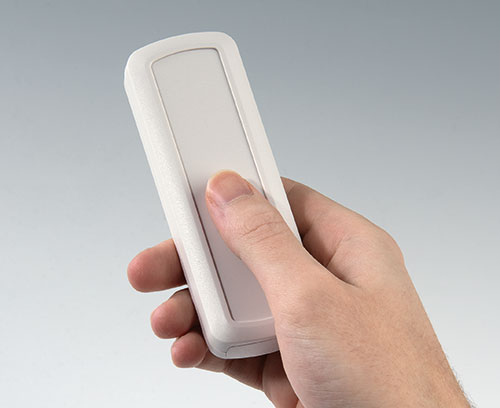

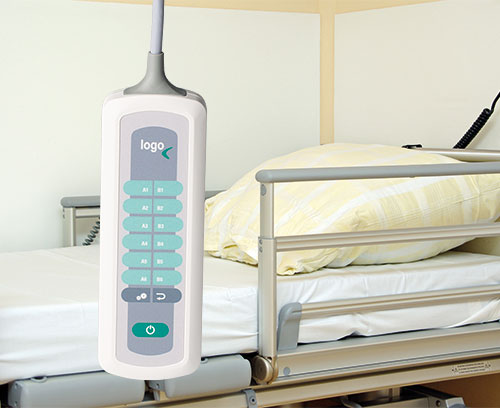

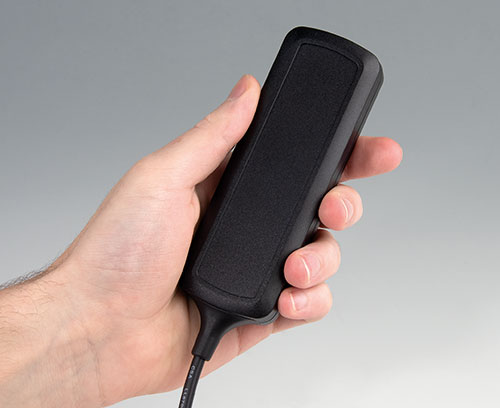

- 新款：CONNECT S 型接线盒，机盒宽度仅为 42 mm，由此特别方便持握，特别适合用于遥控器、测量设备、测试仪器及类似产品等，可选择带或不带电缆型式
- 机盒由两个盒体组成，精密配合、盒体扁平并带凹陷区域

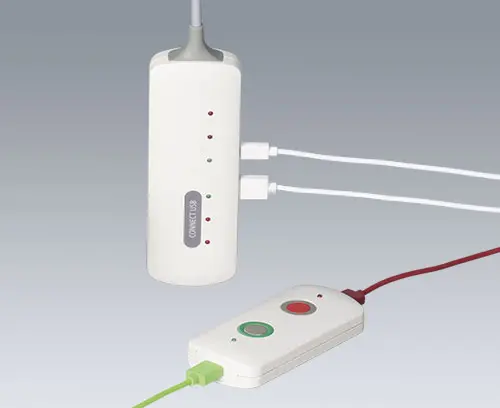

- 二个盒体彼此锁定，不需螺钉，节省安装时间，视面并可以自由选择

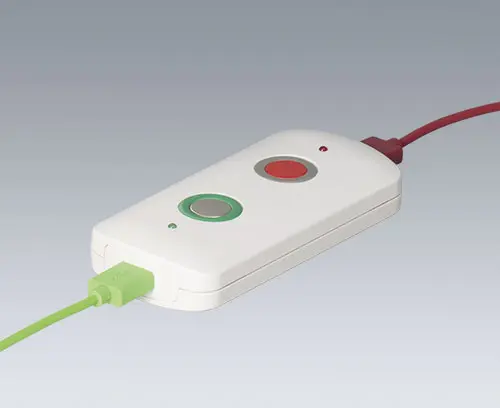

- 盒体两端设有开口;使 机盒用途完整，适配件可选端件和 / 或电缆套

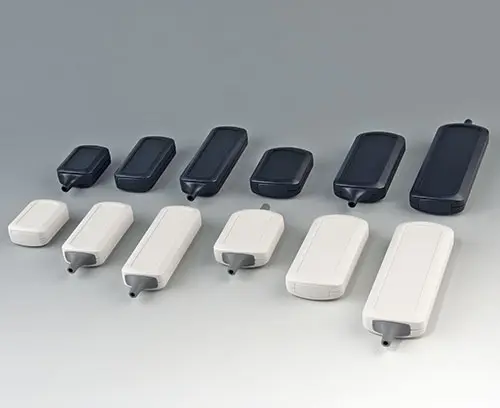

- CONNECT S 和 M 型接线盒，可各提供三种机盒长度，可根据应用进行选择
- 盒体和端件均采用紫外线稳定化 V-0 材料
- 防护等级 IP 40 (同 端件)

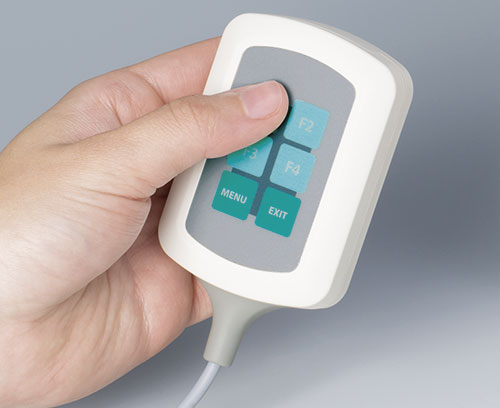

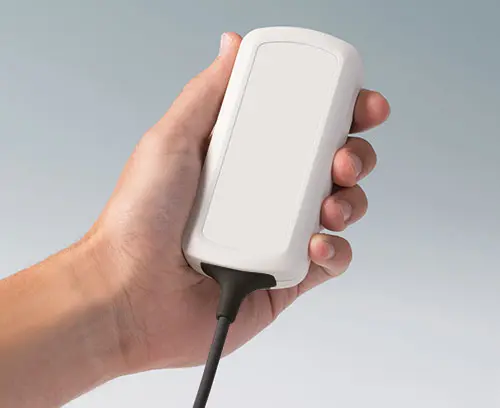

- 电缆套件具备拉线保护

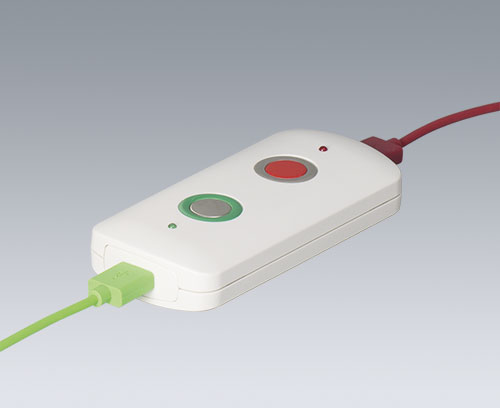

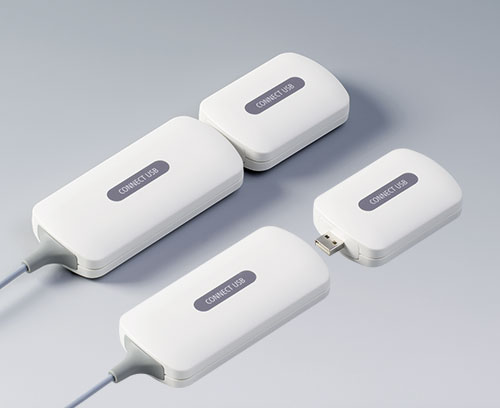

- 具备足够的空间用于安装紧凑显示器、LED 和 USB 插头及传感器

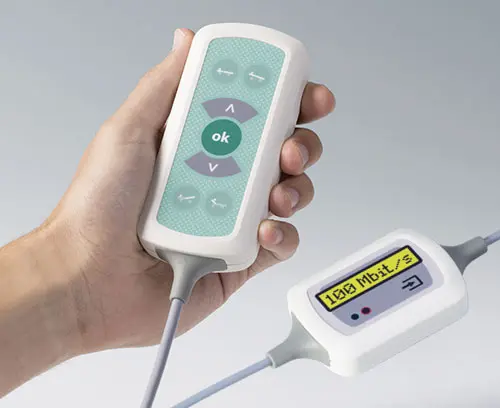

- 具备凹陷区域，以保护膜键盘、装饰膜或标签

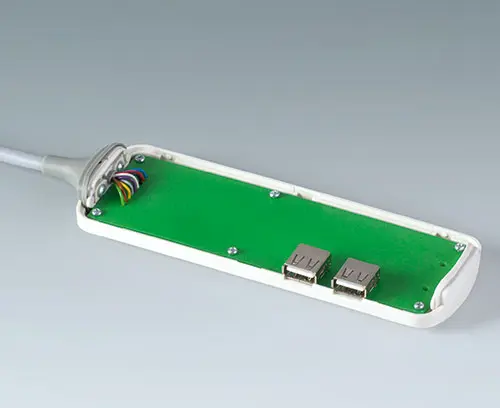

- 扁平盒体内设有固定柱用于固定电路板和元器件

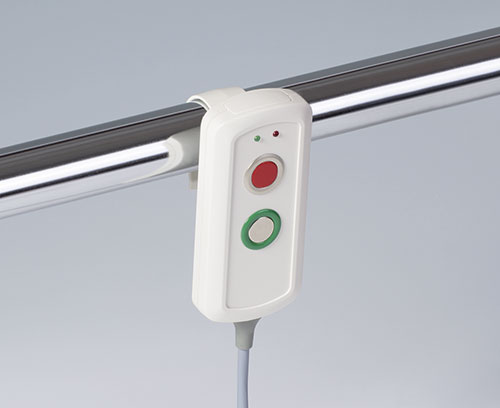

- 用于直径至 32 mm 的圆管的卡夹作为附件（CONNECT S 型：适配机盒长度为 90mm 和 120 mm， CONNECT M 型：适配机盒长度为 116 mm 和 156 mm）

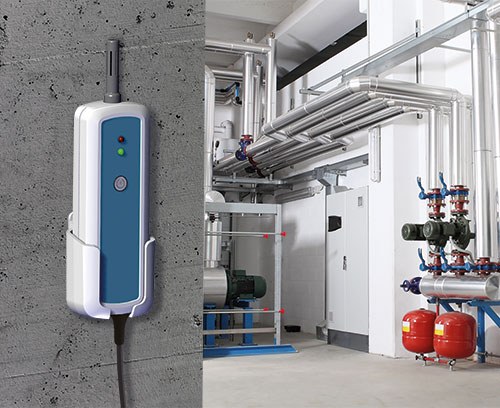

- 用于在墙壁上或类似物件上安全放置的支架，作为附件
应用范围

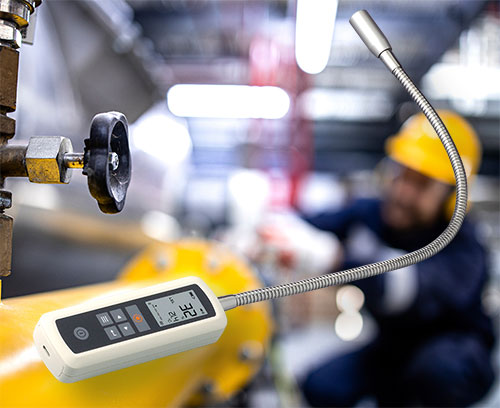

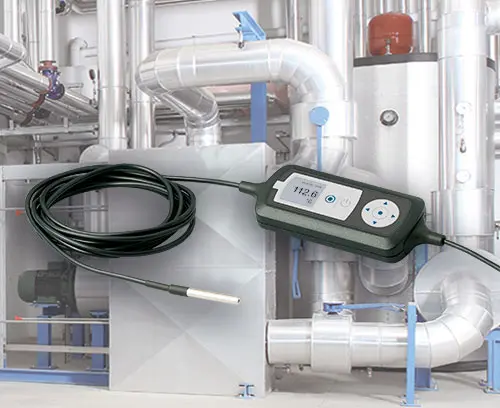

电脑配件。 网络技术。 建筑技术。 安全技术。 IoT/ IIoT。 医学和治疗应用。 实验室用分析仪器。 用于测量技术，包括带有检测探头的探测器、测试系统和测试仪器。环保技术用数据记录器。 传感器技术。
B2822107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2822107
CONNECT S产品已添加到关注清单中
off-white RAL 9002
60x42x22mm
B2822109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2822109
CONNECT S产品已添加到关注清单中
black RAL 9005
60x42x22mm

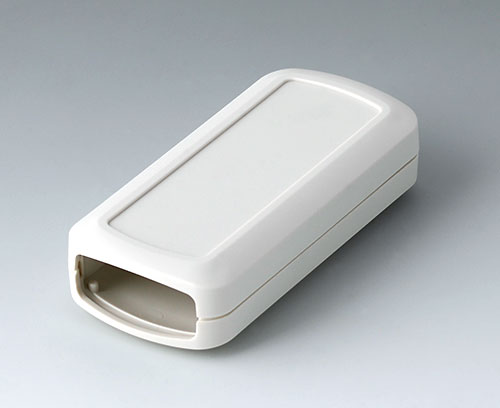

B2823107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823107
CONNECT S产品已添加到关注清单中
off-white RAL 9002
90x42x22mm
B2823109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823109
CONNECT S产品已添加到关注清单中
black RAL 9005
90x42x22mm
B2824107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824107
CONNECT S产品已添加到关注清单中
off-white RAL 9002
120x42x22mm
B2824109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824109
CONNECT S产品已添加到关注清单中
black RAL 9005
120x42x22mm
B2832107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2832107
CONNECT M产品已添加到关注清单中
off-white RAL 9002
76x54x22mm

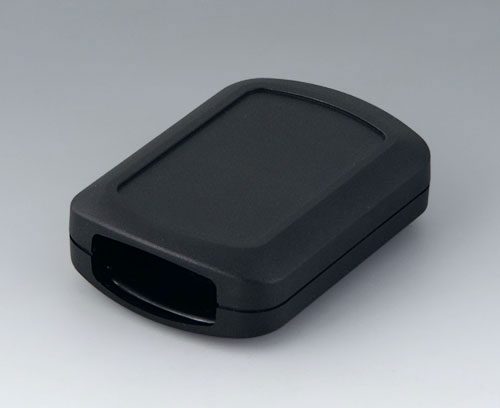

B2832109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2832109
CONNECT M产品已添加到关注清单中
black RAL 9005
76x54x22mm

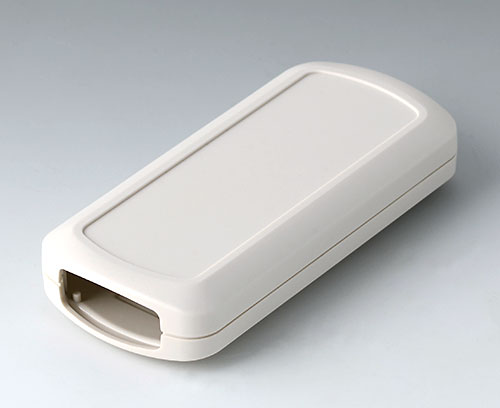

B2833107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833107
CONNECT M产品已添加到关注清单中
off-white RAL 9002
116x54x22mm

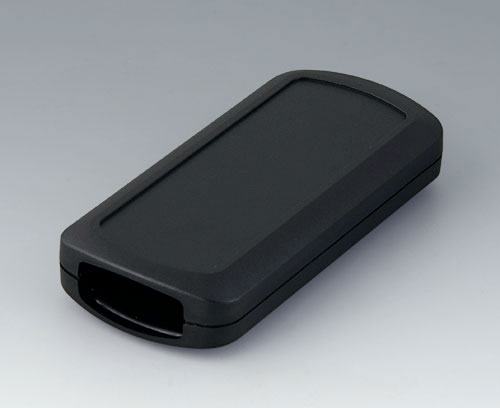

B2833109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833109
CONNECT M产品已添加到关注清单中
black RAL 9005
116x54x22mm
B2834107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834107
CONNECT M产品已添加到关注清单中
off-white RAL 9002
156x54x22mm

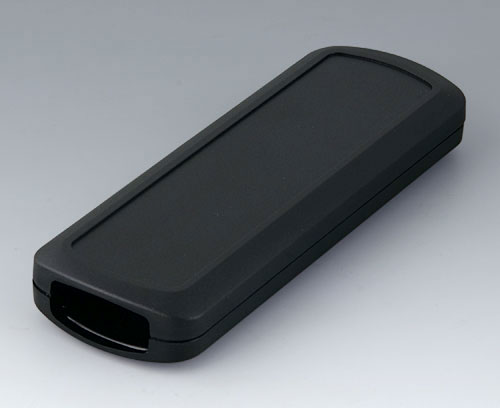

B2834109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834109
CONNECT M产品已添加到关注清单中
black RAL 9005
156x54x22mm
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)产品已添加到关注清单中
A9167027
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167027
Holding clamp产品已添加到关注清单中
off-white RAL 9002
A9167029
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167029
Holding clamp产品已添加到关注清单中
black RAL 9005
B2811207
End part
Universal plug-in component.
Supply 1 piece
B2811207
End part产品已添加到关注清单中
off-white RAL 9002

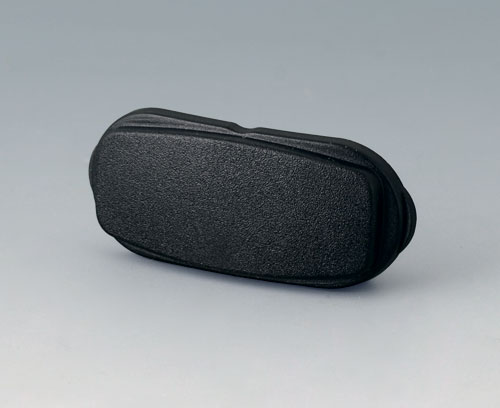

B2811209
End part
Universal plug-in component.
Supply 1 piece
B2811209
End part产品已添加到关注清单中
black RAL 9005
B2911308
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911308
Cable gland kit, 3.4 - 4.2产品已添加到关注清单中
volcano

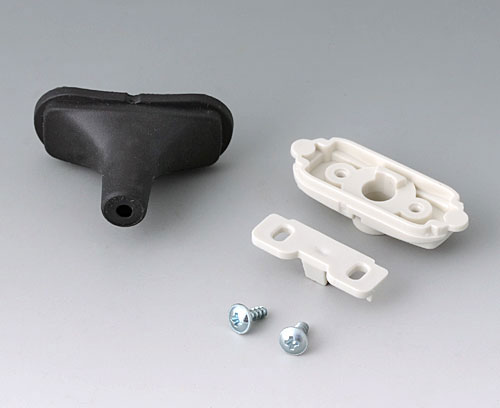

B2911309
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911309
Cable gland kit, 3.4 - 4.2产品已添加到关注清单中
black RAL 9005

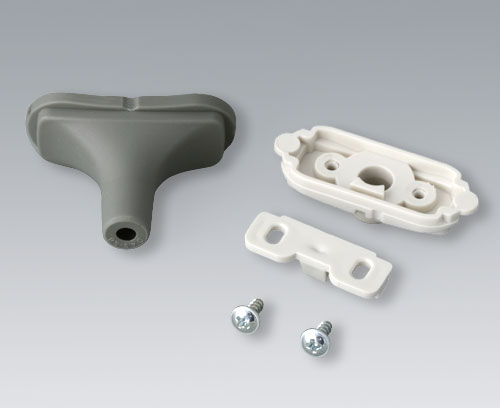

B2911318
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911318
Cable gland kit, 4.2 - 5.0产品已添加到关注清单中
volcano
B2911319
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911319
Cable gland kit, 4.2 - 5.0产品已添加到关注清单中
black RAL 9005
B2911328
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911328
Cable gland kit, 5.0 - 5.9产品已添加到关注清单中
volcano

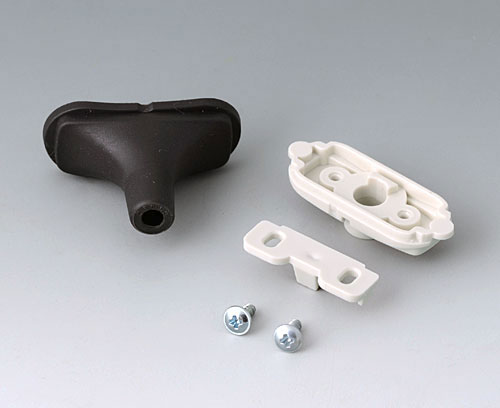

B2911329
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911329
Cable gland kit, 5.0 - 5.9产品已添加到关注清单中
black RAL 9005

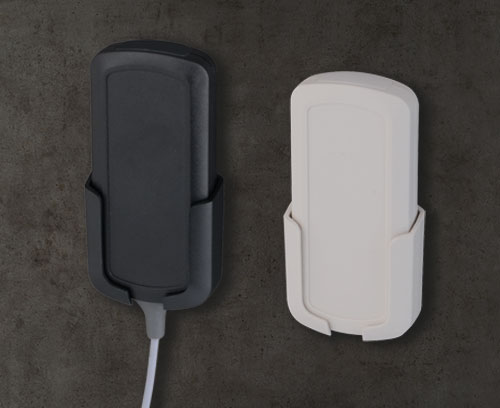

B2921507
Holder S

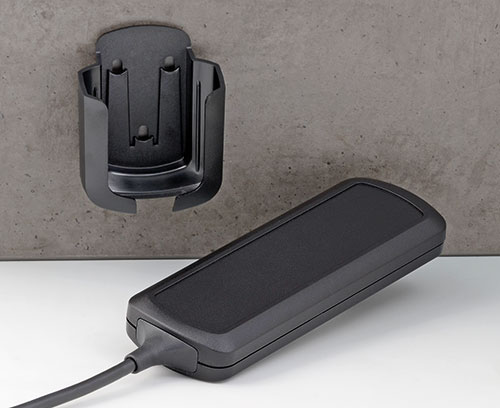

Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921507
Holder S产品已添加到关注清单中
off-white RAL 9002
B2921509
Holder S
Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921509
Holder S产品已添加到关注清单中
black RAL 9005
B2931507

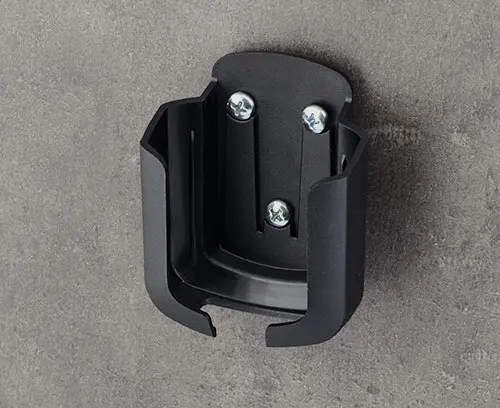

Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931507
Holder M产品已添加到关注清单中
off-white RAL 9002
B2931509
Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931509
Holder M产品已添加到关注清单中
black RAL 9005
