B6123112

Rear panel

Rear panel for DIN-MODULAR CASE 72 x 72.

Supply

1 rear panel

  • 应用于
  • 按客户要求修改加工
AltText

B6023011

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

关闭

B6023011

DIN-MODULAR CASE TYPE A
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
72x72x57mm
AltText

B6023021

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

关闭

B6023021

DIN-MODULAR CASE TYPE A
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
72x72x75mm
AltText

B6023031

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

关闭

B6023031

DIN-MODULAR CASE TYPE A
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
72x72x100mm
AltText

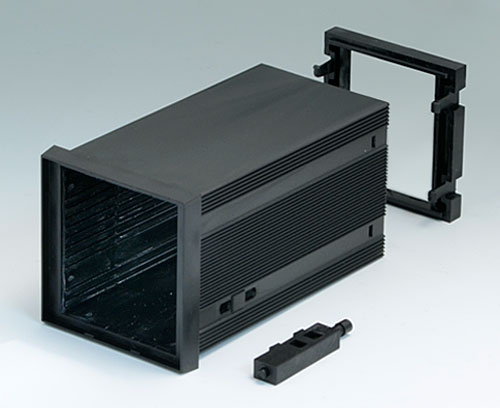

B6023061

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

关闭

B6023061

DIN-MODULAR CASE TYPE A
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
72x72x124mm

Customising options for B6123112

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 采购有关数据
颜色
matt anodised
Width
63.7 mm
Height
49.1 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
7 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Italy
