DIN 标准安装盒 A 型
Scroll

DIN 标准安装盒 A 型

装于控制面板的 DIN-标准安装盒

通过所有机盒部件的简单的无螺纹安装，体现了根据 DIN IEC 61554 标准型 A 机盒与用于控制面板安装的传统机盒的区别。

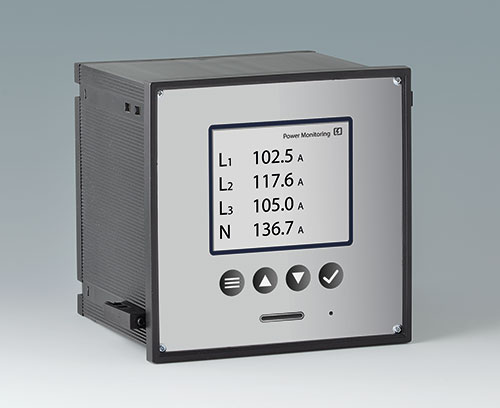

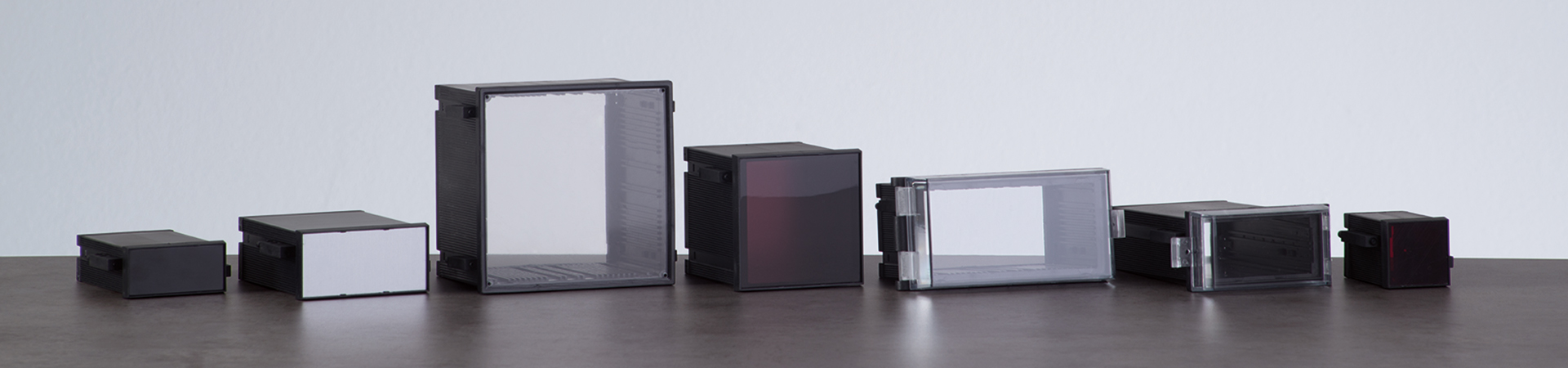

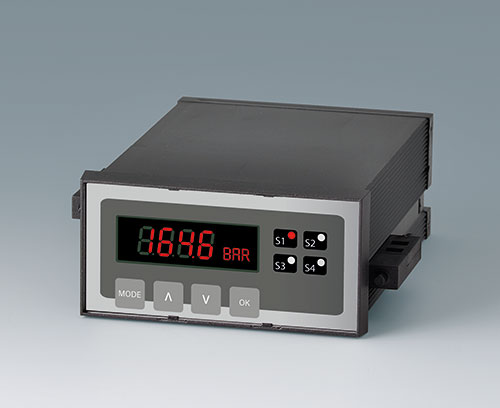

  • 7 个标准尺寸  72 x 36, 48 x 48, 96 x 48, 72 x 72, 96 x 96*, 144 x 72* 和 144 x 144， 机盒深度可选（*不完全符合 DIN IEC 61554 标准）
  • 材料类似 UL 94 V-0： 自熄性和抗冲击性; 也具有很高的机械及电气性能
  • 通过背面安装框固定电路板

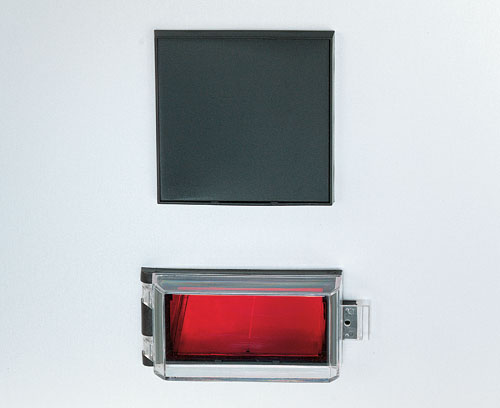

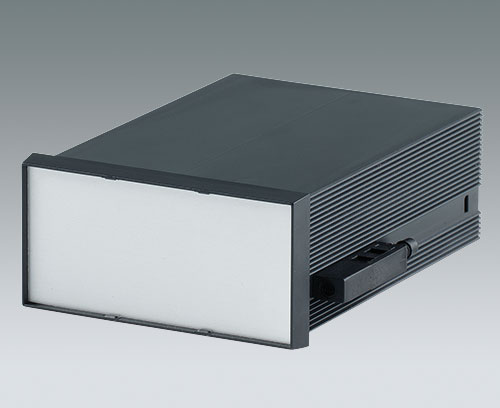

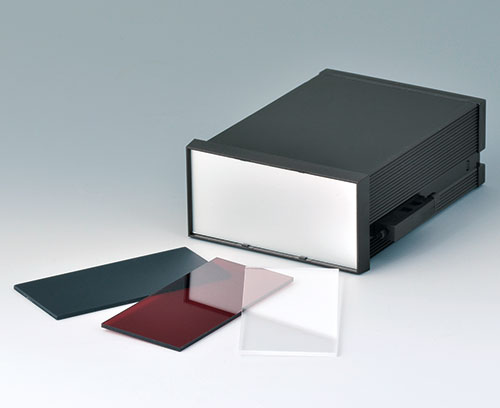

  • 前后面板提供广泛的选择性，卡夹式锁定

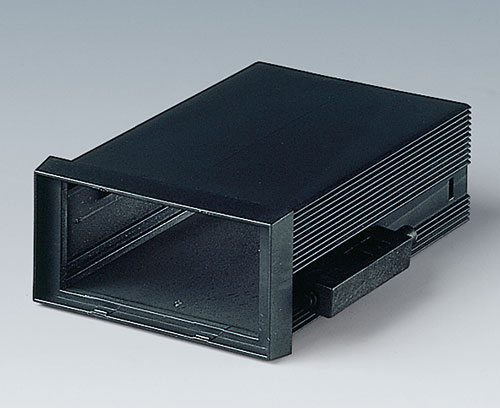

  • 将机盒安装于控制面板的紧固元件已包含在供货范围内

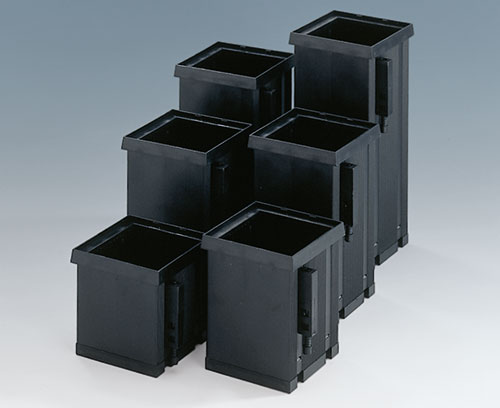

  • 通过有利的设计原理，达到与应用完全匹配的灵活的机盒深度的选择

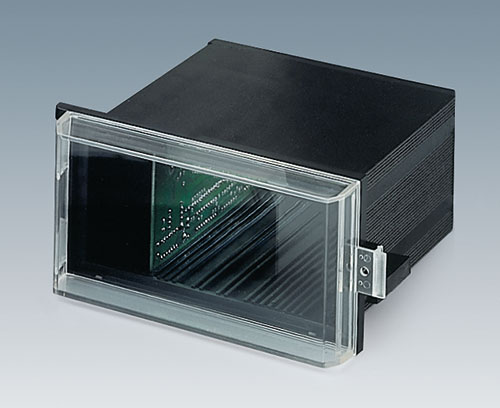

  • 具备保护显示和操作元件的透明罩 (规格 96 x 48 - 144 x 144)
  • 2 或 4 侧面设置了导槽，用于电路板安装等
  • 防护等级 < IP 40
PDF 导出

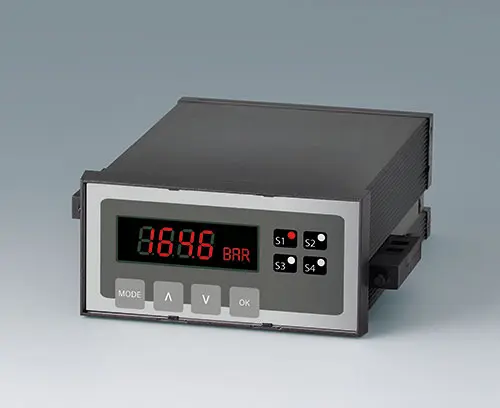

应用范围

  • 普遍通用
  • 特别适用于测量、调试和控制工程的应用技术
  • 类型
  • 配件
  • 按客户要求修改加工

请选择所需的产品类型或尺寸，或点击产品列表末尾的“选择所有产品”按键。

B6112111 Front panel

B6112111

Front panel Front panel for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

关闭

B6112111

Front panel
产品已添加到关注清单中
Aluminium
matt anodised
43.6x43.6x1.5mm
B6112112 Rear panel

B6112112

Rear panel Rear panel for DIN-MODULAR CASE 48 x 48.

Supply 1 rear panel

关闭

B6112112

Rear panel
产品已添加到关注清单中
Aluminium
matt anodised
42.2x29.6x1mm
B6112221 Front panel

B6112221

Front panel Front panel for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

关闭

B6112221

Front panel
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
43.7x43.7x2mm
B6112222 Rear panel

B6112222

Rear panel Rear panel for DIN-MODULAR CASE 48 x 48.

Supply 1 rear panel

关闭

B6112222

Rear panel
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
42.3x29.6x1.8mm
B6112331 Front panel

B6112331

Front panel Front panel for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

关闭

B6112331

Front panel
产品已添加到关注清单中
Acrylglas
transparent
43.6x43.6x2mm
B6112341 Front panel

B6112341

Front panel Front panel for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

关闭

B6112341

Front panel
产品已添加到关注清单中
Acrylglas
red transparent
43.6x43.6x2mm
B6112451 Front panel

B6112451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

关闭

B6112451

Front panel
产品已添加到关注清单中
PC (IR)
43.7x43.7x2mm
B6121111 Front panel

B6121111

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

关闭

B6121111

Front panel
产品已添加到关注清单中
Aluminium
matt anodised
67.7x31.6x1.5mm
B6121112 Rear panel

B6121112

Rear panel Rear panel for DIN-MODULAR CASE 72 x 36.

Supply 1 rear panel

关闭

B6121112

Rear panel
产品已添加到关注清单中
Aluminium
matt anodised
57.6x28.6x1mm
B6121221 Front panel

B6121221

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

关闭

B6121221

Front panel
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
67.8x31.7x2mm
B6121222 Rear panel

B6121222

Rear panel Rear panel for DIN-MODULAR CASE 72 x 36.

Supply 1 rear panel

关闭

B6121222

Rear panel
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
57.6x28.7x1.5mm
B6121331 Front panel

B6121331

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

关闭

B6121331

Front panel
产品已添加到关注清单中
Acrylglas
transparent
67.7x31.6x2mm
B6121341 Front panel

B6121341

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

关闭

B6121341

Front panel
产品已添加到关注清单中
Acrylglas
red transparent
67.7x31.6x2mm
B6121451 Front panel

B6121451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

关闭

B6121451

Front panel
产品已添加到关注清单中
PC (IR)
67.8x31.8x2mm
B6123111 Front panel

B6123111

Front panel Front panel for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

关闭

B6123111

Front panel
产品已添加到关注清单中
Aluminium
matt anodised
67.5x67.5x1.5mm
B6123112 Rear panel

B6123112

Rear panel Rear panel for DIN-MODULAR CASE 72 x 72.

Supply 1 rear panel

关闭

B6123112

Rear panel
产品已添加到关注清单中
Aluminium
matt anodised
63.7x49.1x1mm
B6123221 Front panel

B6123221

Front panel Front panel for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

关闭

B6123221

Front panel
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
67.6x67.6x2mm
B6123222 Rear panel

B6123222

Rear panel Rear panel for DIN-MODULAR CASE 72 x 72.

Supply 1 rear panel

关闭

B6123222

Rear panel
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
63.8x49.2x1.7mm
B6123331 Front panel

B6123331

Front panel Front panel for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

关闭

B6123331

Front panel
产品已添加到关注清单中
Acrylglas
transparent
67.5x67.5x2mm
B6123341 Front panel

B6123341

Front panel Front panel for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

关闭

B6123341

Front panel
产品已添加到关注清单中
Acrylglas
red transparent
67.5x67.5x2mm
B6123451 Front panel

B6123451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

关闭

B6123451

Front panel
产品已添加到关注清单中
PC (IR)
67.6x67.6x2mm
B6123533 Protection cover

B6123533

Protection cover Protection cover for DIN-MODULAR CASE 72 x 72.

Supply 1 protection cover

关闭

B6123533

Protection cover
产品已添加到关注清单中
PC
transparent
B6132111 Front panel

B6132111

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

关闭

B6132111

Front panel
产品已添加到关注清单中
Aluminium
matt anodised
91.5x43.4x1.5mm
B6132112 Rear panel

B6132112

Rear panel Rear panel for DIN-MODULAR CASE 96 x 48.

Supply 1 rear panel

关闭

B6132112

Rear panel
产品已添加到关注清单中
Aluminium
matt anodised
73.5x39.6x1mm
B6132221 Front panel

B6132221

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

关闭

B6132221

Front panel
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
91.6x43.5x2mm
B6132222 Rear panel

B6132222

Rear panel Rear panel for DIN-MODULAR CASE 96 x 48.

Supply 1 rear panel

关闭

B6132222

Rear panel
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
73.6x39.75x1.7mm
B6132331 Front panel

B6132331

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

关闭

B6132331

Front panel
产品已添加到关注清单中
Acrylglas
transparent
91.5x43.4x2mm
B6132341 Front panel

B6132341

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

关闭

B6132341

Front panel
产品已添加到关注清单中
Acrylglas
red transparent
91.5x43.4x2mm
B6132451 Front panel

B6132451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

关闭

B6132451

Front panel
产品已添加到关注清单中
PC (IR)
91.6x43.5x2mm
B6132533 Protection cover

B6132533

Protection cover Protection cover for DIN-MODULAR CASE 96 x 48.

Supply 1 protection cover

关闭

B6132533

Protection cover
产品已添加到关注清单中
PC
transparent
B6134111 Front panel

B6134111

Front panel Front panel for DIN-MODULAR CASE 96 x 96.

Supply 1 front panel

关闭

B6134111

Front panel
产品已添加到关注清单中
Aluminium
matt anodised
90.6x90.6x1.5mm
B6134112 Rear panel

B6134112

Rear panel Rear panel for DIN-MODULAR CASE 96 x 96.

Supply 1 rear panel

关闭

B6134112

Rear panel
产品已添加到关注清单中
Aluminium
matt anodised
86.7x71.7x1.5mm
B6134221 Front panel

B6134221

Front panel Front panel for DIN-MODULAR CASE 96 x 96.

Supply 1 front panel

关闭

B6134221

Front panel
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
90.7x90.7x2mm
B6134222 Rear panel

B6134222

Rear panel Rear panel for DIN-MODULAR CASE 96 x 96.

Supply 1 rear panel

关闭

B6134222

Rear panel
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
86.8x71.8x1.7mm
B6134331 Front panel

B6134331

Front panel Front panel for DIN-MODULAR CASE 96 x 96.

Supply 1 front panel

关闭

B6134331

Front panel
产品已添加到关注清单中
Acrylglas
transparent
90.6x90.6x2.2mm
B6134341 Front panel

B6134341

Front panel Front panel for DIN-MODULAR CASE 96 x 96.

Supply 1 front panel

关闭

B6134341

Front panel
产品已添加到关注清单中
Acrylglas
red transparent
90.6x90.6x2mm
B6134451 Front panel

B6134451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 96 x 96.

Supply 1 front panel

关闭

B6134451

Front panel
产品已添加到关注清单中
PC (IR)
90.7x90.7x2.2mm
B6134533 Protection cover

B6134533

Protection cover Protection cover for DIN-MODULAR CASE 96 x 96.

Supply 1 protection cover

关闭

B6134533

Protection cover
产品已添加到关注清单中
PC
transparent
B6143111 Front panel

B6143111

Front panel Front panel for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

关闭

B6143111

Front panel
产品已添加到关注清单中
Aluminium
matt anodised
139.2x67.3x1.5mm
B6143112 Rear panel

B6143112

Rear panel Rear panel for DIN-MODULAR CASE 144 x 72.

Supply 1 rear panel

关闭

B6143112

Rear panel
产品已添加到关注清单中
Aluminium
matt anodised
118.9x62.6x1.5mm
B6143221 Front panel

B6143221

Front panel Front panel for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

关闭

B6143221

Front panel
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
139.3x67.5x2mm
B6143222 Rear panel

B6143222

Rear panel Rear panel for DIN-MODULAR CASE 144 x 72.

Supply 1 rear panel

关闭

B6143222

Rear panel
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
119.1x62.7x2mm
B6143331 Front panel

B6143331

Front panel Front panel for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

关闭

B6143331

Front panel
产品已添加到关注清单中
Acrylglas
transparent
139.2x67.3x2mm
B6143341 Front panel

B6143341

Front panel Front panel for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

关闭

B6143341

Front panel
产品已添加到关注清单中
Acrylglas
red transparent
139.2x67.3x2mm
B6143451 Front panel

B6143451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

关闭

B6143451

Front panel
产品已添加到关注清单中
PC (IR)
139.2x67.4x2mm
B6143533 Protection cover

B6143533

Protection cover Protection cover for DIN-MODULAR CASE 144 x 72.

Supply 1 protection cover

关闭

B6143533

Protection cover
产品已添加到关注清单中
PC
transparent
B6145111 Front panel

B6145111

Front panel Front panel for DIN-MODULAR CASE 144 x 144.

Supply 1 front panel, 4 screws

关闭

B6145111

Front panel
产品已添加到关注清单中
Aluminium
matt anodised
138x138x1.5mm
B6145112 Rear panel

B6145112

Rear panel Rear panel for DIN-MODULAR CASE 144 x 144.

Supply 1 rear panel

关闭

B6145112

Rear panel
产品已添加到关注清单中
Aluminium
matt anodised
131.3x118.6x1.5mm
B6145331 Front panel

B6145331

Front panel Front panel for DIN-MODULAR CASE 144 x 144.

Supply 1 front panel, 4 screws

关闭

B6145331

Front panel
产品已添加到关注清单中
Acrylglas
transparent
138x138x3mm
B6145341 Front panel

B6145341

Front panel Front panel for DIN-MODULAR CASE 144 x 144.

Supply 1 front panel, 4 screws

关闭

B6145341

Front panel
产品已添加到关注清单中
Acrylglas
red transparent
138x138x3mm
B6145533 Protection cover

B6145533

Protection cover Protection cover for DIN-MODULAR CASE 144 x 144.

Supply 1 protection cover, 1 sealing kit

关闭

B6145533

Protection cover
产品已添加到关注清单中
PC
transparent

产品类型用于 DIN 标准安装盒 A 型

如何体现您的特殊产品？ 如有需要，我们执行所有必要的修改和精加工，提供组装完毕的机盒。
