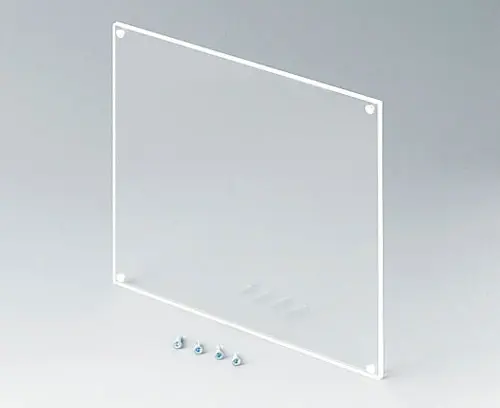

B6145331 Front panel

B6145331

Front panel

Front panel for DIN-MODULAR CASE 144 x 144.

Supply

1 front panel, 4 screws

  • 应用于
  • 按客户要求修改加工
B6045011 DIN-MODULAR CASE TYPE A

B6045011

DIN-MODULAR CASE TYPE A Case with detachable front frame. The rear frame as well as well as the rear panel (accessories) will be simply snapped on. The front panel will be screwed at the edges. With guide ridges for slide-in PCB mounting on 4 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 front frame, 1 rear frame with snap-lock, fixing elements for switchboard installation

关闭

B6045011

DIN-MODULAR CASE TYPE A
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
144x144x57mm

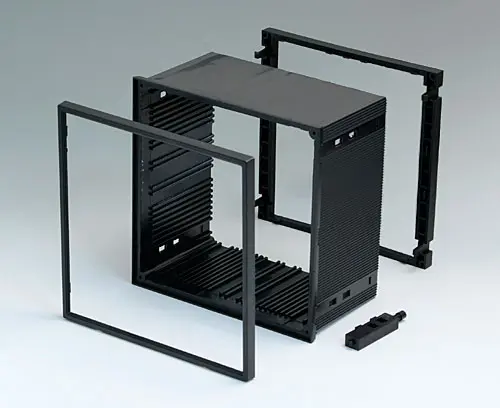

B6045021 DIN-MODULAR CASE TYPE A

B6045021

DIN-MODULAR CASE TYPE A Case with detachable front frame. The rear frame as well as the rear panel (accessories) will be simply snapped on. The front panel will be screwed at the edges. With guide ridges for slide-in PCB mounting on 4 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 front frame, 1 rear frame with snap-lock, fixing elements for switchboard installation

关闭

B6045021

DIN-MODULAR CASE TYPE A
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
144x144x75mm

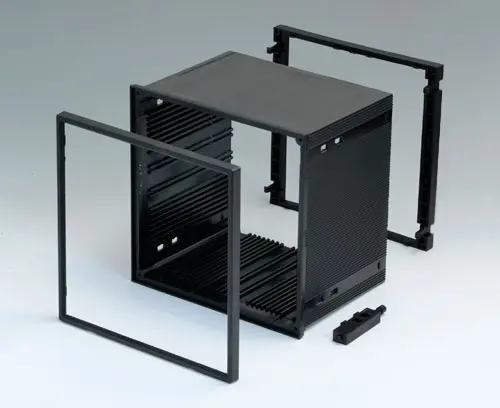

B6045031 DIN-MODULAR CASE TYPE A

B6045031

DIN-MODULAR CASE TYPE A Case with detachable front frame. The rear frame as well as the rear panel (accessories) will be simply snapped on. The front panel will be screwed at the edges. With guide ridges for slide-in PCB mounting on 4 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 front frame, 1 rear frame with snap-lock, fixing elements for switchboard installation

关闭

B6045031

DIN-MODULAR CASE TYPE A
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
144x144x100mm
B6045051 DIN-MODULAR CASE TYPE A

B6045051

DIN-MODULAR CASE TYPE A Case with detachable front frame. The rear frame as well as the rear panel (accessories) will be simply snapped on. The front panel will be screwed at the edges. With guide ridges for slide-in PCB mounting on 4 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 front frame, 1 rear frame with snap-lock, fixing elements for switchboard installation

关闭

B6045051

DIN-MODULAR CASE TYPE A
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
144x144x114mm

Customising options for B6145331

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 采购有关数据
颜色
transparent
Width
138 mm
Height
138 mm
Thickness
3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
69 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
