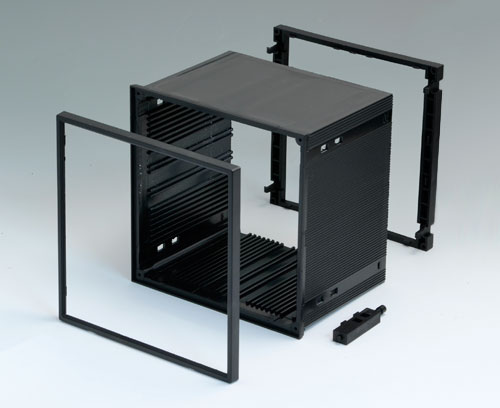

B6045031 DIN-MODULAR CASE TYPE A

B6045031

DIN-MODULAR CASE TYPE A

Case with detachable front frame. The rear frame as well as the rear panel (accessories) will be simply snapped on. The front panel will be screwed at the edges. With guide ridges for slide-in PCB mounting on 4 sides. Corresponding to DIN IEC 61554.

Supply

1 case, 1 front frame, 1 rear frame with snap-lock, fixing elements for switchboard installation

  • 适配系统部件
  • 按客户要求修改加工

需加附件使产品完整

B6145111 Front panel

B6145111

Front panel Front panel for DIN-MODULAR CASE 144 x 144.

Supply 1 front panel, 4 screws

关闭

B6145111

Front panel
产品已添加到关注清单中
Aluminium
matt anodised
138x138x1.5mm

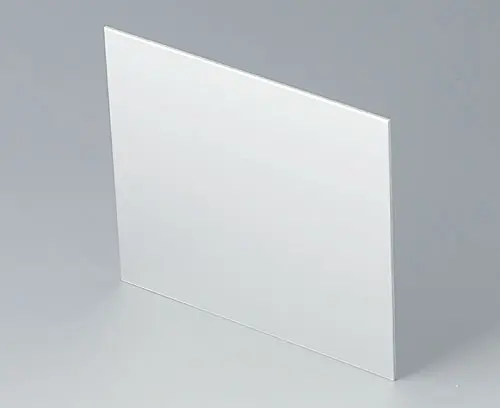

B6145112 Rear panel

B6145112

Rear panel Rear panel for DIN-MODULAR CASE 144 x 144.

Supply 1 rear panel

关闭

B6145112

Rear panel
产品已添加到关注清单中
Aluminium
matt anodised
131.3x118.6x1.5mm
B6145331 Front panel

B6145331

Front panel Front panel for DIN-MODULAR CASE 144 x 144.

Supply 1 front panel, 4 screws

关闭

B6145331

Front panel
产品已添加到关注清单中
Acrylglas
transparent
138x138x3mm
B6145341 Front panel

B6145341

Front panel Front panel for DIN-MODULAR CASE 144 x 144.

Supply 1 front panel, 4 screws

关闭

B6145341

Front panel
产品已添加到关注清单中
Acrylglas
red transparent
138x138x3mm

“保护等级” 附件

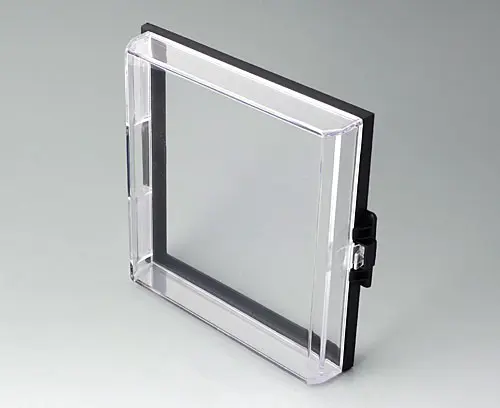

B6145533 Protection cover

B6145533

Protection cover Protection cover for DIN-MODULAR CASE 144 x 144.

Supply 1 protection cover, 1 sealing kit

关闭

B6145533

Protection cover
产品已添加到关注清单中
PC
transparent

Customising options for B6045031

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
black RAL 9005
标准根据
Width
144 mm
Height
144 mm
Depth
100 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
247 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italy
