DIN 标准导轨接线盒
A9106508
Station M

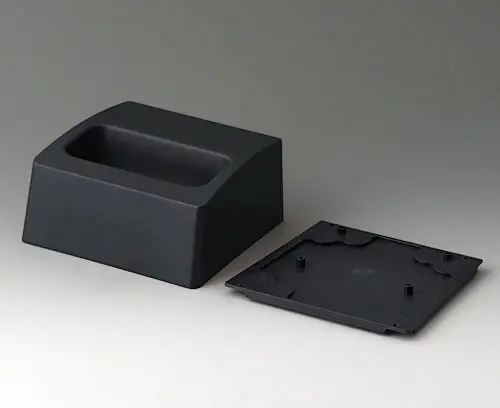

Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
SupplyStation with bottom panel, rubber feet, assembly kit
添加到购物车内
系统组件使产品完整
A9006108
DATEC-COMPACT M
2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9006108
DATEC-COMPACT M产品已添加到关注清单中
lava
172x92x39mm
A9006118
DATEC-COMPACT M
2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9006118
DATEC-COMPACT M产品已添加到关注清单中
lava
172x92x39mm
A9006208
DATEC-COMPACT M
3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Version With battery compartment 3 x AA
Supply Top and bottom part, battery compartment lid, assembly kit
A9006208
DATEC-COMPACT M产品已添加到关注清单中
lava
172x92x39mm
A9006218
DATEC-COMPACT M
3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Version With battery compartment 3 x AA
Supply Top and bottom part, battery compartment lid, assembly kit
A9006218
DATEC-COMPACT M产品已添加到关注清单中
lava
172x92x39mm
“底座” 配件
A9193031
Spring contact
Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 15 A. 1.5 mm stroke, 1,7 N. Extremely low contact resistance.
Supply 1 spring contact
A9193031
Spring contact产品已添加到关注清单中
“螺钉” 附件
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)产品已添加到关注清单中
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)产品已添加到关注清单中
