Datec-Compact 紧凑手持盒

Datec-Compact 紧凑手持盒

紧凑手持盒

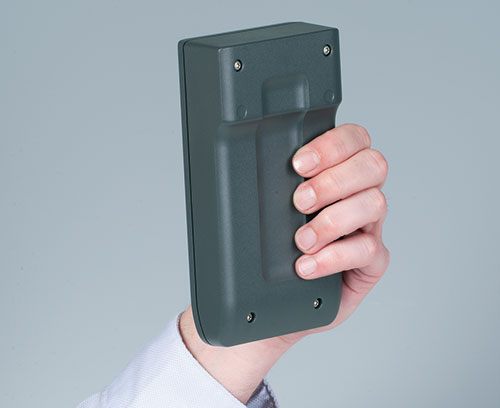

新型 DATEC-COMPACT 紧凑手持盒具备特别的紧凑性和坚固的设计性,特别理想适合用于移动式机盒。

  • 坚固耐用的高质材料 ASA+ PC-FR 适合户外使用(室外)

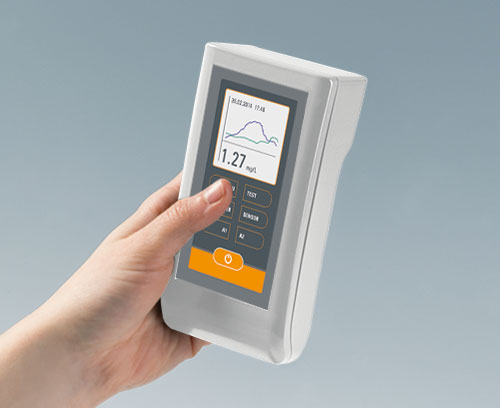

  • 高防护等级 IP 65 机盒配备用于恶劣环境的密封件;
    防护等级 IP 41 不带密封的机盒可选,适用于价格低廉的测量仪器外壳

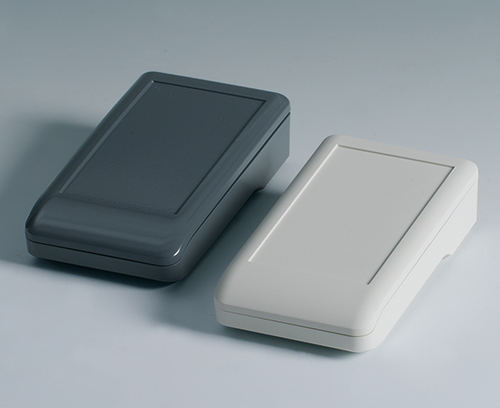

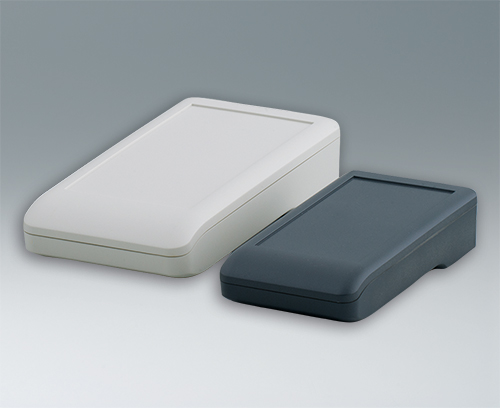

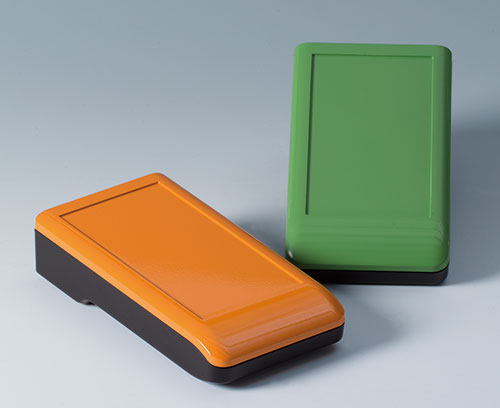

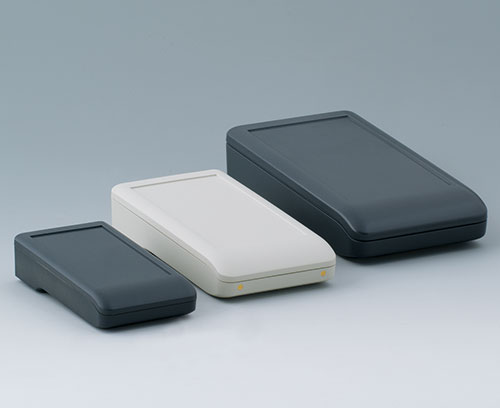

  • 3 种规格,2 种颜色

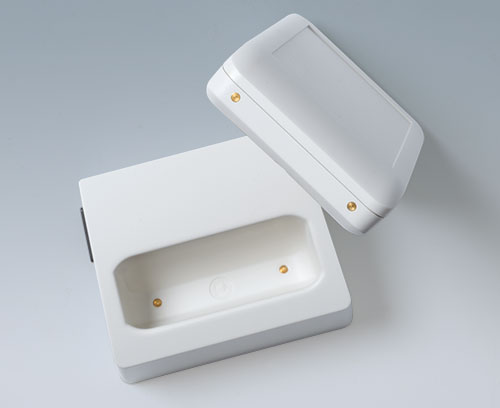

  • 内设充电接触件的完整解决方案

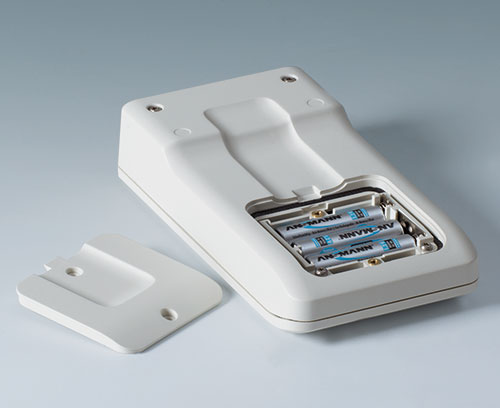

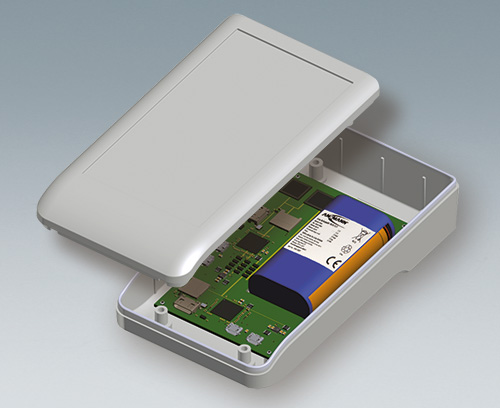

  • 可选无/带电池盒,适配 1.5 伏微电池或 AA 电池;  三个电池单元保证 3V 电源的供给
  • SD 卡 或 USB 插头可在内设的密封空间使用(含电池型机盒)

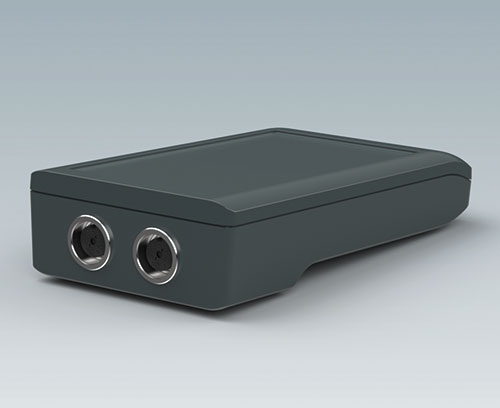

  • 便于数据传输和充电电流传输的插座作为附件
  • 梅花头不锈钢螺钉固定
  • 其他附件:接触弹簧组件和镀金触点
  • 录像

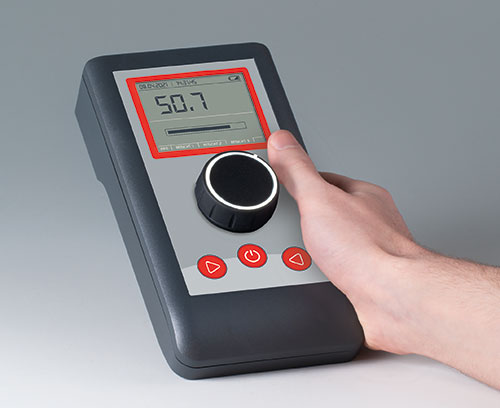

  • 应用示例

应用范围

  • 移动式数据采集
  • 测量和控制技术
  • 自动化技术
  • 医疗和实验室技术
  • 环保技术
  • 户外应用
  • Smart Factory
  • Industrie 4.0
  • 类型
  • 配件
  • 按客户要求修改加工

选择类型和规格大小,然后点击“选择”。



无密封件 (IP 41), 无接触件

DATEC-COMPACT 无密封件 (IP 41), 无接触件

带密封件 (IP 65), 无接触件

DATEC-COMPACT 带密封件 (IP 65), 无接触件

带密封件 (IP 65), 带接触件

DATEC-COMPACT 带密封件 (IP 65), 带接触件

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

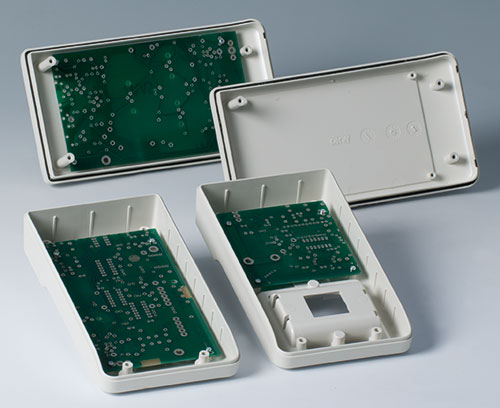

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060 Self-tapping screw 3 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastening PCBs, boards and components as well as for assembling case.

Supply 1 self-tapping screw

关闭

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

关闭

A0399T08

Torx T8 screwdriver
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

关闭

A0399T10

Torx T10 screwdriver
A9105507 Station S

A9105507

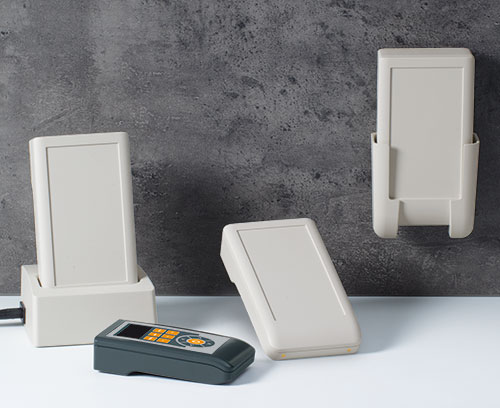

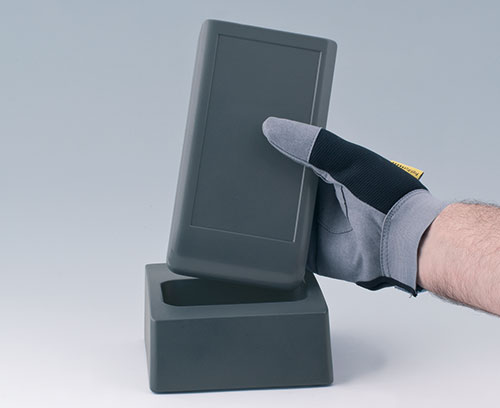

Station S Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

关闭

A9105507

Station S ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
A9105508 Station S

A9105508

Station S Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

关闭

A9105508

Station S ASA+PC-FR (UL 94 V-0)
lava
A9105537 Station S, with spring contacts

A9105537

Station S, with spring contacts Base for the practical storage of DATEC-COMPACT S, with and without battery compartment, and enclosed spring contacts for the problem-free charging of mobile devices. Domes for mounting PCBs and components. Recesses for spring contacts (supply).

Supply Station with bottom panel, 2 spring contacts, rubber feet, assembly kit

关闭

A9105537

Station S, with spring contacts ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
A9105538 Station S, with spring contacts

A9105538

Station S, with spring contacts Base for the practical storage of DATEC-COMPACT S, with and without battery compartment, and enclosed spring contacts for the problem-free charging of mobile devices. Domes for mounting PCBs and components. Recesses for spring contacts (supply).

Supply Station with bottom panel, 2 spring contacts, rubber feet, assembly kit

关闭

A9105538

Station S, with spring contacts ASA+PC-FR (UL 94 V-0)
lava
A9105627 Holder S

A9105627

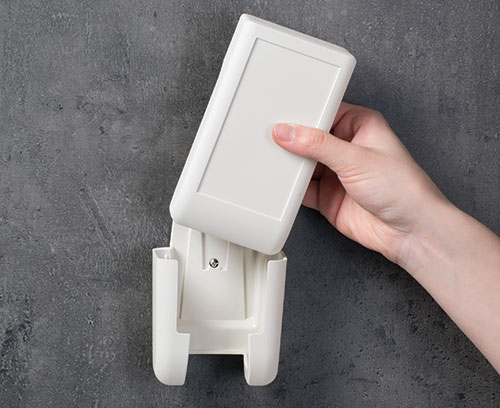

Holder S Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

关闭

A9105627

Holder S ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
A9105628 Holder S

A9105628

Holder S Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

关闭

A9105628

Holder S ASA+PC-FR (UL 94 V-0)
lava
A9106507 Station M

A9106507

Station M Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

关闭

A9106507

Station M ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
A9106508 Station M

A9106508

Station M Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

关闭

A9106508

Station M ASA+PC-FR (UL 94 V-0)
lava
A9106537 Station M, with spring contacts

A9106537

Station M, with spring contacts Base for the practical storage of DATEC-COMPACT M, with and without battery compartment, and enclosed spring contacts for the problem-free charging of mobile devices. Domes for mounting PCBs and components. Recesses for spring contacts (supply).

Supply Station with bottom panel, 2 spring contacts, rubber feet, assembly kit

关闭

A9106537

Station M, with spring contacts ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
A9106538 Station M, with spring contacts

A9106538

Station M, with spring contacts Base for the practical storage of DATEC-COMPACT M, with and without battery compartment, and enclosed spring contacts for the problem-free charging of mobile devices. Domes for mounting PCBs and components. Recesses for spring contacts (Supply).

Supply Station with bottom panel, 2 spring contacts, rubber feet, assembly kit

关闭

A9106538

Station M, with spring contacts ASA+PC-FR (UL 94 V-0)
lava
A9106627 Holder M

A9106627

Holder M Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

关闭

A9106627

Holder M ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
A9106628 Holder M

A9106628

Holder M Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

关闭

A9106628

Holder M ASA+PC-FR (UL 94 V-0)
lava
A9107507 Station L

A9107507

Station L Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data.
Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

关闭

A9107507

Station L ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
A9107508 Station L

A9107508

Station L Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

关闭

A9107508

Station L ASA+PC-FR (UL 94 V-0)
lava
A9107537 Station L, with spring contacts

A9107537

Station L, with spring contacts Base for the practical storage of DATEC-COMPACT L, with and without battery compartment, and enclosed spring contacts for the problem-free charging of mobile devices. Domes for mounting PCBs and components. Recesses for spring contacts (supply).

Supply Station with bottom panel, 2 spring contacts, rubber feet, assembly kit

关闭

A9107537

Station L, with spring contacts ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
A9107538 Station L, with spring contacts

A9107538

Station L, with spring contacts Base for the practical storage of DATEC-COMPACT L, with and without battery compartment, and enclosed spring contacts for the problem-free charging of mobile devices. Domes for mounting PCBs and components. Recesses for spring contacts (supply).

Supply Station with bottom panel, 2 spring contacts, rubber feet, assembly kit

关闭

A9107538

Station L, with spring contacts ASA+PC-FR (UL 94 V-0)
lava
A9107627 Holder L

A9107627

Holder L Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

关闭

A9107627

Holder L ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
A9107628 Holder L

A9107628

Holder L Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

关闭

A9107628

Holder L ASA+PC-FR (UL 94 V-0)
lava
A9190023 Set of battery clips, 3 x AA

A9190023

Set of battery clips, 3 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 2 double contacts right, 1 single contact positive, 1 single contact negative

关闭

A9190023

Set of battery clips, 3 x AA Steel
nickel-plated
A9190024 Set of battery clips, 3 x AAA

A9190024

Set of battery clips, 3 x AAA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 1 double contacts left, 1 single contact positive, 1 single contact negative

关闭

A9190024

Set of battery clips, 3 x AAA Steel
nickel-plated
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

关闭

A9207150

Anti-slide feet 6.5 x 2 mm transparent

产品类型用于 Datec-Compact 紧凑手持盒

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
