A9106628

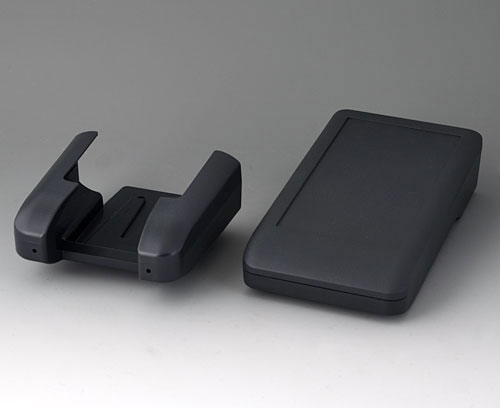

Holder M

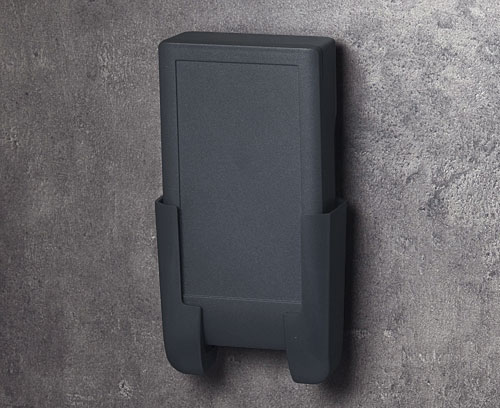

Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply1 holder
添加到购物车内
A9006108
DATEC-COMPACT M
2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9006108
DATEC-COMPACT M产品已添加到关注清单中
lava
172x92x39mm
A9006118
DATEC-COMPACT M
2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9006118
DATEC-COMPACT M产品已添加到关注清单中
lava
172x92x39mm
A9006208
DATEC-COMPACT M
3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Version With battery compartment 3 x AA
Supply Top and bottom part, battery compartment lid, assembly kit
A9006208
DATEC-COMPACT M产品已添加到关注清单中
lava
172x92x39mm
A9006218
DATEC-COMPACT M
3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Version With battery compartment 3 x AA
Supply Top and bottom part, battery compartment lid, assembly kit
A9006218
DATEC-COMPACT M产品已添加到关注清单中
lava
172x92x39mm
- 技术数据
-
图纸或资料
- 采购有关数据
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 228 KB
- AutoCAD DWG-File 410 KB
- AutoCAD DXF-File 1,376 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 1,342 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00016588.x_t 14,080 KB
- 00016588.step 28,792 KB
- 00016588.sat 31,914 KB
Weight/1 part
75 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A9106628请务必索取报价！
