B4013117 DATEC-TERMINAL S

B4013117

DATEC-TERMINAL S

Basic case with ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate Eurocards 100 x 160 mm.

Supply

1 basic housing, 4 screws, 4 non slip feet, 1 sealing

  • 适配系统部件
  • 按客户要求修改加工

需加附件使产品完整

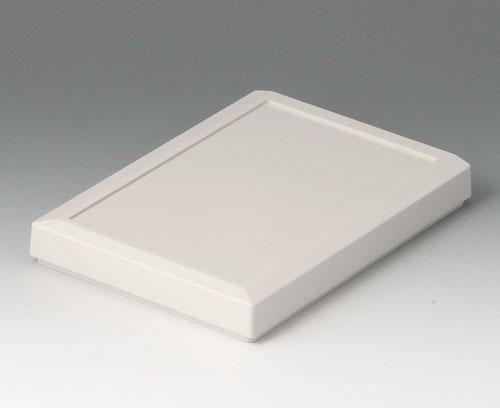

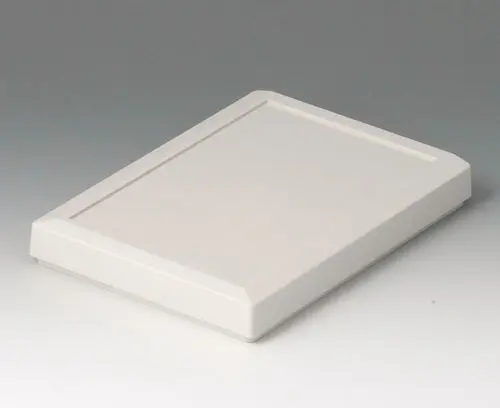

B4013617 Cover S

B4013617

Cover S Suitable for DATEC-TERMINAL S. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply 1 cover, assembly kit

关闭

B4013617

Cover S
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
130x180x23mm

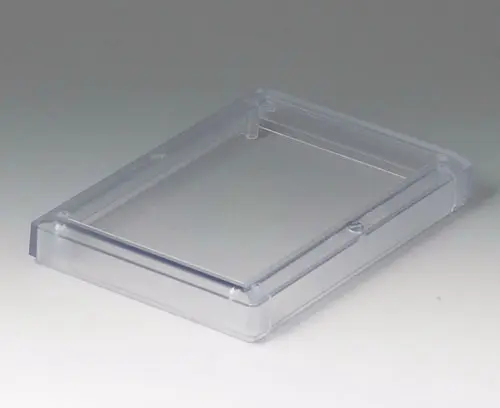

B4013621 Cover S

B4013621

Cover S Suitable for DATEC-TERMINAL S. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply 1 cover, assembly kit

关闭

B4013621

Cover S
产品已添加到关注清单中
PC (UL 94 V-0)
transparent
130x180x23mm
B4013637 Cover S, convex

B4013637

Cover S, convex Suitable for DATEC-TERMINAL S. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing from the front by 4 screws.

Supply 1 cover, assembly kit

关闭

B4013637

Cover S, convex
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
130x180x28mm

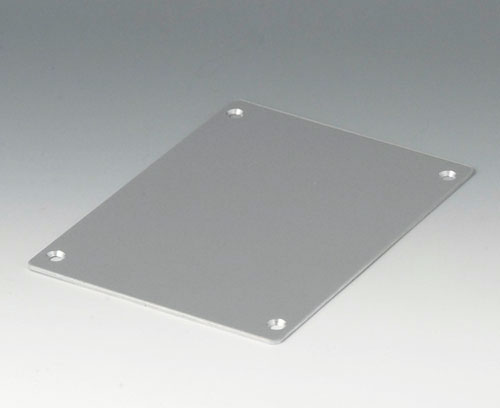

B4113106 Front panel S

B4113106

Front panel S Front panel S for the mounting of all kinds of operating elements.

Supply 1 front panel, 4 screws diameter 4.0 mm

关闭

B4113106

Front panel S
产品已添加到关注清单中
Aluminium
matt anodised
125.9x176x2mm

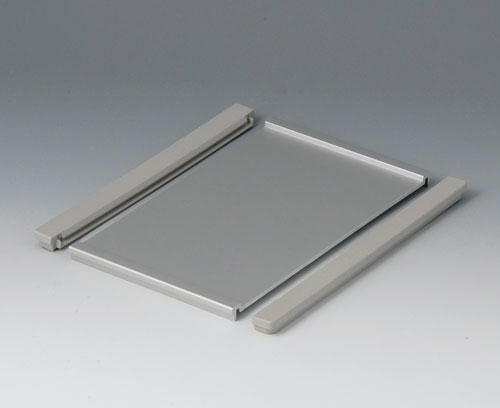

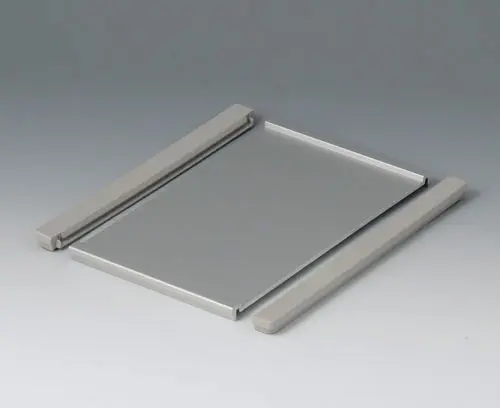

B4113126 Profile plate S

B4113126

Profile plate S Profile plate S for the mounting of operating elements of all kinds. Especially designed for the use of membrane keyboards. Recessed area for protecting the operating elements.

Supply 1 profile plate, 4 screws, 2 cover strips

关闭

B4113126

Profile plate S
产品已添加到关注清单中
Aluminium
matt anodised
130x180x8mm
B4113671 Cover strip S / SL

B4113671

Cover strip S / SL For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

关闭

B4113671

Cover strip S / SL
产品已添加到关注清单中
PC (UL 94 V-0)
transparent
B4113677 Cover strip S / SL

B4113677

Cover strip S / SL For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

关闭

B4113677

Cover strip S / SL
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002

“挂墙支架” 配件

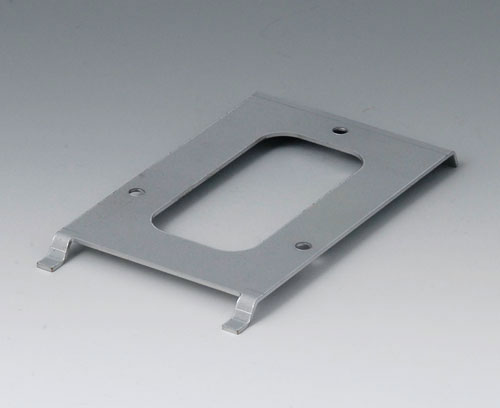

B4113147 Wall suspension element S

B4113147

Wall suspension element S Wall suspension element S for easy and secure fixing of the unit to a wall. The case is screwed down with the wall suspension element.

Supply 1 wall suspension element, 2 screws

关闭

B4113147

Wall suspension element S
产品已添加到关注清单中
Steel
galvanized
79x137x8mm

Customising options for B4013117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 应用示例
  • 采购有关数据
防护等级
IP 54 opt.
Necessary accessories: cover / cover convex
颜色
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
130 mm
Depth
180 mm
Height
86 mm
电路板长度,下盒
160 mm
电路板宽度,下盒
118 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
220 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
