B4013621

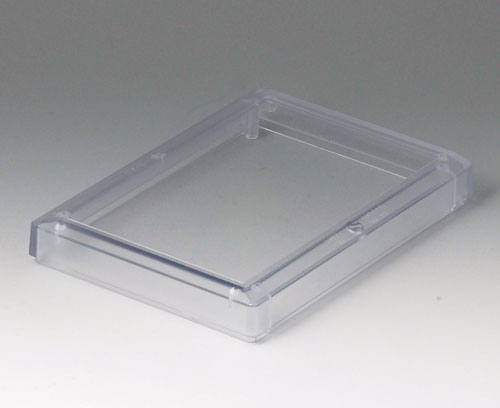

Cover S

Suitable for DATEC-TERMINAL S. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply

1 cover, assembly kit

  • 应用于
  • 按客户要求修改加工
AltText

B4013117

DATEC-TERMINAL S Basic case with ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate Eurocards 100 x 160 mm.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

关闭

B4013117

DATEC-TERMINAL S
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
130x180x86mm
IP 54 opt.

Customising options for B4013621

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
transparent
Width
130 mm
Depth
180 mm
Height
23 mm
电路板长度,下盒
172 mm
电路板宽度,下盒
104 mm
Keypad length
157.9 mm
Keypad width
100.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
145 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
