A0514007

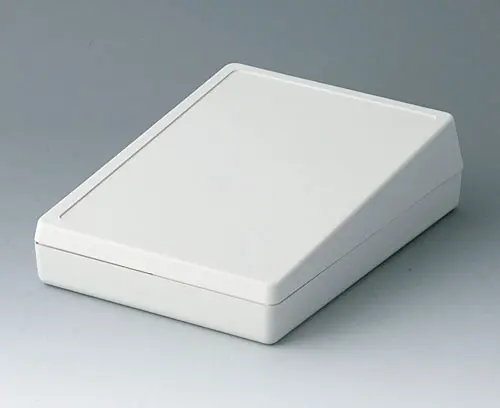

DESK CASE 138
Two-part case with closed top. Ergonomically sloped control area recessed by 0.8 mm . Suitable for numerical keypads and membrane keyboards. Fastening pillars for PCBs or keyboards in the top and base.
Supply1 top and base part, assembly kit
“挂墙支架” 配件
B1360048
Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
B1360048
Wall suspension elementspebble grey RAL 7032
“螺钉” 附件
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)附件
A9210290
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 264 KB
- AutoCAD DWG-File 359 KB
- AutoCAD DXF-File 1,358 KB
- 3 维 PDF 版 (Acrobat Reader 软件) (产品旋转 360°,部件显示或隐藏等功能) 862 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008317.x_t 2,592 KB
- 00008317.STEP 6,434 KB
- 00008317.SAT 7,767 KB
(OKW product)
特制机盒:我们可根据您的需求,对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒,仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A0514007请务必索取报价!
