Desk Cases 桌式机盒

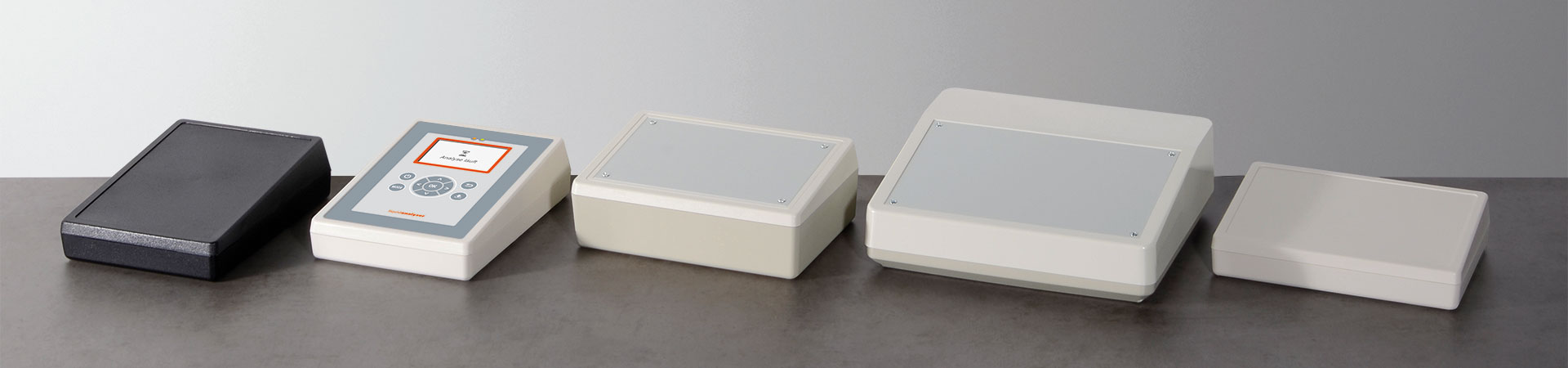

带倾斜操作面板的实用 Desk Cases 桌面机盒

OKW 的 Desk Cases 桌面机盒产品系列覆盖了广泛的各种应用。请选择操作面板的尺寸和倾斜度都符合您的特殊要求的桌面机盒。

  • 带倾斜式操作和显示面板的 Desk Cases 桌面机盒

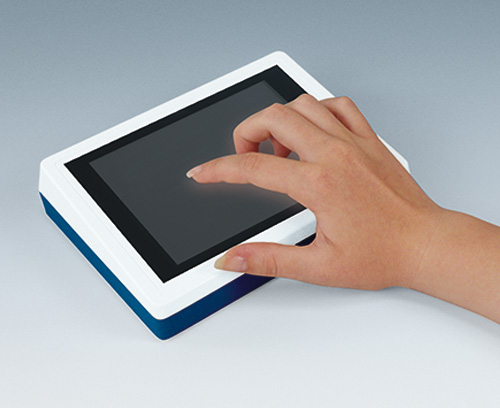

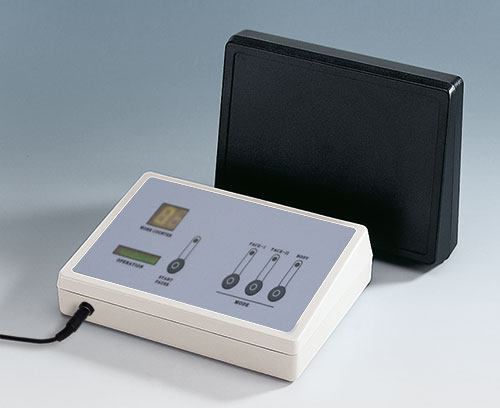

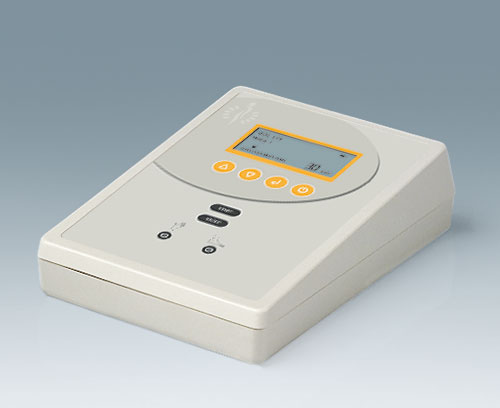

  • 特别适合用于数字键盘、膜键盘和触摸屏
  • 根据要求可提供普通机盒类型

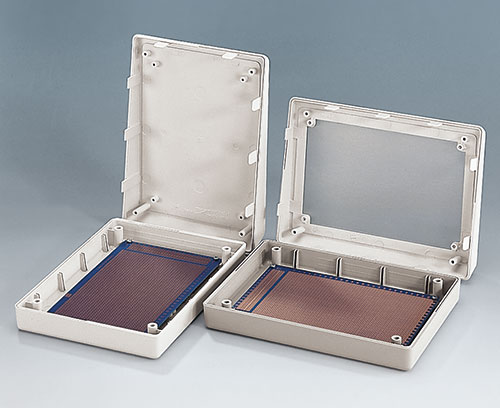

  • 已预备好安装欧洲卡 100 x 160 装置 (类型 138/190/190F/190H)

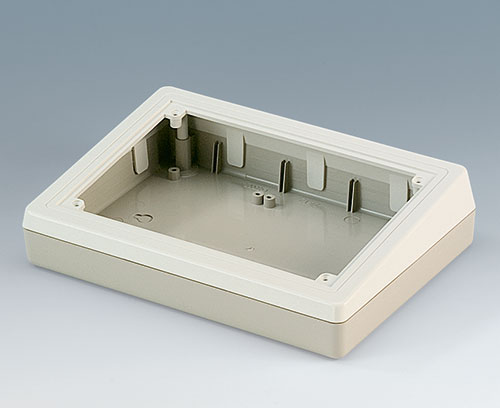

  • 带前面板类型适合安装预装完整的电子单元
  • 具备用于电缆入口和插头连接的加高及简便操作的表面 (类型 220, 复合桌面机盒 F/H)
  • 显示盖用于数字显示、测量仪器、编码开关等 (复合桌面机盒 H)
  • 防护等级 IP 40
  • 挂墙支架套件为附件
  • 固定柱用于固定电路板和元器件
PDF 导出

应用范围

工作场所和机器的数据采集系统。 对讲机。 门卫控制和电脑周边设备。 实验室和医疗技术。 测量控制技术。 工业自动化控制。

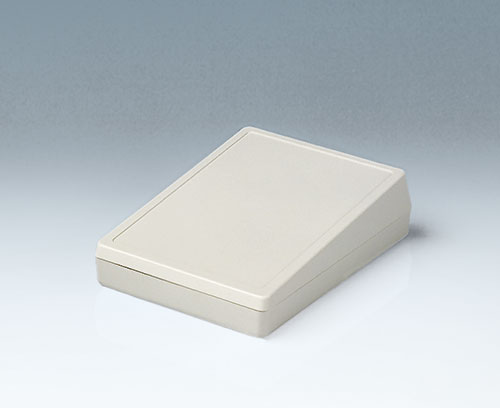

A0514007 DESK CASE 138

A0514007

DESK CASE 138 Two-part case with closed top. Ergonomically sloped control area recessed by 0.8 mm . Suitable for numerical keypads and membrane keyboards. Fastening pillars for PCBs or keyboards in the top and base.

Supply 1 top and base part, assembly kit

A0514007

DESK CASE 138
产品已添加到关注清单中

off-white RAL 9002
138x190x54mm
A0514009 DESK CASE 138

A0514009

DESK CASE 138 Two-part case with closed top. Ergonomically sloped control area recessed by 0.8 mm. Suitable for numerical keypads and membrane keyboards. Fastening pillars for PCBs or keyboards in the top and base.

Supply 1 top and base part, assembly kit

A0514009

DESK CASE 138
产品已添加到关注清单中

black RAL 9005
138x190x54mm

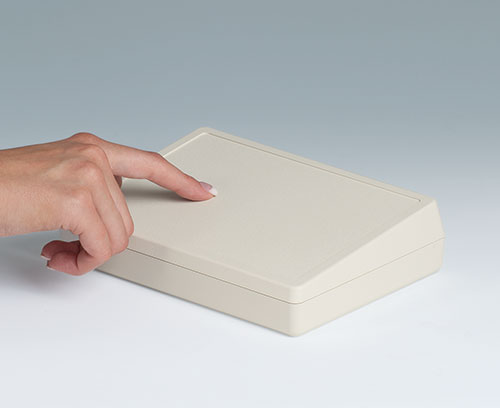

A0519007 DESK CASE 190

A0519007

DESK CASE 190 Two-part case with sloped operation area recessed 1.0 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version With closed top part

Supply 1 top and base part, assembly kit

A0519007

DESK CASE 190
产品已添加到关注清单中

off-white RAL 9002
190x138x47mm

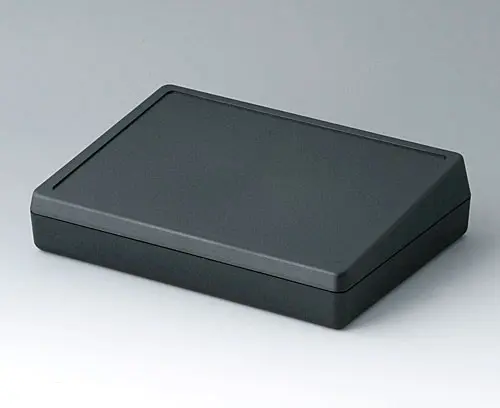

A0519009 DESK CASE 190

A0519009

DESK CASE 190 Two-part case with sloped operation area recessed 1.0 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version With closed top part

Supply 1 top and base part, assembly kit

A0519009

DESK CASE 190
产品已添加到关注清单中

black RAL 9005
190x138x47mm
A9082065 DESK CASE 220

A9082065

DESK CASE 220 Two-part case with sloped operation area. Fastenings pillars for mounting PCBs in the base. Raised rear area to accommodate plugs.

Supply 1 top and base part, assembly kit

A9082065

DESK CASE 220
产品已添加到关注清单中

off-white RAL 9002
220x156x100mm

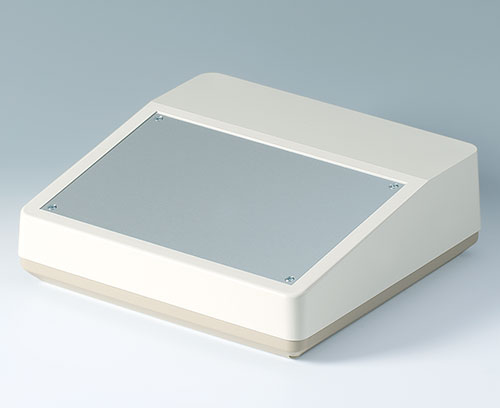

A9084165 COMBI DESK CASE F

A9084165

COMBI DESK CASE F Two-part case with sloped operation area. The base part has fastening pillars with inserts M3 for the mounting of PCBs. Raised panel at the rear for cable grommets and plug mounting.

Version Flat version without attachment

Supply 1 top and base part, assembly kit

A9084165

COMBI DESK CASE F
产品已添加到关注清单中

off-white RAL 9002
228x216x76mm
A9085165 COMBI DESK CASE H

A9085165

COMBI DESK CASE H Two-part case with sloped operation area. The base part has fastening pillars with inserts M3 for the mounting of PCBs. Raised panel at the rear for cable grommets and plug mounting.

Version Case with attachment, e.g. display

Supply 1 top and base part, attachment, assembly kit

A9085165

COMBI DESK CASE H
产品已添加到关注清单中

off-white RAL 9002
228x216x126mm
A9086265 DESK CASE 190 F

A9086265

DESK CASE 190 F Two-part case with sloped operation area recessed 1.5 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version Top prepared for front panel mounting, flat base part

Supply 1 top and base part, assembly kit

A9086265

DESK CASE 190 F
产品已添加到关注清单中

pebble grey RAL 7032
190x138x47mm
A9086365 DESK CASE 190 H

A9086365

DESK CASE 190 H Two-part case with sloped operation area recessed 1.5 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version Top for front panel mounting, higher base part

Supply 1 top and base part, assembly kit

A9086365

DESK CASE 190 H
产品已添加到关注清单中

off-white RAL 9002
190x138x70mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中
A9180001 Front panel 220

A9180001

Front panel 220 Front panel for DESK CASE 220.

Supply 1 front panel (screws supplied with case)

A9180001

Front panel 220
产品已添加到关注清单中

matt anodised
205.5x129.4x1.5mm
A9184001 Front panel

A9184001

Front panel Front panel for COMBI DESK CASE F/H. Front panel for attachment for COMBI DESK CASE H separate accessories (A9185001).

Supply 1 front panel (screws supplied with case)

A9184001

Front panel
产品已添加到关注清单中

matt anodised
200x130x1.5mm
A9185001 Front panel

A9185001

Front panel Front panel for attachment for COMBI DESK CASE H.

Supply 1 front panel (screws supplied with case)

A9185001

Front panel
产品已添加到关注清单中

matt anodised
200x35x1.5mm

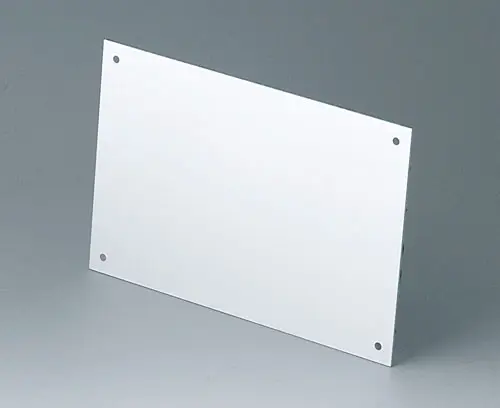

A9186001 Front panel 190 F/H

A9186001

Front panel 190 F/H Front panel for DESK CASE 190 F and H.

Supply 1 front panel (screws supplied with case)

A9186001

Front panel 190 F/H
产品已添加到关注清单中

matt anodised
161.5x106x1.5mm
A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9210290

Anti-slide feet 9.5 x 3.8 mm
产品已添加到关注清单中
transparent
B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

B1350048

Wall suspension elements
产品已添加到关注清单中

pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

B1360048

Wall suspension elements
产品已添加到关注清单中

pebble grey RAL 7032

产品类型用于 Desk Cases 桌式机盒

如何体现您的特殊产品？ 如有需要，我们执行所有必要的修改和精加工，提供组装完毕的机盒。
