A9186001

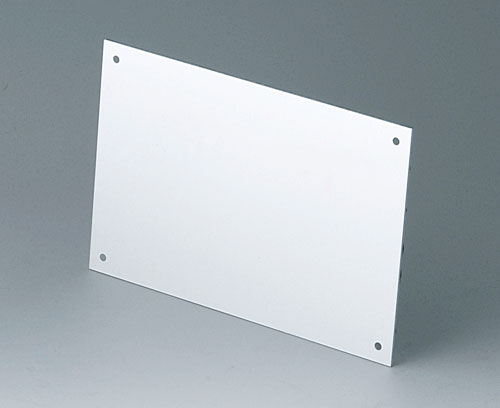

Front panel 190 F/H

Front panel for DESK CASE 190 F and H.

Supply

1 front panel (screws supplied with case)

请制作 PDF 数据表用于 A9186001

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

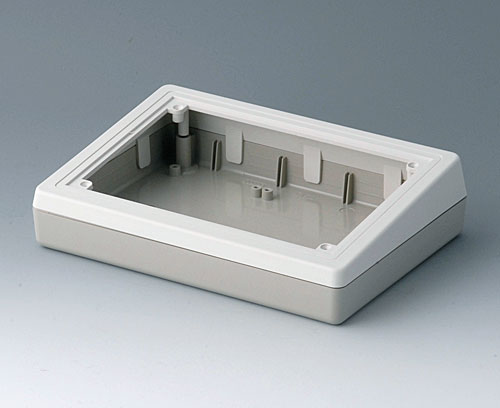

A9086265 DESK CASE 190 F

A9086265

DESK CASE 190 F Two-part case with sloped operation area recessed 1.5 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version Top prepared for front panel mounting, flat base part

Supply 1 top and base part, assembly kit

A9086265

DESK CASE 190 F
产品已添加到关注清单中

pebble grey RAL 7032
190x138x47mm

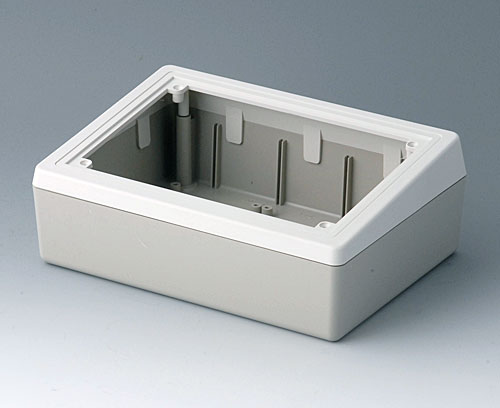

A9086365 DESK CASE 190 H

A9086365

DESK CASE 190 H Two-part case with sloped operation area recessed 1.5 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version Top for front panel mounting, higher base part

Supply 1 top and base part, assembly kit

A9086365

DESK CASE 190 H
产品已添加到关注清单中

off-white RAL 9002
190x138x70mm

Customising options for A9186001

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
matt anodised
标准根据
RoHS compliant
REACH compliant
宽度
161.5 mm
深度
106 mm
高度
1.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
70 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A9186001请务必索取报价！
