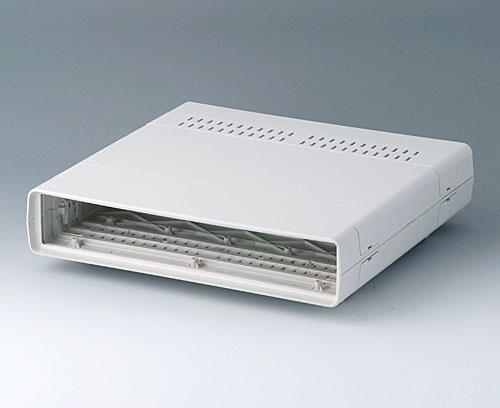

A0214170 EURO CASE 42 TE, without handle

A0214170

EURO CASE 42 TE, without handle

Modular construction without screws. Fixing support in the shells and side panels.

Supply

2 shells, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each

  • 适配系统部件
  • 按客户要求修改加工

需加附件使产品完整

A0314270 Front / rear panel 42 TE 1 HE

A0314270

Front / rear panel 42 TE 1 HE Front/rear panel for case 42 TE 1 HE.

Supply 1 front panel

关闭

A0314270

Front / rear panel 42 TE 1 HE
产品已添加到关注清单中
Aluminium
matt anodised
250.8x46.3x2mm

“螺钉” 附件

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
产品已添加到关注清单中
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0308132

Self-tapping screw 3 x 8 mm (T10)
产品已添加到关注清单中
Stainless steel

附件

A0350007 Tilt foot

A0350007

Tilt foot The tilt foot is used for canting the unit. It can be locked into the case bottom and is retractable.

Supply 1 tilt foot

关闭

A0350007

Tilt foot
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002

Customising options for A0214170

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
off-white RAL 9002
Width
260 mm
Depth
250 mm
Height
54 mm
电路板长度,下盒
243 mm
电路板宽度,下盒
220 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
827 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
